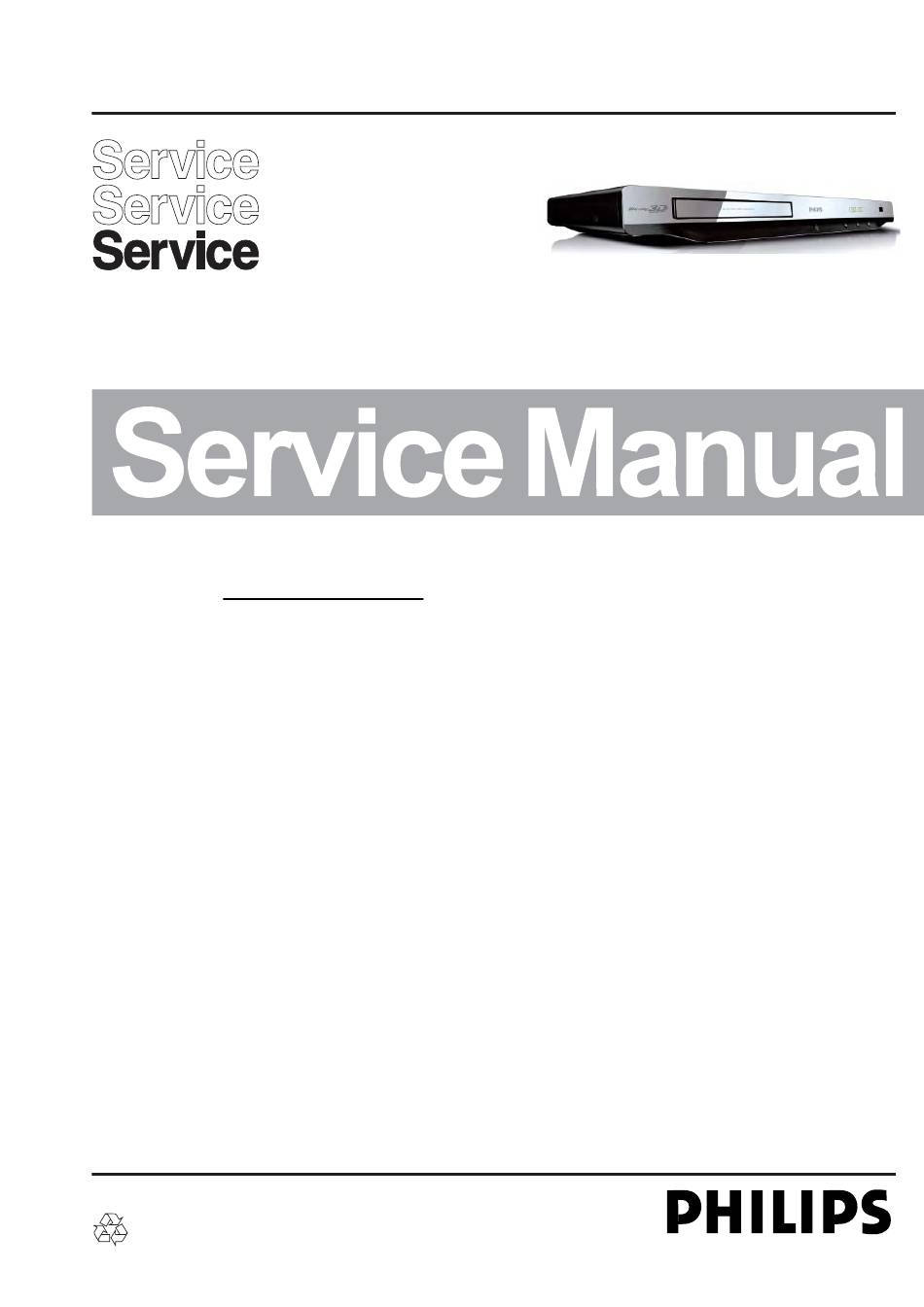

Philips BDP5406 Service Manual
Hide thumbs Also See for BDP5406:

Advertisement

Quick Links

Blu-ray Disc Player
TABLE OF CONTENTS
Technical Specification, PCBs Location....................... 1
Safety Instruction ...................................................... 2
Instruction for Use...................................................... 3
Mechanical and Dismantling Instructions...................... 4
Service Modes, Troubleshooting.................................. 5
Overall Block Diagram, Wiring Diagram......................... 6
Electrical Diagram...................................................... 7
Exploded View Diagram & Service Part List....................8
Revision List............................................................. 9
©
Copyright 2011 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without
the prior permission of Philips.
Published BG AVM Printed in The Netherlands
Version 1.0
Version 0.0
Subject to modification
BDP5406
/F7
Chapter
3141 785 36930

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDP5406 and is the answer not in the manual?

Questions and answers

Summary of Contents for Philips BDP5406

  • Page 1 Revision List……………………………………………………. 9 © Copyright 2011 Philips Consumer Electronics B.V. Eindhoven, The Netherlands All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.
  • Page 2: Specifications

    Accessories supplied - Remote control and batteries - User manual Optional accessory A wireless Philips USB adapter(named WUB1110, sold separately) Multimedia connections: Wi-Fi 802.11b/g/n Connectivity: Rear connection (USB), Ambient temperature: 5 deg C to 40 deg C. Dongle dimensions (W x H x D): 28.4 x 82 x 13.4 mm...
  • Page 3: Main Board

    1.1 PCBs Location PSU PCBA MAIN BOARD LED DISPLAY PCBA VERSION VARIATIONS Type/Versions: BDP5406 Service policy Board in used: MAIN BOARD PSU PCBA LED DISPLAY PCBA *TIPS: C -- Component Lever Repair. M -- Module Lever Repair X -- OCX...
  • Page 4 6) Restart the set. B) Update software via USB Flash Drive: 1) Go to www.philips.com/support to check if the latest software version is available for this player. 2) Download the software onto a USB flash drive' s root DIR named "UPG_ A L L " .
  • Page 5: Safety Instruction

    2.0 Safety instruction 1. General safety 2. Laser safety Safety regulations require that during a repair: This unit employs a laser. Only qualified service . Connect the unit to the mains via an isolation personnel transformer. May remove the cover, or attempt to service this .
  • Page 6 3.0 Instruction for Use You can download this information from the following websites: http://www.philips.com/support http://www.p4c.philips.com...
  • Page 7: Mechanical And Dismantling Instructions

    4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS The following guidelines show how to dismantle the player. Step1: Remove 3 screws around the Top Cover, and then remove the Top Cover Step2: Dismantling Front Panel,the CD door should be removed first, then gently pull the Panel out from the set. use an acuate press the reset hole to release the disc tray;...
  • Page 8: Troubleshooting Chart

    Trouble shooting chart No display on VFD, and buttons do not work No display on VFD, and buttons do not work Check every supply voltage on main board is Refer to Power supply board part normal Check +5V,+12V,-24V Fix the connection J3 on front board voltage on the power and front board and CN4 on power board...
  • Page 9: No Audio Output

    Trouble shooting chart No audio output No audio output Check whether the audio Check the U1 power supply signal right from (U1.1= +3.3V and U1.11= +5V) U1 ' s pin 8, 9 Replace the U1 Check whether bad solder Correct connection exists on pins of J7 Replace the J7...
  • Page 10: Remote Control Does Not Work

    Trouble shooting chart Remote control does not work Remote control does not work Check whether the remote Replace the battery for remote controller’s battery controller exhausted or not. Check the Power supply board part Check the IR1 power supply is OK Check the connection J2 on front board Fix the connection and J502 on main board is broken...
  • Page 11 Trouble shooting chart Can’t read disc or can’t open the disk door Can’t read disc or can’t open the disk door Check whether Check the connection of the 9PIN cable DVD loader running is from CN3 on the Power Board. normal Check 40pin and 8pin cable Fix the connection...
  • Page 12 Trouble shooting chart No VFD display No VFD display Check whether the voltage Fix the connection power board +5V _ S TB on the front board is CN4 and front board J3 normal Check whether the voltage between VFD' s F1 and F2 Check DC5V to AC2.5V switch circuit is about AC2.5V Check whether the voltage...
  • Page 13: Overall Block Diagram

    OVERALL BLOCK DIAGRAM DLAN DRV632 +5V(FROM PSU) CRYSTAL 27MHz BL1117-ADJ 3.3VSTBY Laser Diode Driver BD7175FS DDR3 FP9012 3.3V SDRAM 384M MOTOR MT8560-BAAG DRIVER G5725ADJT11U 1.5V 128M+256M R2A30209SP AT1526P11U 1.2V NAND COLLIMATOR FLASH DRIVER 128M AM2158 POWER PCB&DISPLAY PCB POWER Wifi module SM1628C DRIVER VFD Driver...
  • Page 14 CIRCUIT DIAGRAM-DVD Main Board VCC&12V SWITCH? VCC_1 R1388 0R/0805 put FB6 nearby Motor Driver Q8 2307/NC Motor VCC_1 BLM18P Driver MVCC_R ASD/L_0805 C198 Sensorless C236 C184 0.1uF/16V/X7R REIC_TR+ REIC_TR+ SOT23/SMD C235 10uF/16V/X5R 0.1uF/16V/X7R C0402/SMD REIC_TR- REIC_TR- 10uF/16V/X5R C0402/SMD REIC_FO+ REIC_FO+ 20100513--ASD KUANG REIC_DMO REIC_FO-...
  • Page 15 CIRCUIT DIAGRAM-DVD Main Board Reserve test point on top layer FE RS232 Port 3.3V TRINA TRINA TRINB TRINB TRINC TRINC R149 33 URXD C140 TRIND TRIND R150 33 UTXD 0.1uF/16V/X7R NC14 C141 MPXOUT1 MPXOUT1 4.7uF/10V/X5R MPXOUT2 MPXOUT2 MPXOUT3 MPXOUT3 Wafer_2.0_4 FMO3 FMO3 AVDD12_1...
  • Page 16 CIRCUIT DIAGRAM-DVD Main Board ROUT1 LOUT1 ROUT1 LOUT1 0.001uF/50V/X7R 20100520--ASD 0.001uF/50V/X7R 20100428--ASD KUANG KUANG 20100520--ASD KUANG 19.1K/1% AR_OUT AL_OUT 19.1K/1% 10uF/16V/X5R 10uF/16V/X5R 20100513--ASD KUANG 20100513--ASD 39pF/50V/NPO 39pF/50V/NPO KUANG U1009 390pF/50V/NPO 390pF/50V/NPO +INR +INL -INR -INL OUTR OUTL 3.3V DRV632_UVP SGND 6.2K 20100520--ASD MUTE#...
  • Page 17 CIRCUIT DIAGRAM-DVD Main Board 3.3V 3.3V_STBY NC12 GPIO0 20110428---ASD KUANG DVCC33_IO_STB GPIO0 TP58 DVCC33_IO_STB GPIO1 TP59 DVCC33_IO_STB GPIO1 3.3V_STBY NC PAD 0402 C122 0.1uF/16V/X7R UARXD UARXD 3.3V_STBY UATXD UATXD 3.3V_STBY NC13 VSTB 10K/NC TRST# 33STB1 VSTB AVDD33_LDO VDATA VOUTD3 AVDD33_LDO VDATA 33STB5 VCLK...
  • Page 18 USB_EN1# FB410 100K/NC set L; -------2011.03.08CORTEK BLM18P USB differential impedance 90 OHM TXVP_0 TXVP_0 C435 L859 0.1uF/6.3V According to the Philips' software to ASD/L_0805 close to pin3 TXVN_0 TXVN_0 TXVN_0 redefine these I/O ports R428 10K/NC GPIO5 CB403 100uF/10V TXVP_1...
  • Page 19 CIRCUIT DIAGRAM-DVD Main Board AVDD33_VDAC 3.3V AVDD33_VDAC AOLRCK_R AOLRCK TP61 0.1uF/16V/X7R AOSDATA0_R CH2_P F_TX2+ TP30 AOSDATA0 AOSDATA1_R TP32 AVSS33_VDAC AOSDATA1 AOSDATA2_R CH2_M F_TX2- AOSDATA2 AOSDATA2_R AOSDATA3_R AOSDATA2_R TP33 AOSDATA3 AOSDATA2_R [7] AOSDATA4_R TP29 AOSDATA4 AVDD33_VDAC_R F_TX1- 3.3V AVDD33_VDAC_R 20100513--ASD CH1_P KUANG 0.1uF/16V/X7R SPDIF...
  • Page 20 CIRCUIT DIAGRAM-DVD Main Board 1.2V 1.2V 1.2V DVCC12_K DVCC12_K AC12 RDQ0_B RDQ3_B RA0_B 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 0.1uF/16V/X7R 22uF/6.3V/X5R DVCC12_K RDQ0_B AC13 RDQ1_B RDQ7_B RA1_B DVCC12_K RDQ1_B RDQ2_B RDQ2_B RA2_B AD13 DVCC12_K RDQ2_B AE13 RDQ3_B RDQ6_B RA3_B DVCC12_K RDQ3_B RDQ4_B RDQ0_B RA4_B...
  • Page 21 CIRCUIT DIAGRAM-DVD Main Board 1.5V 1.5V 0.1uF/16V/X7R 0.1uF/16V/X7R 4.7uF/10V/X5R 0.1uF/16V/X7R 0.1uF/16V/X7R RDQ2 RDQ10 DDRVCCIO RDQ0 RDQ6 RDQ12 DDRVCCIO RDQ0 RDQ1 RDQ3 RDQ7 DDRVCCIO RDQ1 RDQ2 RDQ4 RDQ2 DDRVCCIO RDQ2 1.5V RDQ3 RDQ0 DDRVCCIO RDQ3 RDQ4 RDQ7 RDQS1 DDRVCCIO RDQ4 RDQ5 RDQ1 RDQS1_ DDRVCCIO...
  • Page 22 CIRCUIT DIAGRAM-DVD Main Board MT8551 DDR3 Demo 1 1.5V NC PAD 0603 G5725ADJT11U NC19 FB100M/600R/0603 2.2uH/1.5A 15K/1% DC_EN NC20 NC PAD 0603 220uF/6.3V USB_VCC0 USB_VCC0 USBM0 C288 USBM1 USBP0 10uF/10V/X5R USBP1 10K/1% POWER_KEY POWER_KEY N54030120 N54030120 N54030104 N54030104 N54030095 N54030095 N54030108 VCC2 22uF/10V/X5R/NC...
  • Page 23 7-10 CIRCUIT DIAGRAM-PSU Board PCY2 2.2nF PT1 EE19 1N4007 1N4007 68K/1W/5% PL1 10uH/1A PR6 10R + PC1 1nF/1KV/2.2nF +12V 100uF/250V 100uF/250V for BDP3406 SR2100 33uF/400V for BDP200M2 PR28 + PC10 1N4007 1N4007 100R/5% 6.8K + PC9 220uF/25V SR260 470uF/25V PTR1 PL2 10uH/3A SCK102 SR260...
  • Page 24 7-11 CIRCUIT DIAGRAM-LED Board CON2 6x1 W/HOUSING SDX-138YGB-15 16PA-2.0MM...
  • Page 25 7-12 PSU PCB - TOP...
  • Page 26 7-13 Front PCB - BOTTOM...
  • Page 27 7-14 Main PCB - TOP...
  • Page 28: Main Pcb - Bottom

    7-15 Main PCB - Bottom...
  • Page 29 7-16 LED PCB - TOP...
  • Page 30 7-17 LED PCB - BOTTOM...
  • Page 31: Exploded View Diagram

    8.0 Exploded View Diagram...
  • Page 32: Revision List

    9.0 REVISION LIST Version 1.0 Initial release...
