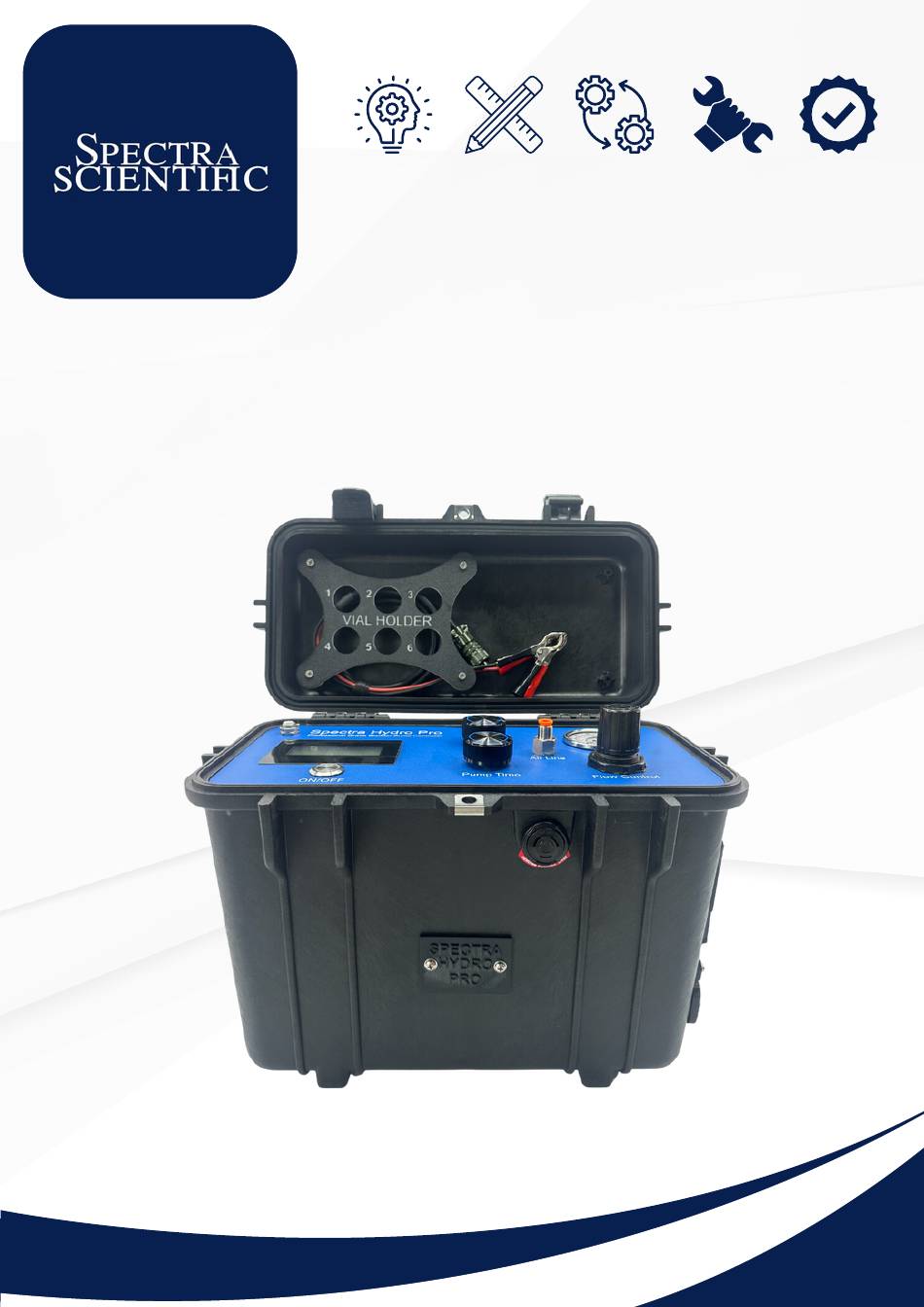

Spectra Hydro Pro Controller
Professional Grade Bladder Pump Controller
Operation Manual
6315 Shawson Drive Unit #8, Mississauga, Ontario, Canada L5T-1J2.
+1-877-480-0024
1
1
info@spectrascientific.com
Professional Grade Groundwater
Professional Grade Groundwater Instrumentation
Sampling Instrumentation
Advertisement
Table of Contents
Summary of Contents for Spectra Hydro Pro
- Page 1 Innovation Design Engineering Services Quality www.spectrascientific.com Spectra Hydro Pro Controller Professional Grade Bladder Pump Controller Operation Manual 6315 Shawson Drive Unit #8, Mississauga, Ontario, Canada L5T-1J2. +1-877-480-0024 info@spectrascientific.com Professional Grade Groundwater Professional Grade Groundwater Instrumentation Sampling Instrumentation...
-
Page 2: Table Of Contents
Table of Contents Safety Warnings............3 Important Notice............3 Spectra Hydro Pro Panel Design........4 Spectra Hydro Pro Basic Sampling Setup......5 Spectra Hydro Pro Advanced Sampling Setup....6 Spectra Hydro Pro LCD Display Diagram.......7 Definition of Terms.............7 System Specification..........8 Product Introduction..........9 Introduction..........9 Functional Design Theory........9 Fill Cycle............9... -
Page 3: Safety Warnings
Do not exceed the recommended voltage range for the controller. Overvoltage can cause severe damage to the device and the equipment it controls. Failure to adhere to these guidelines may result in damage to the Spectra Hydro Pro Controller and the equipment it controls, as well as potential harm to individuals nearby. -
Page 4: Spectra Hydro Pro Panel Design
Spectra Hydro Pro Panel Design Professional Grade Groundwater Sampling Instrumentation... -
Page 5: Spectra Hydro Pro Basic Sampling Setup
Spectra Hydro Pro Basic Sampling Setup Professional Grade Groundwater Sampling Instrumentation... -
Page 6: Spectra Hydro Pro Advanced Sampling Setup
Spectra Hydro Pro Advanced Sampling Setup Professional Grade Groundwater Sampling Instrumentation... -
Page 7: Spectra Hydro Pro Lcd Display Diagram
Spectra Hydro Pro LCD Display Diagram Definition of Terms Run Time (Run Tm): This refers to the TOTAL time the controller has been ON, displayed in minutes. Refill Time (Refill Time): This refers to the Refill Time, with a set time between 1 – 60 seconds. -
Page 8: System Specification
System Specifications Specification Performance Operating Temperature -20°C – 50°C (-4°F Fully epoxied board, Internal ventilation via Fan and Exhaust. Humidity Response No Issues running during 100% humidity condition. Dimensions 39 x 35 x 20 cm (LWH) Weight 16 lbs Case Material Structural Resin Display... -
Page 9: Product Introduction
With the Spectra Hydro Pro, you can trust that you are getting the most advanced and reliable bladder pump controller available on the market. -
Page 10: System Operation
Air & Water Tubing Lines Optional – Well Cap The first thing one should do when setting up the Spectra Bladder Pump is to set up their system. This involves connecting the Pump to the Controller via the Air Line. The Water (Discharge) Line should be either connected to a flow cell or a discharge bucket depending on the type of sampling being conducted. -
Page 11: Setting Up Pump Times
System Troubleshooting The Spectra Hydro Pro is designed to provide long-lasting service to the end user. The optimal function of the Controller is directly linked to a fully charged battery. If one finds issues with the unit flickering ON and OFF, check to ensure that the connections to the Battery via Alligator Clips are firm. -
Page 12: Fill/Pump Time Set Up Chart
Hydro by unscrewing the 4 securing screws and directly reset the board via the reset button. If the problem persists, contact Spectra Scientific or your local distributor directly for next steps. Fill/Pump Time Set Up Chart The following chart represents a recommended setup of Fill and Pump Times to achieve desired flow rates at specified depths.
