Skanti VHF 1000 Series Workshop Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SKANTI
VHF 1000
Series
VHF 1000 DSC
VHF 1000 P DSC
VHF 1000 P

Advertisement

loading
Need help?

Need help?

Do you have a question about the VHF 1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Skanti VHF 1000 Series

Summary of Contents for Skanti VHF 1000 Series

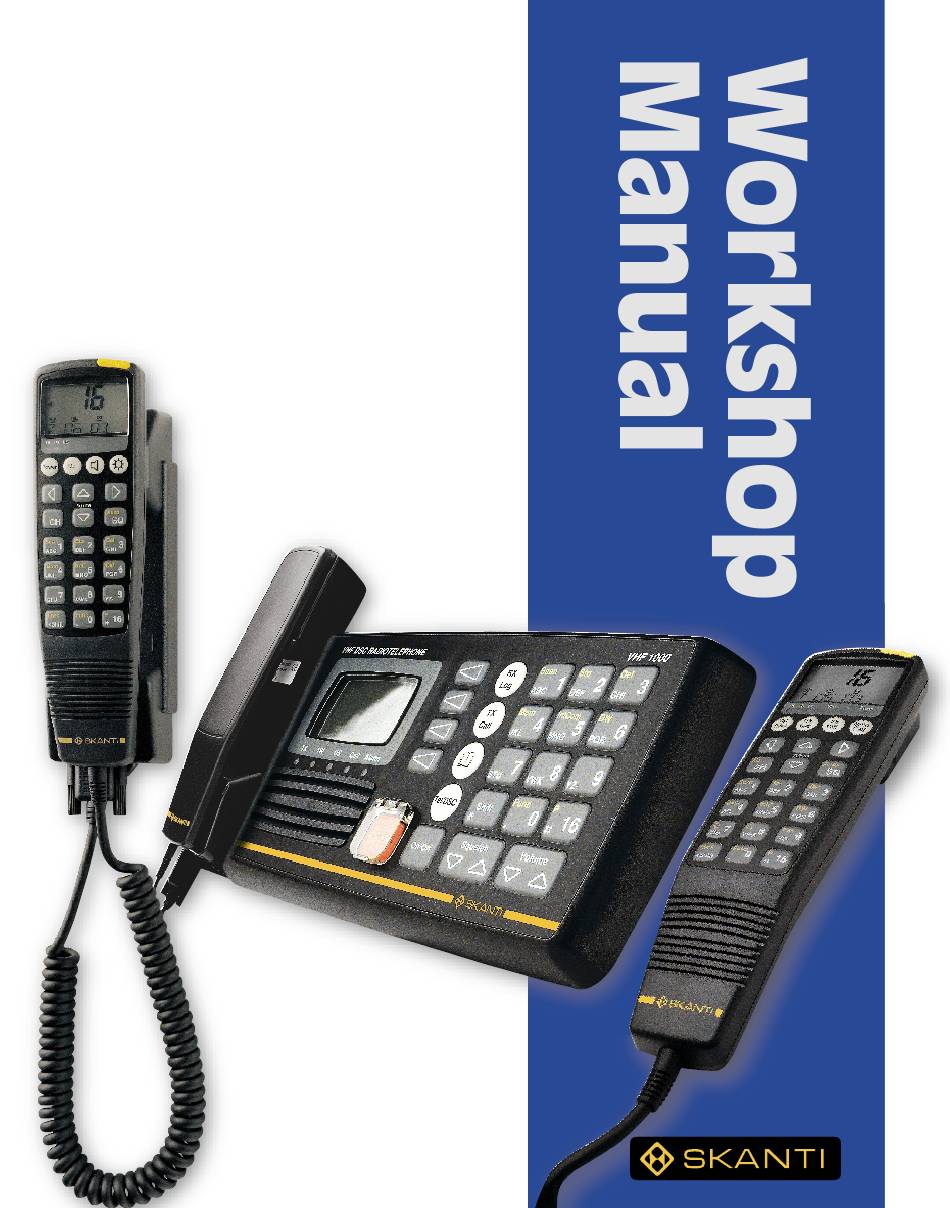

  • Page 1 SKANTI VHF 1000 Series VHF 1000 DSC VHF 1000 P DSC VHF 1000 P...
  • Page 2 VHF 1000 / VHF 1100 Contents PART 1 Handset control units VHF 1000 P / VHF 1000 P DSC PART 2 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC PART 3 Service PART 4 Accessories...
  • Page 3 VHF 1000 / VHF 1100 PART 1 Handset control units VHF 1000 P / VHF 1000 P DSC Contents General information, CU description ..................1 Manuals ............................2 Service ............................3 Mechanical description ....................... 4 Circuit description and schematic diagrams ................6 Hook connection 632262 .......................
  • Page 5 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC General information, CU description In the VHF 1000 programme, there are two handsets for remote operation: Handset for VHF telephony CU 1000 P - is a basic VHF handset with no DSC option. This handset is part of the VHF 1000 P system. It can be connected to the other systems of the VHF 1000 programme performing VHF voice communication.
  • Page 6 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC Manuals Installation Manual CU 1000 P / P DSC Operator's Manual VHF 1000 P Pleasure VHF Operator's Manual VHF 1000 P DSC Pleasure VHF with built-in DSC...
  • Page 7 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC Service Please refer to part 3 of this manual: “Service”.
  • Page 8 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC Mechanical description Mechanical parts lists NAME PART NO. Upper part assembly for handset VHF 1000 P 733848 Upper part assembly for handset VHF 1000 P DSC 733849 Keyboard buttons VHF 1000 P 48.774 Keyboard buttons VHF 1000 P DSC...
  • Page 9 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC Mechanical parts lists NAME PART NO. Light guide for hook 48.759 Distress cover 48.771 Bottom plate for hook 48.801 Hook connection 32262 632262 Exploded view Hook connection Remove 2 screws 35907...
  • Page 10 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC Circuit description and schematic diagrams Block diagram for handset control unit includig hook: Printed circuit boards 32263/32267 and 32262. HxC Unit block diagram 632263 or 632267 Earpiece AF amplifier display...
  • Page 11 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC A handset unit contains two printed circuit boards: A board placed inside the handset (shown in the HXC unit block diagram above), and a board placed in the hook (shown in the HXC hook block diagram above). The handset hook board functions as an interface board between the handset extended SPARC-bus interface and the SPARC-bus interface.
  • Page 12 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC Indicator LEDs and keyboard backlight The HxC unit has 3-5 indicator LEDs, placed right below the LCD display, to inform the user of the current operation state.
  • Page 13 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC +5V: This voltage is used to feed the circuits generating audio and light. The supply is only active if any light or audio is turned on. The supply can be switched on/off by the transistor V15, which is controlled by the microprocessor port P2_5, p16 signal ON/OFF_FET.
  • Page 14 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC Microphone amplifier (& noise canceller) N11-A amplifies/filters the signal from the microphone unit to the level used at the SPARC-bus AF lines. P1_0, p77: logic level; sets N8C switch P1_2, p79: logic level;...
  • Page 15 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC DISTRESS button backlight: Driven from the handset, V1 and V2 function as backlight for the DISTRESS button. DISTRESS button and FORCE25W button: S2 functions as DISTRESS button, setting a specific voltage level at X2 pin 11 when pressed. S3 functions as FORCE25W button, setting a specific voltage level at X2 pin 11 when pressed.
  • Page 16 Handset control units CU 1000 P / CU 1000 P DSC VHF 1000 / VHF 1100 Hook connection 632262 Component location Hook connection 632262 Seen from primary side with primary side tracks. Seen from primary side with secondary side tracks. PCB rev.
  • Page 17 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC Hook connection 632262 This diagram is valid for PCB rev. 32262C...
  • Page 18 Handset control units CU 1000 P / CU 1000 P DSC VHF 1000 / VHF 1100 HxC AF & MMI unit 632267 Component location HxC AF & MMI unit 632267 Seen from primary side with primary side tracks. PCB rev. 32267B...
  • Page 19 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC Component location HxC AF & MMI unit 632267 Seen from secondary side with secondary side tracks. PCB rev. 32267B...
  • Page 20 Handset control units CU 1000 P / CU 1000 P DSC VHF 1000 / VHF 1100 HxC AF & MMI unit 632267 This diagram is valid for PCB rev. 32267B 0018...
  • Page 21 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC HxC AF & MMI unit 632267 This diagram is valid for PCB rev. 32267B 0018...
  • Page 22 Handset control units CU 1000 P / CU 1000 P DSC VHF 1000 / VHF 1100 HxC AF & MMI unit 632267 This diagram is valid for PCB rev. 32267B 0018...
  • Page 23 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC HxC AF & MMI unit 632267 This diagram is valid for PCB rev. 32267B 0018...
  • Page 24 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC...
  • Page 25 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC Parts lists HOOK CONNECTION 32262 ECI A/S 5-x-32262C / 4-0-32262B 632262 POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RESISTOR MF 120 OHM 5% 0.33W PHILIPS 2322 187 73121 02.450 RESISTOR MF 560 OHM 5% 0.33W...
  • Page 26 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. HxC AF & MMI UNIT 32267 ECI A/S 5-x-32267B / 4-0-32267C 632267 POSITION DESCRIPTION MANUFACTURER TYPE PART NO. CAPACITOR ELECTROLYTIC SMD 10uF 20% 16VDC EUROPE CHEMICON Al-Chip-MKV 16V/10 M 333.079...
  • Page 27 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. CAPACITOR CERAM. SMD 0805 1n0F 10% X7R 50VDC MURATA GRM40 X7R 102 K 50 PT 328.324 CAPACITOR CERAM. SMD 0805 1n0F 10% X7R 50VDC MURATA GRM40 X7R 102 K 50 PT 328.324...
  • Page 28 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RESISTOR SMD 0805 3k83 OHM 1% 50mW PHILIPS 2322 734 2/63832 302.426 RESISTOR SMD 0805 47 OHM 5% 0.1W ROHM MCR 10 EZH J 47R 302.032...
  • Page 29 VHF 1000 / VHF 1100 Handset control units CU 1000 P / CU 1000 P DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. PUSHBUTTON SWITCH 1 MAKE PCB VERSION 5.2x5.2x1.5mm ALPS SKQGAB 373.021 PUSHBUTTON SWITCH 1 MAKE PCB VERSION 5.2x5.2x1.5mm ALPS SKQGAB 373.021 PUSHBUTTON SWITCH 1 MAKE PCB VERSION 5.2x5.2x1.5mm...
  • Page 31 VHF 1000 / VHF 1100 PART 2 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Contents General information: Transceiver and SCC unit description ..........1 TU 1000 P & TU 1000 P DSC ......................2 Manuals ............................
  • Page 33 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC General information: Transceiver and SCC unit description The VHF 1000 programme consists of the following VHF transceivers: Black box transceiver for VHF telephony - is a basic VHF without DSC made for use in the A1 naval areas.
  • Page 34 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC TU 1000 P & TU 1000 P DSC Manuals Installation Manual TU 1000 P / TU 1000 P DSC Please refer to the Operator's and Installation Manuals (Part 1, chapter 2)
  • Page 35 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Service Please refer to part 3 of this manual: “Service”.
  • Page 36 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Mechanical description Mechanical parts lists NAME PART NO. Cover for proc. 230462 Cover for shield 235507 (TU 1000 P) Cover for shield 233564 (TU 1000 P DSC) Cover for shield...
  • Page 37 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Exploded view TU 1000 P / TU 1000 P DSC Remove 4 screws 35864...
  • Page 38 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Block diagram & circuit description Please refer to chapter 4: Circuit description and schematic diagrams...
  • Page 39 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 DSC & VHF 1100 DSC Professional VHF with built-in DSC 0018...
  • Page 40 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Manuals Installation Manual VHF 1000 DSC Professional VHF with built-in DSC Operator's Manual VHF 1000 DSC Professional VHF with built-in DSC Installation Manual VHF 1100 DSC Professional VHF with built-in DSC Operator's Manual VHF 1100 DSC Professional VHF with built-in DSC 0018...
  • Page 41 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Service Please refer to part 3 of this manual: “Service”.
  • Page 42 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Mechanical description Mechanical parts lists VHF 1000 DSC NAME PART NO. Cover 230553xx Cooling fin 59.046 Antenna jack (female) SO239 78.504 Chassis 59.047...
  • Page 43 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Exploded view VHF 1000 DSC...
  • Page 44 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC 0018...
  • Page 45 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Mechanical parts lists Duplex VHF 1100 DSC NAME PART NO. Cover 23055290 Cooling fin 59.046 Antenna jack (female) SO239 78.504 Chassis 59.047...
  • Page 46 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Exploded view Duplex VHF 1100 DSC Remove 2 screws Remove 4 screws 4-0-37446 0018...
  • Page 47 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Seen from buttom 4-0-37447 0018...
  • Page 48 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Mechanical parts lists NAME PART NO. Handset upper part 48.807 Spiral cable 56.117 Handset lower part 49.043 Handset unit 32264 632264 Transducer dynamic 150ohm...
  • Page 49 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Circuit description and schematic diagrams Block diagrams and circuit description of transceiver unit 1 antenna Transceiver Unit Receiver UNIT 1 SPARC-BUS 632252...
  • Page 50 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC AF and processor unit 63225001/02 RTU AF & Processor module 63225001 amplifier Rx AF signal switch Receiver AF power SPARCBUS 632252...
  • Page 51 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Microcontroller The microcontroller (D13) is a Hitachi H8323 with 32K ROM and ½K RAM driven by a 7.3728MHz crystal. In 63225001 the on-chip ROM is used.
  • Page 52 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 / VHF 1100 Component location AF and processor unit 63225001/02 Seen from primary side with primary side tracks. PCB rev. 32250J 0018...
  • Page 53 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Component location AF and processor unit 63225001/02 Seen from primary side with secondary side tracks. PCB rev. 32250J 0018...
  • Page 54 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 / VHF 1100 AF and processor unit 63225001/02 This diagram is valid for PCB rev. 32250J 0018...
  • Page 55 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC AF and processor unit 63225001/02 This diagram is valid for PCB rev. 32250J 0018...
  • Page 56 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 / VHF 1100 AF and processor unit 63225001/02 This diagram is valid for PCB rev. 32250J 0018...
  • Page 57 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Transmitter unit 632251/636281 Duplexer RTU Transmitter Unit 632251 Filter PA_Check, Ant_Det An_Lev_2 Temp. Analog An_Lev_1 detector sense amp. multiplexer Rx inp.
  • Page 58 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Power driver This part of the transmitter chain consists of two amplifier stages. The first stage of amplification is accomplished by a common emitter buffer, V15.
  • Page 59 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Component location Transmitter unit 632251 Seen from primary side with primary side tracks. PCB rev. 32251J 0018...
  • Page 60 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 / VHF 1100 Component location Transmitter unit 632251 Seen from secondary side with secondary side tracks. PCB rev. 32251J 0018...
  • Page 61 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Transmitter unit 632251 This diagram is valid for PCB rev. 32251J 0018...
  • Page 62 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 / VHF 1100 Transmitter unit 632251 This diagram is valid for PCB rev. 32251J 0018...
  • Page 63 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Transmitter unit 632251 This diagram is valid for PCB rev. 32251J 0018...
  • Page 64 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 / VHF 1100 Transmitter unit 632251 This diagram is valid for PCB rev. 32251J 0018...
  • Page 65 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Component location Transmitter unit 636281 Seen from primary side with primary side tracks. PCB rev. 36281B 0018...
  • Page 66 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 / VHF 1100 Component location Transmitter unit 636281 Seen from secondary side with secondary side tracks. PCB rev. 36281B 0018...
  • Page 67 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Transmitter unit 636281 This diagram is valid for PCB rev. 36281B 0018...
  • Page 68 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 / VHF 1100 Transmitter unit 636281 This diagram is valid for PCB rev. 36281B 0018...
  • Page 69 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Transmitter unit 636281 This diagram is valid for PCB rev. 36281B 0018...
  • Page 70 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 / VHF 1100 Transmitter unit 636281 This diagram is valid for PCB rev. 36281B 0018...
  • Page 71 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Receiver unit 632252 Receiver 632252 To DSC Rx Band-pas Band-pas First First RX ANT filter amplifier filter mixer IF filter Loop buffer...
  • Page 72 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC IF amplifier The transistor V7 amplifies the 45MHz output signal from the crystal filter to the second mixer, which has a tuned drain circuit consisting of L17, C70 and C74.
  • Page 73 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Component location Receiver unit 632252 Seen from primary side with primary side tracks. Seen from secondary side with secondary side tracks. PCB rev.
  • Page 74 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 / VHF 1100 Receiver unit 632252 This diagram is valid for PCB rev. 32252H 0018...
  • Page 75 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Receiver unit 632252 This diagram is valid for PCB rev. 32252H 0018...
  • Page 76 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 / VHF 1100 Receiver unit 632252 This diagram is valid for PCB rev. 32252H 0018...
  • Page 77 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Duplex filter NB! This chapter is relevant to duplex transceiver versions only. In the duplex radio, VHF 1100 DSC, there is a duplex filter which allows it to operate in full duplex mode with only one antenna installed (plus 1 for DSC) The duplex filter consists of 6 cavities, three in both the RX and TX section.
  • Page 78 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Interface unit 632253 Power supply +5V, +8V, and +12V are applied from the transceiver unit 632250. Negative supply for the contrast voltage to the display is generated by the circuit around N1-D including temperature compensation.
  • Page 79 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Component location Interface unit 632253 Seen from primary side with primary side tracks. PCB rev. 32253F 0018...
  • Page 80 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 / VHF 1100 Component location Interface unit 632253 Seen from secondary side with secondary side tracks. PCB rev. 32253F 0018...
  • Page 81 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Interface unit 632253 This diagram is valid for PCB rev. 32253F 0018...
  • Page 82 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC VHF 1000 / VHF 1100 Interface unit 632253 This diagram is valid for PCB rev. 32253F 0018...
  • Page 83 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Indicator unit 632255 The indicator diodes are made by means of V1-V4 (TX, 1W, LOCAL, CALL, ALARM) LEDs. The light intensity in the diodes is controlled by means of signal LED_LIGHT.
  • Page 84 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Indicator unit 632255 This diagram is valid for PCB rev. 32255B 0018...
  • Page 85 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Keyboard unit 632256 The keyboard is made by means of the switches S1-S26. S1-S25 are set up in a matrix structure in which the Col_1-Col_4 are toggled in sequence. For each Column state the Rows (Row_0-Row_4) are then read by the microprocessor.
  • Page 86 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Component location Keyboard unit 632256 Seen from secondary side with seondary side tracks PCB rev. 32256B 0018...
  • Page 87 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Keyboard unit 632256 This diagram is valid for PCB rev. 32256B 0018...
  • Page 88 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Handset unit 632264 Component location handset unit 632264 Seen from primary side with primary side tracks. PCB rev. 32264C 0018...
  • Page 89 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Handset unit 632264 This diagram is valid for PCB rev. 32264C 0018...
  • Page 90 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Printer converter 632270 Component location printer converter 632270 Seen from primary side with primary side tracks. Seen from primary side with secondary side tracks. PCB rev.
  • Page 91 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Printer converter 632270 This diagram is valid for PCB rev. 32270A 0018...
  • Page 92 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC 4.10 Handset hook 634614 Component location handset hook 634614 Seen from primary side with primary side tracks. Seen from primary side with secondary side tracks.
  • Page 93 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Handset hook 634614 This diagram is valid for PCB rev. 34614B 0018...
  • Page 94 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC...
  • Page 95 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC Parts lists RTU AF & PROCESSOR 32250 Version 01 ECI A/S 5-x-32250J / 4-0-32250Q 63225001 POSITION DESCRIPTION MANUFACTURER TYPE PART NO.
  • Page 96 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. CAPACITOR CERAM. SMD 0805 1n0F 10% X7R 50VDC MURATA GRM40 X7R 102 K 50 PT 328.324 CAPACITOR CERAM.
  • Page 97 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. 8-BIT SHIFT REG. W.LATCH 74HC595 PHILIPS 74HC595D TAPE & REEL 355.296 QUAD 10BIT DAC SERIAL AD7804 ANALOG DEVICES AD7804BR(CR)R-16...
  • Page 98 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RESISTOR SMD 0805 100k OHM 5% 0.1W ROHM MCR 10 EZH J 104 302.072 RESISTOR SMD 0805 0 OHM 2A ROHM...
  • Page 99 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. R123 RESISTOR SMD 0805 220 OHM 5% 0.1W ROHM MCR 10 EZH J 221 302.040 R124 RESISTOR SMD 0805 220 OHM 5% 0.1W...
  • Page 100 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RTU AF & PROCESS0R 32250 Version 02 ECI A/S 5-x-32250J / 4-0-32250Q 63225002 POSITION DESCRIPTION...
  • Page 101 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. CAPACITOR CERAM. SMD 0805 1n0F 10% X7R 50VDC MURATA GRM40 X7R 102 K 50 PT 328.324 CAPACITOR CERAM.
  • Page 102 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. 8-BIT SHIFT REG. W.LATCH 74HC595 PHILIPS 74HC595D TAPE & REEL 355.296 QUAD 10BIT DAC SERIAL AD7804 ANALOG DEVICES AD7804BR(CR)R-16...
  • Page 103 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RESISTOR SMD 0805 100k OHM 5% 0.1W ROHM MCR 10 EZH J 104 302.072 RESISTOR SMD 0805 0 OHM 2A ROHM...
  • Page 104 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. R123 RESISTOR SMD 0805 220 OHM 5% 0.1W ROHM MCR 10 EZH J 221 302.040 R124 RESISTOR SMD 0805 220 OHM 5% 0.1W...
  • Page 105 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RTU Transmitter 32251 RT47xx & RT48xx ECI A/S 5-x-32251J / 4-0-32251L 632251 POSITION DESCRIPTION...
  • Page 106 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. CAPACITOR CERAM. SMD 0805 1n0F 10% X7R 50VDC MURATA GRM40 X7R 102 K 50 PT 328.324 CAPACITOR CERAM.
  • Page 107 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. COIL FIXED 46nH HiQ ø6.5 x 7.1mm ECI A/S 6-0-32853C 432853 COIL FIXED 32nH HiQ 6.5 x 5.0mm ECI A/S 6-0-32854C...
  • Page 108 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RESISTOR SMD 0805 22k OHM 5% 0.1W ROHM MCR 10 EZH J 223 302.064 RESISTOR SMD 0805 22k OHM 5% 0.1W ROHM...
  • Page 109 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. DIODE CAPACITANCE MA4ST09 5pF/20V MACOM MA4ST409 340.645 TRANS. AF SMALL SIGNAL NPN, BC848B MOTOROLA BC848BLT1 (T3) 345.048...
  • Page 110 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RTU RECEIVER 32252 RT47xx / RT48xx ECI A/S 5-x-32252H / 4-0-32252R 632252 POSITION DESCRIPTION...
  • Page 111 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. CAPACITOR CERAM. SMD 0805 10nF 10% X7R 50VDC PHILIPS 2222 580 16627 328.336 CAPACITOR CERAM.
  • Page 112 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RESISTOR SMD 0805 1k0 OHM 5% 0.1W ROHM MCR 10 EZH J 102 302.048 RESISTOR SMD 0805 680 OHM 5% 0.1W ROHM...
  • Page 113 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. JFET RF SMALL SIGNAL N-CH BF545A, SST5484 PHILIPS BF545A-215(235) ID: M65 347.005 DIODE DUAL SCHOTTKY BAT54S PHILIPS...
  • Page 114 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. INTERFACE 32253 RT472x / RT482x ECI A/S 5-x-32253F / 4-0-32253G 632253 POSITION DESCRIPTION MANUFACTURER...
  • Page 115 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. CAPACITOR CERAM. SMD 0805 1n0F 10% X7R 50VDC MURATA GRM40 X7R 102 K 50 PT 328.324 CAPACITOR CERAM.
  • Page 116 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RESISTOR SMD 0805 15k OHM 5% 0.1W ROHM MCR 10 EZH J 153 302.062 RESISTOR SMD 0805 10k OHM 5% 0.1W ROHM...
  • Page 117 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RESISTOR SMD 0805 22 OHM 5% 0.1W ROHM MCR 10 EZH J 22R 302.028 RESISTOR SMD 0805 47k OHM 5% 0.1W ROHM...
  • Page 118 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. SCC INDIKATOR 32255 RT47xx & RT48xx ECI A/S 5-x-32255B / 4-0-32255B 632255 POSITION DESCRIPTION...
  • Page 119 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. SCC KEYBOARD 32256 RT473x / RT483x ECI A/S 5-x-32256B / 4-0-32256E 632256 POSITION DESCRIPTION...
  • Page 120 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. LED SUB. MIN GREEN 4.2mCd/10mA H.P. HLMP-6505 OPTION 1S1 25.663 LED SUB. MIN YELLOW 0.4mCd/2mA H.P.
  • Page 121 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. HANDSET 32264 VHF4000 ECI A/S 5-x-32264C / 4-0-32264F 632264 POSITION DESCRIPTION MANUFACTURER TYPE PART NO.
  • Page 122 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. PRINTER CONV. 32270 VHF4000 RT4822 ECI A/S 5-x-32270A / 4-0-32270A 632270 POSITION DESCRIPTION MANUFACTURER...
  • Page 123 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. HANDSET HOOK 34614 ECI A/S 5-x-34614B / 4-0-34614B 634614 POSITION DESCRIPTION MANUFACTURER TYPE PART NO.
  • Page 124 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RTU Transmitter 36281 ECI A/S ECI A/S 5-x-36281A / 4-0-36281B 636281 POSITION DESCRIPTION MANUFACTURER...
  • Page 125 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. CAPACITOR CERAM. SMD 0805 10nF 10% X7R 50VDC MURATA GRM40 X7R 103 K 50 PT 328.336 CAPACITOR CERAM.
  • Page 126 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RELAY 12VDC SPDT 8A TAKAMISAWA JS-12-K 21.135 COIL FIXED 46nH HiQ ø6.5 x 7.1mm ECI A/S 6-0-32853C 432853...
  • Page 127 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. RESISTOR SMD 1206 10k OHM 5% 0.25W DRALORIC CR 1206 L 103 J G4 303.060 RESISTOR SMD 0805 22k OHM 5% 0.1W ROHM...
  • Page 128 VHF 1000 / VHF 1100 Transceiver units TU 1000 P / TU 1000 P DSC / VHF 1000 DSC / VHF 1100 DSC POSITION DESCRIPTION MANUFACTURER TYPE PART NO. TRANSISTOR RF NPN MMBR951 MOTOROLA MMBR951LT1 345.531 DIODE CAPACITANCE MA4ST09 5pF/20V MACOM MA4ST409 340.645...
  • Page 129 VHF 1000 / VHF 1100 PART 3 Service Contents System maintenance ........................1 Preventive maintenance ......................... 1 Change of battery for back-up ....................... 1 Change of software ........................1 Necessary test equipment ......................2 System trouble shooting ......................3 System Performance check ......................3 Check of system performance .......................
  • Page 131 VHF 1000 / VHF 1100 Service System maintenance Preventive maintenance If the VHF system has been installed in a proper way, the maintenance can, dependent on the environments and working hours, be reduced to a performance check at the service workshop at intervals not exceeding 12 months.
  • Page 132 VHF 1000 / VHF 1100 Service Necessary test equipment OSCILLOSCOPE: Bandwidth DC-35 MHz Sensitivity 2mV/div Input impedance 1 Mohm//20 pF E.g. Philips type PM3050 PASSIVE PROBE: Attenuation 20 dB Input impedance 10 Mohm//15 pF Compensation range 10-30 pF E.g. Philips type PM8936/091 MULTIMETER: Sensitivity DC (f.s.d.)
  • Page 133 VHF 1000 / VHF 1100 Service System trouble shooting Trouble shooting should only be performed by persons with sufficient technical knowledge who have the necessary measuring instruments at their disposal, and who have carefully studied the operation principles and structure of the VHF series. The first thing to check is whether the fault is somewhere in the aerial circuit, the power source, the handset, or inside the VHF system itself.
  • Page 134 VHF 1000 / VHF 1100 Service Connect an RF signal generator to the aerial input, and adjust the signal level to -30 dBm (EMF: 83 dB/µV). Modulate the carrier frequency with 1 kHz to a peak frequency deviation of 3 kHz. Connect the AF_out (receiver output) signal from the test box to the audio analyser, and measure the audio frequency distortion.
  • Page 135 VHF 1000 / VHF 1100 Service Adjustment procedures This section contains the adjustment procedures for all adjustable components in the VHF system. Adjustment of AF & processor unit (632250) In the AF & processor unit there are two hardware adjustments to be made: Power Low Level and DSP clock adjustment.
  • Page 136 VHF 1000 / VHF 1100 Service Adjustment of transmitter unit (632251) / (636281) In the transmitter unit there are 5 adjustable components. These are adjusted as shown below. (The adjustment of the RF output power 1W and 25W can be made by means of software). 1.
  • Page 137 VHF 1000 / VHF 1100 Service Removal / installation of units If a fault has been located to a single unit, it may often be worth-while to replace it and then repair it later on. The following schematic figures illustrate the removal of the units of the VHF system. Antenna 2 terminal i v e e c e...
  • Page 138 VHF 1000 / VHF 1100 Service Antenna 2 terminal i v e e c e Thread plate (233561) 2 2 5 ( 6 3 Solded PA. pins i v e e c e 2 2 5 ( 6 3 Antenna 1 terminal Seen from bottom Spring to sot-141 (58.514) 37461...
  • Page 139 VHF 1000 / VHF 1100 Service Spring to sot-141 (58.514) i v e e c e 2 2 5 ( 6 3 Antenna 1 terminal i v e e c e 2 2 5 ( 6 3 Solded PA. pins Thread plate (233561) Antenna 2 terminal 36036A...
  • Page 140 VHF 1000 / VHF 1100 Service o a r e y b 36038A I n t e r f a c e ( 6 3 2 2 5 3 ) 36039A Removal / installation of AF & processor unit (632250) To remove the AF &...
  • Page 141 VHF 1000 / VHF 1100 Service Removal / installation of receiver unit (632252) The removal of the receiver unit is very simple and is done as follows: · Disconnect all coax cables. · Unscrew and remove the unit from the chassis. Install the new receiver unit by doing the opposite of the above steps in reverse order.
  • Page 142 VHF 1000 / VHF 1100 PART 4 Accessories Contents Handset control units (for use of extra control units) ............. 1 Alarm panel unit (for GMDSS installation) ................2 Using the PCV4xxx for system setup ..................3 Test box ............................4 Option connection box ........................
  • Page 144 VHF 1000 / VHF 1100 Accessories Handset control units (for use of extra control units) At the time of printing this preliminary manual, the contents of this page had not yet been completed. The page is therefore left blank.
  • Page 145 VHF 1000 / VHF 1100 Accessories Alarm panel unit (for GMDSS installation) At the time of printing this preliminary manual, the contents of this page had not yet been completed. The page is therefore left blank.
  • Page 146 VHF 1000 / VHF 1100 Accessories Using the PCV4xxx for system setup...
  • Page 147 VHF 1000 / VHF 1100 Accessories Test box 0018...
  • Page 148 VHF 1000 / VHF 1100 Accessories Option connection box For an explanation including illustrations, see the installation manuals: • Front-operated transceiver unit with dumb handset: Chapter 2.7 • Transceiver unit operated by handset: Chapter 2.6 The following provides an explanation of the pins of the option connection box: Pin no.
  • Page 149 VHF 1000 / VHF 1100 Accessories Sparc-bus splitter box For an explanation including illustrations, see chapters 2.5 and 2.6 of the installation manual. The connection of one or more handsets to the transceiver can be done in two ways: Directly between the transceiver and the handset hook. By means of a SPARC-bus splitter box.
