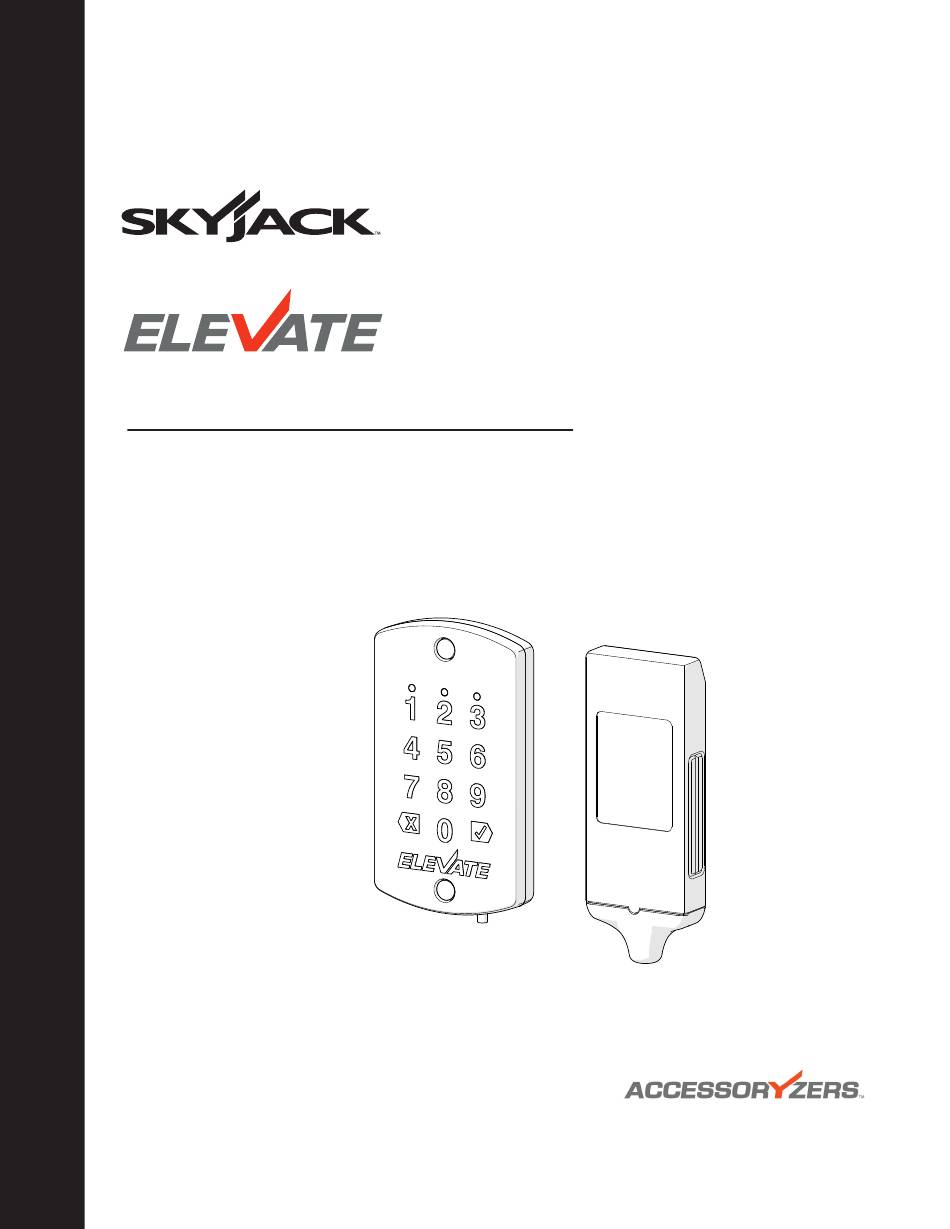

- Page 1 TELEMATICS INSTALLATION SJ9233 RT, SJ9243 RT, SJ9253 RT, SJ9664 RT ANSI/CSA, CE, AS & KC ROUGH TERRAIN SCISSOR LIFTS 236004AAA December 2020...
- Page 2 SJ9243 RT: A202 000 001 - A202 999 999 SJ9253 RT: A202 000 001 - A202 999 999 SJ9664 RT: A203 000 001 - A203 999 999 Please refer to the website (www.skyjack.com) for contact information, other serial numbers, the most recent technical manuals, and USB software.
- Page 3 THIS SAFETY ALERT SYMBOL MEANS ATTENTION! BE ALERT! YOUR SAFETY IS INVOLVED. The Safety Alert Symbol identifies important safety messages on MEWPs, safety signs in manuals or elsewhere. When you see this symbol, be alert to the possibility of personal injury or death. Follow the instructions in the safety message.
- Page 4 Notes SJ9233 RT, SJ9243 RT, SJ9253 RT, SJ9664 RT 236004AAA...
- Page 5 Having equipment with features and functionality that allow you and your customers to do more is a vital part of the utilization equation. Skyjack offers a range of accessory products to further expand a given products adaptability and your power to offer a truly flexible rental choice.
- Page 6 Section 1 – Kit Components 221111 SJ9233 RT, SJ9243 RT, SJ9253 RT, SJ9664 RT 236004AAA...
- Page 7 Index Skyjack Qty. Description Part No. 232956 ELEVATE TELEMATICS FIELD KIT, no Keypad 232957 ELEVATE TELEMATICS FIELD KIT, with Keypad 238825 • ELEVATE PARTS KIT, no keypad, 238826 • ELEVATE PARTS KIT, with keypad, 213098 • • GPS, Track Unit 220577 •...
- Page 8 5. Turn the main power disconnect switch to the off IMPORTANT position. If you have not received the complete parts inventory, contact the Skyjack Service Department 2.2 Tools Required to have the missing parts sent to you. Do not attempt installation without the complete package.
- Page 9 Section 3 – Procedures 3.1 Install the GPS unit 4. Look for four mounting holes in the plate behind the ladder. 1. Locate the panel cover behind the ladder on the base control side of the MEWP . 2. Remove and set aside the hardware which secures the panel cover in four places.
- Page 10 Section 5 – Procedures Install the fuse 3.2 Install the fuse 7. Locate the harness connected to position P7 on the panel board. Follow the harness down 1. Open the door of the battery compartment. until you see an unconnected 12-pin deutsch connector (J16) tied to it.
- Page 11 Install the fuse Section 5 – Procedures 3. Remove the wingnut from the positive battery 8. Insert the fuse into the fuse holder (provided with post. the GPS unit). 4. Remove the red 100 wire from the post. Set the wingnut aside.
- Page 12 Section 5 – Procedures Install the keypad, if applicable 3.3 Install the keypad, if 11. Feed the B+ wire through the battery boot of the positive battery post, if it is not already there. applicable 12. Place the ring terminal of the wire over the positive battery post.
- Page 13 Secure the wires Section 5 – Procedures 3. Take the keypad cable and feed it down the 7. Place the label (173002) on the front of the base ladder, then between the lateral bracket and the control box. control box. 4.
- Page 14 3.5 Update the Skycoded™ module settings (for units with keypad) 1. Turn the main power disconnect switch to the on position. 2. Insert the key. Turn the base/off/platform key switch to the base position. 3. Pull out the emergency stop button on the base control box.
- Page 15 Result: Digital input 2 turns ON. The other usernames and passwords for machines equipped inputs are off. with Access Control functionality. Skyjack DOES B. Perform the lift or steer functions. NOT provide or reset usernames or passwords. Result: Digital input 1 turns ON.
- Page 16 www.skyjack.com...
