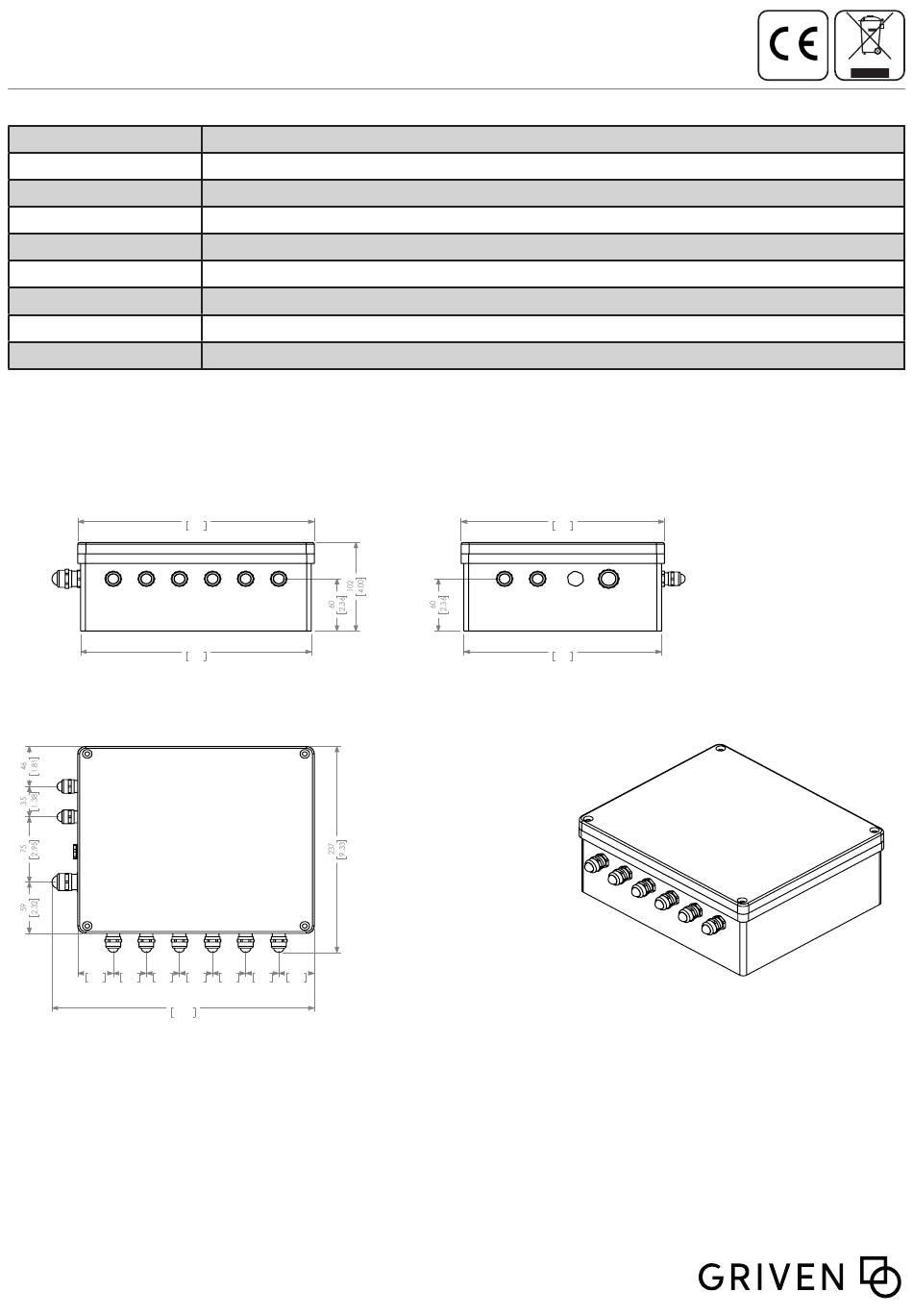

6-WAY DMX-RDM SPLITTER
AL4329
Power supply
Power
Splitter unit power supply
Operating Temperature
Size
Weight
IP rating
Protocol
Unit body
Dimensions-Dimensioni
37.5
35
35
1.48
1.38
1.38
277
10.92
Scale :
DIMENSIONS ARE IN MILLIMETERS [BRACKETED DIMENSIONS ARE IN INCHES]
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
250
9.84
244
9.61
35
35
35
37.5
1.38
1.38
1.38
1.48
1:4
Tel. +39.0376.779483
E-mail: sales@griven.com
Web: www.griven.com
User Manual
550158 Rev.01
Date: 15/07/2025
100-240Vac
5 W
9-24 Vdc
-20°C (-4°F) / 50°C (122°F)
277mm (10.92") x 237mm (9.33") x 102mm (4")
3Kg (6.61Lbs)
IP65
USITT DMX-512-A (ANSI E1.11) RDM
Alluminum
SHEET 1 OF 1
© Copyright Griven 2020 - GRIVEN S.r.l. is continuously
developing and improving all its products.
We reserve the right to change specifications without
prior notification
215
8.46
209
8.23
http://www.griven.com
http://www.griven.com
page 1 of 8
Advertisement
Related Manuals for Griven AL4329
Summary of Contents for Griven AL4329
- Page 1 1 of 8 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2020 - GRIVEN S.r.l. is continuously developing and improving all its products. 46042 Castel Goffredo E-mail: sales@griven.com We reserve the right to change specifications without Mantova - Italy Web: www.griven.com...
- Page 2 - The fi xture might be damaged by excess voltage. The installation of an overvoltage protection device on the electrical system may - Do not stare at the operating light source. reduce the risk of damage. Non fi ssare la sorgente luminosa durante il suo funzionamento. - This product must be installed in accordance with applicable national and local electrical and construction codes by a person familiar with the construction and Apparecchiatura sensibile alle sovratensioni.
- Page 3 Components of the unit - Componenti dell’apparecchiatura Components description Splitter housing DMX-RDM SPLITTER C: PSU D: GROUND Descrizione componenti: Scatola DMX-RDM SPLITTER C: Alimentatore D: M orsetto di massa page 3 of 8 6-WAY DMX-RDM SPLITTER...
- Page 4 Installation - Installazione Fixing - Fissaggio The unit can be used both rested on floor and fixed onto a structure. The unit can operate in any posi- tion. Use the four (4) Ø5.5 holes (0.2”) on the box in order to fix the device. L’apparecchio può...
- Page 5 Connection to mains power - Collegamento della tensione d’alimentazione The unit can operate with voltage from 100 to 277V AC 50/60 Hz; settings are not required because autosensing. L’apparecchio può funzionare con tensioni da 100 a 277VAC con frequenze di 50 e 60Hz senza necessi- tà...
- Page 6 DMX IN DMX THRU Connection - Connessione DMX IN DMX THRU Make the connections as shown. Eseguire i collegamenti come in figura. Main cable size ø3 MIN ø7 MAX Data - Data + Pin 1: GND Pin 2: DATA- DMX IN Pin 3: DATA+ DMX THRU page 6 of 8...
- Page 7 DMX IN DMX OUT Connection - Connessione DMX IN DMX OUT This splitter is designed to handle 6 DMX lines. Make the connections as shown. Questo Splitter è stato progettato per gestire 6 linee DMX. Eseguire i collegamenti come in figura. page 7 of 8 6-WAY DMX-RDM SPLITTER...
- Page 8 Main cable size ø3 MIN ø7 MAX DMX IN Data - Data + MX THRU Pin 1: GND Pin 2: DATA- Pin 3: DATA+ DMX IN DMX OUT DMX OUT DMX OUT DMX OUT DMX OUT DMX OUT page 8 of 8 6-WAY DMX-RDM SPLITTER...
