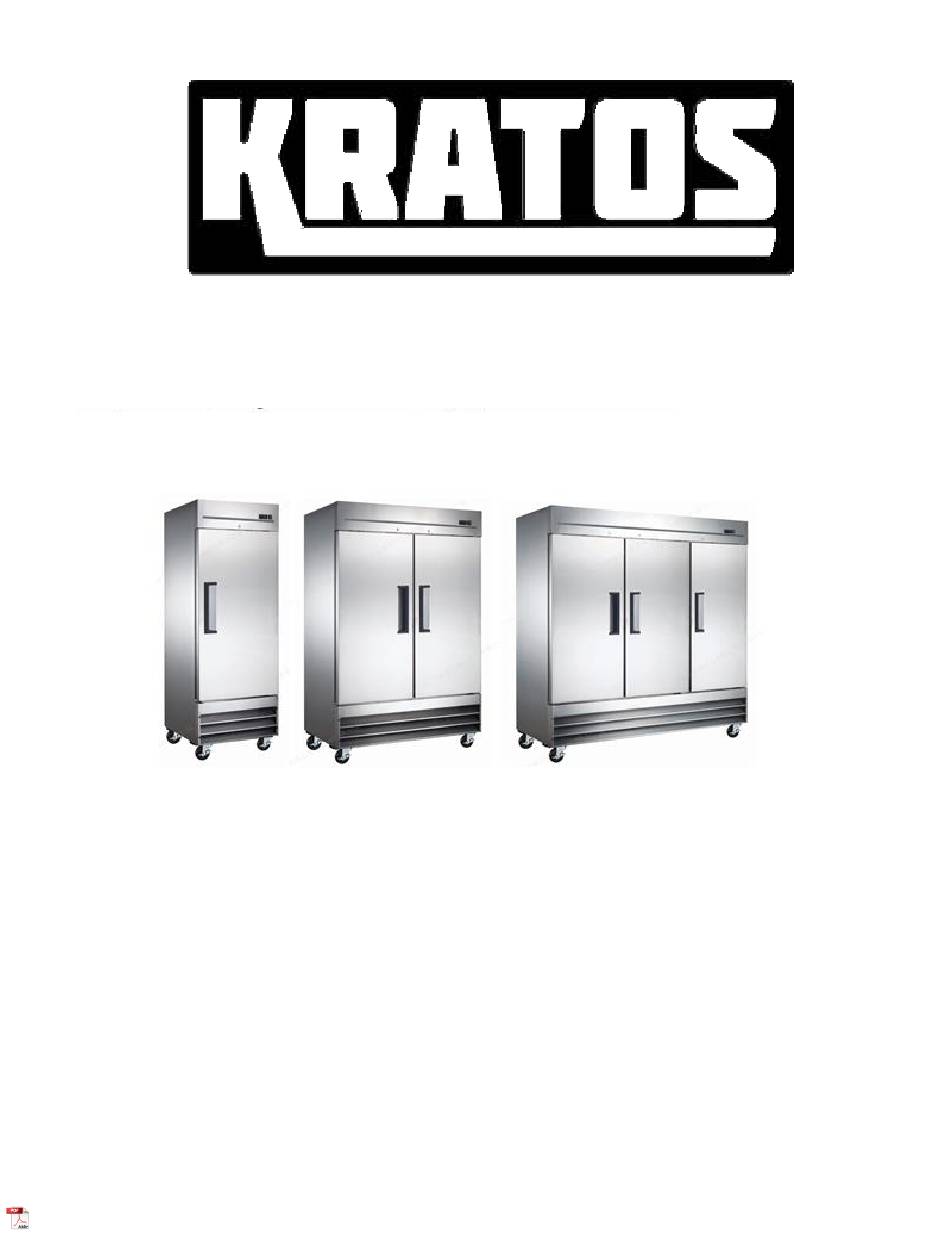

- Page 1 SERVICE, INSTALLATION AND INSTRUCTION MANUAL 67K-001, 67K-002, 67 For Kratos Reach-In Models: 67K-001, 67K-002, 67K-003, 67K-004, 67K-005, 67K-006, 67K-010, 67K-011, 67K-012, 67K-013...
- Page 2 It meets or exceeds UL 471 safety standards and sanitation standard NSF 7. Kratos assumes no liability or responsibility of any kind for products manufactured by Kratos that have been altered in any way, including the use of any parts and/or other components not specifically approved by Kratos.
- Page 3 SERIAL NUMBER INFORMATION ⚫ The serial number of all self-contained appliances is located inside the unit on the left hand side near the top on the interior wall. Always have the serial number of your unit available when calling for parts or service. ⚫...
- Page 4 RECEIVING AND INSPECTING THE EQUIPMENT Even though most equipment is shipped crated, care should be taken during unloading so the equipment is not damaged while being moved into the building. 1. Visually inspect the exterior of the package and skid or container. Any damage should be noted and reported to the delivering carrier immediately.
- Page 5 IMPORTANT SAFEGUARDS Before appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. We strongly recommend that you have a professional install your new machine. The warranty may be affected or voided by an incorrect installation.
- Page 6 • Remove the packing materials & be sure to discard them as the work area is policed. Clean the appliance before using. • Do not use this apparatus for other than its intended purpose. • Only trained, qualified personnel should attend to and monitor the appliance’s performance/preventative maintenance.
- Page 7 IMPORTANT SAFEGUARDS (cont.) Electrical Connection Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded. The power cord of this appliance is equipped with a 3-prong grounding plug that mates with a standard 3-prong grounding wall outlet to minimize the possibility of electric shock hazard from the appliance.
- Page 8 APPLIANCE INSTALLATION WARNING Excessive Weight Hazard Use two or more people to move and install appliances. Failure to do so may result in serious injury. Remove Packaging Materials IMPORTANT: Do not remove any permanent instruction labels or the data label on your appliance. •...
- Page 9 APPLIANCE INSTALLATION (cont.) Installation Clearance 2” SINGLE DOOR MODELS DOUBLE DOOR MODELS 51mm 12” (305mm) clear space 60.5 in 60.5 in 1537 mm 1537 mm Max Door Swing Max Door Swing Clearance Clearance 27 in 27 in 686 mm 686 mm Leveling Ensure the floor where the unit is to be located is level.
- Page 10 J. Replace the small screws on the top and bottom of the bracket and door spring. Make sure the door is on properly before you do this. K. You will need to adjust the top and bottom spring tensioners so the door will close properly. L.
- Page 11 OPERATION Refrigerated cycle Refrigerators: During the refrigeration cycle, the evaporator fans will run continuously even when one or more doors are open. The door switch will activate the lights when opened. • Every 6 hours, the unit will turn off and on to allow the evaporator coil to defrost. The controller now displays defrost symbol.
- Page 12 TIPS FOR PROPER OPERATION, CLEANING AND MAINTENANCE 1. The unit should be cleaned daily as well as being tested for the proper holding temperature by measuring the content temperature and comparing it to the temperature displayed on the controller. They should be within 3°F of each other.
- Page 13 6. Minimize the number of times the appliance door needs to be opened, as frequent access may preclude the unit’s ability to maintain the proper temperature. 7. Use shelving with rear and side turn up rails to ensure proper air circulation is maintained as this is needed for effective, efficient temperature regulation.
- Page 14 CLEANING AND MAINTENANCE DANGER The unit must be turned off and disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. Failure to comply may result in death or severe personnel injury. NOTE Ongoing appropriate preventative & repair maintenance along with cleaning the unit will preserve its performance, deliver high quality fresher product, and extend the appliance life.
- Page 15 CLEANING AND MAINTENANCE (cont.) Stainless Steel Care and Cleaning To prevent rust or discoloration on stainless steel several important steps need to be taken. First, one must understand the properties of stainless steel. Stainless steel contains 70-80% iron which will rust. It also contains 12-30% chromium which forms an invisible passive film over the steels surface which acts as a shield against corrosion.
- Page 16 TROUBLESHOOTING GUIDE BEFORE CALLING FOR SERVICE If the unit appears to be malfunctioning, read through the OPERATION section of this manual first. If the problem persists, see Troubleshooting chart below. The problem may be something very simple that can be solved without a service call.
- Page 17 TROUBLESHOOTING (cont.) SERVICE AND TROUBLESHOOTING TIPS The compressor comes with a 5 year limited warranty (2 year parts and labor and the subsequent 3 years part only). Properly assess the root cause of the problem, as issues that can cause similar symptoms such as weak refrigerant charge (leaks), condensing unit fan not performing properly, temperature controller failure, faulty starting or running components and filter drier needing replacement are not covered by the warranty.
- Page 18 2 Year Limited Parts & labor Warranty Kratos offers a warranty to the original purchaser of new equipment, that the model of equipment will be free of defects in material and workmanship for a period of 2 year from the original date of delivery. The Compressor is covered for the timeframe of 5 years.
- Page 19 Valid only in Contiguous United States Kratos warrants all new equipment sold to food truck or other mobile applications for a period of 90 days from the date of delivery and proper installation. Contact your authorized place of purchase for assistance.
