CATALOG NUMBERS
DESCRIPTIONS
SWX-900
POWER PACK
SWX-900-AX
POWER PACK WITH AUXILIARY SWITCH INPUT
SWX-910
SECONDARY RELAY PACK
SWX-910-AR
CONTACT CLOSURE PACK
SWX-920
AUXILIARY POWER SUPPLY
SWX-999
LOW VOLTAGE WIRING CHAMBER
ADDITIONAL UNIT OPTIONS
- HE: High Humidity Environment
OVERVIEW
SENSORWORX power packs transform incoming line voltage power to Class 2 low
voltage as needed by sensor(s) or other control device(s). Additionally, they switch on/off
power to the connected lighting load as directed by the sensors and controls.
FEATURES
Powers Low Voltage Sensors
Ã
Switches Line Voltage Loads
Ã
Ã
Electronically Timed Switching Ensures Long Relay Life
Ã
Integrated Test/Programming Button
Ã
Optional Snap-On Attachment Provides Chamber for Low Voltage Wire
Connections
Ã
Optional Switch Input for Manual On, Hold On, or Hold Off Operations
Ã
Plenum Rated (UL 2043)

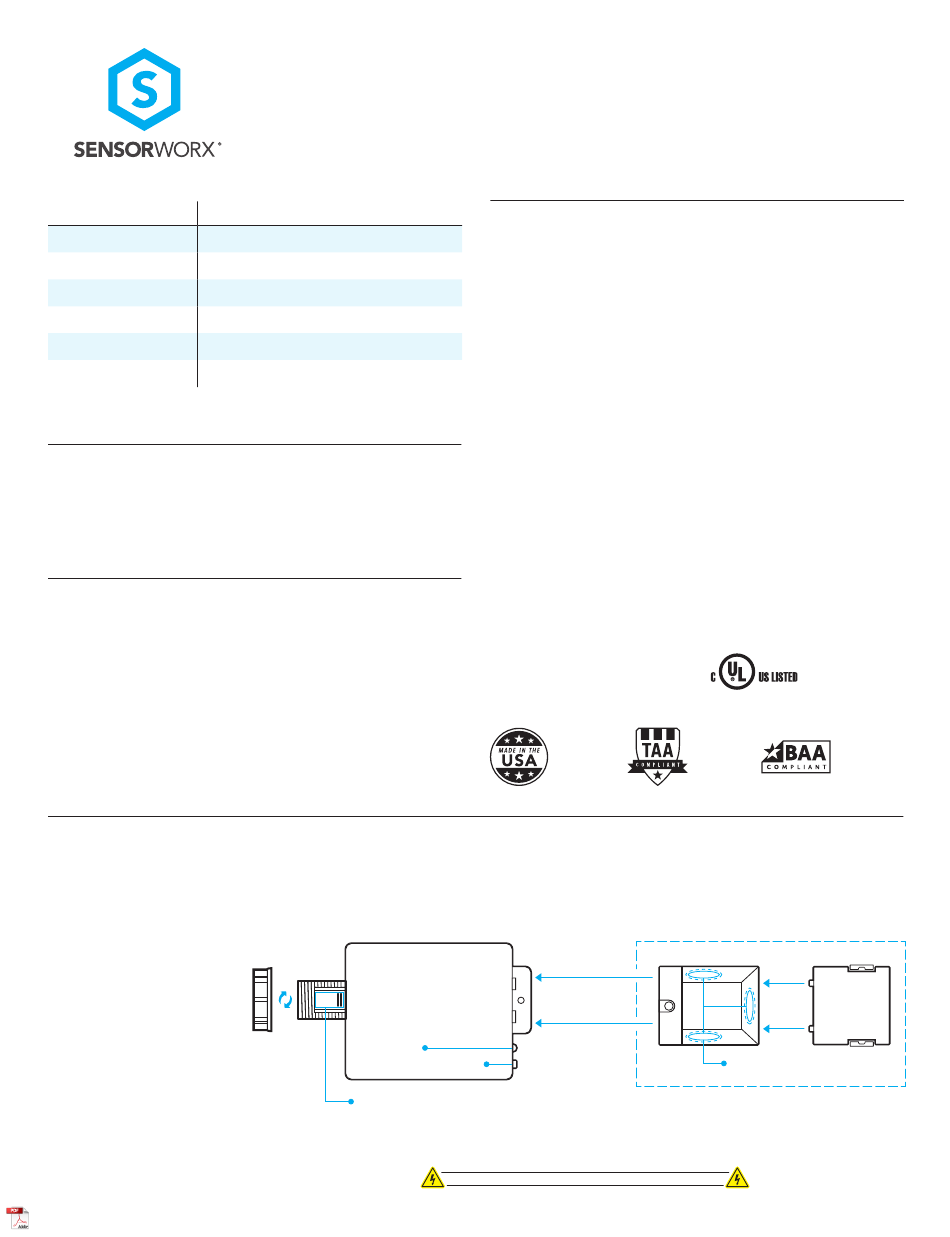

INSTALLATION INSTRUCTIONS
MOUNTING
INSTRUCTIONS
Power Packs are designed to
attach to electrical enclosures
with 1/2" knockouts.
INSTALLATION NOTES
1 For supply connections, use
14 AWG (90°C) or larger wires.
Wire all circuits exiting chase
nipple as Class 1 circuits.
2 Suitable for plenum use.
3 Risk of Electric Shock - More
than one disconnect switch may
be required to de-engergize the
equipment before servicing.
POWER PACK
LOCK NUT
LED INDICATOR
TEST/PROGRAMMING BUTTON
CHASE NIPPLE HAS SNAPS THAT ENABLE QUICK
INSTALLATION THROUGH ANY 1/2" KNOCKOUT
INSTALLATION & OPERATION INSTRUCTIONS
SPECIFICATIONS
ELECTRICAL
OPERATING VOLTAGE
120/277 VAC
CLASS 2 OUTPUT RATINGS
18 VDC, 150 mA
(SWX-900-AX / SWX-920 only)
Connected device power:
80 mA (SWX-900-AX)
150 mA (SWX-920)
LOAD RATINGS
(SWX-900 / SWX-900-AX / SWX-910)
20A @ 120 V -
General Purpose Plug Load
20A @ 120/277 VAC -
General Purpose, Tungsten, Magnetic
Ballast
16A @ 120/277 VAC -
Electronic Ballast, LED Driver
DC LOAD RATINGS
20A @ 28 VDC (MAX)
1A @ 5 VDC (MIN)
MOTOR LOAD
1 HP
SNAPS DIRECTLY
TO MAIN HOUSING
WARNING: TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE WIRING
POWER PACK
ENVIRONMENTAL
OPERATING TEMP
32°F to 122°F (0°C to 50°C) - Standard
-40° F/C (with -HE Option)
RELATIVE HUMIDITY
0-95% Non-Condensing,
Indoor Use Only
ROHS COMPLIANT
PHYSICAL
SIZE
3.00" H x 2.25" W x 1.88" D
(7.62 cm x 5.72 cm x 4.78 cm)
WEIGHT
6.00 oz.
COLOR
Blue
MOUNTING
1/2" Knockout
LOW VOLTAGE WIRING CHAMBER
WIRING CHAMBER *
SNAP-ON COVER
PROVIDES 3 KNOCKOUTS
FOR CONDUIT CONNECTIONS
*CONNECT LOW VOLTAGE CHAMBER TO CONDUIT BEFORE
CONNECTING TO POWER PACK. CONDUIT SHOULD BE
APPROPRIATELY SUPPORTED BY OTHER MEANS AND
NOT USE THE LOW VOLTAGE CHAMBER FOR SUPPORT
[OPTIONAL]
1
