Summary of Contents for Time Guard NTT03

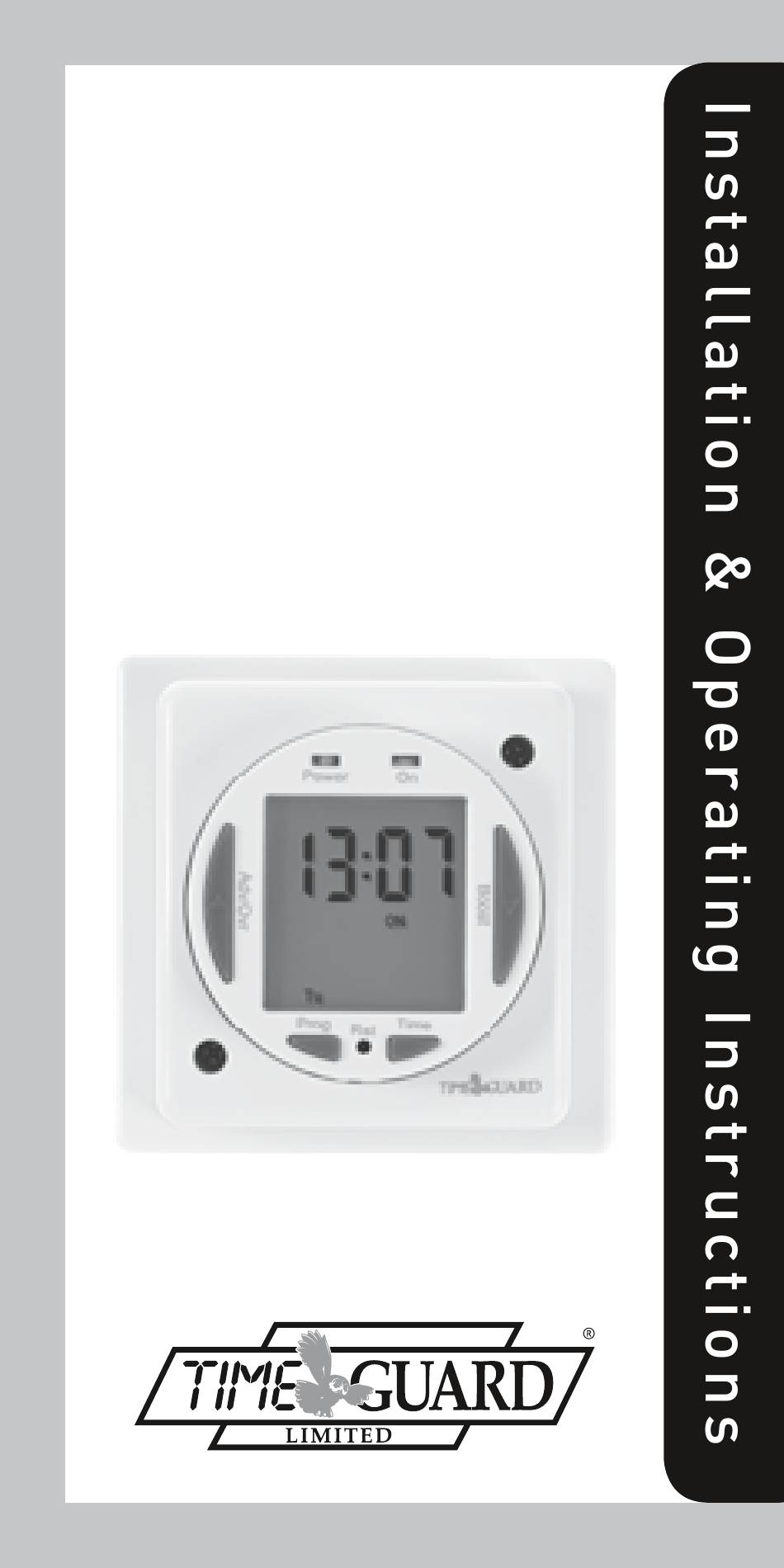

- Page 1 7 Day Digital Time Switch Model: NTT03 Immersion Timer Model: NTT04 General Purpose Timer...
- Page 2 The nTT04 has volt free contacts, making it suitable for a wider range of switching applications. The nTT03 is designed primarily for domestic immersion heaters. Programming can be 7 day, 5 + 2, or 24 hour.
-
Page 3: Installation
2. Features: 4 on/off switching programmes, which can be made to operate over all 7 days (24 hour operation), 5 weekdays 2 weekend days, or any individual day (7 day operation). Advance feature advances to next programmed operation. Boost feature provides 1 or 2 hour boost. Battery back up retains programmes and clock times during loss of mains. - Page 4 Live supply neutral supply N OUT neutral output to immersion heater (nTT03 only). Switch live output to immersion heater (nTT03 only). S in Live Input for volt free output (nTT04 only) If volt free is not required, fit a link between L and S in.
-
Page 5: Setting The Clock
5. Reset: The time switch must be reset before programming for the first time, or after subsequent discharge for more than 5 days, and following a 4 hour period of charging. Press Rst using a pointed object, eg: a pencil. The display will show all the segments, and then clear to show: Use the Adv/ovr button to change... - Page 6 Use the Adv/ovr or boost button to adjust the hour to the correct hour. Press Time to set the hour, and then the time will show the minutes. The hour is a 24 hour clock. Use the Adv/ovr or boost button to adjust the minutes to the correct minutes.
- Page 7 8. Programming ON/OFF times: The nTT03/04 has 4 independent on/off periods available for programming each day. There is a choice of programming options, including 7 days the same (24 hours), 5 + 2 days (where the weekdays are the same, and the two weekend days are the same), and 7 individual days.
- Page 8 Press Prg to change to programme 1 off time. Press Prg to scroll through programme 2 on, programme 2 off, programme 3 on, programme 3 off, programme 4 on and programme 4 off, adding in times as required. If times are not required, just leave the dashes in place, and scroll past that programme.
- Page 9 8.2 Programming across midnight: Enter the required programme on time. Enter the programme off time as 00:00 Enter the first programme on time for the next day as 00:00 Enter the required programme off time. Note: for 24 hour the on period for programme 1 must start 00:00.
- Page 10 10. Advance/Override: In operating mode Adv/ovr advances the programme to the next change. If the output is off, it will change the output to on, until the next programmed off time. If the output is on, it will change the output to off, until the next programmed on time.
-
Page 11: Specifications
12. Specifications: operating temperature: 0°C to 40°C operating voltage: 230V 50Hz Switch rating: 16A resistive, 4A inductive, 0.55 HP, 750W incandescent, 750W halogen, 750W fluorescent, 100W compact fluorescent. Minimum depth of wall box: 32mm Switch type: 16A relay Voltage free contact: nTT04 only Contact type: normally open... -
Page 12: Year Guarantee
3 Year Guarantee In the unlikely event of this product becoming faulty due to defective material or manufacture within 3 years of the date of purchase, please return it to your supplier in the first year with proof of purchase and it will be replaced free of charge. -
Page 13: Electronic Room Thermostat
Electronic Room Thermostat Model: TRT030N... -
Page 14: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Before installation or maintenance, ensure the mains supply to the thermostat is switched off and the circuit supply fuses are removed or the circuit breaker turned off. - Page 15 • Boiler Type Adjustment: 3CYC = Gas, 6CYC = Oil, set by DIP switch • Output Light: Blue LED • CE Compliant • Dimensions (H x W x D): 86 x 88mm x 38mm TRT030N Front View Blue LED output indicator Set temperature adjustment scale Easy set dial adjuster...
- Page 16 4. Siting • The TRT030N must be sited where it will not be influenced by heat sources, for example above a radiator or a television or a refrigerator/freezer or in direct sunlight or subjected to draughts. • The product requires air circulation, so do not position above or below shelving or other wall mounted obstacles.
- Page 17 5.7 To reinstall the unit onto the wall plate, first ensure the wall plate retaining screws are loosened enough to clear the TRT030N body, then engage the top of the TRT030N onto the wall plate retaining tabs, and push firmly downwards and then upwards. There will be some resistance from the terminals.
-
Page 18: Connection Diagram
6. Connection Diagram Connect the 230V 50Hz mains supply and load cables to the terminal block which are marked as follows; • Note: Check boiler instructions before connecting. Switch Live from NO (normally open contact for heating) to bolier 230V AC 50Hz BOILER MAINS... -
Page 19: Operation
7. DIP Switch Settings • The temperature swing can be adjusted between 0.5°C and 1.0°C by selecting the desired DIP switch position found on the rear of the unit. We suggest using 0.5°C position unless the boiler turns ON and OFF too rapidly. •... - Page 20 3 Year Guarantee In the unlikely event of this product becoming faulty due to defective material or manufacture within 3 years of the date of purchase, please return it to your supplier in the first year with proof of purchase and it will be replaced free of charge. For the second and third years or any difficulty in the first year telephone the helpline on 020 8450 0515.
