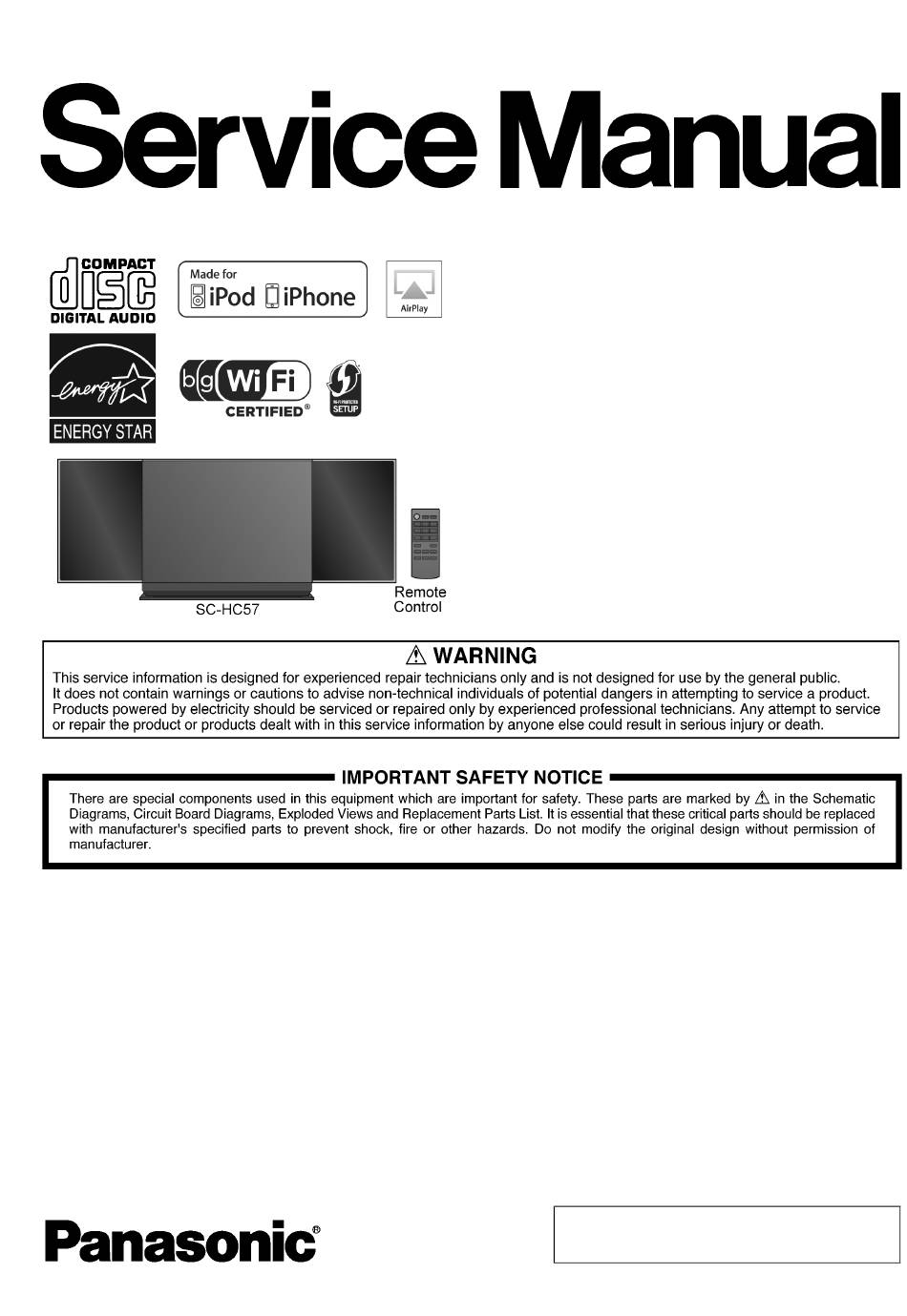

Panasonic SC-HC57P Service Manual
Panasonic SC-HC57P Service Manual

Panasonic SC-HC57P Service Manual

Compact stereo system

Advertisement

Quick Links

TABLE OF CONTENTS
1 Safety Precautions----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
1.2. Before Repair and Adjustment ------------------------- 4
1.3. Protection Circuitry ---------------------------------------- 4
1.4. Caution For Fuse Replacement------------------------ 4
1.5. Safety Part Information----------------------------------- 5
2 Warning -------------------------------------------------------------- 6
2.1. Prevention of Electro Static Discharge (ESD)
to Electrostatically Sensitive (ES) Devices---------- 6
2.2. Precaution of Laser Diode------------------------------- 7
2.3. Service caution based on Legal restrictions -------- 8
2.4. Handling Precaution for Traverse --------------------- 9
Model No.
Product Color: (K)...Black Type
PAGE
3 Service Navigation --------------------------------------------- 10
3.1. Service Information -------------------------------------- 10
3.2. AirPlay Operation ---------------------------------------- 10
3.3. AirPlay Firmwave Version Up Method -------------- 11
4 Specifications ---------------------------------------------------- 16
5 General/Introduction------------------------------------------- 17
5.1. Inserting or removing media--------------------------- 17
5.2. CD, iPod/iPhone playback operations -------------- 18
5.3. AirPlay operations --------------------------------------- 19
6 Location of Controls and Components------------------ 20
6.1. Main Unit & Remote Control Key Button
Operations ------------------------------------------------- 20
© Panasonic Corporation 2012. All rights reserved.
Unauthorized copying and distribution is a violation of
law.
Compact Stereo System
SC-HC57P
SC-HC57PC
PSG1201010CE
A6
PAGE

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC-HC57P and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic SC-HC57P

  • Page 1 2.3. Service caution based on Legal restrictions -------- 8 6.1. Main Unit & Remote Control Key Button 2.4. Handling Precaution for Traverse --------------------- 9 Operations ------------------------------------------------- 20 © Panasonic Corporation 2012. All rights reserved. Unauthorized copying and distribution is a violation of law.
  • Page 2 7 Installation Instructions--------------------------------------- 21 12.5. Checking & Repairing of Main P.C.B. (Side B) -- 101 7.1. Connections ----------------------------------------------- 21 12.6. Checking & Repairing of Main P.C.B. (Side A) -- 102 8 Service Mode ----------------------------------------------------- 22 13 Block Diagram -------------------------------------------------- 107 8.1.
  • Page 3 1 Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
  • Page 4 1.2. Before Repair and Adjustment Disconnect AC power, discharge unit AC Capacitors as such C1702, C1710, C1725, C1727, and C1728 through a 10W, 1W resis- tor to ground. Caution : DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices. After repairs are completed, restore power gradually using a variac, to avoid overcurrent.
  • Page 5 1.5. Safety Part Information Safety Parts List: There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Exploded View & Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards.
  • Page 6 2 Warning 2.1. Prevention of Electro Static Discharge (ESD) to Electrostatically Sensi- tive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip”...
  • Page 7 2.2. Precaution of Laser Diode CAUTION! THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. Caution: This product utilizes a laser diode with the unit turned "on", invisible laser radiation is emitted from the pickup lens. Wavelength: 790 nm (CD) Maximum output radiation power from pickup: 100 μW/VDE Laser radiation from the pickup unit is safety level, but be sure the followings:...
  • Page 8 2.3. Service caution based on Legal restrictions 2.3.1. General description about Lead Free Solder (PbF) The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation. The normal solder is the alloy of tin (Sn) and lead (Pb).
  • Page 9 2.4. Handling Precaution for Traverse The laser diode in the optical pickup unit may break down due to static electricity of clothes or human body. Special care must be taken avoid caution to electrostatic breakdown when servicing and handling the laser diode in the Traverse. Cautions to Be Taken in Handling the Optical Pickup Unit 2.4.1.
  • Page 10 3 Service Navigation 3.1. Service Information This service manual contains technical information which will allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, this information will be followed by supplement service manual to be filed with original service manual.
  • Page 11 3.2.7. LED related to AirPlay Related to AirPlay, there are below 2 kind of LED. Wireless LAN connection status (2 color LED) • Depending on network condition and when during connecting to network, it will control the LED as below. •...
  • Page 12 3.3.1.1. Process Step 1 : Connect WiFi router and WindowsPC by a ethernet cable. Router side to the LAN connector instead of a WAN connector. Step 2 : WiFi router settings Set up the following for this unit (HC57). Refer to the operation manual of a router for the concrete operation method. SSID HC57NET7 Authentication...
  • Page 13 Step 5 : Apache installation application (For setting Apache installed HTTP Server)
  • Page 14 5-10 5-11 Step 6 : Make download folder. (C:\Program Files\Apache Software Foundation\Apache2.2\htdocs\hc57) Step 7 : Install to Http Server. - index.xml - HC57_xxx_xxx.fw (e.g. HC57_018_005.fw) HC57 : copy 2 files to HC57 folder...
  • Page 15 Step 8 : Update. 1. Disconnect AC cable. 2. Keep pressing WPS button + connect AC cable. FL : "UD MODE _" blinking. 3. Press [7] of remote controller. FL : "UD MODE 7" display after keep this status about 30 seconds, start to blink blue led(this means download firmware and update) 4.
  • Page 16 4 Specifications Phone jack Terminal Stereo, Ø 3.5 mm (1/8”) jack • Specifications are subject to change without notice. Mass and dimensions are approximate. General • Total harmonic distortion is measured by the digital spectrum ana- Power consumption 25 W lyzer.
  • Page 17 5 General/Introduction 5.1. Inserting or removing media...
  • Page 18 5.2. CD, iPod/iPhone playback operations Compatibility CD, iPod/iPhone • For compatibility of CD, iPod/iPhone please refer to Operating Instructions...
  • Page 19 5.3. AirPlay operations Compatibility devices (AirPlay) • For compatibility of devices (AirPlay) please refer to Operating Instructions...
  • Page 20 6 Location of Controls and Components 6.1. Main Unit & Remote Control Key Button Operations...
  • Page 21 7 Installation Instructions 7.1. Connections...
  • Page 22 8 Service Mode This unit is equipped with features of self diagnostic & doctor mode setting for checking the functions & reliability. 8.1. Self Diagnostic Mode Here is the procedures to enter into Self Diagnostic Mode. Step 1 : Turn on the unit. Step 2 : Select CD mode.
  • Page 23 8.2. Self Diagnostic Function Error Code 8.2.1. CD Mechanism Error Code Table Error Code Diagnostic Contents Description of error of error Automatic FL Display Remarks CD H15 CD Open Abnormal During operation Press [ ] on main unit for POS_SW_R On fail to be next error.
  • Page 24 8.3. Doctor Mode Table Note : To enter the Doctor Mode, please use HC35 remote control. Here is the procedures to enter into Doctor Mode. Step 1 : Turn on the unit. Step 2 : Select CD mode. Step 3 : Pressing and hold [ ] on main unit then press [4] follow by [7] using the remote control. Step 4 : The display show as follow.
  • Page 25 8.3.2. Doctor Mode Table 2 Item Key Operation FL Display Front Key Mode Name Description FL Display Test To check the FL segments In Doctor Mode: display (All segments will Press [1] button on the remote control of HC35. light up) To cancel, press [0] button on remote control.
  • Page 26 8.3.3. Doctor Mode Table 3 Item FL Display Key Operation Mode Name Description Front Key CD Traverse Test To check for the traverse unit In Doctor Mode: Mode operation. In this mode, the Press [ ] follow by [1] & yhen [2] button on the remote control of HC35.
  • Page 27 8.3.4. Doctor Mode Table 4 Item FL Display Key Operation Mode Name Description Front Key In Doctor Mode: Region Checking To check Region setting of Press [ ] follow by [1] & then [6] unit. button on the remote control of HC35. Refer to 8.3.8 for the Region To cancel, press [0] button on remote Setting destination...
  • Page 28 8.3.5. Mecha Sliding Panel Reliability 8.3.6. CD Traverse Test (For CD)
  • Page 29 8.3.7. CD Combination Test (For CD) 8.3.8. Region Check Table (For Tuner) Region Model Series Country HC57 P/PC North America 2 (D) HC57 Japan Japan HC57 UK, Germany, France HC57 DBEB HC57 S.E. Asia HC57 DBGN Oceania 8.3.9. Model setting Region No.
  • Page 30 8.4. Sliding Door Operation 8.4.1. Basic Operation 1. The sliding open and close operation of the electric panel is done with [CD OPEN/CLOSE] key & [iPod OPEN/CLOSE] key on the main set or remote control. 2. The [CD OPEN/CLOSE] key & [iPod OPEN/CLOSE] key valid during standby condition. 3.
  • Page 31 8.5. Wi-Fi trial demo mode Note : For sales demostration purpose, the AirPlay demostration function can be carry out by connecting the customer's iPhone/ iPod touch with this unit directly. In this case, wireless router is not needed. 8.5.1. To enter into Wi-Fi trial demo mode Here is the procedures to enter into Wi-Fi trial demo mode.
  • Page 33 9 Troubleshooting Guide 9.1. Setting up to AirPlay START WPS button on Wireless router Set up HC to NET SETUP mode Press and hold WPS button on HC mainset “Setup ******” shown Press WPS button on Wi-Fi of iPhone on wireless router Malfunction with mainset (AirPlay module) Connected?
  • Page 34 9.2. AirPlay Check Run AirPlay Connected to Wi-Fi (LED turn into blue)? Select speaker iOS4.2 or higher or iTune10.2 or higher? Not play back, or Update to the latest sound interrupted while iOS or iTune Any devices played back to interfere frequency, such as microwave., etc? iPhone connected to the same Wi-Fi network?
  • Page 35 10 Service Fixture & Tools Prepare service tools before process service position. Ref. No. Service Tools Remarks SFT1 Main P.C.B. (CN6006) - CD Servo P.C.B. (CN7002) REE1712 (30P FFC) SFT2 Main P.C.B. (CN1100) - SMPS P.C.B. (P1700) REX1538 (7P Wire)
  • Page 36 11 Disassembly and Assembly Instructions Caution Note: • This section describes the disassembly and/or assembly procedures for all major printed circuit boards & main compo- nents for the unit. (You may refer to the section of “Main components and P.C.B Locations” as described in the service manual) •...
  • Page 37 11.1. Disassembly flow chart The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the ser- vicing. To assemble the unit, reverse the steps shown in the chart below.
  • Page 38 11.2. Types of Screws 11.3. Main Parts Location Diagram...
  • Page 39 11.4. Disassembly of Base Stand Caution : During assembling, ensure a “Tack” sound is heard when the Base Stand Assembly is fully catch into Assembly the Rear Cabinet. Step 1 : Remove 2 screws. Step 2 : Remove the Base Stand Assembly.
  • Page 40 11.5. Replacement of Door Assem- 11.5.2. Assembly of Door Assembly Step 1 : Align the Door Assembly (Guiding Rib A) with the front panel (Guide Reel A) and Door Assembly (Guiding Rib B) with 11.5.1. Disassembly of Door Assembly the front panel (Guide Reel B). Step 2 : Gently slide the Door Assembly until it is fully closed.
  • Page 41 11.5.3. Disassembly of Idling Rack Caution : During assembling, inserted the Idling Rack & ensure it is fully catched to the Door Assembly. • Refer to “Disassembly of Door Assembly” Step 1 : Slide the Idling Rack until it come to a stop. Step 2 : Gently using a Screwdriver to lift up the Idling Rack.
  • Page 42 11.6. Replacement of Front Orna- 11.6.2. Assembly of Front Ornament Unit ment Unit (L) & (R) Note : Front Ornament Unit (L) & (R) have the same mechani- Step 1 : Place the Front Ornament Unit (L) onto Speaker Cabi- cal structure.
  • Page 43 Step 4 : Fix 3 screws. 11.7. Disassembly of Front Panel Block • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” • Refer to “Disassembly of Front Ornament Unit” Step 1 : Remove 8 screws. Step 2 : Release the 3 catches on the Front Panel Block.
  • Page 44 Step 3 : Slightly lift up the Front Panel Block. Step 6 : Remove the Front Panel Block. Step 4 : Detach 14P FFC at the connector (CN941) on the Remote Sensor P.C.B.. Step 5 : Detach 5P wire at the connector (P944) on the Remote Sensor P.C.B..
  • Page 45 11.8. Replacement of iPod Block Step 3 : Push the iPod Block forward until it come to a stop. • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” • Refer to “Disassembly of Front Ornament Unit” •...
  • Page 46 Step 5 : Remove the iPod Block. 11.8.2. Assembly of iPod Block Step 1 : Insert the iPod Block from the front of Front Panel Assembly into the Guide as shown. Step 2 : Gently push in the iPod Block until it is fully fixed.
  • Page 47 Step 3 : Connect 5P wire at the connector (CN501) on the iPod Step 4 : Gently push the Slide Guide Pin upwards, until a “click” P.C.B.. sound is heard when the Slide Guide Pin is fully catched. Caution : During assembling, align Sumitube (5P Wire) with the ribs of the Front Panel Block.
  • Page 48 11.8.3. Disassembly of iPod Support & Step 3 : Release the iPod Spring & remove the iPod Support. Caution : Keep the iPod Spring in safe place and place iPod Spring them back during assembling. • Refer to “Disassembly of iPod Block” Step 1 : Remove 2 screws.
  • Page 49 11.8.4. Disassembly of iPod Base 11.8.5. Disassembly of iPod P.C.B. • Refer to “Disassembly of iPod Block” • Refer to “Disassembly of iPod Block” • Refer to “Disassembly of iPod Support & iPod Spring” • Refer to “Disassembly of iPod Support & iPod Spring” •...
  • Page 50 11.8.6. Disassembly of Cradle Key & iPod 11.9. Disassembly Interlock Tap Tray Switch P.C.B. • Refer to “Disassembly of iPod Block” • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of iPod Support & iPod Spring” • Refer to “Disassembly of Door Assembly” •...
  • Page 51 Step 2 : Release the 5P Wire from the slots. Step 3 : Remove 1 screw. Caution : During assembling, ensure the 5P wire is Step 4 : Release 1 catch. dressed into the slots. Step 5 : Lift up the Interlock Switch P.C.B as shown. Caution 1 : During assembling, place the Interlock Switch P.C.B.
  • Page 52 Step 6 : Remove the Interlock Switch P.C.B.. 11.10. Disassembly of Remote Sensor P.C.B. • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” • Refer to “Disassembly of Front Ornament Unit” • Refer to “Disassembly of Front Panel Block” Step 1 : Release the Wire from the slots.
  • Page 53 Step 2 : Detach 5P wire at the connector (P941) on the Remote Caution : During assembling, ensure 4P & 5P wire are dressed into the slots respectively. Sensor P.C.B.. Step 3 : Detach 4P wire at the connector (P942) on the Remote Sensor P.C.B..
  • Page 54 Step 4 : Use a Screwdriver to release 2 catches. Caution : During assembling, positon the Remote Sensor P.C.B. (with white masking) with the catches & inserted Step 5 : Lift up the Remote Sensor P.C.B. as shown. into the Front Panel Block .
  • Page 55 Caution : During assembling, ensure the Remote Sensor 11.11. Replacement Gear P.C.B. is seated properly fully catched. Assembly • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” • Refer to “Disassembly of Front Ornament Unit” •...
  • Page 56 Step 4 : Remove the Gear Box Assembly as shown. 11.11.2. Assembly of Gear Box Assembly Step 1 : Place the Gear Box Assembly onto Front Panel Block as shown. Step 2 : Slighly insert the Gear Box Assembly onto the Front Panel Block as shown.
  • Page 57 Step 3 : Connect 4P wire at the connector (CN931) on the 11.12. Disassembly of Motor P.C.B. Motor P.C.B.. • Refer to “Disassembly of Gear Box Assembly” Step 4 : Dress the 4P Wire into the slot. Step 1 : Release 1 catch. Step 2 : Remove the Motor P.C.B.
  • Page 58 Step 4 : Desolder pins on the solder side of the Motor P.C.B. 11.13. Disassembly of Belt & Pulley and remove the Motor P.C.B.. Gear • Refer to “Disassembly of Gear Box Assembly” Step 1 : Remove the Belt. Step 2 : Remove the Pulley Gear.
  • Page 59 11.14. Disassembly of Motor Assem- Caution 1 : During assembling, align the Motor wire with the indicated arrow as shown. Caution 2 : During assembling, ensure the Motor Assembly is fully catched & seated properly. • Refer to “Disassembly of Gear Box Assembly” •...
  • Page 60 11.15. Disassembly Centering Caution 1 : During assembling, placed the Centering Spring below Centering Stopper rib. Spring & Centering Stopper Caution 2 : During assembling, placed the Centering Spring below the Hook. • Refer to “Disassembly of Gear Box Assembly” •...
  • Page 61 Step 2 : Remove Centering Spring. Step 4 : Remove Centering Stopper. Caution : Keep the Centering Spring in safe place and Caution : During assembling, check the correct orientation place them back during assembling. before fixing the centering stopper. A "click" sound will be heard when fully catched.
  • Page 62 11.16. Disassembly of Lever Spring, Caution 1 : During assembling, placed the Lever Spring below SW Lever Hook. Trigger Lever & Driver Gear A Caution 2 : During assembling, placed the Lever Spring below Trigger Lever Hook. • Refer to “Disassembly of Gear Box Assembly” •...
  • Page 63 Step 2 : Remove the Lever Spring. 11.17. Disassembly Lever, Caution : Keep the Lever Spring in safe place and place Relay Gear & Driver Gear B them back during assembling. • Refer to “Disassembly of Gear Box Assembly” • Refer to “Disassembly of Belt & Pulley Gear” •...
  • Page 64 Caution : During assembling, a “click” sound could be Step 5 : Remove the Driver Gear B. heard when the SW Lever is fully catched. Step 4 : Remove the Relay Gear.
  • Page 65 11.18. Disassembly of Shutter & Shut- Step 2 : Upset the Front Panel Block. Step 3 : Remove the Shutter & Shutter Spring. ter Spring Caution : Keep the Shutter Spring in safe place and place them back during assembling. •...
  • Page 66 11.19. Disassembly of Upper Guide Step 4 : Remove the Upper Guide Rail & the Top Ornament. Rail & Top Ornament • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” • Refer to “Disassembly of Front Ornament Unit” •...
  • Page 67 11.20. Disassembly of Bottom Orna- Step 2 : Remove the Bottom Ornament. ment • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” • Refer to “Disassembly of Front Ornament Unit” • Refer to “Disassembly of Front Panel Block” Step 1 : Release the catches &...
  • Page 68 11.21. Disassembly of Lower Guide Step 3 : Release 2 catches. Caution : During assembling, ensure the Lower Guide Rail Rail is fully catched to the Front Panel Block. • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” •...
  • Page 69 11.22. Disassembly of AirPlay Con- Step 2 : Remove the Earth Plate. Caution: During assembling, ensure that the Earth Plate is nect P.C.B. fixed & properly seated on the locators. • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” •...
  • Page 70 Step 3 : Lift up the AirPlay Antenna. Step 5 : Remove 3 screws. Step 4 : Remove the AirPlay Wire Antenna from slot. Step 6 : Lift up the AirPlay Unit. Caution 1 : During assembling, ensure the AirPlay Wire Antenna is fixed into the slots.
  • Page 71 Step 9 : Lift up to remove the AirPlay Connect P.C.B.. Step 12 : Remove AirPlay Antenna. Step 10 : Lift up the Himelons. Caution : Replace the Himelons if they are torn during dis- assembling. Step 11 : Detach the AirPlay Connector.
  • Page 72 11.23. Disassembly of SMPS P.C.B. Caution : During assembling, a “click” sound could be heard when the SMPS unit is attached properly. • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” • Refer to “Disassembly of Front Ornament Unit” •...
  • Page 73 Step 5 : Lift up the Himelons. Step 7 : Gently push up the SMPS Shield Unit to release the Caution : Replace the Himelons if they are torn during dis- catches. assembling. Caution : During assembling, ensure the SMPS Shield Unit is catched properly to the SMPS bracket as shown.
  • Page 74 Step 7 : Remove 3 screws. Caution: During assembling of SMPS P.C.B., ensure that the SMPS P.C.B. is properly seated on the locators. Step 8 : Remove the SMPS P.C.B..
  • Page 75 11.24. Replacement of Diode (D1700) Step 3 : Remove the Diode (D1700). • Refer to “Disassembly of SMPS P.C.B.” 11.24.1. Disassembly of Diode (D1700) Caution : Avoid touching the heatsink unit and SMPS P.C.B., due to its high temperature after prolonged use. Touching it may lead to injuries.
  • Page 76 11.24.2. Assembly of Diode (D1700) 11.25. Disassembly of Panel P.C.B. & Button Ornament Unit Step 1 : Apply grease to the heatsink unit. • Refer to “Disassembly of Base Stand Assembly” Step 2 : Fix the Diode (D1700) onto SMPS P.C.B.. •...
  • Page 77 Step 4 : Detach the Panel P.C.B. from the Button Ornament 11.26. Disassembly of Button P.C.B. unit. • Refer to “Disassembly of Base Stand Assembly” Step 5 : Remove the Panel P.C.B.. • Refer to “Disassembly of Door Assembly” • Refer to “Disassembly of Front Ornament Unit” •...
  • Page 78 Step 3 : Remove the Button P.C.B.. 11.27. Disassembly of Button Orna- ment • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” • Refer to “Disassembly of Front Ornament Unit” • Refer to “Disassembly of Front Panel Block” •...
  • Page 79 11.28. Disassembly of CD Mechanism Step 4 : Remove the CD Mechanism. • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” • Refer to “Disassembly of Front Ornament Unit” • Refer to “Disassembly of Front Panel Block” •...
  • Page 80 11.29. Disassembly Servo Step 2 : Lift up the Mecha Chassis & remove the Floating Springs. P.C.B. Caution : Keep the Floating Springs in safe place and place them back during assembling. • Refer to “Disassembly of CD Mechanism” Step 1 : Release both catches and push down the fixed pin as arrow shown.
  • Page 81 Step 4 : Desolder points on the solder side of CD Servo P.C.B.. Step 8 : Attach short pin to the 24P FFC of the Traverse Assembly. Step 9 : Remove the CD Servo P.C.B.. Step 5 : Upset the CD Servo P.C.B.. Step 6 : Lift up the Connector Cover.
  • Page 82 11.30. Disassembly of Jack Lid Step 3 : Push the shaft of the Jack Lid inwards in the direction as shown. • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” • Refer to “Disassembly of Front Ornament Unit” •...
  • Page 83 Caution : During assembling, insert the shaft of the Jack 11.31. Disassembly of Main P.C.B. Lid into hole A, then press & push the shaft into hole B. • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” •...
  • Page 84 Step 3 : Remove 2 screws. Step 6 : Remove 4 screws. Step 7 : Release the 2P Cable Wire from the slots. Caution : During assembling, dressed the 2P cable wire into the slots. Step 8 : Slightly Lift up the Main P.C.B.. Step 4 : Remove the Tuner Holder.
  • Page 85 Caution 1 : During assembling, align the Headphone Jack Caution 2 : During assembling, align the Main P.C.B. with (JK450) on the Main P.C.B. with the hole on the Rear Cabi- the locator & ensure it is properly seated. net Assembly as shown.
  • Page 86 11.32. Disassembly of Passive Radia- 11.33. Disassembly of Front Speaker tor (SP3 & SP4) (SP1) Note : Passive Radiator (SP3 & SP4) have the same mechani- • Refer to “Disassembly of Base Stand Assembly” cal structure. For disassembling of Passive Radiator (SP4), •...
  • Page 87 Step 3 : Remove 4 screws. Step 5 : Desolder the red (+) wire and black (-) wire at the ter- minals on the Front Speaker (SP1). Step 6 : Remove 4 screws. Step 4 : Lift up the Front Speaker Assembly (L) using a flat- head screw driver.
  • Page 88 Step 7 : Remove the Front Speaker (SP1). Caution 1 : During assembling, ensure the speaker wires is soldered properly, check for dry joints. Caution 2 : During assembling, dressed the speaker wires into the slots.
  • Page 89 11.34. Disassembly of Front Speaker Step 3 : Lift up the Front Speaker Assembly (R) using a Flat- head screw driver. (SP2) • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” • Refer to “Disassembly of Front Ornament Unit” •...
  • Page 90 Step 5 : Remove 4 screws. Caution 1 : During assembling, ensure the speaker wires is soldered properly, check for dry joints. Caution 2 : During assembling, dressed the speaker wires into the slots. Step 6 : Remove Front Speaker (SP2).
  • Page 91 11.35. Disassembly of Passive Radia- 11.36. Disassembly of Passive Radia- tor (SP5) tor (SP6) • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Base Stand Assembly” • Refer to “Disassembly of Door Assembly” • Refer to “Disassembly of Door Assembly” •...
  • Page 92 12 Service Position Note: For description of the disassembly procedures, see the Section 11 12.1. Checking & Repairing of Air- Step 6 : Place a Support Block to support the Front Panel Block as shown. Play Connect P.C.B. Step 1 : Remove the Base Stand Assembly. Step 2 : Remove the Door Assembly.
  • Page 93 Step 9 : Check and repair the AirPlay Connect P.C.B. accord- 12.2. Checking & Repairing of SMPS ing to the diagram shown. P.C.B. Step 1 : Remove the Base Stand Assembly. Step 2 : Remove the Door Assembly. Step 3 : Remove the Front Ornament Unit. Step 4 : Remove the Front Panel Block.
  • Page 94 Step 7 : Place a Support Block to support the Front Panel Step 10 : Place the SMPS P.C.B. on the Insulating Material. Block as shown. Step 11 : Connect 7P extension cable (REX1538) from P1700 on the SMPS P.C.B. to CN1100 on the Main P.C.B.. Step 8 : Connect 14P FFC at the connector (CN941) on Remote Sensor P.C.B..
  • Page 95 12.3. Checking & Repairing of Panel Step 8 : Use a tape to keep the centre switch (S643) depressed. P.C.B. Step 1 : Remove the Base Stand Assembly. Step 2 : Remove the Door Assembly. Step 3 : Remove the Front Ornament Unit. Step 4 : Remove the Front Panel Block.
  • Page 96 Step 10 : Connect 14P FFC at the connector (CN941) on 12.4. Checking & Repairing of CD Remote Sensor P.C.B.. Servo P.C.B. Step 11 : Connect 5P wire at the connector (P944) on Remote Sensor P.C.B.. Note : Insert CD before Checking CD Servo P.C.B. Step 1 : Remove the Base Stand Assembly.
  • Page 97 Step 6 : Remove Earth Plate. Step 7 : Lift up the AirPlay Antenna. Caution: During assembling of Earth Plate, ensure that the Step 8 : Remove the AirPlay Wire Antenna from slot. Earth Plate is properly seated on the locators. Caution 1 : During assembling, ensure the AirPlay Wire Antenna is fixed into the slots.
  • Page 98 Step 9 : Remove 3 screws. Step 13 : Remove 1 screw. Step 10 : Lift up the AirPlay Unit. Step 14 : Lift up the Panel P.C.B. with the Button Ornament Unit as shown. Step 15 : Place the Panel P.C.B. on the Support Block. Step 11 : Detach 20P FFC at the connector (P801) on the Air- Play Connect P.C.B..
  • Page 99 Step 16 : Remove 3 screws. Step 19 : Remove the CD Mechanism. Step 17 : Lift up the CD Mechanism. Step 20 : Place the CD Mechanism on the Insulating Material. Step 18 : Detach 30P FFC at the connector (CN6006) on the Main P.C.B..
  • Page 100 Step 21 : Connect 30P extension cable (REE1712) from Step 23 : Place the Support Block to support the Front Panel CN6006 on the Main P.C.B. to CN7002 on the CD Servo Block as shown. P.C.B.. Step 22 : Use a tape to keep the centre switch (S643) depressed.
  • Page 101 Step 24 : Connect 14P FFC at the connector (CN941) on 12.5. Checking & Repairing of Main Remote Sensor P.C.B.. P.C.B. (Side B) Step 25 : Connect 5P wire at the connector (P944) on Remote Sensor P.C.B. • Refer to (Step 1) - (Step 25) of item 12.4. Step 1 : Check and repair the Main P.C.B.
  • Page 102 12.6. Checking & Repairing of Main Step 4 : Remove 3 screws. Step 5 : Slightly lift up the CD Mechanism. P.C.B. (Side A) • Refer to (Step 1) - (Step 12) of item 12.4. Step 1 : Remove 1 screw. Step 2 : Lift up the Panel P.C.B.
  • Page 103 Step 7 : Remove the CD Mechanism. Step 10 : Gently lift up the SMPS Unit. Step 11 : Remove the SMPS Unit. Step 8 : Remove 4 screws. Step 9 : Lift up 14P FFC taped on SMPS Unit. Caution : During assembling, paste the 14P FFC back on the SMPS Unit, replace the double sided tape if torn.
  • Page 104 Step 12 : Detach 2P wire at the connector (CN401) on the Main Step 15 : Remove the Tuner Holder. P.C.B.. Step 13 : Release the 2P wire from the slots. Caution : During assembling, dress the 2P wire into the slots.
  • Page 105 Step 19 : Remove the Main P.C.B. as shown. Step 23 : Connect 18P FFC at the connector (CN900) on the Button P.C.B.. Step 20 : Upset the Main P.C.B.. Step 21 : Place the Main P.C.B. (Side A) on the Insulating Material.
  • Page 106 Step 26 : Place the CD Mechanism on the Support Block. Step 29 : Connect 14P FFC at the connector (CN941) on Step 27 : Connect 30P extension cable (REE1712) from Remote Sensor P.C.B.. CN6006 on the Main P.C.B. to CN7002 on the CD Servo Step 30 : Connect 5P wire at the connector (P944) on Remote P.C.B..
  • Page 107 CN7002 CN6006 CN6005 CN941 P942 CN931 TL931* VOTR+ CN7002 CN6006 CN6005 CN941 P942 CN931 TL932* VOTR- CN7002 CN6006 LDSW LDSW SWITCH 3.3V Q6004 NOTE: “ * ” REF IS FOR INDICATION ONLY SC-HC57P/PC SERVO & SYSTEM CONTROL (1/2) BLOCK DIAGRAM...
  • Page 108 TU SDA TU SDA DAMP ERR DAMP ERR DAMP ERR PDET2 PDET2 PDET2 (D AMP) TU INT TU INT TUN INT AP DOUT AP DOUT AP DOUT AP IREQ AP IREQ AP IREQ SC-HC57P/PC SERVO & SYSTEM CONTROL (2/2) BLOCK DIAGRAM...
  • Page 109 DQ2 / DQ13 5 / 46 DQ3 / DQ12 6 / 45 DQ4 / DQ11 8 / 43 DQ5 / DQ10 9 / 42 DQ6 / DQ9 11 / 40 12 / 39 DQ7 / DQ8 SC-HC57P/PC IC TERMINAL CHART...
  • Page 110 SLEEP DAMP SLEEP CD IIS BCLK CD BCK CD IIS BCLK CD IIS LRCK CD IIS LRCK CD LRCK CD IIS SRDARA CD SDO CD IIS SRDATA NOTE: “ * ” REF IS FOR INDICATION ONLY SC-HC57P/PC AUDIO BLOCK DIAGRAM...
  • Page 111 SERVO & SYSTEM CONTROL M VDET M VDET TO POWER SUPPLY Q404 BLOCK (2/2) +18V POWER SUPPLY PW DAMP18V PW DAMP18V QR400 SWITCH QR401 SWITCH FROM SMPS CUT SMPS CUT SERVO & SYSTEM CONTROL SC-HC57P/PC POWER SUPPLY (1/2) BLOCK DIAGRAM...
  • Page 112 1 EN +1.9V +1.9V P800 +1.9V +1.9V 1.9V VO 5 10,12 PW AP3R3V +3.3V CN6004 P801 +3.3V +3.3V 4 VCC 18,19 +3.3V P800 +3.3V +3.3V 3.3V NOTE: “ * ” REF IS FOR INDICATION ONLY SC-HC57P/PC POWER SUPPLY (2/2) BLOCK DIAGRAM...
  • Page 113 REMOTE SENSOR P.C.B. (Side B) CN502 SOLDER SIDE 30 ... . .1 CAUTION RISK OF ELECTRIC SHOCK DOCK FOR iPod AC VOLTAGE LINE. PLEASE DO NOT TOUCH THIS P.C.B SC-HC57P/PC WIRING CONNECTION DIAGRAM...
  • Page 115 15 Schematic Diagram 15.1. Schematic Diagram Notes • Voltage and signal line (All schematic diagrams may be modified at any time with : +B Signal Line the development of new technology) : -B Signal Line Notes: : CD Audio Input Signal Line S641: ABN switch.
  • Page 117 B1ADCF000001 R7208 C7230 C7152 LASER DRIVE 0.01 R7151 R7220 C7239 X7201 K7111 K7101 X7205 C7267 R7221 C7205 C7206 D7650 C7225 DZ2J056M0L 1000P C7226 DGND LDSW 1000P DGND1 SC-HC57P/PC NOTE: “ * ” REF IS FOR INDICATION ONLY CD SERVO CIRCUIT...
  • Page 118 K7702 CD_IIS_LRCK CD_IIS_BCLK K7703 CD_IIS_BCLK DGND 3.3V LID_RIGHT LID_LEFT LDSW LID_RIGHT I2S OFF LID_LEFT PGND C7207 3.3V USB_SEL DGND K7528 IS2 OFF L7001 EXC24CE900U C7031 100P K7278 DVSS R7896 SC-HC57P/PC USB_SEL R7902 CD SERVO CIRCUIT USBDP_1 R7901 USBDM_1 R7903 R7904...
  • Page 119 R420 R402 2.2K C415 C414 L404~L407 G1C1R0MA0530 C410 C411 C412 C413 L400~L403 LB400 J0JHC0000107 G1C150M00023 LB401 J0JHC0000107 C434 25V100 R451 C406 C407 C409 PDET2 TO MAIN CIRCUIT (3/4) NOTE: “ * ” REF IS FOR INDICATION ONLY SC-HC57P/PC MAIN CIRCUIT...
  • Page 120 1000P R6105 100K R6112 IC6003 100K R6110 100K QR400 C0EBY0000861 R6111 100K B1GBCFNN0038 RESET SWITCH R453 QR400 QR401 C417 1000P QR401 D6001~D6002 R442 B1GDCFJJ0041 DA2J10100L SWITCH Q404 Q404 B1CHRD000051 SMPS_CUT +18V POWER SUPPLY TO MAIN CIRCUIT (4/4) SC-HC57P/PC MAIN CIRCUIT...
  • Page 121 2.2K FM ANT R6009 RFGND THERMAL DOUT 1000P C6009 LB51 R6005 J0JBC0000032 RL51* T6001 EXC24CE900U 4.7K 4.7K CN6002 REMOTE SENSOR DGND CIRCUIT (P944) IN SCHEMATIC SC-HC57P/PC MAIN CIRCUIT DIAGRAM - 7 NOTE: “ * ” REF IS FOR INDICATION ONLY...
  • Page 122 +3.3V VOLTAGE REGULATOR G1C100M00041 J0JHC0000107 0.022 COMP R1116 C1139 (VOUT) R1124 C1144 1000P 3.3K 25V100 R1117 C1141 R1118 5600P 4.7K C1123 G1105* C1125 2200P 1000P RL1100* 3 21 SC-HC57P/PC MAIN CIRCUIT ZJ1100 NOTE: “ * ” REF IS FOR INDICATION ONLY...
  • Page 123 AUDIO_RETURN VREF- DIAGRAM - 8 iPod_DET_1 L503 G2 G4 J0JGC0000071 P942 POSITION (L) MOTOR CIRCUIT VREF- (CN931) IN SCHEMATIC DIAGRAM - 8 P945 DGND iPod CIRCUIT (CN501) IN SCHEMATIC iPod_5V DIAGRAM - 7 iPod_DET SC-HC57P/PC iPod / REMOTE SENSOR CIRCUIT...
  • Page 124 CN901 CLOSE FL_CE FL_CL FL_DI D3.3V PANEL CIRCUIT VP_GND VREF- (CN6801) FL_CE IN SCHEMATIC FL_CL FL_DI DIAGRAM - 8 SC-HC57P/PC D3.3V VREF- PANEL / INTERLOCK SWITCH / MOTOR / BUTTON CIRCUIT NOTE: “ * ” REF IS FOR INDICATION ONLY...
  • Page 125 R1728 8.2K B1ABGC000001 B1GBCFJJ0051 IC1701 PCONT SWITCH STANDBY CONTROL C0DBZMC00006 C1701 C1708 SHUNT REGULATOR R1718 50V10P 1000P R1725 R1729 R1730 R1727 6.8K 100K C1716 0.01 C1704 1000P ZJ1702 NOTE: “ * ” REF IS FOR INDICATION ONLY SC-HC57P/PC SMPS CIRCUIT...
  • Page 126 MAIN CIRCUIT NCS3 AV4DATA0 SPI_REQ LB816 (CN6004) NRESET IN SCHEMATIC SSMD7 USB_DN DGND DIAGRAM - 4 AV3CTR1 USB_DP SCLK AV3CTR0 USBVBUSDRV LRCLK USB_VBUS D/A DATA0 PDOUT1 DGND PDOUT0 SSMD5 1.2V_ON LB813 1.9V_ON DGND DGND LB811 R800 J0JFC0000007 SC-HC57P/PC AirPlay CONNECT CIRCUIT...
  • Page 127 R7331 C7626 C7339 C7338 D7342 R7336 TP36 C7031 TP39 L7336 C7334 IC7002 TP10 TP11 K7278 TP37 M7301* (SPINDLE MOTOR) 3567A-1 3567A-1 3567A-1 3567A-1 (SIDE A) (SIDE B) NOTE: " * " REF IS FOR INDICATION ONLY SC-HC57P/PC CD SERVO P.C.B.
  • Page 128 IC6004 G1104* C424 G1105* LB51 R1104 G1103* R6023 R1118 C6049 R6022 C1141 C1115 C1140 C1113 G1107* R6105 R1127 C1001 R1128 LB6030 C6050 LB1101 C1125 3523AA-1 3523AA-1 (SIDE A) SC-HC57P/PC NOTE: " * " REF IS FOR INDICATION ONLY MAIN P.C.B.
  • Page 129 C1144 LB52 R6075 R6032 IC52 C6046 R6057 R6102 L6006 R6014 IC6000 Q6004 LB1103 CN6006 ZJ1100 R6009 R6005 T6001 RL1100* CN6005 3523AA-1 3523AA-1 R6016 R6018 CN6002 CN1100 (SIDE B) SC-HC57P/PC NOTE: " * " REF IS FOR INDICATION ONLY MAIN P.C.B.
  • Page 130 3523AC-1 3523AC-1 3523AC-1 3523AC-1 DOCK FOR iPod / iPhone (SIDE A) (SIDE B) REMOTE SENSOR P.C.B. (REP4775HD) P944 CN941 P945 P941 P942 R942 IR941 C941 3523AD-1 3523AD-1 3523AD-1 3523AD-1 SENSOR (SIDE A) (SIDE B) SC-HC57P/PC iPod / REMOTE SENSOR P.C.B.
  • Page 131 C801 (ABN) LB802 LB807 LB810 LB811 LB815 X CK800 LB812 LB814 LB816 LB813 3526AC 3526AC 3564A 3564A P800 AirPlay MODULE SC-HC57P/PC NOTE: " * " REF IS FOR INDICATION ONLY PANEL / INTERLOCK SWITCH / MOTOR / AirPlay CONNECT P.C.B.
  • Page 132 120V QR1700 60Hz T2A 250V K1701 C1712 R1706 PC1701 C1715 R1702 Q1701 CAUTION RISK OF ELECTRIC SHOCK AC VOLTAGE LINE. PLEASE DO NOT TOUCH THIS P.C.B SC-HC57P/PC NOTE: " * " REF IS FOR INDICATION ONLY BUTTON / SMPS P.C.B.
  • Page 133 REF NO. IC7001 MODE CD PLAY IC7001 REF NO. MODE CD PLAY IC7002 REF NO. MODE CD PLAY REF NO. IC7002 MODE CD PLAY IC7502 REF NO. MODE CD PLAY IC7704 REF NO. MODE CD PLAY SC-HC57P/PC CD SERVO P.C.B.
  • Page 134 17.1.2. CD SERVO P.C.B. (2/2) IC7704 REF NO. MODE CD PLAY REF NO. IC7704 MODE CD PLAY IC7851 REF NO. MODE CD PLAY Q7601 REF NO. MODE CD PLAY SC-HC57P/PC CD SERVO P.C.B.
  • Page 135 IC1100 REF NO. MODE POWER ON 17.0 STANDBY 17.0 IC1101 REF NO. MODE POWER ON 9.2 16.5 STANDBY 16.5 IC1102 REF NO. MODE POWER ON 17.0 17.0 STANDBY 17.0 17.0 IC1103 REF NO. MODE POWER ON STANDBY SC-HC57P/PC MAIN P.C.B.
  • Page 136 MODE CD PLAY STANDBY IC6002 REF NO. MODE CD PLAY STANDBY IC6003 REF NO. MODE CD PLAY STANDBY IC6004 REF NO. MODE CD PLAY STANDBY Q400 Q401 Q402 Q403 REF NO. MODE POWER ON 16.5 STANDBY 16.5 SC-HC57P/PC MAIN P.C.B.
  • Page 137 17.0 17.0 17.0 17.0 QR401 QR1100 QR6001 REF NO. MODE POWER ON STANDBY SC-HC57P/PC MAIN P.C.B. 17.1.6. PANEL P.C.B. IC6801 REF NO. MODE POWER ON -26.8 -26.8 -24.5 -15.4 -17.7 -20.0 -24.6 STANDBY -26.8 -26.8 -24.5 -15.4 -17.7 -20.0 -24.6 IC6801 REF NO.
  • Page 138 17.1.9. AirPlay CONNECT P.C.B. IC801 REF NO. MODE POWER ON STANDBY IC802 REF NO. MODE POWER ON STANDBY SC-HC57P/PC AirPlay CONNECT P.C.B. 17.1.10. Waveform Chart 1.4Vp-p(5usec/div) 0.1Vp-p(200usec/div) 2Vp-p(20nsec/div) 2.2Vp-p(20nsec/div) 3Vp-p(50nsec/div) 1.1Vp-p(10usec/div) 2.8Vp-p(5usec/div) 3.8Vp-p(50nsec/div) 2.1Vp-p(10usec/div)
  • Page 139 17.2. Illustration of IC’s, Transistors and Diodes C0DBAYY01462 (8P) C0DBGYY01843 MN6627947RD (144P) C0GBY0000117 (30P) C1AB00003801 (14P) C0DBGYY01640 RFKWMHC37J0 (100P) C3ABMY000027 (50P) C0DBGYY01654 C0HBB0000057 (44P) C3EBEY000037 (8P) C3EBFY000029 (8P) C0DBZMC00006 (4P) No.1 No.1 MFI337S3959 C0EBY0000861 C0DACYY00012 C1AB00003568 C1AB00003800 (48P) C0DBEYY00146 C0CBCAC00358 C0DBZYY00483 No.1 B1CHRD000051...
  • Page 140 17.3. Terminal Function of IC’s 17.3.1. IC6002 (RFKWMHC37J0) MICRO PROCESSOR IC Pin No. Mark Function MODEL_SEL MODEL SELECTION Pin No. Mark Function AP_RESET AirPlay RESET DAMP_RST DAMP RESET AP_V1R2_ON NO CONNECTION DAMP_SLEEP DAMP SLEEP MODE AP_V1R9_ON NO CONNECTION DAMP_MUTE DAMP MUTING AP_CS AirPlay CHIP SELECT OCD_SDA...
  • Page 141 *TL932 (MOTOR P.C.B.) *TL931 CN931 S931 S644 S641 S643 CN501 S642 *P641 (INTERLOCK SWITCH P.C.B.) (iPod P.C.B.) CN502 21-1 P942 P944 (REMOTE SENSOR P.C.B.) P945 P941 CN941 IR941 SC-HC57P/PC-K NOTE: " * " PART IS NOT SUPPLIED . CABINET DRAWINGS...
  • Page 142 (AirPlay MODULE P.C.B) (CD SERVO P.C.B.) CN7001 S7201 CN7002 P801 P800 (AirPlay CONNECT P.C.B.) TH1701 (SMPS P.C.B.) T1700 ZJ1702 P1700 ZJ1701 33-1 P1751 33-1 33-1 *HEATSINK UNIT A 33-1 SC-HC57P/PC-K NOTE: " * " PART IS NOT SUPPLIED. CABINET DRAWINGS...
  • Page 143 18.1.2. Packaging ACCESSORIES BAG WALL BRACKET ASS’Y REMOTE CONTROL A1-1 R/C BATTERY COVER SAFETY HOLDER WALL MOUNT BRACKET AC CORD SCREW O/I BOOK FM INDOOR ANTENNA SC-HC57P/PC POLYFOAM (LEFT) POLYFOAM (RIGHT) SC-HC57P/PC-K PACKAGING DRAWINGS...
  • Page 145 18.1.3. Mechanical Replacement Parts List Safety Ref. No. Part No. Part Name & Qty Remarks Description Safety Ref. No. Part No. Part Name & Qty Remarks RFKGHC37P-KL FRONT ORNAMENT Description UNIT L RFKGHC37P-KR FRONT ORNAMENT CABINET AND UNIT R CHASSIS RFKPHC37P-K MOTOR ASS’Y RYP1727F-K...
  • Page 146 Safety Ref. No. Part No. Part Name & Qty Remarks Safety Ref. No. Part No. Part Name & Qty Remarks Description Description RMB0934 iPod SUPPORT A1-1 RKK-HTB10GNK R/C BATTERY SPRING COVER RMB0938 SHUTTER SPRING K2CB2YY00059 AC CORD RMB0940 LID SPRING RQT9633-2P O/I BOOK (En) P/PC...
  • Page 147 18.2. Electrical Replacement Parts List Safety Ref. No. Part No. Part Name & Qty Remarks Description Safety Ref. No. Part No. Part Name & Qty Remarks IC6003 C0EBY0000861 Description IC6004 C3EBEY000037 IC6801 C0HBB0000057 PRINTED CIR- IC7001 MN6627947RD CUITS BOARDS IC7002 C0GBY0000117 IC7502 MFI337S3959...
  • Page 148 Safety Ref. No. Part No. Part Name & Qty Remarks Safety Ref. No. Part No. Part Name & Qty Remarks Description Description D1105 B0ECKM000008 DIODE P941 K1KA05BA0061 5P CONNECTOR D1107 DZ2J030M0L DIODE P942 K1KA04BA0061 4P CONNECTOR D1108 B0EAMM000057 DIODE P944 K1KA03BA0047 3P CONNECTOR D1109...
  • Page 149 Safety Ref. No. Part No. Part Name & Qty Remarks Safety Ref. No. Part No. Part Name & Qty Remarks Description Description LB6009 J0JBC0000014 INDUCTOR K7102 D0GBR00JA008 1/10W LB6020 J0JBC0000014 INDUCTOR K7111 D0GBR00JA008 1/10W LB6021 J0JBC0000014 INDUCTOR K7258 D0GBR00JA008 1/10W LB6022 J0JBC0000014 INDUCTOR...
  • Page 150 Safety Ref. No. Part No. Part Name & Qty Remarks Safety Ref. No. Part No. Part Name & Qty Remarks Description Description R446 D0GB102JA008 1/10W R1724 ERJ12YJ105U 1/2W R447 D0GB102JA008 1/10W R1725 D0GB223JA008 1/10W R448 D0GB561JA008 1/10W R1726 ERJ12YJ105U 1/2W R449 D0GB473JA008 1/10W...
  • Page 151 Safety Ref. No. Part No. Part Name & Qty Remarks Safety Ref. No. Part No. Part Name & Qty Remarks Description Description R6093 D0GB101JA008 1/10W R7349 D0GB104JA008 100K 1/10W R6094 D0GB101JA008 1/10W R7504 D0GB222JA008 2.2K 1/10W R6096 D0GB472JA008 4.7K 1/10W R7505 D0GB222JA008 2.2K...
  • Page 152 Safety Ref. No. Part No. Part Name & Qty Remarks Safety Ref. No. Part No. Part Name & Qty Remarks Description Description C447 F1H1E223A002 0.022uF 25V C1727 F1BAF1020020 1000pF C448 F1H1E223A002 0.022uF 25V C1728 F1BAF1020020 1000pF C449 F1H1H103A885 0.01uF C6002 F1H1H1010005 100pF C450...
  • Page 153 Safety Ref. No. Part No. Part Name & Qty Remarks Description C7243 D0GBR00JA008 1/10W C7244 F1H1C153A001 0.015uF 16V C7253 D0GBR00JA008 1/10W C7263 F1G1A1040006 0.1uF C7264 F1G1A1040006 0.1uF C7265 F1G1A1040006 0.1uF C7267 F1G1A1040006 0.1uF C7268 F1H1H103A885 0.01uF C7269 F1H1A105A004 C7315 F1H1A154A001 0.15uF C7334 F2G1A101A019...

This manual is also suitable for:

Sc-hc57Sc-hc57pc
