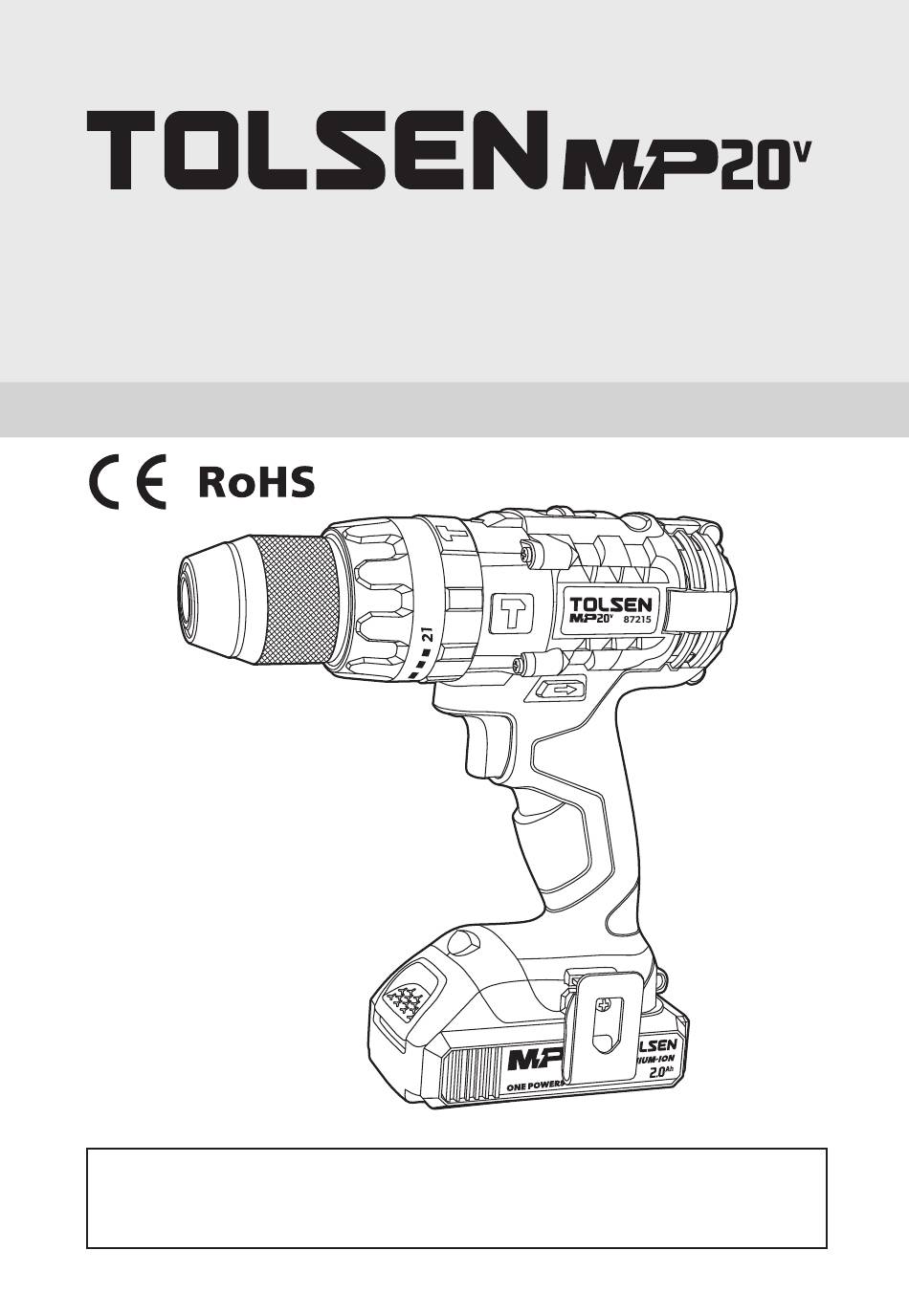

87215

LI-ION CORDLESS IMPACT DRILL

INSTRUCTION MANUAL

SAVE THIS MANUAL !

You will need this manual for safety instructions, operating procedures and warranty.

Put it and the original sales receipt in a safe dry place for future reference.

20V

LITHIUM-ION

Table of Contents

Need help?

Do you have a question about the 87215 and is the answer not in the manual?

Questions and answers

Summary of Contents for TOLSEN TOOLS 87215

Page 1 87215 LI-ION CORDLESS IMPACT DRILL INSTRUCTION MANUAL LITHIUM-ION LITHIUM-ION SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.
Page 2: Important Safety Information
SAFETY IMPORTANT SAFETY INFORMATION General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, ﬁre and/or serious injury. WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 3: Personal Safety
SAFETY Personal safety 1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inﬂuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
Page 4: Additional Safety For Battery-Operated Drills
SAFETY Battery Tool Use and Care 1. Recharge only with the charger speciﬁed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of ﬁre when used with another battery pack. 2. Use power tools only with speciﬁcally designated battery packs. Use of any other battery packs may create a risk of injury and ﬁre.
Page 5: Battery Charger Safety
SAFETY Battery Safety WARNING This battery can only be used in the machines included in the TOLSEN MP20V lithium-ion power platform system. This battery can only be used cooperatively with the designated battery charger. Li-lon batteries, if incorrectly used, stored or charged will cause a ﬁre, burn and explosion hazard. Failure to follow these instructions may cause overheating or ﬁre.
Page 6: Before Use
SAFETY Before Use Removing a battery Remove the Battery from the tool by pressing the lock button, then slide the Battery out of the Battery Slot. WARNING: DO NOT try to remove the Battery without pressing the lock button. The tool or Battery could be damaged. Fitting a battery 1.
Page 7 SAFETY Note: Symbology Class II Double insulated for additional protection CE conformity Read the instruction manual before using Wear hearing protection while operating the tool Wear hand protection Always use breathing apparatus when machining materials which generate dust. Wear ear protection. Operating environmental temperature Max 45 º...
Page 8: Specifications
SETUP SPECIFICATIONS Rated Voltage 20VDC No-load Speed 0-450/0-1700 min Impact frequency 7200/27200 bpm Chuck Capacity 13mm(1/2”) Torque Max. 55N m(487in.lbs.) Max. Drilling Capacity in Steel 13 mm(1/2”) Max. Drilling Capacity in Concrete 13 mm(1/2”) Max. Drilling Capacity in Wood 35 mm(1-3/8”) Battery pack Voltage 20VDC Battery capacity...
Page 9: Direction Control
SETUP OPERATING INSTRUCTIONS Fitting drill bits and accessories WARNING: ALWAYS remove the Battery from the drill before attaching, adjusting or removing accessories. WARNING: DO NOT attempt to tighten drill bits (or any other accessory) by gripping the front part of the chuck and switching the tool on.
Page 10: Drilling Wood
SETUP 3. The speed of the drill is controlled by the movement of the trigger: the further the Trigger Switch is pressed down, the faster the drill will run. 4. Release the Trigger Switch to stop the machine. Screwdriver use Note: Always use a universal bit holder when working with screwdriver bits.
Page 11: Maintenance
MAINTENANCE MAINTENANCE WARNING: ALWAYS disconnect from the mains power supply, before carrying out any maintenance/ cleaning of the charger. Remove the battery before carrying out any maintenance/ cleaning of the drill. Note: Both the drill and the charger contain no user-serviceable parts. If the device does not perform as outlined in this manual, return it to an authorised service centre for repair General inspection - Regularly check that all the ﬁxing screws are tight...
Page 12: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING problem possible causes Likely Solutions Tool will not 1. Battery Pack not properly 1. Remove Battery Pack, make sure there are no start. obstructions, clean battery contacts on tool, connected. reinsert the Battery Pack according to its shape 2.
Page 13: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY SUZHOU TOLSEN TOOLS CO.,LTD. 198 HUASHAN ROAD, ZHANGJIAGANG, JIANGSU, CHINA Declare that the product 87215 LI-ION CORDLESS IMPACT DRILL Complies with the essential health and safety requirements of the following Directices: council directive 2006/42/EC Standards and technical speciﬁcations referred to:...
