Summary of Contents for Kogan Atlas G900 Mini PC Pro

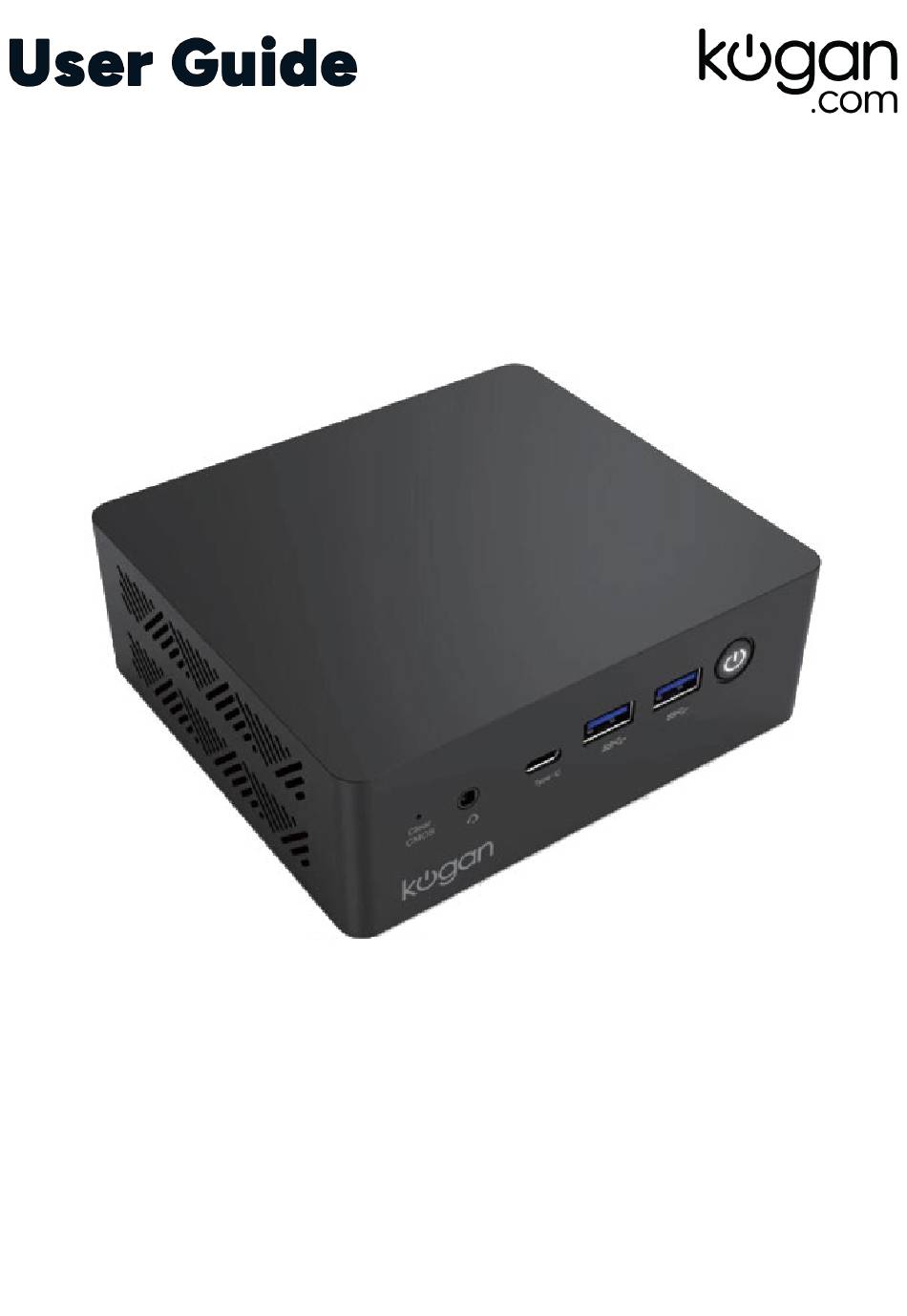

- Page 1 Atlas G900 Mini PC Pro with Windows 11 Pro (128GB) KAMPG900HA...
-
Page 3: Safety And Warnings
Do not modify, repair, or attempt to alter the features or functions of the PC. • This PC contains small CMOS batteries on the motherboard. If these batteries require replacement, do not attempt to replace them yourself. Contact help.Kogan.com for assistance. •... - Page 4 Components • Mini PC • Power Adaptor • Wall Mount Bracket • PM4x10mm Screw (x2) • PM3x5mm Screw (x2) • User Guide...
- Page 5 Overview Top and Side View Power Button USB 3.0 Port USB-C Port 3.5mm Audio Out Port Reset Button USB 2.0 Port HDMI Port Ethernet Port DC Input...
-
Page 6: Bottom View
Outlet Bottom View Mounting Holes... - Page 7 Assembly Turn on your TV or monitor and set the video input to HDMI. Connect one end of an HDMI cable (not provided) to an HDMI port on the PC. Connect the other end to the HDMI port on your TV or monitor. Plug the power adaptor into an electrical outlet, then connect the other end to the DC input on the PC.
-
Page 8: Installation
Installation Wall Mounting Step 1: Attach the Bracket to the PC Turn the PC upside down to expose the mounting plate. Align x2 small holes on the bottom of the bracket with the holes on the PC's mounting plate. Secure the bracket to the PC using x2 PM3x5mm screws. Step 2: Mark Drill Points on the Wall Hold the PC with the attached bracket against the wall in the desired mounting location. - Page 9 Accessing the PC While the PC is booting up, press the ‘Esc’ key. This allows access to advanced settings. Reset If the PC needs to be reset to factory settings, use a pin (not provided) to press and hold the ‘Reset’ button for a few seconds. The PC will then reset and restart. Note: The ‘Reset’...
- Page 10 Start Menu • Click the Windows icon at the bottom of the screen to open the Start menu. • Installed apps can be accessed via the Start menu. Recently used apps will be listed under the Recent section for quick access. •...
- Page 11 Multitasking To use multiple windows, drag one window to the left or right side of the screen until an overlay appears, then release it. You can then select another open window to fill the other half of the screen.
- Page 12 Sleep, Restart and Shut Down • Click the Windows icon at the bottom of the screen, then click the ‘Power’ icon. Select ‘Sleep’, ‘Restart’, or ‘Shut down’ to perform the desired action. • To wake the PC from sleep, press the ‘Power’ button. •...
-
Page 13: Specifications
Specifications Power input DC IN, 12V/3A Dimensions 124.5 x 112.0 x 44.0mm Weight 298g System Intel Twin Lake N150 CPU speed Base frequency 0.8 GHz Operating system Windows 11 pro Intel® Graphics Memory 4GB (DDR4) Sodimmx1 Storage capacity 128GB Expandable SSD 128GB SSD M.2 2280 SATA microSD card support Maximum 128GB... - Page 14 Notes...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
