Milwaukee MX FUEL WBT60 Maintenance Manual

Milwaukee MX FUEL WBT60 Maintenance Manual

600 mm edging trowel
Hide thumbs

Advertisement

Quick Links

Download this manual

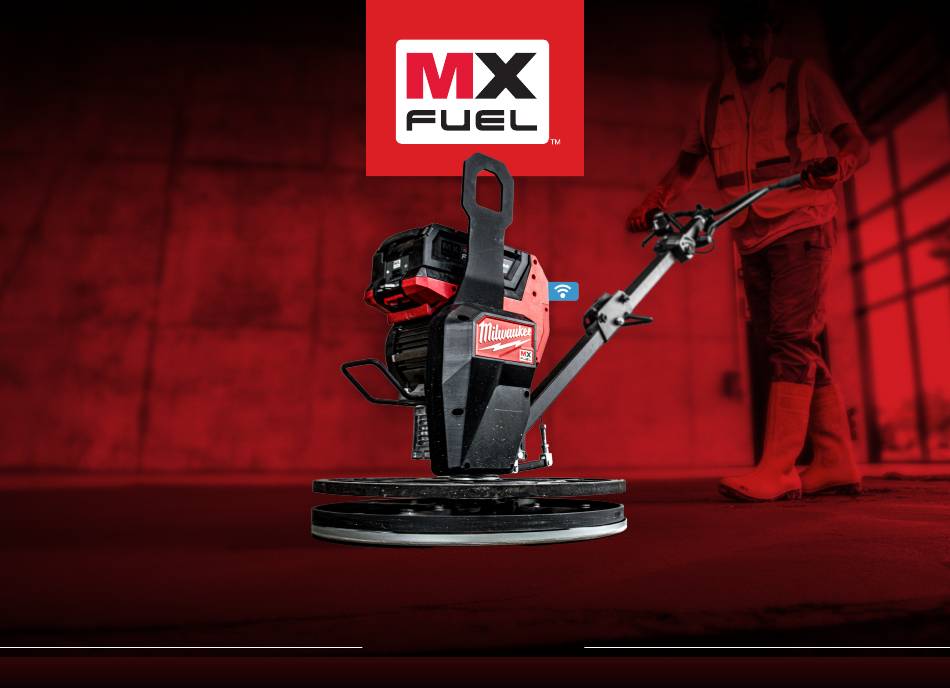

MX FUEL
600 MM EDGING TROWEL
TM
MXF WBT60
MAINTENANCE SCHEDULE

Advertisement

loading
Need help?

Need help?

Do you have a question about the MX FUEL WBT60 and is the answer not in the manual?

Questions and answers

Related Manuals for Milwaukee MX FUEL WBT60

Summary of Contents for Milwaukee MX FUEL WBT60

  • Page 1 MX FUEL 600 MM EDGING TROWEL MXF WBT60 MAINTENANCE SCHEDULE...
  • Page 2 MXF WBT60 Our MX FUEL Models are designed to require minimum maintenance. Battery powered Equipment has all the power of petrol with no fumes or complex maintenance. This guide will give you all information needed to help extend the lifetime of your MXF walk behind trowel and get the best performance possible. ...
  • Page 3 MXF WBT60 SCHEDULE To keep your walk behind trowel in the best working condition, follow the listed steps within the maintenance schedule. For any action, make sure to respect the safety instructions written in the manual to protect yourself and the device. CHECKLIST DAILY AFTER...
  • Page 4 MXF WBT60 CLEANING To make sure your walk behind trowel is working proper- ly and to extend its lifetime, cleaning on a regular basis is a mandatory process. Cleaning your tool just takes a few minutes after a casual use. Allow the engine to cool down before cleaning and remove the battery.

  • Page 5: Changing The V Belt

    MXF WBT60 CHANGING THE V BELT Make sure to be safe and respect the instructions written within the manual and the local regulations. 1. Unscrew the cover 5. Remove the belt 2. Remove the cover 6. Put in the new belt 3.

  • Page 6: Changing Blades

    MXF WBT60 CHANGING BLADES Make sure to be safe and respect the instructions written within the manual and the local regulations. 1. Take the trowel off the pan 5. Put the new blades back on 2. Remove the screws 6. Flip the trowel back into the working position 3.

  • Page 7: Gearbox Oil Change

    MXF WBT60 GEARBOX OIL CHANGE Make sure to be safe and respect the instructions written within the manual and the local regulations. 1. Cover the tool and make sure no oil can enter your environment 2. Open the plug with an 8 mm allen key 3.

  • Page 8: Lubrication Points

    MXF WBT60 LUBRICATION POINTS PT.1 Make sure to be safe and respect the instructions written within the manual and the local regulations. 1. Take the trowel off the pan 5. Remove the M8 bolt with the trowel arms 2. Flip the trowel to the side 6.
  • Page 9 MXF WBT60 LUBRICATION POINTS PT.2 Make sure to be safe and respect the instructions written within the manual and the local regulations. 9. Pull and turn each arm 5 to 6 times 13. Put back the nuts and tighten with 21-24 Nm 10.
  • Page 10 MXF WBT60 LUBRICATION POINTS PT.3 Make sure to be safe and respect the instructions written within the manual and the local regulations. 17. Remove the cage half way off 21. Put the outer ring back on 18. Put EP2 lithium compex grease behind the cage 22.
  • Page 11 MXF WBT60 LUBRICATION POINTS HANDLE Make sure to be safe and respect the instructions written within the manual and the local regulations. 1. Open the blade angle adjustment all the way 2. Insert EP2 lithium compex grease 3. Close the blade angle adjustment to the desired angle...
