PRODUCT REGISTRATION
Thank you for purchasing a CyberPower product. Please take a few minutes to register your product at: cyberpowersystems.com/registration. Registration certifies your product's warranty,
confirms your ownership in the event of a product loss or theft and entitles you to free technical support. Register your product now to receive the benefits of CyberPower ownership.
YOUR ULTIMATE ALLY IN POWER
CST135UC/CST150UC
USER MANUAL
1
10
3
13
6

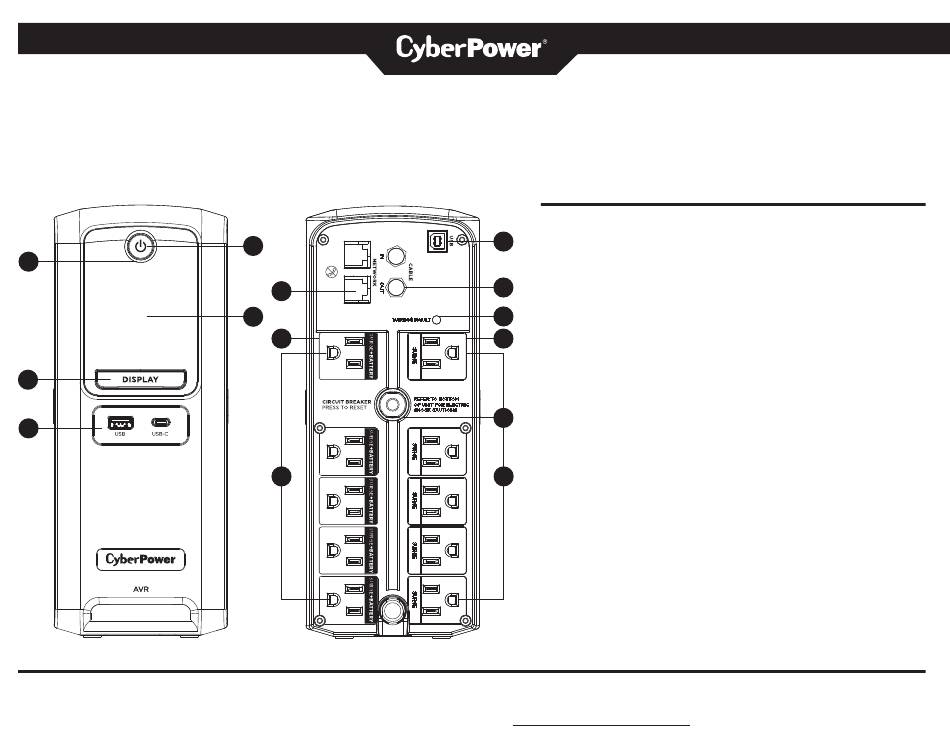

FEATURES
9
1 . Power Switch
2 . Power On Indicator
11
3 . LCD module display
4 . Display/Select Button
12
5 . USB Charging Ports
13
6 . Battery and Surge Protected Outlets
7 . Full-Time Surge Protection Outlets
8 . Circuit Breaker
8
9 . USB Ports to PC
10 . Communication Protection Ports
1 1 . Coax/Cable/DSS Surge Protection
7
12 . Wiring Fault Indicator (red)
13 . Widely Spaced Outlets Designed for AC Adapters
Advertisement
Related Manuals for CyberPower CST135UC
Summary of Contents for CyberPower CST135UC
- Page 1 Thank you for purchasing a CyberPower product. Please take a few minutes to register your product at: cyberpowersystems.com/registration. Registration certifies your product's warranty, confirms your ownership in the event of a product loss or theft and entitles you to free technical support. Register your product now to receive the benefits of CyberPower ownership.
- Page 2 DO NOT USE FOR MEDICAL OR LIFE CAUTION! To reduce the risk of electric SUPPORT EQUIPMENT! CyberPower of conductive contaminants. (Please see shock, do not remove the cover except to Systems does not sell products for life service the battery.
- Page 3 National Electric Code, ANSI/NFPA 70. DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower Systems does not sell products for life support or medical applications. DO NOT use in any circumstance that would affect...
- Page 4 OVERVIEW The CST135UC/CST150UC provides complete power protection from utility power that is not always consistent. The CST135UC/CST150UC features 1500 Joules of surge protection. The unit provides long lasting battery backup during power outages with maintenance free batteries. The CST135UC/CST150UC ensures...
- Page 5 1 . Ensure that the equipment plugged into the outlet does not exceed the UPS’s rated capacity (1350VA/810W for CST135UC, 1500VA/900W for CST150UC). If the rated capacity of the unit is exceeded, an overload condition may occur and cause the UPS to shut down or the circuit breaker to trip.
- Page 6 INSTALLING YOUR UPS SYSTEM - Continued HARDWARE INSTALLATION GUIDE 1 . Your new UPS may be used immediately upon receipt. However, after receiving a new UPS, to ensure the battery’s maximum charge capacity, it is recommended that you charge the battery for at least 8 hours.
- Page 7 4 . Press the power switch to turn the unit on. The Power On indicator light will illuminate and the unit will “beep”. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the UPS off and unplug at least one piece of equipment from the battery power supplied outlets.
- Page 8 LCD display always on or turn the LCD display off while in AC/Utility power mode. For more information, please refer the Function Setup Guide. 5 . USB Charging Ports: CST135UC USB Charging ports provide 5Vdc,3A Max(USB-C), and 5 Vdc, 2.4A Max(USB-A). Total Output Current:4A CST150UC USB Charging ports provide 5Vdc,2.5A Max/ 9Vdc,2A Max (USB-C),...
- Page 9 7 . Full-Time Surge Protection Outlets: The UPS has five surge suppression outlets. 8 . Circuit Breaker: Located on the back of the UPS, the circuit breaker serves to provide overload and fault protection. 9 . USB Ports to PC: Use the type B to type A USB cable to connect the product to a computer.
- Page 10 5 Vdc, 2.4A Max (USB-A). Total 1 . When replacing batteries, replace with the same number of the following battery: Output Current:30W CyberPower / RB1270X2C for the CST135UC and CyberPower / RB1290X2 for the 6 . Battery and Surge Protected CST150UC.
- Page 11 DEFINITIONS FOR ILLUMINATED LCD INDICATORS The LCD display indicates a variety of UPS operational conditions. All descriptions apply when the UPS is plugged into an AC outlet and turned on or when the UPS is on battery. DISPLAY 1 . INPUT voltage meter: This meter measures the AC voltage that the UPS system is receiving from the utility wall outlet.
- Page 12 9 . FAULT: This icon appears if there is a problem with the UPS. Press the POWER button to turn the UPS off. E01 : Charger Fault-Overcharge (Contact CyberPower Systems for support.) E02: Charger Fault-No Charge (Contact CyberPower Systems for support.) E11: Battery Overvoltage (Contact CyberPower Systems for support.)
- Page 13 Battery not fully charged. Recharge the battery by leaving the UPS plugged in. The UPS does not perform expected runtime. Please contact CyberPower Systems about replacement Battery is worn out. batteries. The on/off switch is designed to prevent damage from Turn the UPS off.
- Page 14 Net Weight 23.59lbs / 10.7kg 25lbs/11.3kg Net Weight 23.59lbs / 10.7kg 25lbs/11.3kg Battery Type CyberPower / RB1270X2C CyberPower / RB1290X2 Battery Type CyberPower / RB1270X2C CyberPower / RB1290X2 Typical Battery Recharge Time 8 hours to 90% capacity from total discharge...
- Page 15 CYBERPOWER GREENPOWER UPS™ TECHNOLOGY Advanced Energy-Saving Patented Bypass Technology CyberPower’s patented GreenPower UPS™ with Bypass Technology reduces UPS energy costs by up to 75% compared to conventional UPS models. Even when utility power is normal, conventional UPS models constantly pass power through a transformer. By contrast, under normal ™...
- Page 16 Where Can I Get More Information? The application of the United Nations Convention of Contracts for the International Sale of Goods is expressly excluded. CyberPower is the warrantor under this Limited Warranty. For further information please feel free to contact CyberPower at: Cyber Power Systems (USA), Inc.
