Camlink CL-AC20 Instructions

CL-AC20
Camera

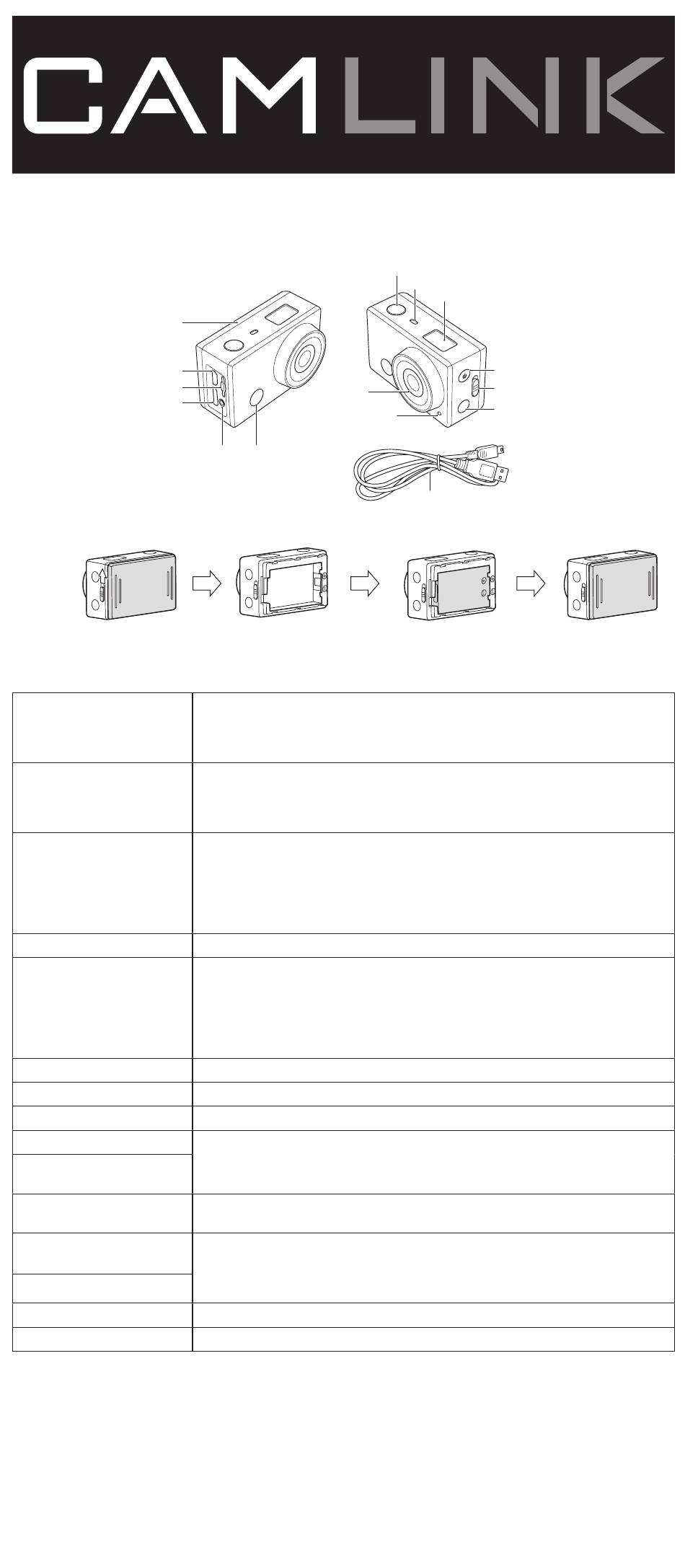

A
B
Description
The camera is a device to take photos and record videos.
1. On/off button
Mode button
2. Shutter
OK button
3. Wi-Fi button
Wi-Fi indicator
4. IR receiver
5. Pairing indicator
6. Display
7. Lens
8. Microphone
9. Battery compartment
10. Lock/unlock switch
(battery compartment)
11. Memory card slot
(microSD / TransFlash)
12. USB port
(Micro USB)
13. USB cable
14. HDMI input
15. Microphone jack
Accessories
• Waterproof casing
• Remote control with strap
• Two helmet mount kits (mount, strap and adhesive)
• Handlebar mount kit
• Head strap mount kit
• Suction cup
• Cigarette lighter plug adapter
• USB cable (charging / data transfer)
9
12
11
14
15 4
• Press the button for 3 seconds to switch on or off the device.
Note: The device switches off automatically when the preset idle time has been reached
or the battery is low.
• Press the button to select photo mode, video mode or replay mode.
• Photo mode: Press the button to take a photo.
• Video mode: Press the button to start and stop recording video.
• Playback mode: Press the button to play back photos and videos.
• Menu mode: Press the button to confirm the selection.
Note:
• Press the Wi-Fi button to enable Wi-Fi .The Wi-Fi indicator starts to flash. The Wi-Fi
indicator lights continuously when the Wi-Fi connection is established.
• Press the Wi-Fi button again to disable Wi-Fi . The Wi-Fi indicator goes off.
Note: Wi-Fi is disabled by default. Wi-Fi will be automatically disabled if no Wi-Fi
connection is established within 30 seconds.
• The receiver is used to take photos with the remote control.
• Download and install the "SYMAGIX" app from Apple App Store or Google Play Store
on your mobile device.
• Press the Wi-Fi button. The pairing indicator comes on.
• Select the Wi-Fi ID of the device: "CL-AC20".
• Enter the password: "1234567890". The device is ready for use when the Wi-Fi
connection is established and you have opened the "SYMAGIX" app.
• The lens is used to record video.
• The microphone is used to record audio.
• Fig. B: Refer to the illustration to install the battery.
• Insert a memory card into the memory card slot (storage).
• Use the USB port and the USB cable to connect the device to the computer
(charging / data transfer).
Note: For charging, make sure that the device is switched off. For data transfer, make
sure that the device is switched on.
• Connect a TV to the HDMI input using an HDMI cable.
• Connect a microphone to the microphone jack.
2
8
6
7
5
13
1
10
3
English
