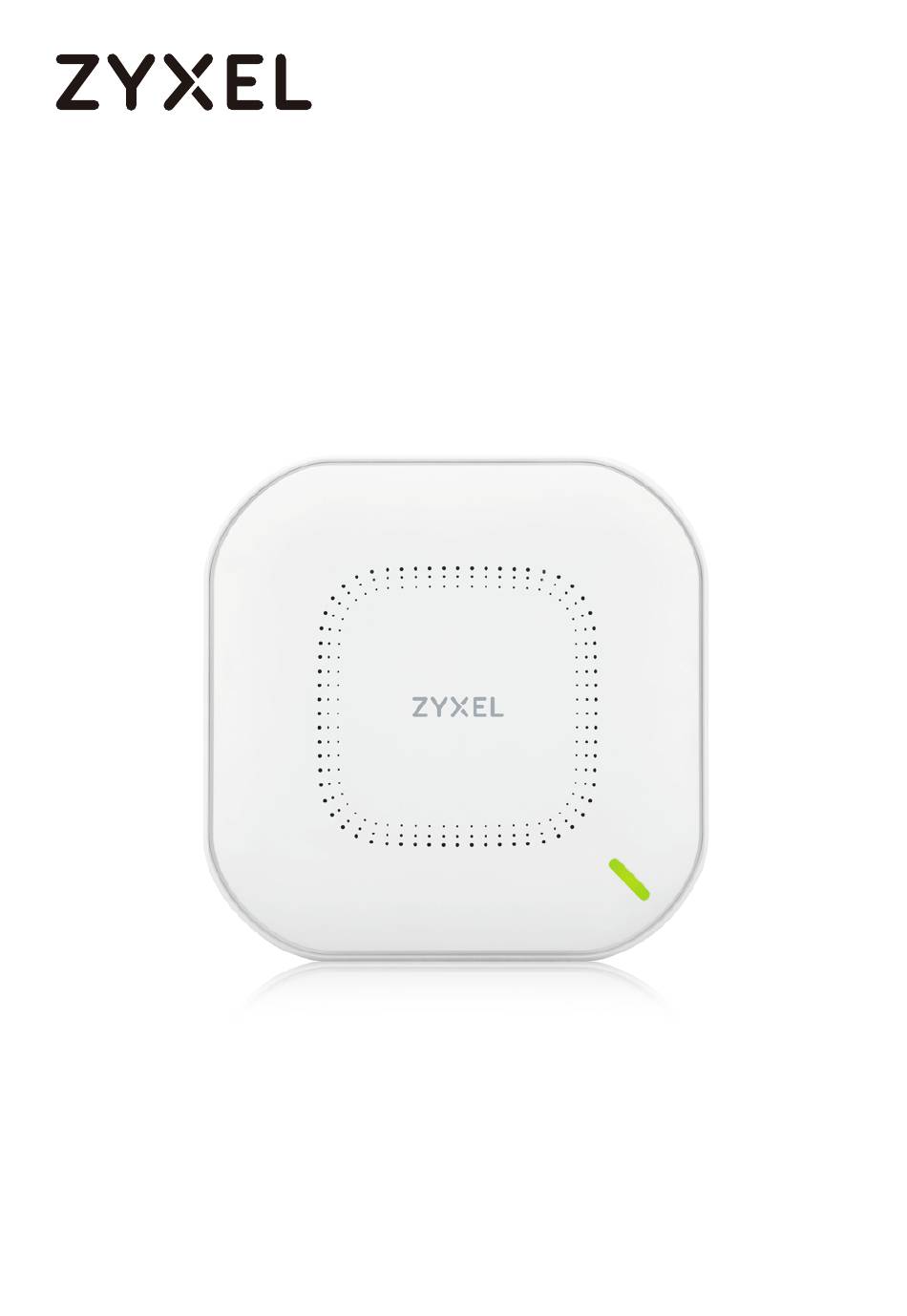

- Page 1 NWA110AX 802.11ax (WiFi 6) Dual-Radio PoE Access Point Quick Start Guide ENGLISH | DEUTSCH | ESPAÑOL | FRANÇAIS ITALIANO...
-
Page 2: Hardware Installation
Wait until the LED for your safety blinks green steadily Router PoE Switch Power Outlet Connect the UPLINK port to a router with Internet access. If you are not using PoE, connect the NWA110AX power socket to an appropriate power source. -
Page 3: Cloud Management
Sign In Email Password Submit Follow the steps below to manage the NWA110AX through the Zyxel cloud-based network management system. Note: Make sure the connected router has Internet access. Go to the Zyxel Nebula Control Center (NCC) website (https://nebula.zyxel.com). Click Get Started to sign up for a myZyxel... - Page 4 LAN MAC: XXXXXXXXXX Create an organization and a site (network) in the NCC. Enter the NWA110AX's LAN MAC address and serial number (S/N) (see the label on the device) in the NCC configuration screen. Note: The NWA110AX will go into cloud management mode automatically and restart after it is registered to a site.
-
Page 5: Web Configurator
Create an organization and site or select an existing site. Scan the NWA110AX's QR code to add it to the site. (You can find the QR code in its web configurator or on a label on the device or its box.) Note: The NWA110AX will go into cloud management mode automatically and restart after it is registered to a site. - Page 6 1234 (default) Login From a WiFi enabled computer, search for the NWA110AX's default WiFi network name (Zyxel-xxxx, where xxxx is the last four characters of the MAC address) and connect to it. Open your web browser and enter "http://1.1.1.1" for initial configuration.
- Page 7 Use an Ethernet cable to connect your computer to the UPLINK port of the NWA110AX through a PoE injector or PoE switch. Use its DHCP-assigned IP or default static IP address "http://192.168.1.2" to access the web configurator. Make sure your computer IP address is in the same subnet as the NWA110AX's.
- Page 8 Check the Dashboard screen and note down the NWA110AX's IP address in case you need to access it's web configurator again. Note : The 1.1.1.1 is for initial setup only. It is not usable after the NWA110AX is configured.
-
Page 9: Wall / Ceiling Mounting
Wall / Ceiling Mounting 25.40 9.00 Unit: mm Wall mounting: Drill two holes for the screw anchors (A), 62.4 mm apart. Insert the screw anchors into the wall. Ceiling mounting: Drill two holes for the screw anchors (A), 62.4 mm or 70.1 mm apart. - Page 10 Make sure the screws are snugly and securely fastened to the wall/ceiling. After the bracket is attached to the wall/ceiling, slide the NWA110AX onto the bracket until it clicks into the place.
-
Page 11: T-Bar Ceiling Mounting
11.80 Unit: mm Attach two clips to the ceiling grids as shown. Install two screws to secure the bracket to the clips. Slide the NWA110AX onto the bracket until it clicks into the place. Note: Clips (ACCESSORY-ZZ0105F) are sold separately. - Page 12 Grounding Remove the M4 ground screw from the NWA110AX’s rear panel as shown. Secure a green/yellow ground cable (18 AWG or smaller) to the NWA110AX’s rear panel using the M4 ground screw. Attach the other end of the ground cable to a wall or the ground. Follow your country’s regulations and safety instructions to electrically ground the...
-
Page 13: Support Information
EU Importer Zyxel Communications A/S Gladsaxevej 378, 2. th. 2860 Søborg, Denmark https://www.zyxel.com/dk/da/ US Importer Zyxel Communications, Inc 1130 North Miller Street Anaheim, CA 92806-2001 https://www.zyxel.com/us/en/ Copyright © 2020 Zyxel Communications Corp. All Rights Reserved.
