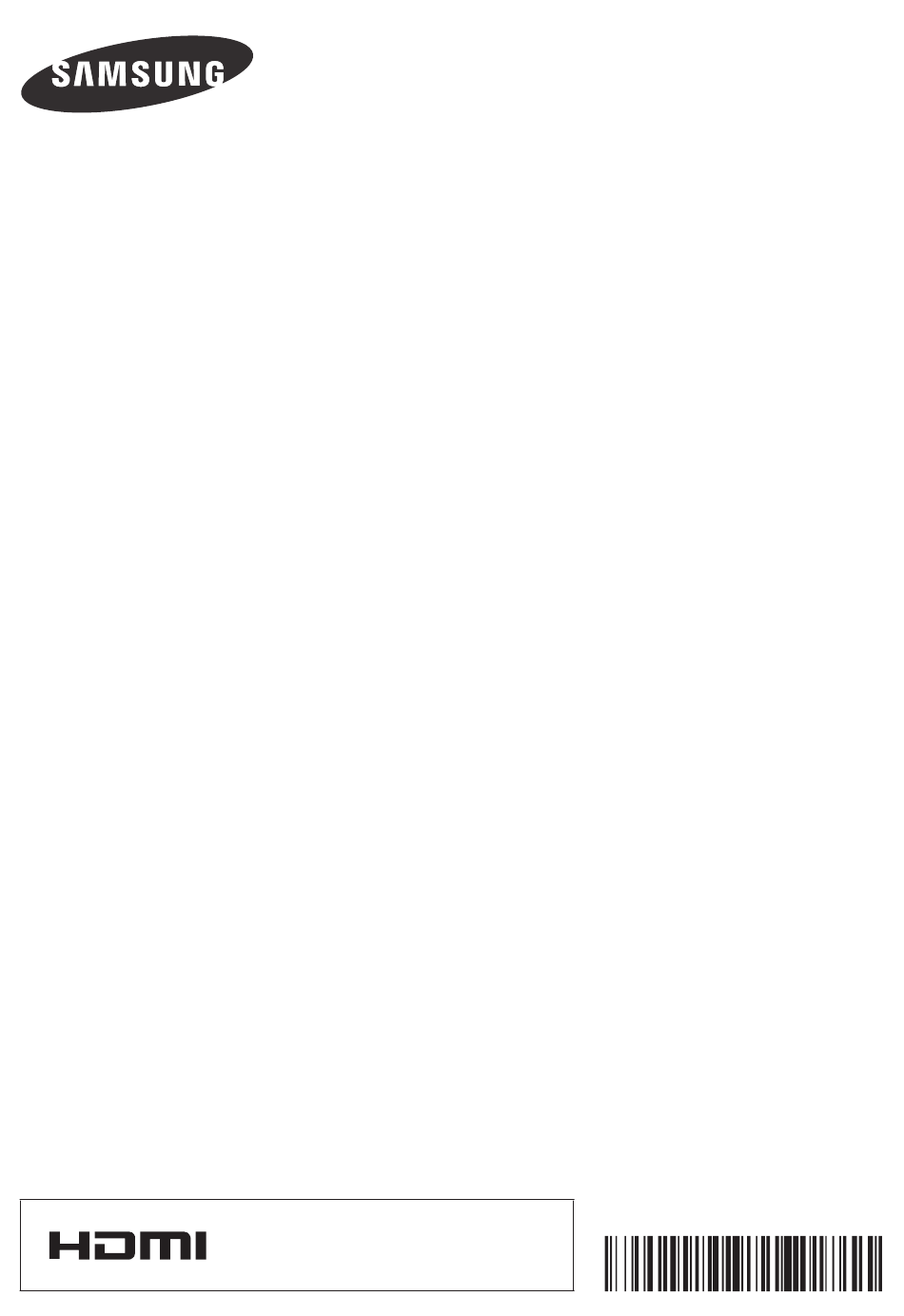

Quick Setup Guide
Guia de instalação rápida
UD46E-A UD46E-C UD46E-B
UD55E-B
English
- The color and the appearance may differ depending on the product, and the specifications are
subject to change without prior notice to improve the performance.
- Download the user manual from the website for further details.
http://www.samsung.com/displaysolutions
Português
- A cor e a aparência pode diferir no produto, e as especificações estão sujeitas a alteração sem
prévia notificação para aprimorar o desempenho.
- Faça o download do manual do usuário no website para mais detalhes.
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States
and other countries.
BN68-07319G-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the UD46E-A and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung UD46E-A

Summary of Contents for Samsung UD46E-A

  • Page 1 Quick Setup Guide Guia de instalação rápida UD46E-A UD46E-C UD46E-B UD55E-B English - The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance. - Download the user manual from the website for further details.
  • Page 2 Checking the Components Verificando os componentes English Português Quick Setup Guide Guia de instalação rápida Warranty card Cartão de garantia (Not available in some locations) (Não disponível em alguns locais) Regulatory guide Guia regulatório Power cord Cabo de alimentação Batteries Baterias (Not available in some locations) (Não disponíveis em alguns locais)
  • Page 3 Reverse Side Verso English Receives the remote control signal via the external sensor board and outputs the signal via LOOP OUT. Supplies power to the external sensor board or receives the light sensor signal. DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable. MAGICINFO: To use MagicInfo, make sure to connect the DP-DVI cable.
  • Page 4 External sensor KIT Kit de sensor externo POWER English Remote Control Sensor Aim the remote control towards this spot on the LCD Display. - Keep the area between the remote sensor and remote control obstacle-free. Light sensor Automatically detects the intensity of ambient light around a selected display and adjusts the screen brightness.
  • Page 5 Remote Control Controle remoto HOME MENU MagicInfo Player I TOOLS INFO RETURN EXIT HDMI English Display or hide the onscreen display menu, or return to the previous menu. Go to Home Launch Button. Move to the upper, lower, left or right menu, or adjust an option's setting. Confirm a menu selection.
  • Page 6 Connecting to a PC Conectando ao PC RGB IN AUDIO IN DVI IN (MAGICINFO) AUDIO IN HDMI IN 1 / HDMI IN 2 AUDIO IN HDMI IN 1 / HDMI IN 2 DP IN...

  • Page 7: Audio Out

    Connecting to a Video Device Conectando a um dispositivo de vídeo HDMI IN 1 / HDMI IN 2 AUDIO IN HDMI IN 1 / HDMI IN 2 Connecting to an Audio System Conectando a um sistema de áudio AUDIO OUT Connecting an External Monitor Conectando um monitor externo DP OUT (LOOPOUT)
  • Page 8 Using MDC Usando MDC RS232C IN RS232C OUT RS232C IN RS232C OUT RS232C IN RS232C OUT RJ45 RJ45 RS232C OUT RS232C IN RS232C OUT RS232C IN RS232C OUT English For details on how to use the MDC program, refer to Help after installing the program. The MDC programme can be downloaded from the website.
  • Page 9 Troubleshooting Guide Guia de solução de problemas English Issues Solutions The screen keeps switching on and off. Check the cable connection between the product and PC, and ensure the connection is secure. No Signal is displayed on the screen. Check that the product is connected correctly with a cable. Check that the device connected to the product is powered on.

  • Page 10: Contact Samsung World Wide

    Contact SAMSUNG WORLD WIDE Entre em contato com a SAMSUNG WORLDWIDE Web site: http://www.samsung.com Country Customer Care Center País Centro de atendimento ao cliente U.S.A 1-800-SAMSUNG (726-7864) CANADA 1-800-SAMSUNG (726-7864) ARGENTINE 0800-555-SAMSUNG (0800-555-7267) BOLIVIA 800-10-7260 0800-124-421 (Demais cidades e regiões)
  • Page 11 Specifications Model Name UD46E-A UD46E-C UD46E-B UD55E-B Size 46 CLASS (45.9 inches / 116.8 cm) 46 CLASS (45.9 inches / 116.8 cm) 46 CLASS (45.9 inches / 116.8 cm) 55 CLASS (54.6 inches / 138.7 cm) Panel 1018.08 mm (H) x 572.67 mm (V) 1018.08 mm (H) x 572.67 mm (V)

This manual is also suitable for:

Ud46e-cUd46e-bUd55e-b
