Vectra
Quick Reference Guide
Refer to Owner's Manual for detailed information.

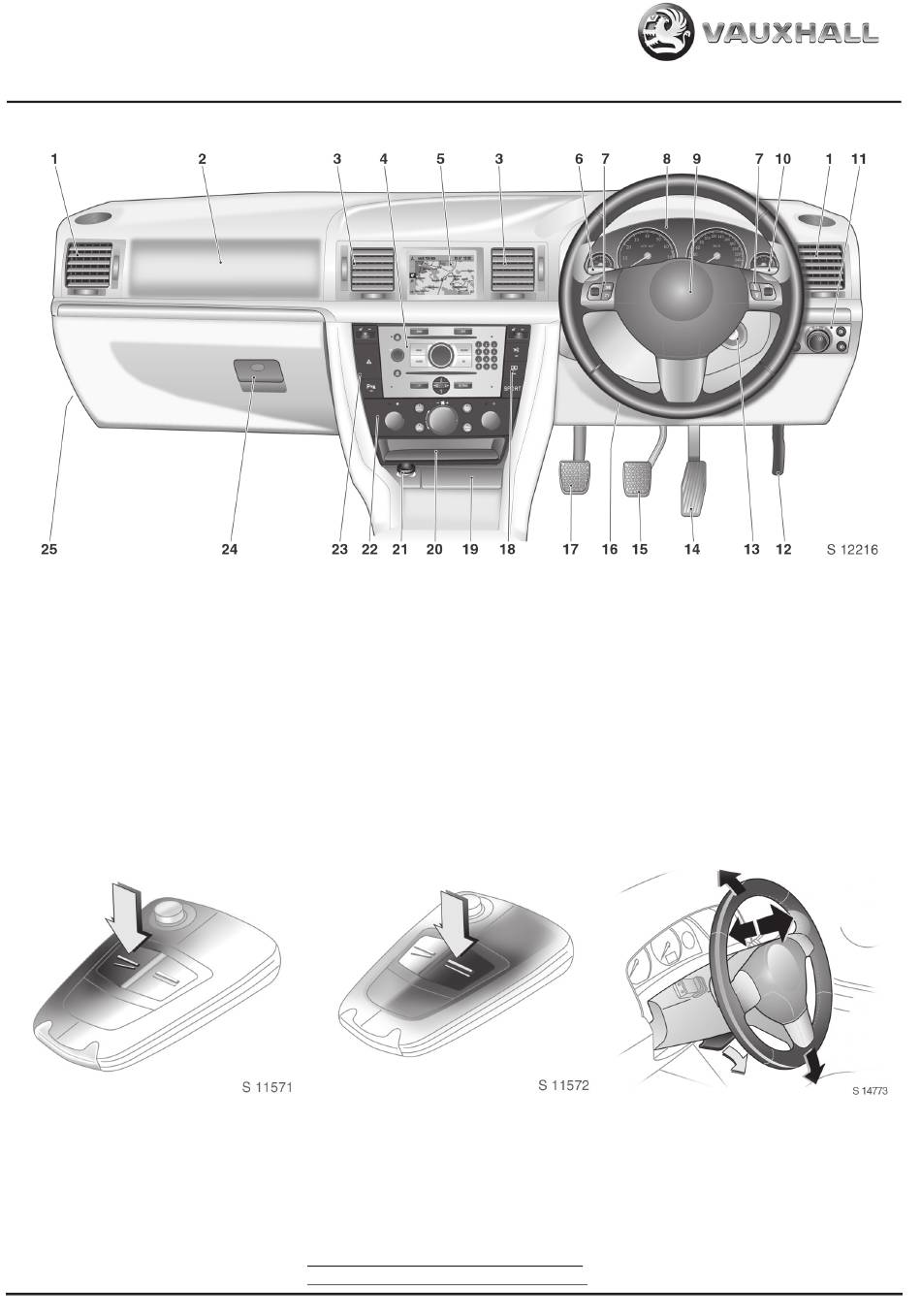

Instruments and controls
1. Side air vents
2. Front passenger's airbag
3. Centre air vents
4. Infotainment system 3
5. Central information display for
time, date, outside temperature,
Infotainment system 3,
check control 3,
trip computer 3,
Electronic Climate Control 3
6. Turn signal lights, headlight flash,
dipped and main beam,
door-to-door lighting 3,
parking lights, cruise control 3
7. Steering wheel remote control 3
Vehicle security
Unlocking:
Press button q on remote control
- or -
turn key in driver's door lock towards
front of vehicle, turn key back to the
vertical position and remove.
To unlock from inside, press central
)
locking button
in the driver's door.
TS 1561-A-08
8. Instruments
9. Horn, driver's airbag
10. Windscreen wiper and wash system,
headlight wash system 3,
rear window wash system 3
11. Parking lights, dipped beam,
instrument illumination,
fog tail light, front fog lights 3,
headlight range adjustment 3
12. Bonnet release lever
13. Starter switch
with steering column lock
14. Accelerator pedal
15. Brake pedal
16. Steering wheel adjustment
Locking:
Press button p on remote control.
To lock from inside, press central locking
m
button
in the driver's door with the
doors closed.
Electronic immobiliser
z Deactivated with key in starter switch.
z Activated when key is removed.
Engine cannot be started in any other
way, so keep spare key in a safe place!
Note: some items described may be optional
17. Clutch pedal 3
18. Heated seat (right) 3, seat climate
control 3, Vauxhall alarm system 3,
rear window blind 3,
Electronic Stability Programme 3,
SPORT mode 3
19. Ashtray 3
20. Stowage compartment with
AUX input 3
21. Cigarette lighter 3 or
accessory socket
22. Climate control
23. Heated seat (left) 3, hazard warning
lights, parking distance sensors 3
24. Glove compartment
25. Fusebox
Steering wheel adjustment 3:
Move lever down, adjust height and
distance, move lever up and engage
into position.
Adjust steering wheel only when vehicle
is stationary and steering column lock is
released.
3
.
July 2007
