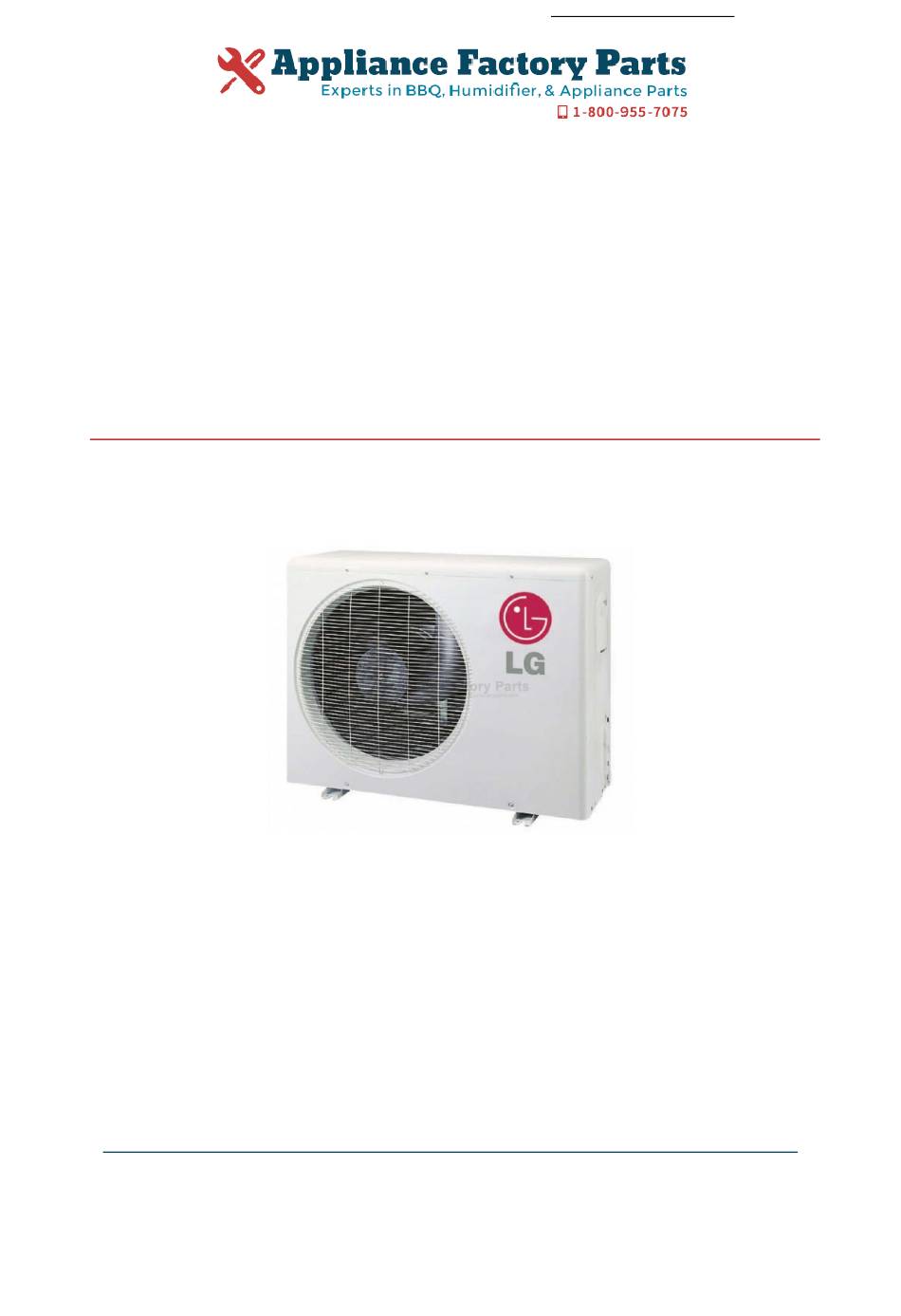

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. LG LSU306HV Owner's Manual Shop genuine replacement parts for LG LSU306HV Find Your LG Air Conditioner Parts - Select From 2328 Models -------- Manual continues below --------...
- Page 2 MODEL : AS-W303DGH0(LS305HV) CAUTION Before Servicing the unit, read the safety precautions in General SVC manual. Only for authorized service personnel. - 1 - Copyright ©2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
- Page 3 O : Applied, - : No relation * For circuit breaker rating, please conform to local standards wherever necessary. improvement. - 2 - Copyright ©2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
- Page 4 Thermister for outdoor suction pipe temperature (Inverter) Thermister for outdoor discharge pipe temperature(Constant) CN-TH4 (Outdoor) ❈ EEV : Electronic Expansion Valve - 3 - Copyright ©2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
- Page 5 3. Wiring Diagrams Indoor Unit CN-MOTOR1 CN-L/R(BL) CN-U/D(WH) CN-HVB CN-DISP2(BL) CN-12V CN-DISP1(WH) CN-TH1 CN-TH2 - 4 - Copyright ©2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
- Page 6 Outdoor Unit CN_4WAY CN_PRESS CN_FAN(A) CN_OIL/S CN-COIL1 CN-COIL2 CN_TH4 CN_TH3 CN_TH1 CN_TH2 CN_LEV1 - 5 - Copyright ©2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
- Page 7 Note) * Please ensure GCSC since the replacement parts may be changed depending upon the buyer's request. Please check the correct parts in View RPL(Replacement Part List) on GCSC. (GCSC Website http://biz.Lgservice.com,) - 6 - Copyright ©2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
- Page 8 Note) * Please ensure GCSC since the replacement parts may be changed depending upon the buyer's request. Please check the correct parts in View RPL(Replacement Part List) on GCSC. (GCSC Website http://biz.Lgservice.com,) - 7 - Copyright ©2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
- Page 9 DECEMBER, 2007 P/NO : 3828A20195Y - 8 - Copyright ©2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
