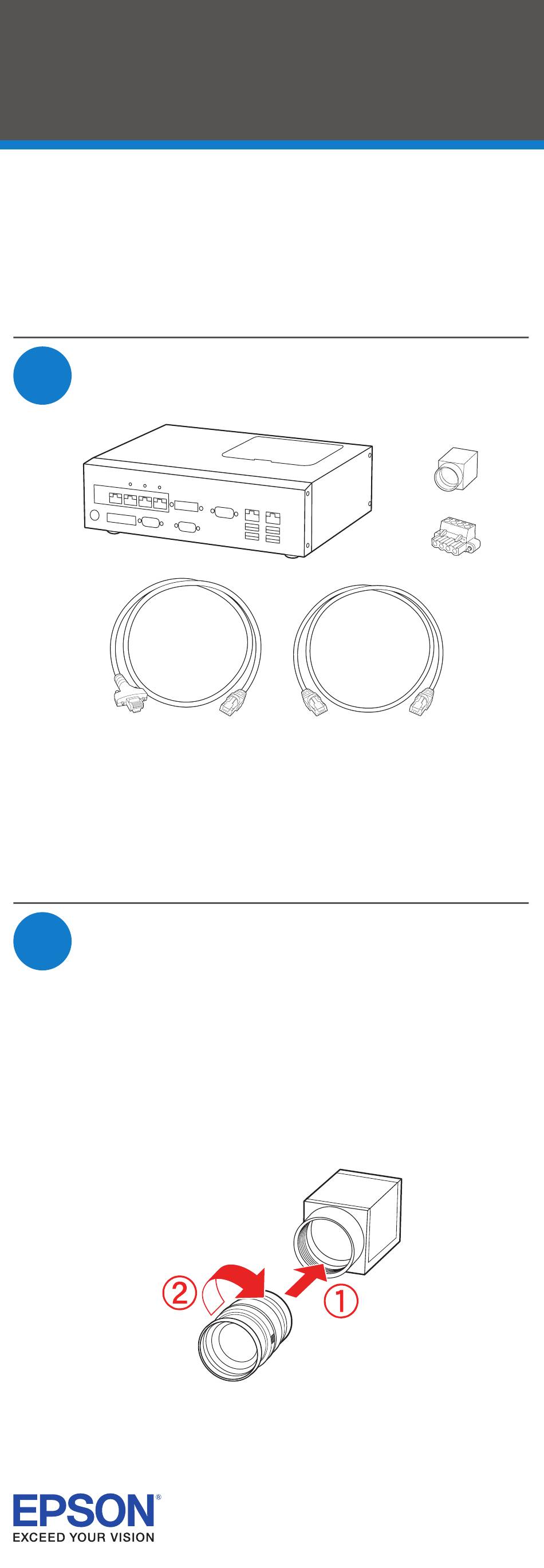

Vision Guide CV2-H/-S
Setup Guide
IMPORTANT: Before using this product, make sure you read these
instructions, and the safety instructions and guidelines in the online Epson
Vision Guide Hardware Manual.
The illustrations show the CV2-S but the steps are the same for the CV2-H,
unless otherwise specified.
1
Unpack
Note:
Your setup may vary and not all items may be shown above. A
24V power source (not pictured) and any lenses (not pictured) for the
camera(s) in your system are sold separately and required to set up your
Vision Guide system.
2
Connect the hardware
1
Turn on your robot controller, if necessary.
2
Make sure your computer is connected to your robot
controller.
Note:
connecting your computer to the CV2 unit.
3
Install your camera lens (not included) on the camera.
High-flex GigE
camera cable
See the Epson RC+ 7.0 User's Guide for details on
Ethernet cable
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the CV2-H and is the answer not in the manual?

Questions and answers

Related Manuals for Epson CV2-H

Summary of Contents for Epson CV2-H

  • Page 1 IMPORTANT: Before using this product, make sure you read these instructions, and the safety instructions and guidelines in the online Epson ® Vision Guide Hardware Manual. The illustrations show the CV2-S but the steps are the same for the CV2-H, unless otherwise specified. Unpack High-flex GigE...
  • Page 2 LAN port on your robot controller. Note: If CV2 unit is connected to PC via Ethernet cable, see online Epson Vision Guide Hardware Manual for details on how to configure using a hub. Connect your power source to the DC IN port on the CV2 unit.

  • Page 3: Test The System

    Test the system Before testing the Vision Guide system, make sure the Epson RC+ 7.0 software is installed on your computer. Note: See “Installing the software” on the next page for instructions. On your computer, double-click the EPSON RC+ 7.0 icon on your Windows desktop to start the Epson RC+ 7.0...
  • Page 4 Expand Vision in the menu tree, click General, and click Add. Select Manually configure a camera and click OK. Select Compact Vision from the Type drop-down list. Enter 192.168.0.3 in the IP Address field. Make sure GigE 1 is selected as the Channel setting. Check the camera’s label for the model number and select it from the Model drop-down list.
  • Page 5 Camera 1 is selected. Click OK. A live feed from the camera is shown on the screen. The Vision Guide system is now ready to program and use. See the online Epson Vision Guide 7.0 Software Manual to get started with vision development.
  • Page 6 Installing the software (Windows only) Insert the Epson RC+ 7.0 DVD into a DVD drive on the computer you will use to program the robot. Note: You can download manuals for your product from the Epson website. Visit www.epsonrobots.com/product-manuals and search for your product. If you need to download the Epson RC+ 7.0 software, send an email request to...

  • Page 7: Where To Get Help

    Visit www.epsonrobots.com/training for more information. EPSON is a registered trademark and EPSON Exceed Your Vision is a registered logomark of Seiko Epson Corporation. Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries.
