Overview of DM-Multipath

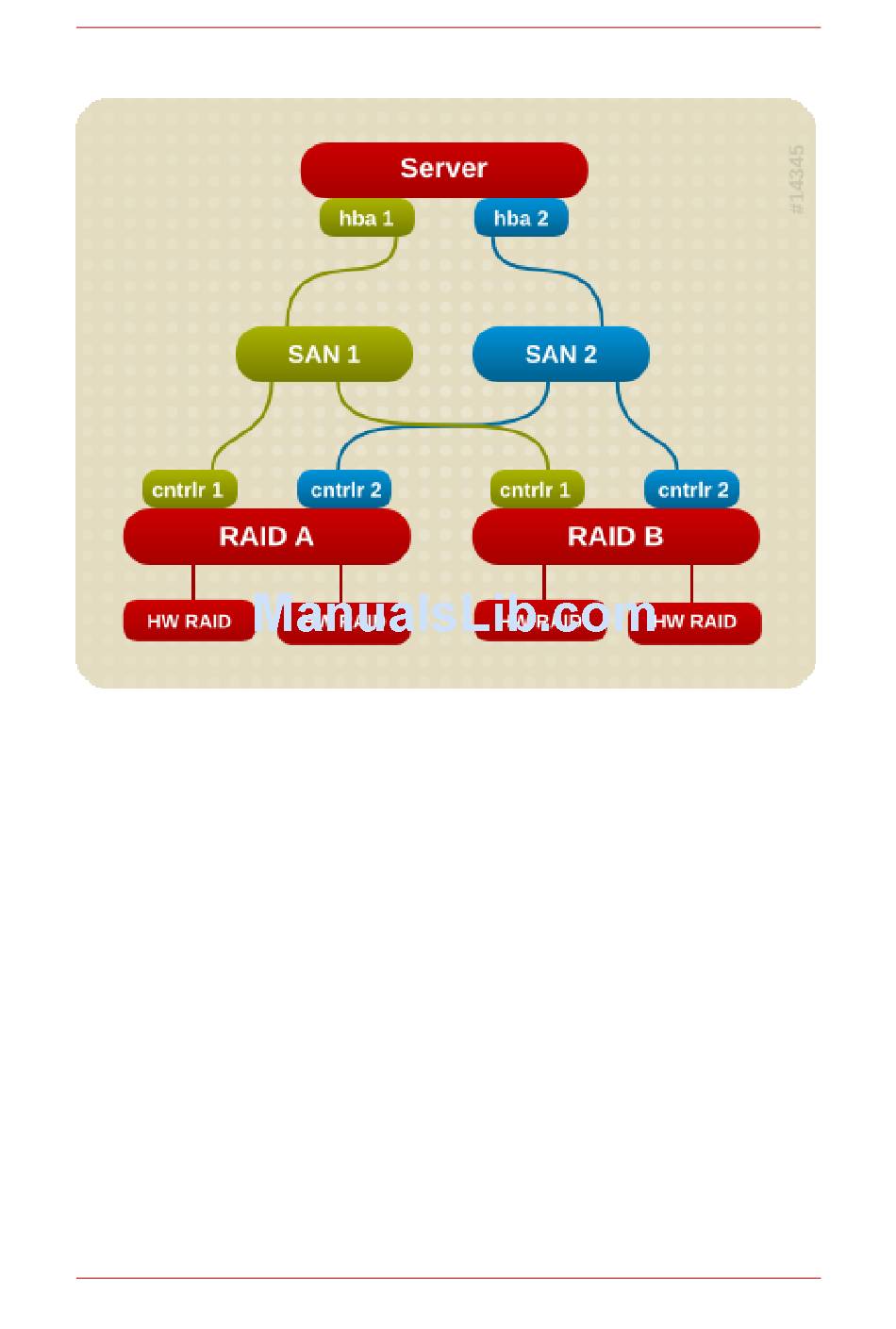

Figure 1.2. Active/Passive Multipath Configuration with Two RAID Devices
In the example shown in Figure 1.2, "Active/Passive Multipath Configuration with Two RAID
Devices", there are two I/O paths to each RAID device (just as there are in the example shown
in Figure 1.1, "Active/Passive Multipath Configuration with One RAID Device"). With
DM-Multipath configured, a failure at any of the points of the I/O path to either of the RAID
devices will cause DM-Multipath to switch to the alternate I/O path for that device.
Figure 1.3, "Active/Active Multipath Configuration with One RAID Device" shows an active/active
configuration with 2 HBAs on the server, 1 SAN switch, and 2 RAID controllers. There are four
I/O paths from the server to a storage device:
• hba1 to controller1
• hba1 to controller2
• hba2 to controller1
• hba2 to controller2
