Rebel TOOLS MIE-RB-33B User Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

TOOLS
DIGITAL
MULTIMETER
USER'S
MANUAL
DE
EN
PL
RO
model: MIE-RB-33B, C, D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIE-RB-33B and is the answer not in the manual?

Questions and answers

Related Manuals for Rebel TOOLS MIE-RB-33B

Summary of Contents for Rebel TOOLS MIE-RB-33B

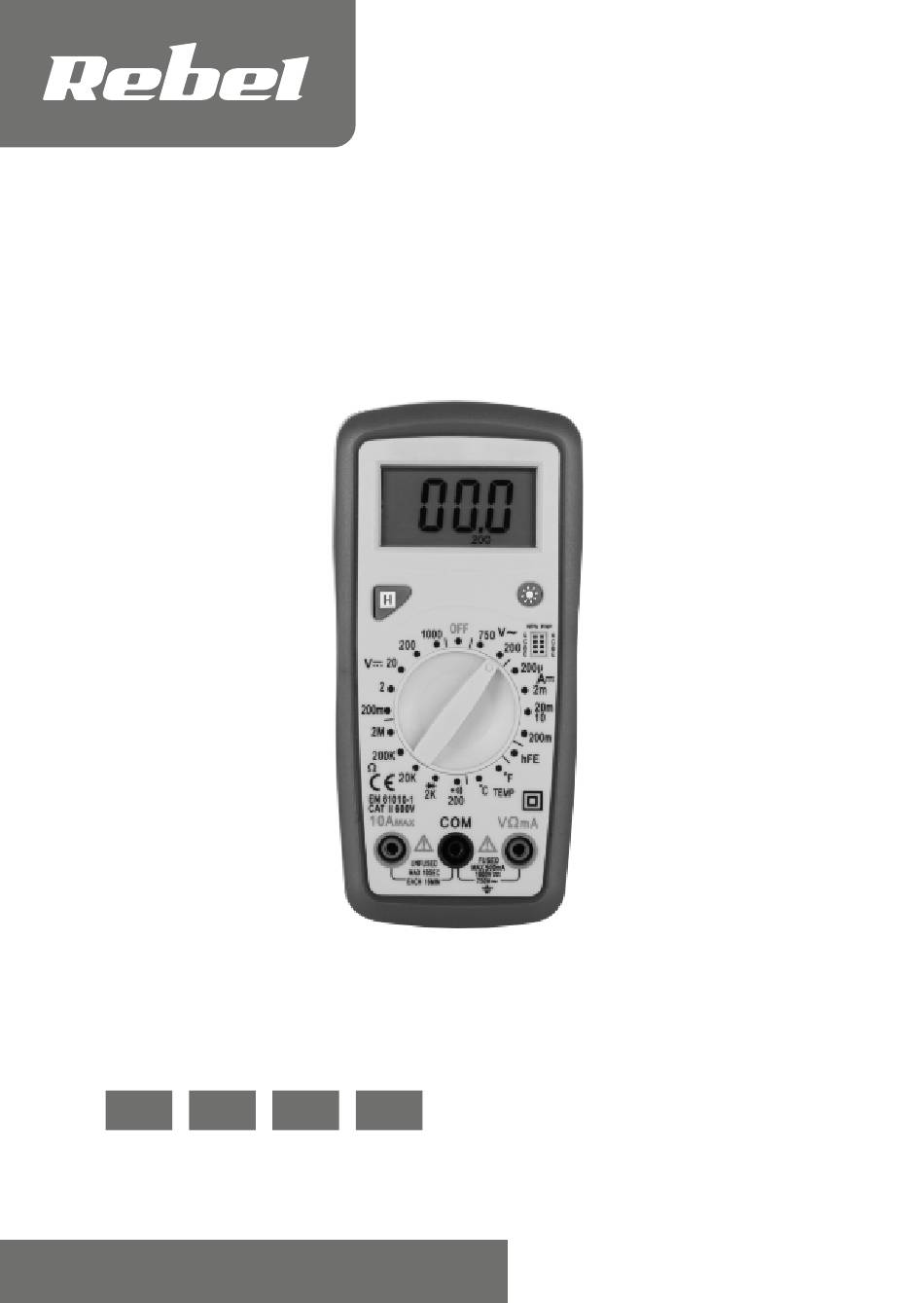

  • Page 1 TOOLS DIGITAL MULTIMETER USER’S MANUAL model: MIE-RB-33B, C, D...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS In order to avoid electric shock or other injuries, follow the safety instructions below: 1. Before using the device, inspect the case for any mechanical damage. If the case has cracks or is missing any part, do not use the device.

  • Page 3: Product Description

    PRODUCT DESCRIPTION NPN PNP 1000 200μ 200m 200m 200k ºF ºC TEMP EN61010-1 CAT II 600V V mA FUSED UNFUSED MAX 500mA MAX 10SEC 1000V EACH 15MIN 750V 1. Display 2. Display backlight button 3. Measurement hold button 4. hFE socket 5.
  • Page 4 DC current measurement 1. Connect the red test lead to the VΩmA terminal. If the measurement will be in 200 mA - 10 A range, connect the red test lead to the 10 A terminal. 2. Connect the black test lead to the COM terminal. 3.

  • Page 5: Cleaning And Maintenance

    4. The temperature will be displayed. 5. Maximum measurement of the temperature is 250°C / 482°F. Continuity test 1. Connect the red test lead to the VΩmA terminal. 2. Connect the black test lead to the COM terminal. 3. Set the rotary switch to the position.

  • Page 6: Specification

    SPECIFICATION DC voltage Range Resolution Accuracy 200 mV 100 µV ±(0,5% + 3) 1 mV 20 V 10 mV ±(0,8% + 5) 200 V 100 mV 1000 V ±(1% + 5) • Overload protection: 200 V AC for 200 mV range; 1000 V DC or 750 V for all ranges.
  • Page 7 DC current Range Resolution Accuracy 200 µA 100 nA 2 mA 1 µA ±(1,8% + 2) 20 mA 10 µA 200 mA 100 µA ±(2% + 2) 10 A 1 mA ±(2% + 10) Overload protection: 500 mA / 250 V fuse (10 A range is not protected with fuse) Resistance Range...
  • Page 8 Battery test (models RB-33B and RB-33D only) Range Resolution Internal resistance 12 V 10 mV 1,2 KΩ 10 mV 900 Ω 1,5 V 1 mV 3 KΩ English Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
  • Page 9 www.rebelelectro.com...

This manual is also suitable for:

Mie-rb-33cMie-rb-33dMie-rb-30b
