Summary of Contents for PARRY GB4P

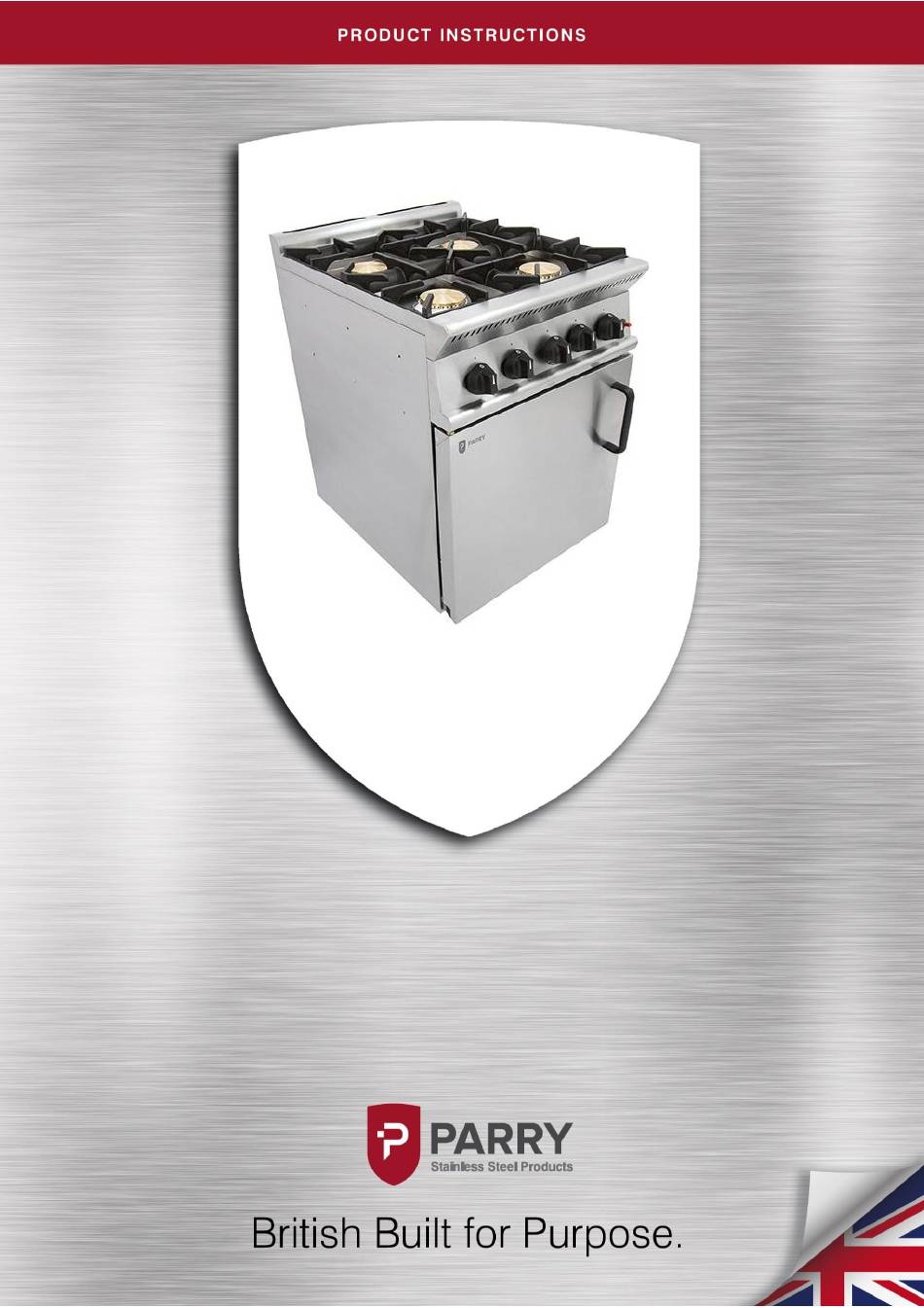

- Page 1 Instruction Manual Gas 4 Burner Cooker GB4/GB4P...
-
Page 3: Table Of Contents
Exploded View ........................... 18 Service Information ........................19 Parts List ..........................20-22 Warranty Information ........................ 22 Disposal & Recycling ......................... 23 Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT. Sales Tel: 01332 875544 Parry-British Built for Purpose IN272-3... -
Page 4: Product Overview
Product Overview Reliable, powerful and robust, the Parry GB4 commercial oven is an ideal solution for modern catering establishments. The sturdy, compact design includes four powerful hob burners with robust, heavy duty pan supports, while the oven itself has one burner and easy push-button piezo ignition. -
Page 5: Safety Instructions
To avoid scratching the highly polished exterior surface of this equipment whilst in transit, the protective film on the exterior surfaces has NOT been removed. It is IMPORTANT that this protective film is peeled off before the equipment is used. Parry-British Built for Purpose IN272-3... -
Page 6: Installation Instructions
Next turn the large nut on the wheel assembly to either raise or lower the unit. When you are happy with the height, tighten the locking grub screw with the M3 allen key. Large Nut Locking Grub Screw Parry-British Built for Purpose IN272-3... - Page 7 Manufacturer. The hose should not touch the ground and should be no longer than 1.5m long. A manual valve should be positioned upstream of the tube or hose unless the connection fitting incorporates a self-sealing quick release coupling. Parry-British Built for Purpose IN272-3...
-
Page 8: Operating Instructions
To turn burners off, turn knob clockwise all the way round. Parry recommends that the hob is used only with pans that have a minimum diameter of 120mm, and up to a maximum of 295mm diameter. This ensures that there is satisfactory combustion, and the pan is stable as it sits on the finger of the pan support. - Page 9 GAS TEMP HIGH TEMP.ROASTING MEAT OR POULTRY 6 OR 7 LOW TEMP.ROASTING MEAT OR POULTRY HIGH TEMP.BAKING BREAD OR SCONES LOW TEMP. BAKING SLAB CAKE MILK PUDDING PUDDINGS BAKED CUSTARD SHORT CRUST PLATE TARTS PASTRY FLAKY Parry-British Built for Purpose IN272-3...
-
Page 10: Cleaning Instructions
Stainless steel cleaners maybe used and cleaning instructions on the product must be adhered to. Never clean the unit with water jets. Parry-British Built for Purpose IN272-3... -
Page 11: Maintenance Instructions
Maintenance and service must only be undertaken by a qualified electrician. Parry Catering provides a complete after-sales service by offering the sales of spare parts directly to customers. Buying spares straight from the manufacturer allows customer to experience exceptional value and speedy delivery on all spare parts. -
Page 12: Fault Finding
Clean reconnect / replace H.T. connection Lead Incorrect spark gap Set gap 3-4mm Burner fails on low rate Loose Thermocouple Replace Faulty Magnet in F.F.D. Replace thermostat Burner fails on low rate Thermocouple out of position. Reposition Parry-British Built for Purpose IN272-3... -
Page 13: Replacement Parts
OVEN BURNER/IGNITON - Remove oven base. Disconnect oven supply tube, H.T. lead and thermocouple. Burner is held in by 2 screws. Piezo spark generator is secured by a locknut. Electrode secured to burner bracket by centre screw. Parry-British Built for Purpose IN272-3... -
Page 14: Natural Gas Conversion Instructions
Natural Gas – Conversion Instructions Product GB4P – Gas 4 Burner Cooker LPG For use with models with the following serial numbers Model From These instructions can be used for converting from LPG to Natural Gas LPG units are designed and tested in accordance with all current regulations enforced to run on the following gases only Nat Gas G20 @ 20mbar 8”... -
Page 15: Lpg Gas Conversion Instructions
LPG hob valve bypass screw COPBPS-50 screw stamped 50 Hob burner LPG hob burner injector stamped HOBINJECT105 injector LPG oven valve bypass screw COPBPS-40 stamped 40 LPG oven burner injector INJECT099 stamped 0.99 Labels G31 ONLY, Instructions CONVIN35-4 Parry-British Built for Purpose IN272-3... -
Page 16: Conversion Procedure
Remove the solid top plate. Using an 10mm spanner remove burner injector. Replace with injector from conversion kit. Replace solid top plate, aluminium burner plates and burner caps. Remove the tap knobs to allow the fascia to unclip. Parry-British Built for Purpose IN272-3... - Page 17 Converting the oven burner Unscrew the 15mm nut on the jet that goes into the burner Unwind the jet out of the burner Replace jet with the jet for the required gas Parry-British Built for Purpose IN272-3...
- Page 18 Test for gas soundness Replace the facia and knobs accordingly When comversion is complete add new data label and gas type label supplied with the conversion kit, detailing type of gas and pressure. Parry-British Built for Purpose IN272-3...
-
Page 19: Technical Information
PROPANE G31 37mb / 14.8” W.G. GAS RATE M³/HR FT³/HR LB/HR KG/HR NATURAL G20 3.075 M³/HR 108.593 FT³/HR PROPANE G31 1.045 M³/HR 35.385 FT³/HR 3.889 LB/HR 1.984 KG/HR AIR FLOW RATE FOR COMBUSTION 32.18FT³/HR 20m³/HR Parry-British Built for Purpose IN272-3... -
Page 20: Exploded View
This appliance should be routinely serviced to prolong its lifetime. Parry recommends that the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service your product within the initial 12 month warranty period will cause the 24 month warranty to become void. - Page 21 Exploded View Parry-British Built for Purpose IN272-3...
-
Page 22: Parts List
*No Code Saddle Bracket SADDLEBKT Hob Gas Valve GASTAPHOB Hob Bypass Screw (Nat) COPBPS-70 Hob Bypass Screw (LPG) COPBPS-50 Oven Valve OVENVALVE Oven Bypass Screw (Nat) COPBPS-85 Oven Bypass Screw (LPG) COPBPS-50 *Thermocouple Bracket *No Code Parry-British Built for Purpose IN272-3... - Page 23 75mm Swivel Braked Castor CASTOR75BR Piezo + Link Lead GB6PPIEZO Adjuster Boss for Castors ADJM12 Door Seal SEALPGS10 Door Seal Dart Clips (18 Per unit) CLIP01180 Flue Joining Gasket GASK07013 Oven Insulation Set RKWL07013 *Metalwork Components Parry-British Built for Purpose IN272-3...
-
Page 24: Warranty Information
Parry and not the sale or installation date of the equipment. Please ensure you have referred to the manufacturer’s instruction before placing a warranty... -
Page 25: Disposal & Recycling
Disposal & Recycling The packaging should be disposed of in accordance with the regulations in force. Parry-British Built for Purpose IN272-3...
