Ohlins YA 156 Owner's Manual

F1
R1
R2

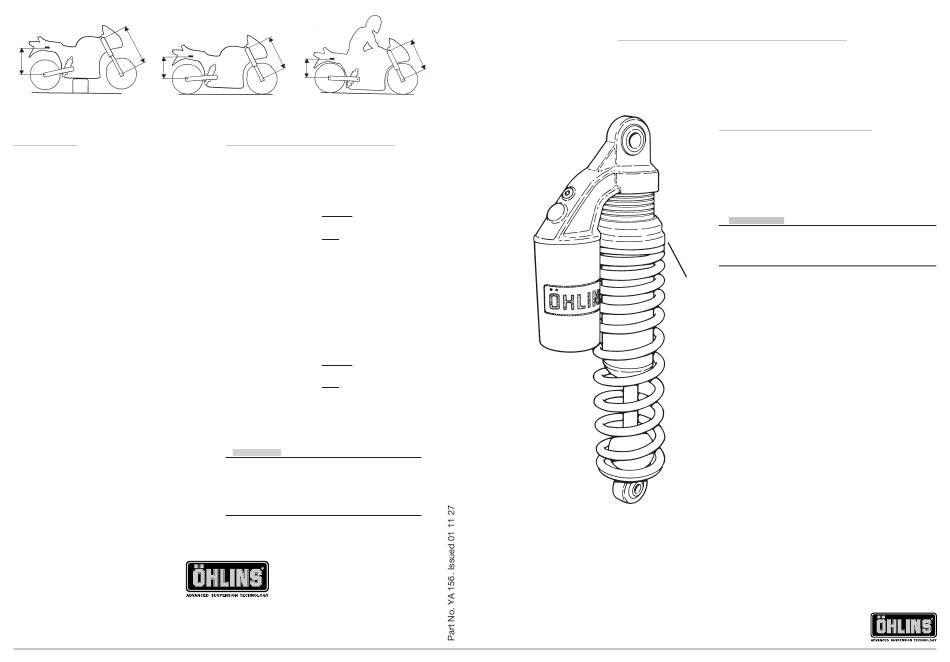

Bike on a stand. Bike on the ground.
Setup data
Shock absorber length 325
(+10/-0)
Shock absorber stroke 92 mm
Spring preload 15 mm
Rebound damping adjuster 12 clicks
Compression damping adjuster 02 clicks
Öhlins Racing AB, Box 722, S-194 27 Upplands Väsby, Sweden.
Phone +46 8 590 025 00. Fax +46 8 590 025 80.
F2
R3
Bike with rider on.
Checking sag and ride height
mm
Front suspension
F1. Bike on a stand with the
suspension fully extended
F2. Bike on the ground without rider = ............
F3. Bike on the ground with rider
F1 - F2 = ............
Free sag
F1 - F3 = ............
Ride height
Rear suspension
R1. Bike on a stand with the
suspension fully extended
R2. Bike on the ground without rider = ........... .
R3. Bike on the ground with rider
R1 - R2 = ............
Free sag
R1 - R3 = ............
Ride height
NOTE!
If ride height is higher than recommended,
softer spring/springs must be used.
If ride height is lower than recommended,
harder spring/springs must be used.
Contact your Öhlins dealer for advice.
www.ohlins.com
F3
= ............
= ............
= ............
= ............
© Öhlins Racing AB. All rights reserved. Any reprinting or unauthorized use without the
Owners Manual
Mounting instructions Öhlins shock absorber kit
YA 156 for Yamaha XJR 1200/1300
Öhlins shock absorber 36 P
Your Öhlins shock absorber type 36 P features the
following adjuster:
Spring preload adjuster
Adjustments can be made by changing the position
of the upper spring seat.
NOTE!
When delivered the Öhlins shock absorber is dialed to
recommended settings for the specific brand and make
of the motorcycle.
Spring
preload
adjuster
written permission of Öhlins Racing AB is prohibited. Printed in Sweden.
