on MICROWAVE 10 Manual

Overview

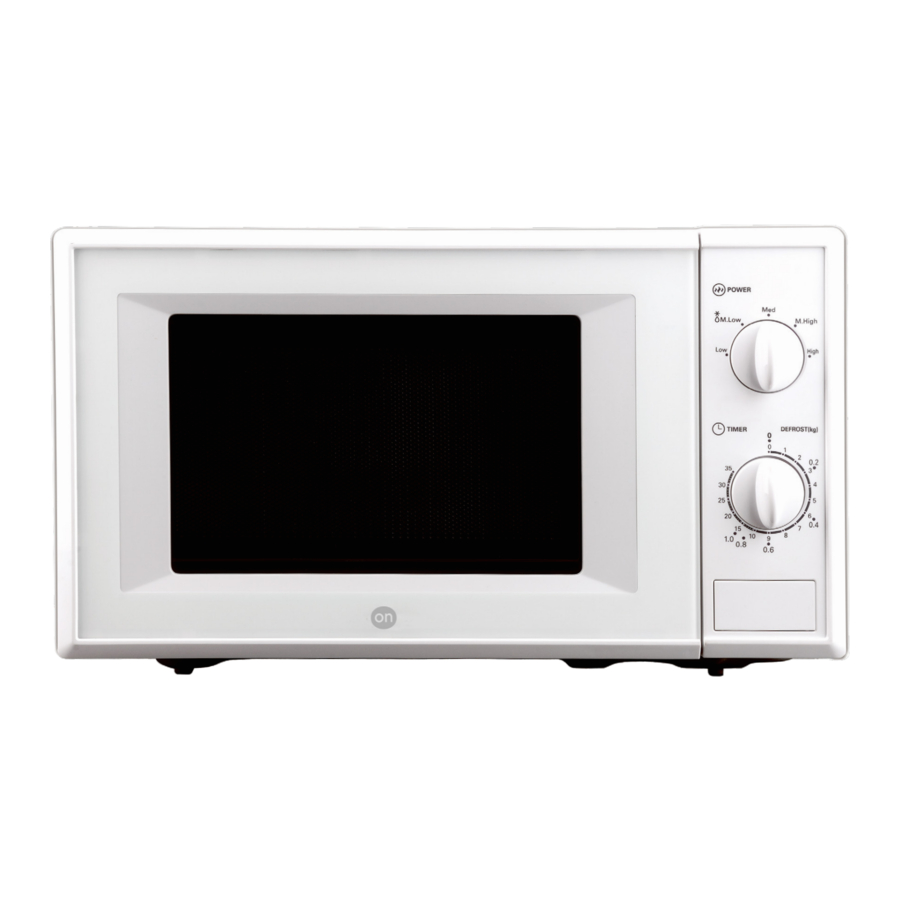

Microwave oven:

1. Control panel
2. Turntable shaft
3. Turntable ring assembly
4. Glass tray
5. Observation window
6. Door
7. Safety interlock system

Operation

Install the microwave oven

1. Place the microwave oven on a level surface that provides enough open space for the intake and outlet vents. The minimum installation height is 85 cm. The rear of the microwave shall be placed against a wall with a minimum clearance of 30 cm above and a minimum clearance of 20 cm on the sides.
   Note: Do not place the microwave oven close to a heat producing appliance, this could create damage.

2. Connect the power cable to a wall outlet. Make sure the voltage and the frequency of the wall outlet is the same as the voltage and the frequency on the rating label on the microwave oven.

Install the glass tray

1. Place the turntable ring assembly (3) on top of the turntable shaft (2).
2. Place the glass tray (4) on top of the turntable ring assembly (3).
3. Gently turn the glass tray so the hub on the bottom of the glass tray will hook into place with the turntable shaft.

Use the controls

1. Set the heating power by turning the power knob (A) to a level between Low (low) and High (high).
2. Set the heating time by turning the timer knob (B) to 0-35 minutes. Note: Adjust the defrost time by following the weight of the food. E.g. if the food weighs about 0.6 kg, turn the timer knob to 0.6.
3. The microwave oven will automatically begin to heat the food when power and timer is set. The microwave oven will signal when the heating is finished.
4. After heating, turn the time control to 0 and follow the instructions in the paragraph "Maintenance" if the microwave needs cleaning.

Levels of the power control

Maintenance

1. Let the microwave oven cool down completely if it has been used recently.
2. Make sure you unplug the appliance from the wall outlet before cleaning.
3. Clean the exterior and inside with a damp cloth.
4. Clean the accessories with soapy water and dry carefully.
5. When dirty, the door frame and seal must be cleaned carefully with a damp cloth.
   Note: Do not use any abrasive cleaning products or scouring pads to clean any part of the microwave oven. This may damage the surfaces.
6. If there is food stuck on the glass plate or door, rub a wet sponge on the food to soften it and eventually rub off.

Use of different materials in microwave oven

Troubleshooting

Specifications

Safety instructions

RISK OF ELECTRIC SHOCK
DO NOT OPEN

Electrical conducts:

• To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.
• Before you connect the appliance, ensure the voltage rating on the type plate corresponds to your mains voltage (type plate is located on the back of the unit).

Technical conducts:

• Repairs to electrical appliances should only be performed by qualified personnel. Improper repairs may place the user and/or equipment at serious risk.
• Do not operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified people in order to avoid a hazard.
• Do not push objects into any openings as damage to the equipment and/or electric shock may occur.
• If abnormal noise, smell, smoke or any other failure is discovered during operation, turn off the product and unplug the power plug. Then contact the service center for repair.
• Do not remove the appliance from the mains power supply by pulling the cord; pull the plug.

Operational conducts:

• The appliance is not intended for use by people (including children below 8 years) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This product is not a toy. Never leave the equipment within reach of children. Close supervision is required when using this equipment near children.
• This equipment is intended for household use only and should not be used for industrial or commercial purposes.
• Do not use this equipment for anything other than its intended use.
• Do not immerse the product in water or any other liquid.
• Always unplug the appliance after use and before any cleaning or user maintenance.

Environmental conducts:

• Ensure the equipment is not too close to heat emitting appliances or placed in direct sunlight.
• Do not use this appliance outdoors.

Cleaning conducts:

• Make sure you unplug the appliance from the wall outlet before cleaning.
• Clean the inside of the oven after operation with a slightly damp cloth.
• Clean the accessories with soapy water.
• When dirty, the door frame and seal must be cleaned carefully with a damp cloth.

Other conducts:

• Only use utensils suitable for use in microwave ovens.
• The oven should be cleaned regularly and any scraps of food should be removed. Failure to maintain the microwave oven in a clean condition can lead to deterioration of the surface and could adversely affect the life of the appliance and possibly result in a hazardous situation.
• When heating food in plastic or paper containers, keep an eye on the microwave oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Do not overheat food.
• Heating liquids in the microwave oven can result in a delayed eruptive boiling, therefore care must be taken when handling the heated beverage in its container. After heating food in the microwave oven, check the temperature of the heated liquid and food to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens as they may explode, even after the microwave heating has ended.
• Do not dry or heat anything other than food and liquids in the microwave oven, otherwise it may lead to a risk of injury and ignition of fire.
• Do not use the microwave oven for storage purposes.
• Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the microwave oven.

Precautions to avoid any possible exposure to excessive microwave energy:

• Do not attempt to operate this microwave oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. If the door or the safety interlock is broken, the microwave must not be operated until it has been repaired by qualified service personnel.
• Do not place any object between the oven front face and the door.
• Do not allow grime or cleaner residue to accumulate on sealing surfaces. The surface of the microwave could be degraded and affect the lifespan of the microwave oven which may lead to a dangerous situation.
