ARC Audio PS-6.8 Connection Manual

ARC AUDIO

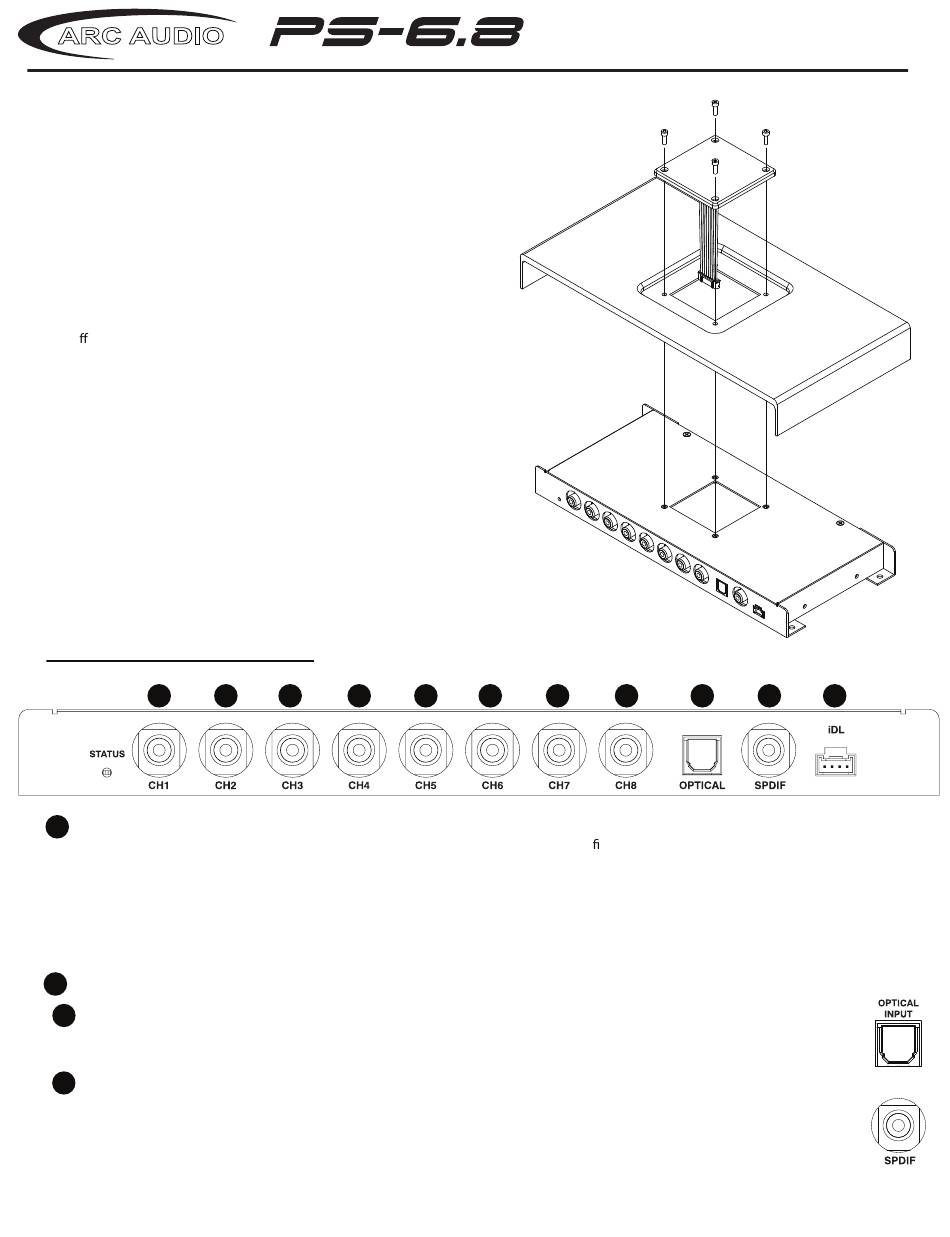

Mounting the PS6.8-
To mount the PS6.8 correctly in your installation you will need to follow
these steps-
1) Using a M2.5 Allen head tool or screw driver remove the four M2.5 x 8mm
socket head screws to release the acrylic PS6.8 top illuminated display.
2) Carefully disconnect the displays ribbon cable from the main unit and set
the display aside in a safe place.
3) Lift o and remove the PS6.8 top cosmetic cover to expose the four screw
hole mounting points on the unit's main case.
4) Once installed, mounted and with all cables connected place the
cosmetic cover back on the main unit case.
5) Reconnect the display ribbon cable to the PCB makiing sure to place
careful attention to the alignment guides on the plug as it only goes into
the plug socket one way. Forcing the plug into the socket incorrectly can
cause permanent damage and will void the processors warranty.
6) Place the illuminated display back over the center opening, align the
screw holes with the screw inserts on the main chassis and screws in and
tighten the screws carefully making sure to not pinch the ribbon cable
between the display and the case. (Note: Do not overtighten as this can
cause the acrylic display to crack)
Connecting your PS6.8-
1A
1
RCA SIGNAL OUTPUT CONNECTION
The PS 6.8has 8-Channels of RCA output allowing you to connect your ARC Audio ampli ers RCA signal inputs. Each output is capable of
signal levels of up to 4 volts and signal output assignment is done through the mixer panel in the ARC Audio Pro-Series DNA user software.
1A - RCA Channel 1 Output
1B - RCA Channel 2 Output
1C - RCA Channel 3 Output
1D - RCA Channel 4 Output
2
DIGITAL SIGNAL INPUTS
2A
OPTICAL SIGNAL CONNECTOR-
The PS6.8 features a plug-and-play optical input connection on it to send Hi-resolution digital signal directly to the prodcut in use.
The PS6.8 is capable of processing audio streams up to 96hHz at 24-bits for a phenominal hi-resolution audiophile experience.
2B
DIGITAL COAXIAL SIGNAL CONNECTOR-
The PS6.8 features a Native Hi-Resolution Digital Coaxial Connector for plug and play connection with a wide range of digital
media players. This Digital coaxial connection point allows users to send Hi-resolution digital signal directly to the prodcut in use.
The PS6.8 is capable of processing audio streams up to 96hHz at 24-bits for a phenominal hi-resolution audiophile experience.
1B 1C 1D
1E -
1F -
1G -
1H -
1E 1G
1F
RCA Channel 5 Output
RCA Channel 6 Output
RCA Channel 7 Output
RCA Channel 8 Output
CONNECTION
GUIDE
2B
1H 2A
3
