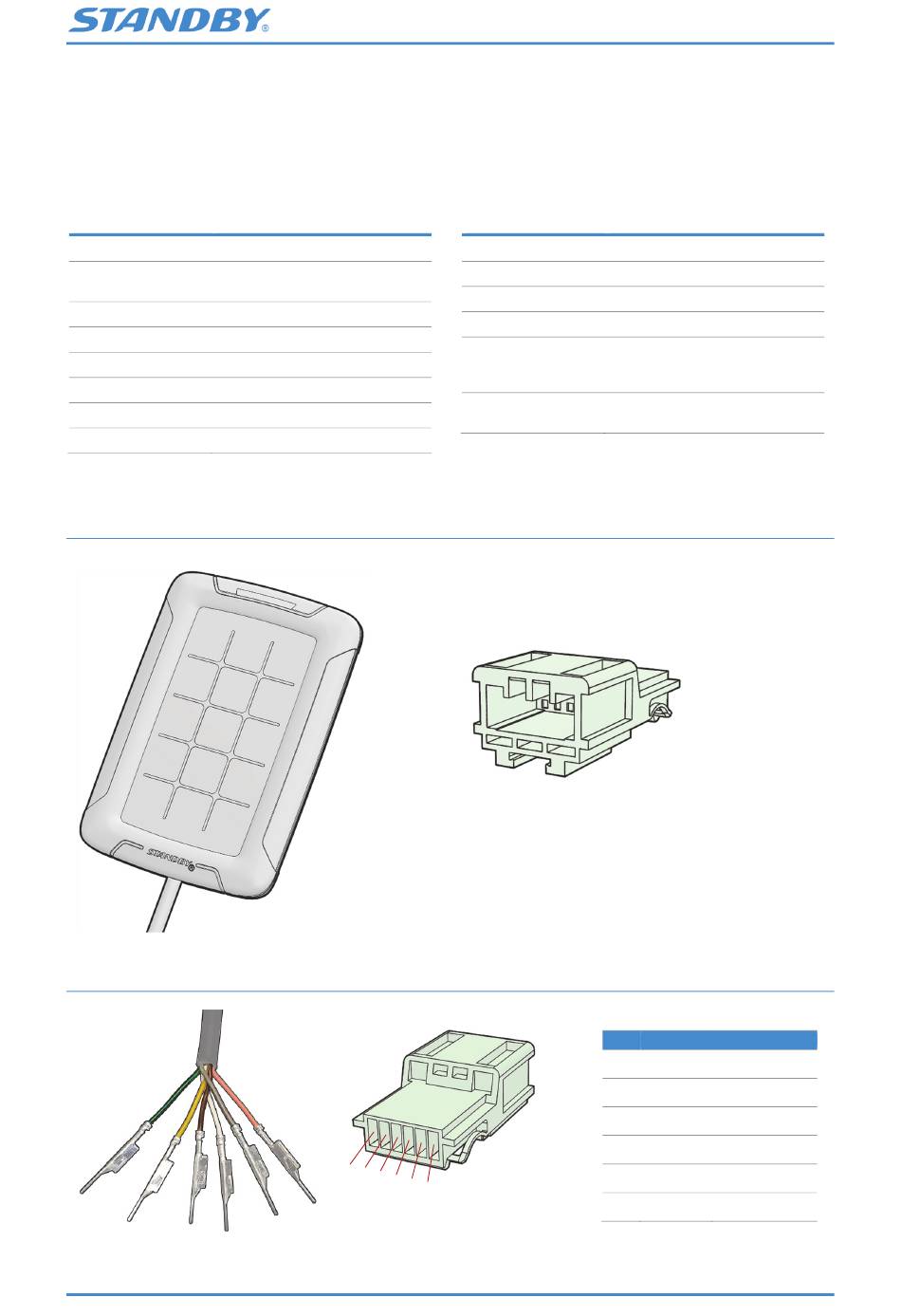

Standby T4 Installation Manual

T4 Touch Panel
Thank you for choosing a product from Standby.
Technical Data
Supply voltage +10–30 VDC
Current 260 mA
consumption Standby current < 1 mA
Recommended fuse 1 A
Interface CAN
Cable length 50 cm
Light sensor Yes
Enclosure class IP65
Housing material PC-PBT
Included
Connection
1
2
3
4
AM6053017xC
T4 Touch Panel
1 2 3
4 5 6
6
5
T4 Installation Manual
Dimensions w126.0 x h87.0 x d19.5 mm
Weight 170 gr
Mounting M3 screws (4 pcs)
Approvals ECE R10
Tests performed According to applicable parts of
SS-ISO 16750-3 and
SS-ISO 16750-4 2010
Ambient -20°C to +70°C (operating)
temperature -30°C to +80°C (storage/transport)
Connector house: JAE IL-AG5-6P-S3C1
Front
view
Not included
Mating connector house:
Mating socket connectors: JAE IL-AG5-C1-5000
Mounting screws:
Pinout
PIN
1
2
3
4
Backside
view
5
6
JAE IL-AG5-6S-S3C1
M3 x 4
WIRE SIGNAL
Green CAN Low 1
Yellow CAN High 1
Brown CAN Low 2
White CAN High 2
Grey Ground (0V)
Pink +10–30 VDC
Standby AB – standbygroup.com
