047200 - DVR BUILT IN LCD MONITOR
USER'S MANUAL VER V1.3
THE MOST STABLE AND RELIABLE REAL STAND-ALONE DIGITAL VIDEO RECORDER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 47200 and is the answer not in the manual?

Questions and answers

Summary of Contents for deXlan 47200

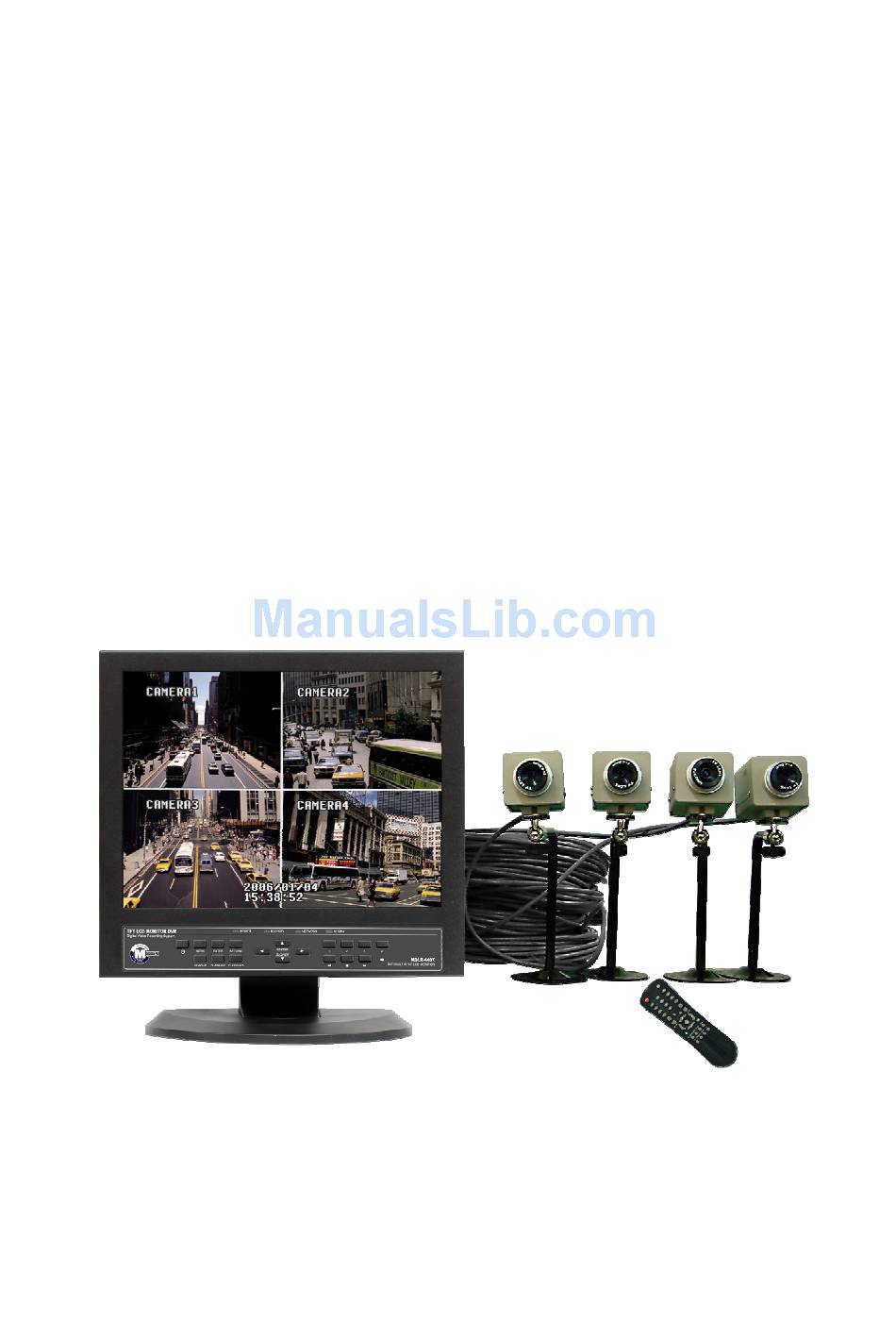

  • Page 1 047200 - DVR BUILT IN LCD MONITOR USER’S MANUAL VER V1.3 THE MOST STABLE AND RELIABLE REAL STAND-ALONE DIGITAL VIDEO RECORDER...

  • Page 2: Table Of Contents

    • INDEX • CHAPTER 1 (Specification & System Organization) 1. Specification ----------------------------------------------------------------------------------------------------- 2. Recording File Size ------------------------------------------------------------------------------------------- 3. Product Contents List ----------------------------------------------------------------------------------------- 4. System Configuration ----------------------------------------------------------------------------------------- • CHAPTER 2 (Panel Function) 1. Front Panel ------------------------------------------------------------------------------------------------------ 2. Rear Panel ------------------------------------------------------------------------------------------------------ 3. Remote Controller --------------------------------------------------------------------------------------------- •...

  • Page 3: Specification

    • Specification & Configuration 1. Specification Type Pixel Pitch Pixel Arrangement Resolution Hardware Video Input Display Speed Screen Modes 352x240 / 352x288 Recording Speed 704x240 / 740x288 704x480 / 740x576 Recording Resolution Compressing Method Byte Size per Image Recording Modes Recording Schedule Motion Detection Sensor / Camera / Alarm I/O...

  • Page 4: Recording File Size

    • Specification & Configuration 2. Recording File Size Quality 720x480/7fps Hour 120G Highest 160G 200G 250G 120G High 160G 200G 250G 120G Standard 160G 200G 250G 10.3 120G 160G 10.2 200G 12.7 250G 15.9 FPS / Resolution Highest CIF/30FPS (352x240 ) 2CIF/15FPS (720x240 ) D1/7FPS (720x480) CIF/25FPS (352x288 )

  • Page 5: Product Contents List

    • Specification & Configuration 3. Product Contents List Please Confirm the Contents When You Open the Package. ① Basic Contents DVR Monitor User’s Manual 80G HDD default RJ-45 Modular Jack DC 12V Adaptor Cable X 4 (BNC/RCA) Remote Controller Remote Client Program...

  • Page 6: Specification & Configuration

    • Specification & Configuration 4. Configuration...

  • Page 7: Chapter 2 (Panel Function 1. Front Panel

    • Panel Function 1. Front Panel ① ② ⑤ ① POWER : System Power On/Off ② MENU : Used when changing the menu of SYSTEM SETUP. ③ ENTER : It is used as the SELECT key. ④ RETURN : Cancel setup or return previous mode. ⑤...

  • Page 8: Rear Panel

    ③ Camera select switch : NTSC / PAL ④ Ethernet (TCP/IP) : Connect Port for LAN Cable (It is possible for user to connect the DVR by Remote Client program.) ⑤ Alarm/Relay/RS-485 : Connect Port for Sensor & Relay, PTZ ⑥...

  • Page 9: Remote Controller

    • Description 3. Remote Controller POWER: System On/Off RETURN: Cancel Setup or Return to Previous Menu • Unused Button's Description is Omitted. • Remote Controller can Operate when Remote Controller Sensor Input Part Reacted. • If there are many DVRs at the same place, they are reacted together when press remote controller. MENU: Open Menu Channel Select Button (4ch Available, #1~4 Button)

  • Page 10: Chapter 3 (Installation 1. 8Pin Rj 45 Modular Jack

    • Installation 1. 8pin RJ 45 Modular Jack Camera in (BNC/RCA/DIN)+ Audio in (RCA/DIN) + Power + RS-485 •Default : Camera (BNC) + Audio (RCA) •Optional Cable Selection (refer to page. 48 ) 2. Video Out Connect DC Power Input Terminal and Static Adaptor 3.

  • Page 11: Hard Disk Format

    • Installation ※ Hard Disk Format - If you install the unformat Hard Disk, System can’t recognize the Hard Disk. Please install the format Hard Disk.

  • Page 12: Chapter 4 (Display 1. System Power On

    • Display 1. System Power ON Initial Display situation after system installation • Check System Condition at LED POWER : Showing System On/Off RECORD : Showing Record On/Off NETWORK : Showing Client Connection Status ALARM : Lighting when Sensor Alarm Activate 2.

  • Page 13: Ptz/Focus Control

    • Display 3. Convert Screen Mode (SCR MODE) • User can Select 3 Kinds Watch Mode ① Quad (4CH) Division Watch Mode ② Selected 1CH Watch Mode ③ 4CH Rotation Watch Mode • Quad (4CH) Watch Mode is Initial Mode when System Start Quad (4CH) Division Watch Mode 4.

  • Page 14: Speaker Volume Control

    • Display 5. Speaker Volume Control 5. System Power OFF • System Log-On Available ID : ‘Administrator’, ‘Manager’, ‘Operator’, ‘Network’ Administrator: All Function Access (System On, Shutdown, Setup, Search) Manager: System On and Search Operator: System On Network: Connect by Remote Program •...

  • Page 15: Search

    • SEARCH ⊙ Go to Search Mode Search Recorded Data 1. Search by Date/Time - Possible to Search Recorded Date & Time • Showing Recorded Date & Time at Left-Upper Side as Watch Mode. Showing Playing Condition at Right-Under Side. •...

  • Page 16: Search By Event

    • SEARCH • Control Playing Video ① : Normal Playing Mode (Normal Speed (1X) Forward Playing) ② : Normal Speed Backward Playing ③ : Pause Video ④ : Fast Forward (2 ~ 64 Speed) ⑤ : Fast Backward (2 ~ 64 Speed) ⑥...
  • Page 17 • SEARCH • The Search by Event is not Based on Video, but Event Occurrence Time. • Date : Indicate Event Occurrence Order & Date Time : Indicate Event Occurrence Time Event : Indicate Event Contents & Camera No. • Event Searching Method ①...

  • Page 18: Menu Initial

    • MENU ⊙ Go to Menu • Initial Password for all “Administrator, User, Network” is 1234. • Showing Password as * • Changing Password (MENU->6.System->4.Password ) • Only Watch Mode can go to Menu. (Search & PTZ/Focus Mode can’t move to Menu) ⊙...

  • Page 19: Display

    • MENU 1.Display - Video Setup for Watch Mode 2.Record - Setup Image Recording 2.1 Size/Rec.Rate/Quality – Setup Recording Resolution, Compression Rate and Quality Date/Time : Date & Time Mark On/Off Title : Camera Name On/Off Status : Record Condition Mark On/Off (Recording: Red, Pre-recording : Green) Border : Border Mark On/Off when 4CH Division Watch Mode...
  • Page 20 • MENU Overlimit Recording Capacity • When Setup Refer to Below NTSC, PAL Type NTSC : 352*240(30fps), 720*240(15fps), 720*480(7fps) PAL : 352*288(25fps), 704*288(12fps), 704*576(6fps) • Possible to Setup Size & Rec. Rate, Quality per Each Channel • When Apply Change Setup, Press Enter, When Cancel Change Setup, Press Return. 2.2 Timer Recording Setup –...
  • Page 21 • MENU 2.3 Motion Detection Setup – Motion Detection Area & Sensitivity 2.4 Alarm Recording Setup – Recording Setup for Alarm Activated • Motion Setup Work by Time Schedule and Alarm Schedule Work Independently. • Camera : Indicate Camera No. to Setup •...

  • Page 22: Time Recording Weekly Setup

    • MENU ⊙ Time Recording Weekly Setup ① Weekly mode Setup at Record Setup ③ After ‘Deselect’ Schedule, Activated Region by Press ‘ENTER’ and Select Date & Time to Move Cursor ⑤ Setup Date & Time Schedule in the Same Way. After Finishing Schedule Setup, Press ‘Return’...

  • Page 23: Partial Motion Region Setup

    • MENU ⊙ Partial Motion Region Setup :Non-Activate Move Cursor ① Region Initial View ④ When Select Multi Region, Using Direction Key in ② to Expand Non-Activate Region ⑦ For Reducing Partial Region, Cancel Non-Activate Region in Same Way as ④⑤ :Activate Partial Setup Cursor :Partial Setup Finish Cursor ②...

  • Page 24: Camera

    • MENU 3.Camera - Setup Camera 3.1 Status/Title Setup – Camera Connection Status & Camera Name Setup • Camera : Indicate Camera No. to Setup • Status : Indicate Camera Status (Connected/Disconnected) • Title : Setup Camera Name to Show Left-Upper Side •...

  • Page 25: Audio

    • MENU 3.3 Color Setup – Control Video Color 4.Audio - Setup Audio 4.1 Audio Recording Setup – • Camera : Indicate Camera No. for Setup • Audio Rec. : Setup Recording On/Off from External Audio In Terminal • Audio Ch. : Setup Audio In Terminal Channel & Audio Output Camera •...

  • Page 26: Alarm

    • MENU 4.2 Live Audio Setup – 5.Alarm - Setup Alarm & Relay 5.1 Alarm Input Setup – Alarm Sensor Setup • Alarm : Indicate Alarm Input Terminal No. • Status : Setup Alarm Sensor Connection Status (Connected/Disconnected) • Camera : Input Camera No.1~4 to Connect Alarm •...

  • Page 27: System

    • MENU 5.2 Relay Output Setup – Alarm Relay Setup • Latched/Transparent Latched – When Sensor Alarm Activated, Relay Reacted in Setup Duration Transparent – Relay Reacted Temporary During Sensor Alarm Activate 6.System - Basic Environment Setup 6.1 Date/Time – Date & Time Setup •...
  • Page 28 • MENU 6.2 Network – Setup TCP/IP 6.3 Buzzer Setup – Setup Key Sound to Speaker 6.4 Password – Setup Password 6.4.1 Administrator Password – Setup Menu & System On/Off • Current Password : Input Current Password (Initial Password : 1234) •...
  • Page 29 • MENU 6.4.2 Manager Password – Available to monitor & search but cannot change setup 6.4.3 Operator Password – available to monitor only cannot control setup other search 6.4.4 Network Password – Setup Remote Connection Program Password • Current Password : Input Current Password (Initial Password : 1234) •...
  • Page 30 • MENU 6.5 Disk Write Mode – Setup Hard Disk ※When Change Disk Overwrite ON/OFF Mode, the Change will be Applied from Changing Time. For Example When Overwrite On Mode & HDD Full, Change to Overwrite Off Mode and then it will be Applied New Data Fill HDD Full after Changing Time.
  • Page 31 • MENU 7. USB BACK UP • USB device auto detection • Back up date & time • Selectable subject : Video/ Audio/ Event • You can back up data by USB device auto detection. • Set data and time which you want to back up and then press back up button •...

  • Page 32: Client

    All Radeon, Nvidia (Above Geforce) Matrox (Above G400) Compatible Video Card ※ Above DIVX Codec 5.1 (When Use Media Player) • DVR Remote Agent 1.0 Install ① Open CD-ROM Drive and Run DvrRemoteAgentSetup.exe and then Appear Setup Menu ② Close All Running Software and Press Next to Move Next Step...
  • Page 33 • CLIENT ③ Ask designate Folder to Install DvrRemoteAgent 1.0, Recommend Basic setup c:\program files:\DvrRemote Agent 1.0 Click Next ④ Showing Progress of Copy of Files ⑤ Appear DirectX 7.0a Install Menu. If DirectX Version Lower than 7.0a, Press Yes to Start Install...
  • Page 34 • CLIENT ⑥ When Finishing Installation, System must be Restarted. Click ‘Yes’ ⑦ Finish DvrRemoteAgent 1.0 Program Installation...

  • Page 35: Monitoring Mode

    ① Main Screen Image : Shows Present Surveillance Camera Image ② Camera Selection Button : Indicates Connected Camera No. & Select Image to Click Camera No. ③ Hidden/Exit : Hide DVR Client Window or Exit Program ④ Time Output : Showing Present Time & Date ⑤...
  • Page 36 • CLIENT 1.2 Screen Division Selection 1.3 P/T/Z Control • FOCUS/ZOOM Select Button : Focus or Zoom Control by +,- Button • P/T/Z Controller : Camera P/T/Z Control by Direction Keys • +,- Control Button : Focus or Zoom Control 1.4 Selection Network I/D •...
  • Page 37 • CLIENT 1.5 AVI File Conversion 1.6 Color Adjustment • Click AVI Conversion Button to Start AVI File Conversion • During AVI Conversion Showing a Message and before Click ‘Stop”, Save AVI File continuously • Press ‘Stop’ to Open Designated File Name & Saving Location, and Save AVI File •...

  • Page 38: Search Mode

    • CLIENT 2.Search Mode 2.1 Function Introduction ① ② ① Search Screen : Playing Selected Video ② Search Bar : Search & Indicate Camera Recording Situation by Time Bar ③ LIVE : Return to Live Mode SETUP : Mode to Change Network Setup or Option ④...
  • Page 39 • CLIENT 2.2 Search Method ① Indicate 0~24 Hour ② Indicate Recording Situation (Gray : No Record, Green : Recorded Image at the Time) ③ Search Bar : Select Video by Dragging Mouse Search Controller in Recorded Area ④ Indicate Camera Channel to Confirm Camera Recording Situation ⑤...
  • Page 40 • CLIENT 2.3 SEARCH Option ⑤Log Search ①Backup ④Print Image ① Backup – Backup Image from Server to Remote PC •Press OK to Open Backup Status & Start Backup. •When Finish Backup, Back Status Window Disappear & Backup Data would Saved at Hard Disk Root Folder in Remote PC.
  • Page 41 ④ Indicate Present Time & Date and Possible to Search Time & Date ⑤ Search Controller, the Same Way of Previous Search • Backup Play Setup in Search Mode is the Same as DVR Player, so it can be Run Independently without Running Remote Program.
  • Page 42 • CLIENT ③ Save Image – Capture Image & Saving Image at Hard Disk or Removable Disk • Click ‘Save Image’ Icon During Playing Video • Designate File name, File Type (JPG,BMP), and Location and Press Saving • Conversion and Saving Image from Remote Viewer ③...
  • Page 43 • CLIENT ③ Log Search – Find Video Centering around Event Log at Server ① ② ③ ④ ⑤ ⑥ ⑧ ⑦ ⑨ ⑩ ① Input Start Time and End Time at the Selected Date to Search Event When Press Search Button, Event Output at the Below Window ②...
  • Page 44 • CLIENT ④ Event Viewer – Showing Present Event in Server & Find Image ① ② ③ ① Indicate Event Occurred Order No. ② Indicate Event Occurred Camera No. ③ Indicate Event Occurred Time & Date ④ Indicate Event Detail Description ⑤...

  • Page 45: Setup

    • CLIENT 3.Setting ② ③ ④ ⑤ ⑥ 3.1 Connection ID Setup ① ID Status : Indicate Present Saving ID & ID Information ② Input Name to Add or Amend ID ③ Input IP Address to Add or Amend Server ④...
  • Page 46 • CLIENT 3.2 Option Setting ① Control Screen Rotation Time in Scenario Mode at Watch Mode (Possible to Setup from 1~300 sec.) ② Possible to Select Event Kind Plurally from Server. Remote Client Only can See Selected Event. (System, HDD, Alarm, Video, REC) ③...

  • Page 47: Ddns Connection

    • DDNS Connection 1. Setting Domain Name Connection When you have finished DDNS network setup and reboot, 1. Check the MAC address in “System Information” menu. 2. The domain name is "MAC address.dvrlink.net”. EX) If Mac Address is 00-11-5f-01-0a-7a, the domain name is "00115f010a7a.dvrlink.net" 3.

  • Page 48: Optional 1. Optional Cable

    • OPTIONAL 1. Optional Cable MBA-100 MRA-102 MBAP-104 MD-018(18M) MD-030(30M) MD-045(45M) MBP-101R MRAP-103 MRP-105R MD-018R(18M) MD-030R(30M) MD-045R(45M)
