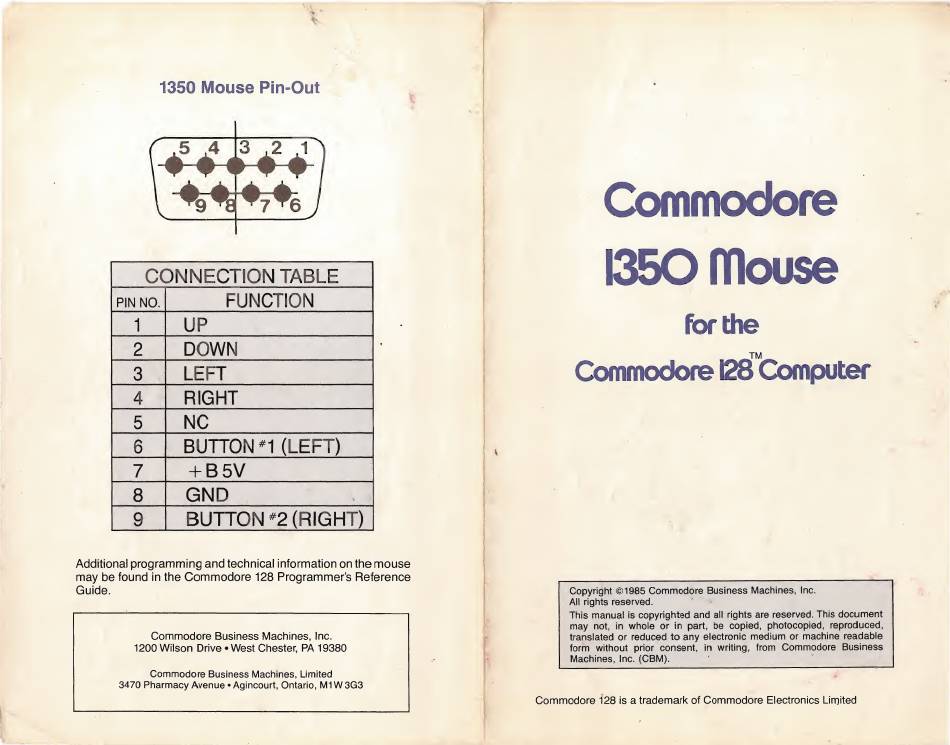

Commodore 1350 Quick Start Manual

1350
Mouse
Pin-Out
5
.4
3
,2
.1
CONNECTION
TABLE
PIN
NO.
FUNCTION
1
UP
2
DOWN
3
LEFT
4
RIGHT
5
NC
6
BUTTON
#
1
(LEFT)
7
+ B 5V
8
GND
9
BUTTON
#
2 (RIGHT)
Additional
programming and
technical information on the
mouse
may
be found
in
the
Commodore
128 Programmer's Reference
Guide.
Commodore
Business Machines,
Inc.
1200 Wilson
Drive •
West
Chester,
PA
19380
Commodore
Business Machines,
Limited
3470 Pharmacy Avenue
• Agincourt, Ontario,
M1W3G3
Commodore
I350
Hlouse
forthe
TM
Commodore
I28
Computer
