Toshiba RP-700F Service Data

RP—7O00F
- | SERVICE DATA
on
FILE NO. 150-180

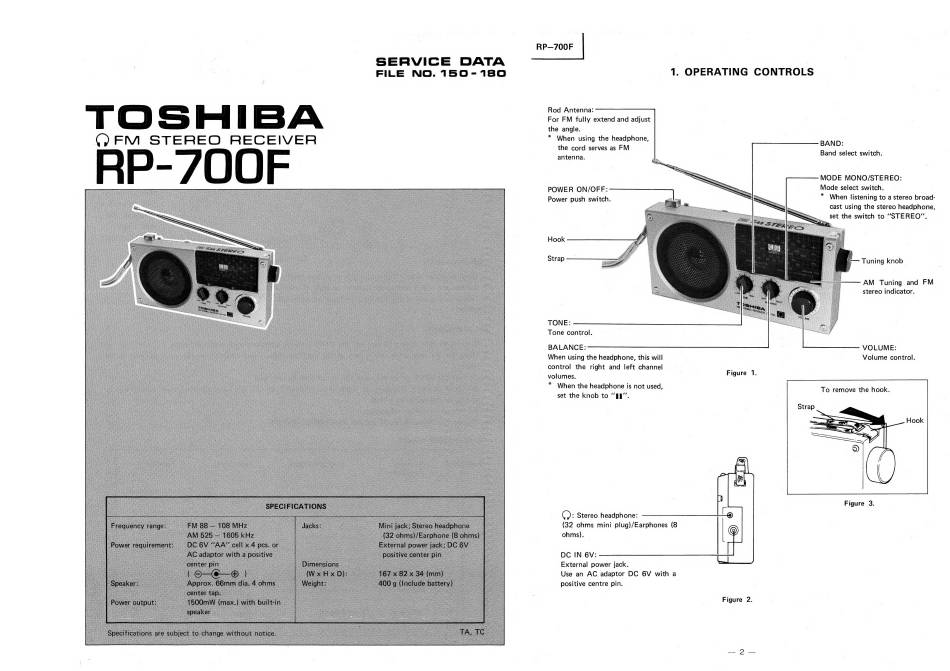

1, OPERATING CONTROLS
Rod Antenna:
For FM fully extend and adjust
the angle.
io FV STEREO RECEIVER * When using the headphone,
the cord serves as FM
antenna.
BAND:
Band select switch.
MODE MONO/STEREO:
Mode select switch.
* When listening to a stereo broad-
Cast using the stereo headphone,
set the switch to "STEREO".
POWER ON/OFF:
Power push switch.
Hook
Strap Tuning knob
AM Tuning and FM
stereo indicator.
TONE:
Tone control.
BALANCE: VOLUME:
When using the headphone, this will Volume control.
control the right and left channel | 1
volumes. rigure
* When the headphone is not used,
set the knob to "'gy'"'.
To remove the hook.
Figure 3.
iat Stereo headphone:
(32 ohms mini plug)/Earphones (8
ohms). —
DC IN 6V:
External power jack.
Use an AC. adaptor DC 6V with a
positive centre pin.
Figure 2.
