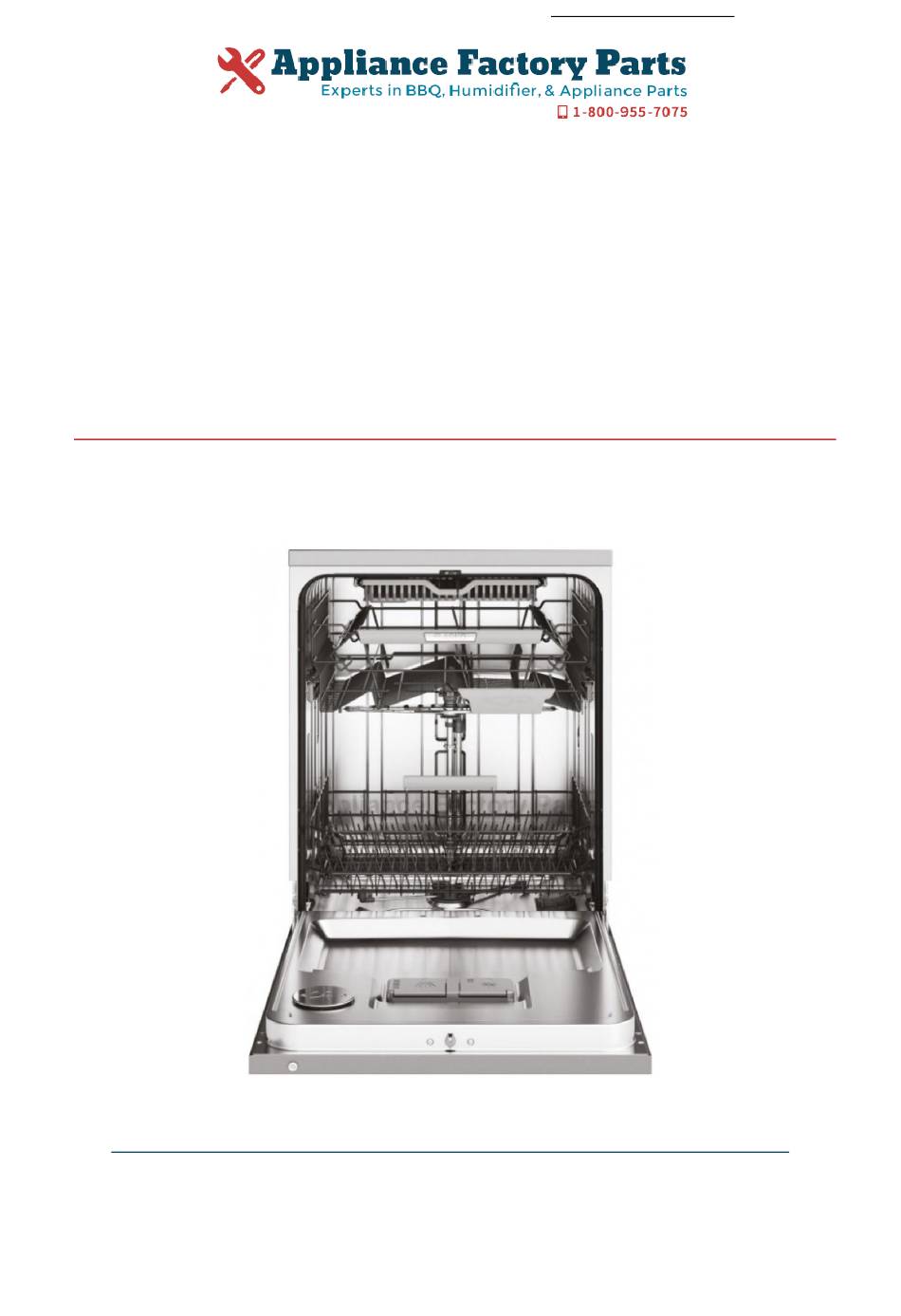

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. ASKO D1706WH Owner's Manual Shop genuine replacement parts for ASKO D1706WH Find Your ASKO Dishwasher Parts - Select From 210 Models -------- Manual continues below --------...
- Page 2 Use & Care Guide ASKO D1706...
-
Page 3: Service And Guarantee
SERVICE & GUARANTEE SERVICE Before calling for service, check to see whether the faults is due to something that you can put right yourself. See Trouble shooting pages 20-21. GUARANTEE For guarantee details, see the guarantee card. -
Page 4: Table Of Contents
CONTENTS READ FIRST CARE Safety Cleaning 16-17 Children’s safety Rinse aid The parts of the dishwasher Salt Technical data Baskets FAULTS Dispenser Trouble shooting - Results 20-21 Control panel, symbols Trouble shooting - Dishwasher HOW TO USE THE DISHWASHER MISCELLANEOUS Before you start Performance information Basic instructions... -
Page 5: Safety
SAFETY GENERAL PULL-LATCH (FULLY INTEGRATED MACHINES ONLY) • Study and save the operating instructions for The machine will stop if the door is opened future reference. during operation. However, since the machine • Services to the dishwasher, ie, water supply, is fitted with a pull-latch, splashing may occur drain, electric power, should be connected by if the door is opened too quickly. -
Page 6: Children's Safety
CHILDREN’S SAFETY ! PROTECT CHILDREN - MACHINE DETERGENT IS MACHINE WITH CHILD-SAFETY LOCK? CORROSIVE To activate the child-safety lock, if fitted, lift Keep detergent and rinse aid out of the reach of and turn the screw slot with a screwdriver to a children. -
Page 7: The Parts Of The Dishwasher
THE PARTS OF THE DISHWASHER* 1. KNIFE BASKET 2. UPPER BASKET 3. LAMP 4. SPRAY ARMS 5. LOWER BASKET 6. CUTLERY BASKET 7. RINSE AID FILLING 8. RINSE AID DISPENSER 9. DETERGENT COMPARTMENT 10. MAIN POWER SWITCH 11. PROGRAMME PANEL 12. -
Page 8: Baskets
DISHWARE BASKETS* Upper basket Lower basket 1. ADJUSTABLE AND FOLDING RACKS 2. DIVIDED CUP SHELF 3. FOLDABLE GLASS THREAD 4. LOWER BASKET 5. CUTLERY BASKET WITH ADJUSTABLE AND FOLDING COVER 6. KNIFE RACK * Deviations may occur depending on the mo- del and the market concerned. -
Page 9: Dispenser
CONTROL PANEL PROGRAMMES OPTIONS 1 Rinse and hold 2 Intensive wash 3 Normal wash 4 Light wash 5 Economy wash 6 Rinse programme 7 Plate warming 5. DRYING CHOICE 1. PROGRAMMES 6. SALT INDICATION 2. PROGRAMME CONTROL KNOB 7. RINSE-AID INDICATION 3. -
Page 10: Before You Start
BASIC INSTRUCTIONS The following step-by-step instructions will help you to achieve the best possible results. FILL THE BASKETS PROPERLY Your dishwasher features the ASKO Super Cle- aning System ™ . After the pre-wash, the main wash is started with clean water and a clean machine and therefore it is not necessary to rinse dishware before washing up. -
Page 11: Turn On The Mainpower
Place larger plates, dishes, pots, saucepans lation to hardness of the water. and cutlery (in the cutlery basket) in the lower Follow the instructions on the detergent basket. The detachable plate rack that is supp- packet. If your dishwasher is equipped with a lied with some models can easily be lifted out to softener, use the dose recommended for soft provide space for big plates, saucepans and pots,... -
Page 12: After Washing
2. Intensive wash Want to change your mind? Use the Intensive wash programme for heavily If you want to change the programme after you soiled ware, such as pots and pans, and gratin have started the machine, select a new program- forms. -
Page 13: Standard Programmes
STANDARD PROGRAMMES PROGRAMME HOW THE MACHINE WORKS 65° 65° 55° 55° 55° 55° 65° Temperature Pre-wash with SCS* (number) Main wash (number) Rinsing (number) Drying heat CONSUMPTION FIGURES Washing time (ca. min)* 0.01 Energy (ca. kWh) Washing time (ca. min)** 0.01 Energy (ca. -
Page 14: Drying Heat
OPTIONS DRYING HEAT If you select unheated drying, the dishes will dry a little more slowly. You can speed up drying by opening the door ajar to allow the moist air to escape. TEMPERATURE OPTION You can select the temperature in any program- me. -
Page 15: Eco Wash
ECO WASH WASH ONLY WHEN FULL SELECT A PROGRAMME WITHOUT DRYING HEAT Save energy by not running the machine until If you choose an Intensive wash or Normal wash it is completely full. programme without drying heat, the machine will dry using the fan only. When washing is completed, leave the door ajar to speed up the WASH AT LOWER TEMPERATURE If dishware is only lightly soiled you can suita-... -
Page 16: Delicate And Sensitive Washing Up
DELICATE AND SENSITIVE DISHWARE For a variety of reasons, some articles are unsu- CUTLERY WITH BONDED HANDLES itable for machine washing. Some materials can- Some types of adhesive cannot withstand mach- not withstand high temperature, others can be ine washing, ie, cutlery handles are likely to loo- damaged by dishwasher detergents. -
Page 17: Lime Deposits
CLEANING CLEANING The inside of the machine is made of stainless steel, which is kept clean by normal use. Howe- ver, deposits of lime can be formed inside the machine if the water is hard. If this happens, Coarse run a Normal wash programme with two table- Tubular strainer filter spoonful of citric acid in the detergent compart-... - Page 18 Spray arms Spray-arm jets and bearings may sometimes be- come clogged. Screw off the nut and take off the washer on top of the spray arm and lift off the arm. Poke out any obstructions with a ske- wer or other suitable pointed tool. The spray- arm jets face downwards.
-
Page 19: Rinse Aid
RINSE AID TOPPING UP WITH RINSE AID Drying will be faster if you use rinse aid. The rinse-aid indicating lamp on the panel will light The rinse-aid indicating lamp on the panel will light when when the rinse-aid container becomes empty.* the rinse-aid container becomes empty.* Not all mach- There is also an indicator on the dispenser. -
Page 20: Salt
SALT Applies to dishwashers with water softener only. the filler hole. Pour in about one litre of water and then enough salt to fill the container, max. 1.5 kg. Wipe away any spilled salt, so that the The salt indicating lamp on the panel will light when there is no salt left. -
Page 21: Trouble Shooting - Results
TROUBLE SHOOTING - DISHWASHING RESULTS FAULT - POOR WASHING PERFORMANCE Possible causes 1. Rotation of spray arms prevented by protruding object. Check also that jets in the spray arms are not clogged. 2. Spray arms slowed down by impurities in the bearings. Spin the arms by hand and if they do not spin freely lift them off and wipe the fittings clean. - Page 22 Still not clean after testing with citric acid? • The cause is probably temperature that is too high and/or too much detergent. This type of film, or etching, cannot be remedied, only prevented. Wash glasses at low temperature and dispense the amount detergent with care, and avoid heated drying.
-
Page 23: Trouble Shooting - Dishwasher
TROUBLE SHOOTING - DISHWASHER If the machine does not work, check first to find out if the reason is a simple fault that you can remedy yourself. Try to locate the fault with the aid of the following description. FAULT - DISHWASHER WILL NOT START Possible causes 1. -
Page 24: Performance Information
PERFORMANCE INFORMATION EXAMPLE OF HOW TO LOAD THE MACHINE TEST DOSES Pre-wash 5 grammes and Main wash 20 gram- mes detergent. STANDARD TESTS Australia: AS/NZS 2007.1 Dishwashing programmes: Light wash 55°C without heated dry Connection: Cold water Test method, noise: IEC-704-1 TECHNICAL DATA Height:... -
Page 25: Quick Guide
QUICK GUIDE 1. FILL THE BASKETS Remove large particles of food and waste. It is not necessary to rinse, thanks to the Super Cleaning System ™ 2. DOSE THE DETERGENT The detergent compartment has a small space for pre-wash and a larger space for the main wash. 3.
