DMP 1100INT Series Installation Sheet

Description
The 1127C-WINT is an 1100INT Series Wireless Wall Mount Curtain PIR Motion Detector. The detection area is a 15.2m
(50') x 3m (10') curtain using a fresnel lens. See Figure 1. The 1127C-WINT includes a case tamper and functionality
to allow sensor configuration from the control panel. DMP exclusive features include Sensitivity Adjustment, Pulse
Count, Walk Test, and Disarm/Disable.
Included Components
• One 1127C-WINT PIR Motion Detector
• Two CR123 batteries
Program the PIR in the Panel
In Zone Information, enter a ZONE NO:, ZONE NAME, the device SERIAL
NO:, and the SUPRVSN TIME. Continue to program the zone as directed
in the panel programming guide.
Note: When a receiver is installed, powered up, or the panel is reset,
the Supervision Time for transmitters is reset. If the receiver has been
powered down for more than one hour, wireless transmitters may take
up to an additional hour to send a Supervision message unless tripped,
tampered, or powered up. This operation extends battery life for
transmitters. A missing message may display on the keypad until the
transmitter sends a Supervision message.
Additional Programming
Disarm/Disable: The Disarm Disable option in Zone Information disables Night and Exit type zones when the
system is disarmed to extend battery life. Default is YES.
Pulse Count: Pulse Count is the number of pulse inputs (trips) the PIR needs to sense before going into alarm.
This option allows you to pick the number if trips before an alarm is initiated. The pulse count in a high-security
installation may be programed to 2, ensuring that the detector sends an alarm more quickly. Default is 40.
Adjustable Sensitivity: Program the PIR with a sensitivity of HIGH to operate the PIR at maximum sensitivity.
Program the PIR with a sensitivity of LOW to operate the PIR at 75% of maximum sensitivity. Use LOW sensitivity
for installations in harsh environments to reduce the chance for false alarms. Default is LOW.
Install the PIR
Remove the Cover
1. Remove the cover lock screw from the PIR. See Figure 2.
2. Lift the cover off of the base and set it aside.
3. Insert the included batteries into the PCB battery holders.
Select a Location (LED Survey Operation)
The PIR transmitter provides a Survey LED operation to allow one person
to confirm transmitter communication with the wireless receiver while
the cover is removed. The transmitter should be programmed into the
panel for the LED Survey to operate properly.
Trip the 1127C-WINT tamper to send data to the receiver. The
transmitter red LED turns on when data is sent to the receiver, then
immediately turns off when the receiver acknowledgement is received.
If the transmitter does not receive an acknowledgement from the
receiver, the transmitter LED remains on for about 8 seconds or flashes
in a quick succession to let you know communication is not established.
Relocate the transmitter or receiver until the Survey LED immediately
turns off indicating the transmitter and receiver are communicating
properly.
INSTALLATION SHEET
1127C-WINT PIR Motion Detector
Top view
Side view
8.0'
(2.4m)
0 10' 20' 30'
(5m) (10m)

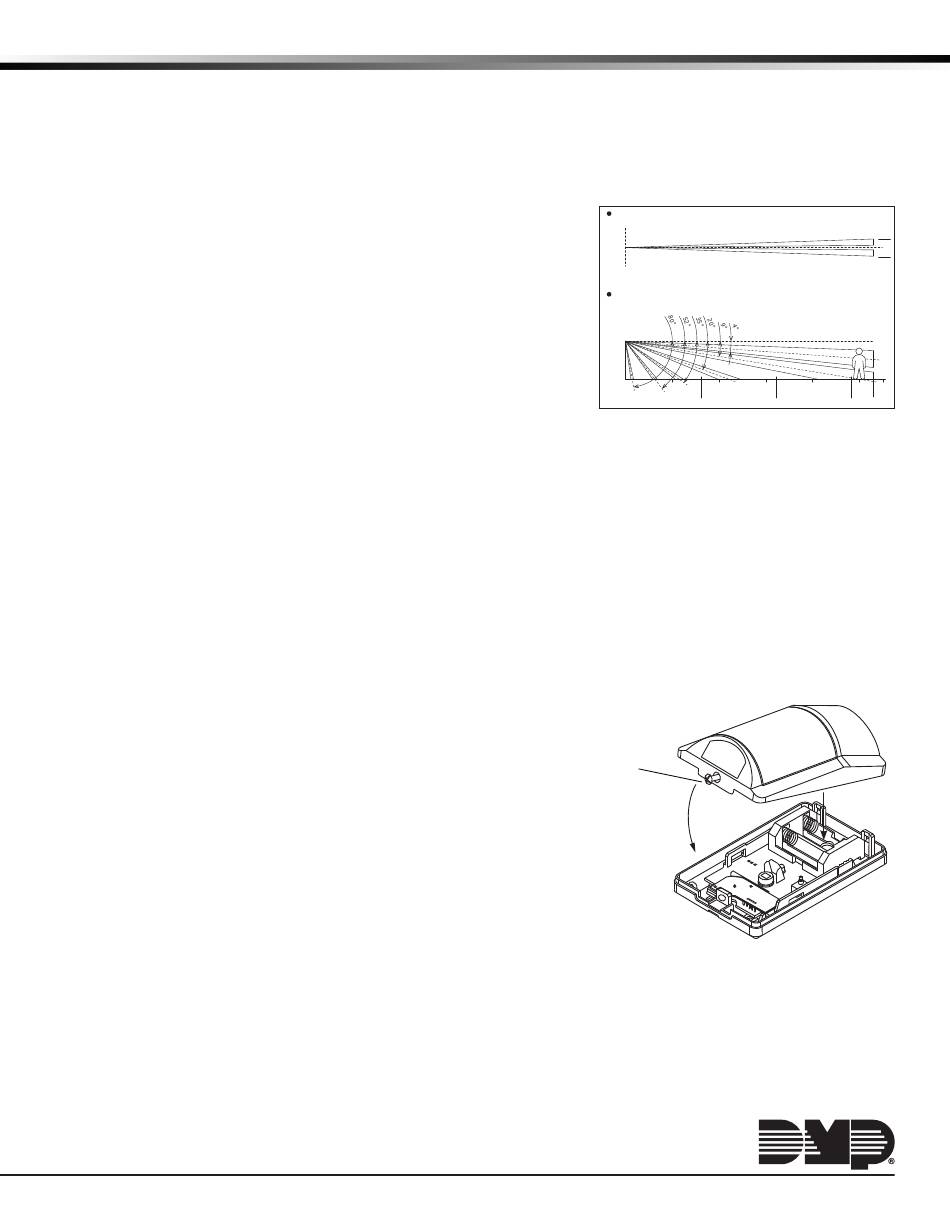

Figure 1: Detection Pattern
Cover Lock Screw
Figure 2: Remove the Cover
10'
40' 50' 55'
(15m) (16.5m)
Battery Holders
