Portable Air Conditioner
Owner's Manualal
SKU: PAC004-12KWG-USZX/PAC004-14KWG-USZX
Model: YAC-08CPD/PD1|YAC-10CPD/PD1
Contact Number:
1-833-986-6998

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YAC-08CPD and is the answer not in the manual?

Questions and answers

Summary of Contents for Euhomy YAC-08CPD

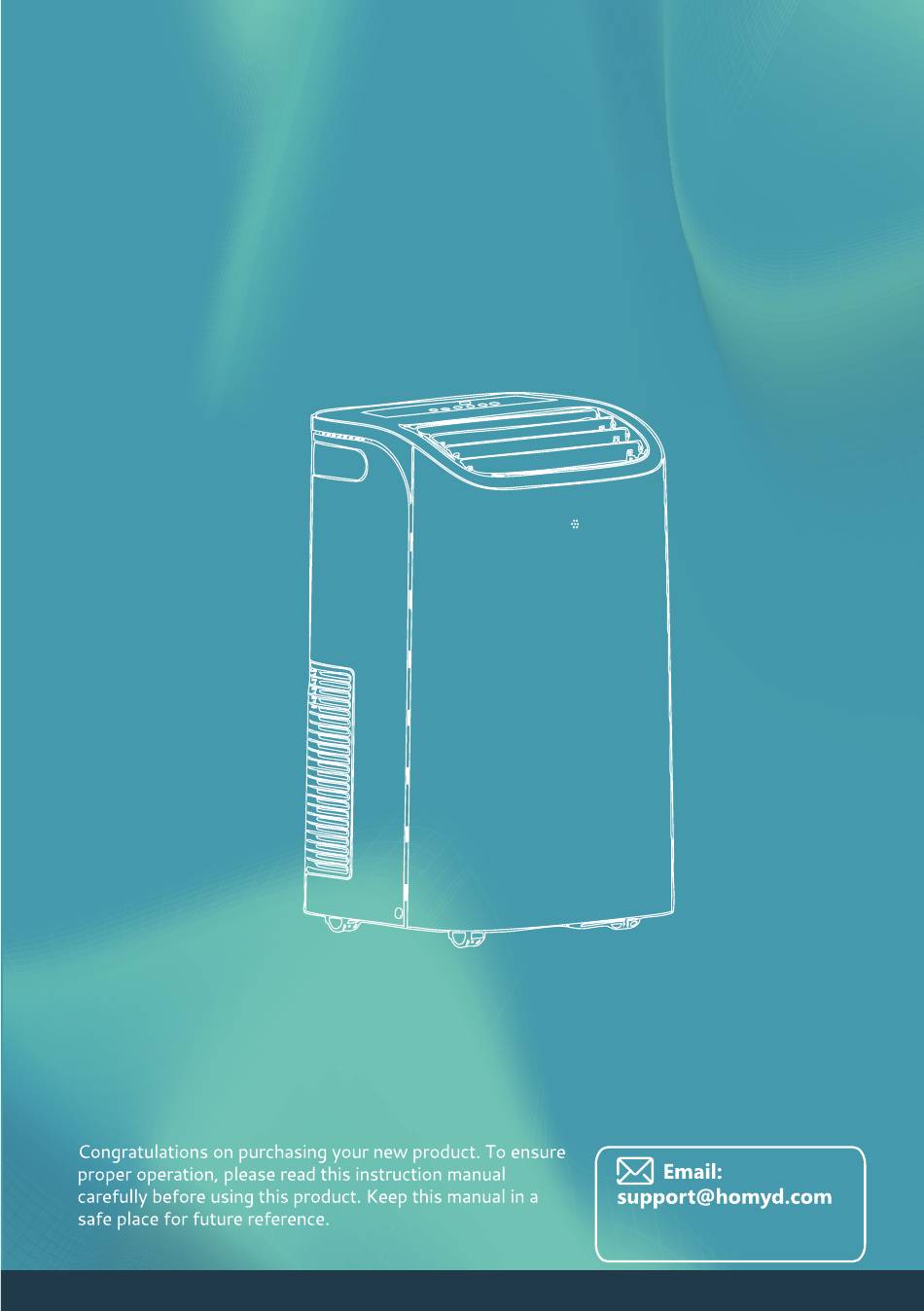

  • Page 1 Portable Air Conditioner Owner’s Manualal SKU: PAC004-12KWG-USZX/PAC004-14KWG-USZX Model: YAC-08CPD/PD1|YAC-10CPD/PD1 Contact Number: 1-833-986-6998...
  • Page 3 Dear Customer: Welcome to our family. Thank you for purchasing one of our products. Our goal is to provide you with superior service. If there is anything missing from or wrong with your order, or if you have any questions about using our Air Conditioner, PLEASE contact us. Email: support@homyd.com Contact Number: 1-833-986-6998 Our team is available 24/7 to address your questions, comments, and concerns.
  • Page 5: Table Of Contents

    CONTENTS GENERAL INSTRUCTIONS DESCRIPTION AND ACCESSORIES INSTALLATION INSTRUCTIONS DESCRIPTION OF THE DISPLAY SCREEN AND CONTROL PANEL TIPS FOR CORRECT USE TROUBLESHOOTING...
  • Page 6: Important Safeguards

    IMPORTANT SAFEGUARDS This appliance is for household use only. Disconnect the appliance from its power source during service and when replacing parts and cleaning. Please note: Check the nameplate for the type of refrigerant gas used in your appliance. Specific information regarding appliances with refrigerant gas. It is recommended that the cooling circuit of the machine not be pierced.
  • Page 7 Always grasp the plug when plugging in or unplugging the appliance. Never unplug by pulling on the cord. It can result in the risk of electrical shock and damage. Install the appliance on a sturdy, level floor that supports up to 110lbs(50kg). Installation on a weak or unlevel floor can result in the risk of property damage and personal injury.
  • Page 8 Information for qualification of workers All operators or refrigeration system maintenance personnel shall have a valid certificate issued by an industry-recognized evaluation body to certify that they are qualified for the safe disposal of refrigerant agents as recognized by the industry; •...
  • Page 9 • Ensure that the floor area is sufficient for the REFRIGERANT CHARGE or that the ventilation duct is assembled correctly. • Connect the pipes and perform a leak test before charging with refrigerant. • Check safety equipment before putting into service. b) Maintenance •...
  • Page 10: General Instructions

    – Evacuate the refrigerant circuit. – Purge the refrigerant circuit with nitrogen for 5 min. – Evacuate again. – Fill with nitrogen up to atmospheric pressure. – Put a label on the equipment that the refrigerant has been removed. e) Disposal •...
  • Page 11 If any hot work is to be conducted on the refrigeration equipment or any associated parts, the appropriate fire extinguishing equipment shall be available on hand. Have a dry powder or CO 2 fire extinguisher adjacent to the charging area. 1.6 No ignition sources No person carrying out work in relation to a refrigeration system that involves exposing any pipe work that contains or has contained flammable refrigerant shall use any ignition...
  • Page 12: Repairs To Sealed Components

    while charging, recovering, or purging the system; and that there is continuity of earth bonding. REPAIRS TO SEALED COMPONENTS 2.1 During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to removing sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
  • Page 13: Removal And Evacuation

    equipment shall be set at a percentage of the LFL of the refrigerant. It shall be calibrated to the refrigerant employed, and the appropriate percentage of gas (25% maximum) is confirmed. Leak detection fluids are also suitable for use with most refrigerants, but detergents containing chlorine should be avoided as the chlorine may react with the refrigerant and corrode the copper pipework.
  • Page 14 - Cylinders shall be kept upright. - Ensure the refrigeration system is earthed before charging the system with refrigerant. - Label the system when charging is complete (if not already). - Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system, it shall be pressure tested by OFN.
  • Page 15 employed. Ensure the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labeled for that refrigerant (i.e., special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valves and associated shut-off valves and be in good working order.
  • Page 16 -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. IC Warning This device complies with Industry Canada‘s license-exempt RSSs.
  • Page 17 IMPORTANT SAFEGUARDS This appliance is for household use only. Disconnect the appliance from its power source during service and when replacing parts and cleaning. Please note: Check the nameplate for the type of refrigerant gas used in your appliance. Specific information regarding appliances with refrigerant gas. It is recommended that the cooling circuit of the machine not be pierced.
  • Page 18: Electrical Connections

    Install the appliance on a sturdy, level floor that supports up to 110lbs(50kg). Installation on a weak or unlevel floor can result in the risk of property damage and personal injury. If the appliance has the Wi-Fi function, the transmission power is less than 20dBm, and the radio frequency range is 2412MHz-2472MHz.
  • Page 19 DESCRIPTION 1. Control panel 2. Handle (both sides) 3. Castors 4. Deflector 5. Remote control receiver 6. Intake grille 7. Middle drainage 8. Air outlet grille 9. Intake grille 10. Plug fixer 11. Condenser drain 12. Power cable ACCESSORIES PARTS NAME QUANTITY Hose inlet...
  • Page 20: Installation Instructions

    INSTALLATION INSTRUCTIONS EXHAUSTING HOT AIR When using the appliance in Cool mode, the hot air exchange of the condenser must be exhausted completely out of the room. The exhaust duct assembly has been assembled and does not need to be connected again.
  • Page 21: Window Slider Kit Installation

    WINDOW SLIDER KIT INSTALLATION 1:Parts: A) Window slider without hole B) Window slider with one hole C) Screw/Pin 2: Assembly: Slide Panel B into Panel A and size to window width. Windows sizes vary. When taking measurements, be sure that the window kit assembly is free from gaps and/or air pockets when sizing the window width.
  • Page 22: Installation Instructions

    INSTALLATION INSTRUCTIONS DOUBLE-HUNG SASH/SLIDING SASH WINDOW INSTALLATION 1. Open the window. Cut the foam seal (adhesive type) to the proper length and attach it to the window inside. (Fig.9) 2. Attach the window slider kit to the window sash. Adjust the length of the window slider kit according to the width of the window.
  • Page 23: Description Of The Display

    DESCRIPTION OF THE DISPLAY SCREEN AND CONTROL PANEL 1. Timer button A. Mode symbol 2. Fan speed button B. Fan speed symbol 3. Decrease button C. Sleep symbol 4. Display screen D. Timer symbol 5. Increase button 6. MODE button 7.
  • Page 26 Empty the internal safety tank, following the instructions in the "End of season operations" paragraph. High water level (safety tank full)
  • Page 27 Display area icon Cooling mode Fan speed Dry mode Light Fan mode Child lock Heating mode (ineffective) Timer on Smart mode Timer off Signal Sleep Display digits Turbo temperature or hours ℃ or ℉ temperature Swing Button icon On/Off button Turbo button Increase button Mode button...
  • Page 28: Inserting Or Replacing The Batteries

    Remote Control Point the remote control at the receiver on the appliance. The remote control must be no more than 7 meters from the appliance (without obstacles between the remote and receiver). The remote control must be handled with extreme care. Do not drop it or expose it to direct sunlight or sources of heat.
  • Page 29 Select the target temperature 16 ℃ -31 ℃ (61 ℉ -88 ℉ ) by pressing ● button until the corresponding value is displayed. Select the required fan speed by pressing the button. ● Three speeds are available: High / Med / Low / Auto. The most suitable temperature for the room during the summer varies from 24 ℃...
  • Page 30 Auto mode Four...
  • Page 32: Tips For Correct Use

    Press the button again. The timer will be active, and the symbol and are displayed on the screen. Press the button again or the button; the timer will be canceled, and symbol will disappear from the screen. CHILD LOCK function This function is used to prevent children from pressing the remote controller carelessly or accidentally.
  • Page 33: Water Drainage Method

    Protect the room from direct exposure to the sun by partially closing curtains and/or blinds to make the appliance much more economical to run (Fig. 18); Never place objects of any kind on the appliance; Do not block the air inlet or outlet of the appliance. Reduced airflow will result in poor performance and could damage the unit (Fig.
  • Page 34 3. Connect the drain hose (1/2" or 12.7mm, may not be supplied ). See diagram. 4. The water can be continuously drained into a floor drain or bucket through the hose. 5. Turn on the unit. NOTE Please be sure that the height of any section of the drain hose is not higher than that of the drain outlet, or the water tank may not be drained.
  • Page 36 be hotter than 40℃(104℉). After cleaning the filter, leave the filter out to dry before reinstalling it START-END-OF-SEASON OPERATIONS START OF SEASON CHECKS Ensure the power cable and plug are undamaged, and the earth wiring system is intact. Follow the installation instructions precisely. END-OF-SEASON OPERATIONS To empty the internal circuit entirely of water, remove the cap.
  • Page 37: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTION The appliance There is no current Wait ● ● does not come on It is not plugged into the Plug into the main ● ● main. Wait 30 minutes. If the problem ● The internal safety device persists, contact your service ●...
