ProFlo PFWO201 Installation Instructions

Installation Instructions

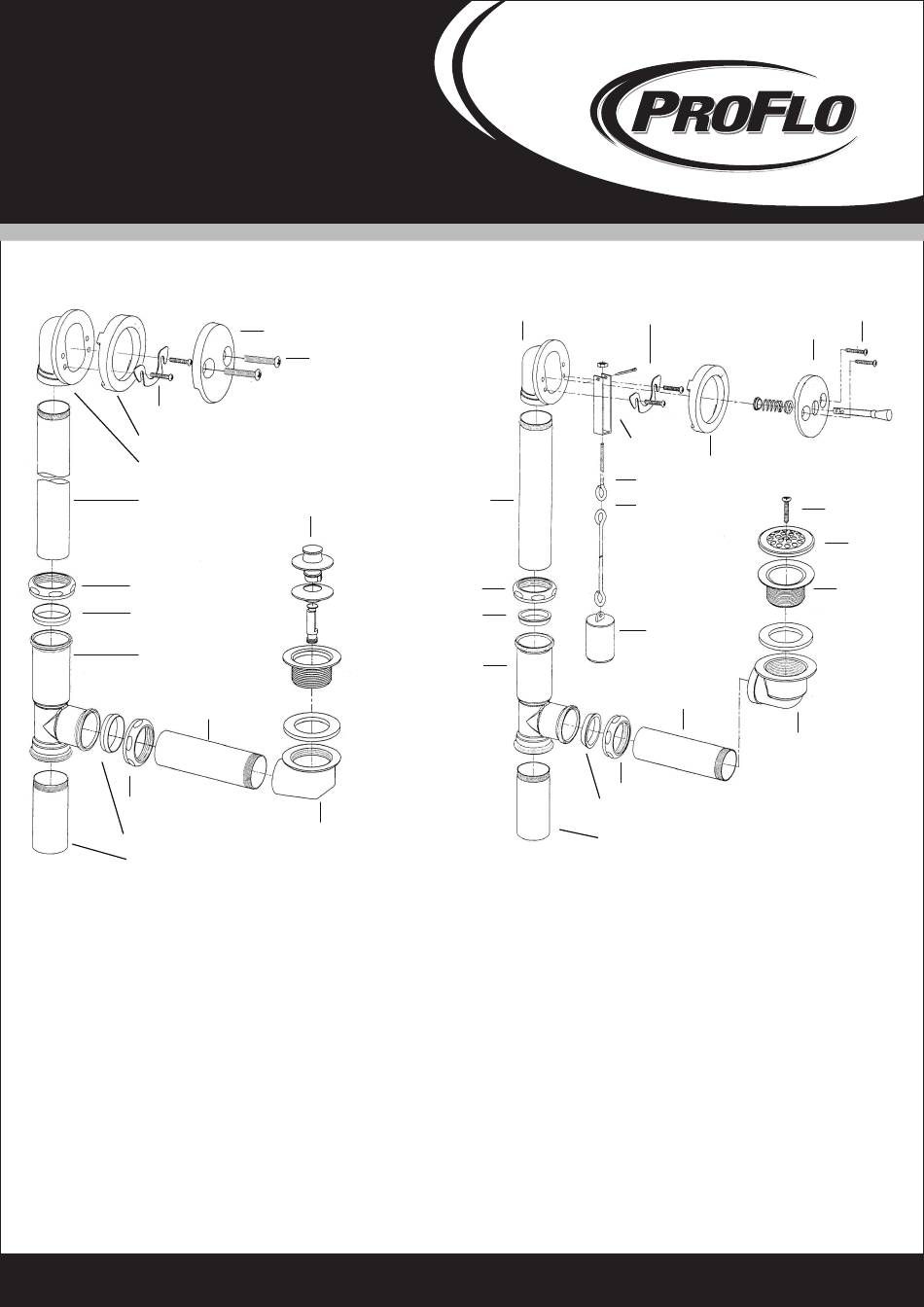

Brass W&O Assembly
Bath Drain with Stopper
Retainer Plate & Screws
Overflow Gasket
Overflow Elbow
Overflow Tube
Slip Joint Nut
Poly or Brass Washer
Tee
Drain Tube
Slip Joint Nut
Poly or Brass Washer
Tailpiece
1. Pre fit all pieces before final assembly to ensure all
dimensions are correct.
2. Cut pipe to correct lengths, if needed.
3. Assemble bath drain pipe and fittings.
4. Secure drain elbow and drain flange gasket under the tub
by screwing in the strainer body through the tub drain hole
from inside the tub. Note: Avoid contact of plumber's putty
with ABS plastic parts.
5. Place overflow gasket on overflow elbow and place the overflow
elbow against the back of the tub aligned with the overflow hole
on the bathtub.
6. From inside the tub, start the two retainer plate screws in the
bottom two holes in the overflow elbow. Hang the retainer plate
over the screw heads and tighten the screws until the retainer
plate makes contact with the interior tub wall and overflow gasket
is tight against the exterior tub wall.
Warranty and Codes
product carries a 1-year limited warranty.
© 2015 Ferguson Enterprises, Inc. All Rights Reserved
Overflow Plate
Overflow Plate Screws
Overflow Tube
Stopper
Slip Joint Nut
Poly or Brass Washer
Drain Body
Drain Elbow Gasket
Drain Elbow
Distributed Exclusivley by Ferguson and Wolseley Canada
Bath Drain with Trip Lever
Overflow Elbow Retainer Plate & Screws
Linkage Nut
Tee
Slip Joint Nut
Poly or Brass Washer
Tailpiece
7. Install overflow plate.
8. For trip lever style, to install linkage assembly to the approximate
correct length, place plunger on bottom of tub and adjust the length
by screwing adjustable linkage control in the necessary direction.
Note: hexnuts must also be adjusted. Correct length will be completed
when the top hook of the eye wire is at the same level as the bottom
of the tub overflow and make sure brass linkage is not kinked .
9. Install plunger and linkage assembly through overflow elbow. Align
faceplate even with the center of the overflow opening, insert screws
through the face plate into threaded holes in overflow elbow.
10. Test the linkage length adjustment to be sure the plunger reaches
the bottom seat to shut off water in its down position and lifts far
enough to allow free drainage in its up position. Test this setting,
then tighten both hexnuts.
11. Screw in drain cover or lift & turn style drain body into drain elbow.
Overflow Plate Screws
Overflow Plate
Overflow Gasket
Eye Wire
Linkage
Plunger
Drain Tube
Drain Elbow
®
Cover Screw
Drain Cover
Drain Body
Drain Elbow Gasket
CAP 12/15
