Summary of Contents for SMUG ELT-3P6324

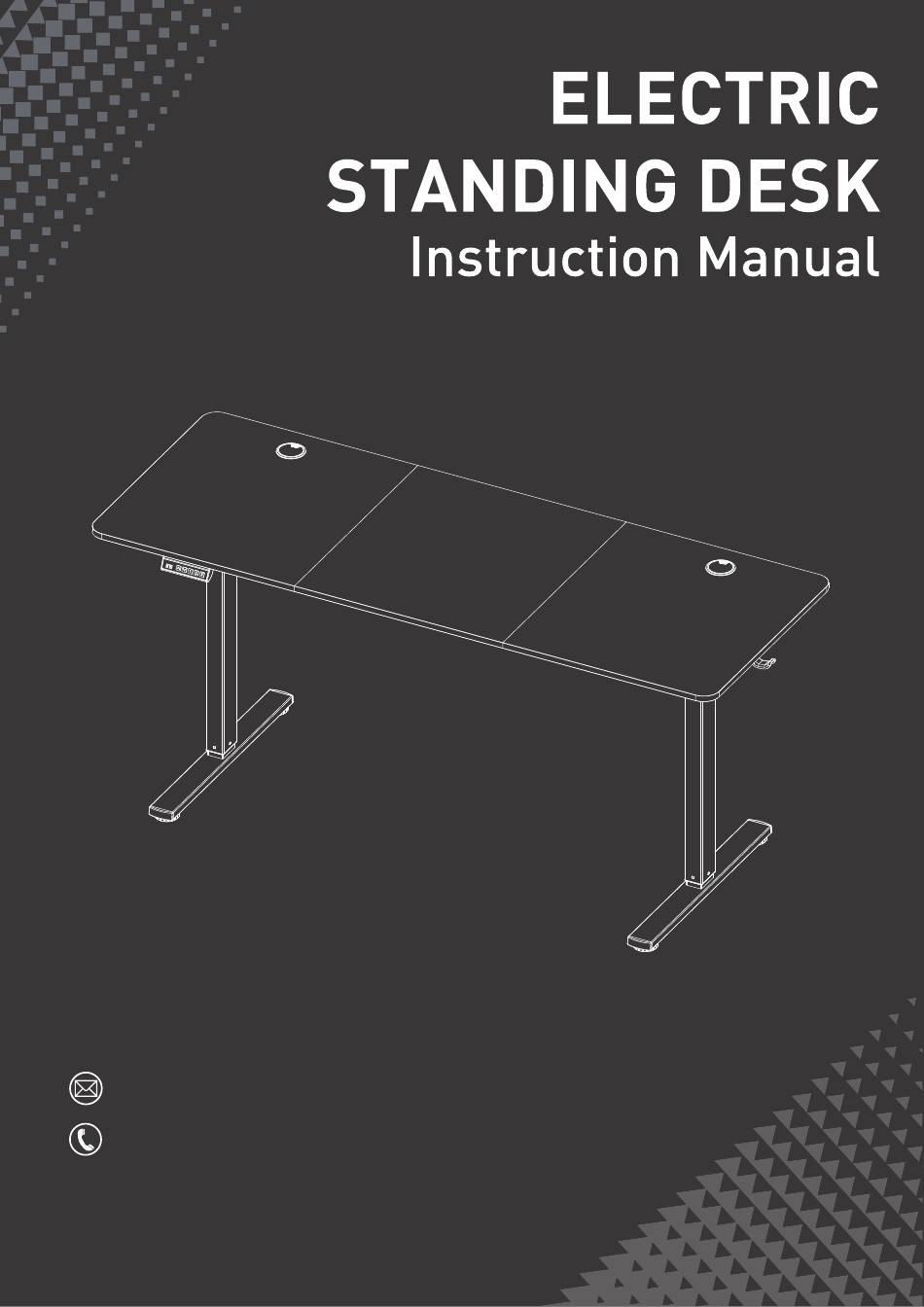

- Page 1 ELT-3P6324 HJ-Customer-Service@outlook.com (909)637-7665 | (909)637-7593 EST 9:00AM--17:00PM...
-
Page 2: Component List
Component List Hex Rod... - Page 3 Hardware...
- Page 4 fully tightened. It is recommended to use power tools to install the screws. 4PCS Please pay attention to the installation direction of the Beam on both sides. The round holes should be on the right side and installed following the direction of the arrow. 4PCS...
- Page 5 NOTE: Perform the same steps on both sides. 8PCS...
- Page 6 Please ensure the Drive Rod ⑦ is inserted into the Left Leg . It can be slightly extended to facilitate the subsequent installation of the Hex Rod Insert the Motor into the Hex Rod until the protrusion locks into place.
- Page 7 2PCS 1 PC Rotate the plastic shell of Motor clockwise, align the holes on the plastic shell with the pre-drilled holes on the Beam ,and then secure the plastic shell of Motor with 2 Screws Turn the plastic part on the Drive Rod clockwise to loosen it.
- Page 8 4PCS 8PCS 8PCS NOTE: Using a pistol drill (not included) works better.
- Page 9 24PCS 1 PC NOTE: Using a pistol drill (not included) works better. 2PCS 1 PC NOTE: Using a pistol drill (not included) works better.
- Page 10 Step 13 Step 14...
- Page 11 Step 15 4PCS 1 PC NOTE: Using a pistol drill (not included) works better. Step 16...
- Page 12 If the left side doesn't move up/down when using the desk, go back to step 5-8. Make sure the drive rod is installed correctly. IMPORTANT! You must reset the desk before use: Press and hold the button for 5 seconds, and the screen will show Continue holding until the desk goes down to its lowest level and comes back up slightly.
-
Page 13: Using The Controller
Using the Controller LED Display: Press any key once to wake up the display. Press the button, the desk will move to the height that was previously set for that button. Long press the button to raise the desk continually, and desk will stop when the button was released or at the max height (118cm) Long press the button to lower the desk continually, and desk will stop when the button was released... - Page 14 Technical Support (909)637-7665 | (909)637-7593 Other Info HJ-Customer-Service@outlook.com Thank you for choosing this product. We strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact us.
