Bracwiser MD7421 Installation Manual

Bracwiser
Unboxing Instruction
Please open the box carefully and take off protection such as lining and
covers.
Check all parts make sure all components and parts are not damaged.
Do not use damaged components or parts.
Read this manual before installation.
Important Safety Information
Please be careful during installation and operation. Read this manual
before installation. Follow the manual and use tools as advised in the
package.
Installation need to be completed by professional or under others help.
Do not disassemble any components if there is no instruction in the
manual. We are not
responsible for any loss due to incorrect installation or incorrect use of this
item.

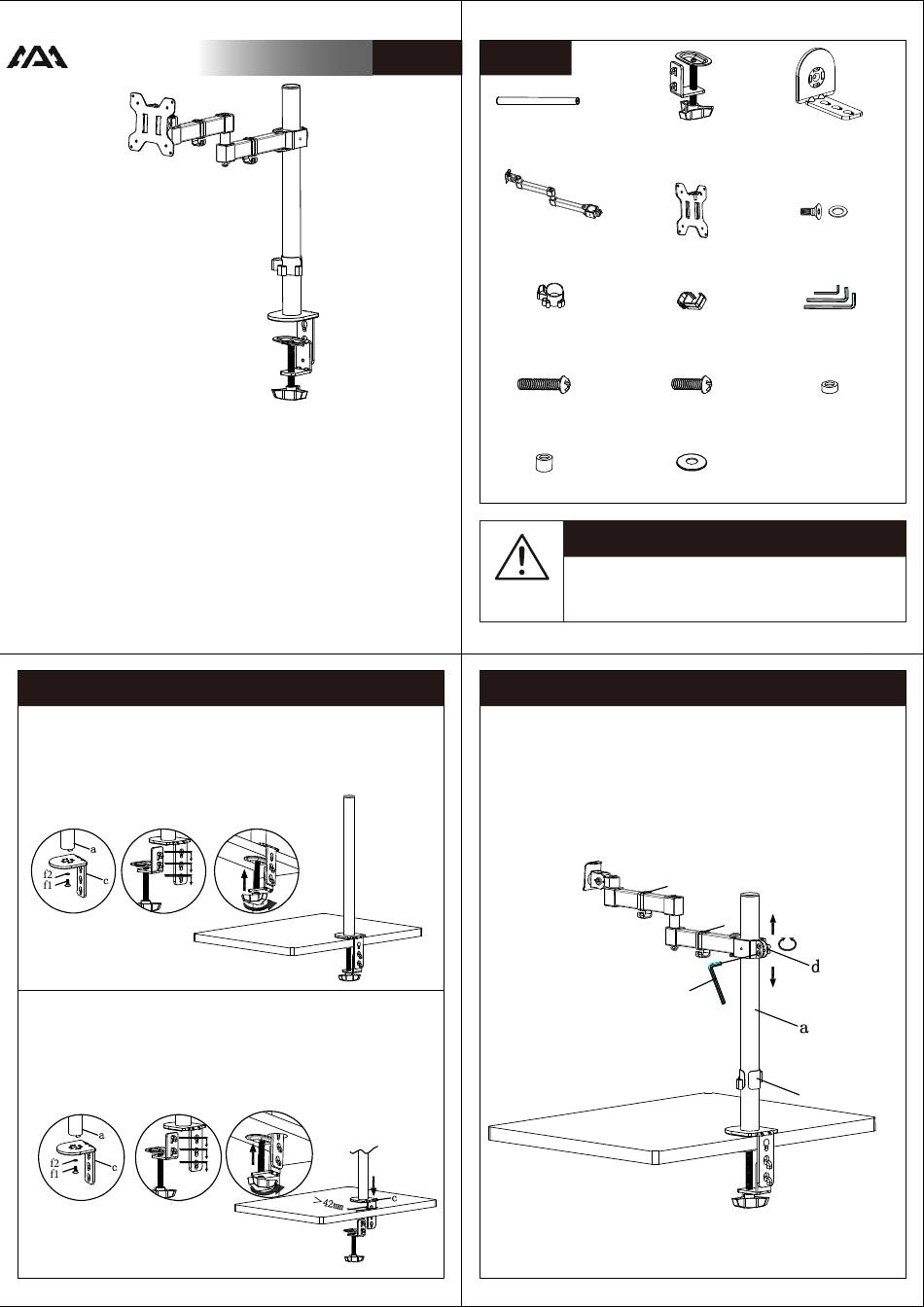

Step 1 Install the Pole on a Desk
Option A: Clamp installation
1. Connect pole(a) and clamp(c) with screw(f1) and washer(f2) and
tighten it with wrench(i)(figure 1).
2. Connect clamp(b) and clamp support(c). Choose proper hole sit
according to the thickness of desk. Tighten the plastic knob to fix it.
figure 2
figure 1
Option B: Grommet installation
1. Connect pole(a) and clamp(c) with screw(f1) and washer(f2) and
tighten it with wrench(i)(figure 1). Insert grommet support(c) into desk
hole whose diameter is over 1.65in/42mm (figure 4).
2. Connect clamp(b) and clamp support(c). Choose proper hole sit
according to the thickness of desk. Tighten the plastic knob to fix it.
figure 2
figure 1
MD7421
INSTALLATION MANUAL
figure 3
figure 3
figure 4
Parts
(1)pole-a (1)Grommet/
(1)Swivel arm-d
(1)VESA plate-e
(1)wire clip-g (2)arm wire clip-h
(4)M4x30 -G1 (4)M4x12 -G2
(4)Spacer -H2 (4)Φ4 Washer-F
This monitor desktop mount must be securely attached to
the horizontal desk. If the mount is
not properly installed it may fall, resulting in possible injury
WARNING
and/or damage.
Step 2 Connect Swivel Arm and Pole
1. Place pole wire clip (g) on the pole (a).
2. Place arm wire clip (h) on the swivel arm (d).
3. Place swivel arm (d) on pole (a). Tighten with wrench (i) at proper
position.
(1)Grommet/
clamp-b
clamp support-c
(1)M6x16 -f1
(1)washer D6-f2
(1)S3/S4/S5 wrench-i
(4)Spacer -H1
CAUTION!
h
h
i
g
