Summary of Contents for CallToU CC30BL-DB19BL

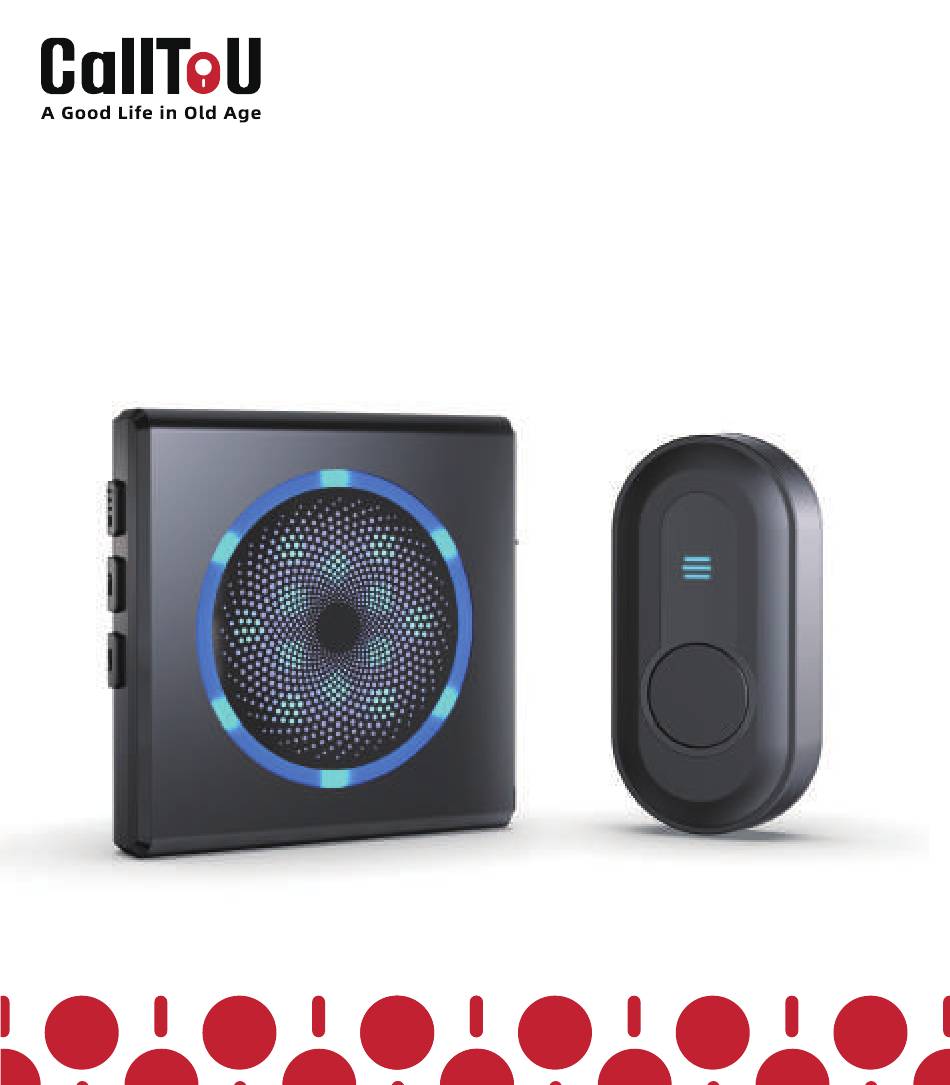

- Page 1 INST-EN-CC30-DB19-20240909 Wireless Flashing Door Bell User Manual Model: CC30BL-DB19BL...
- Page 2 1,000,000 families and enabling their children to work and live more peacefully. Looking forward, CallToU remains dedicated to its mission of leading the smart home care industry. We pledge to launch more innovative products and enhance elderly care services, contributing to the well-being of the global elderly population.
-
Page 3: Safety Instructions
Safety Instructions The manual contains important safety information to prevent harm and property damage. Please understand the following content, including displays and symbols. Caution Keep the product away from inflammable, explosive, or hazardous objects. Do not disassemble the product, as it may pose a safety hazard. Do not drop or impact the device, as it may stop working. - Page 4 How Does Wireless Flashing Door Bell Work? Send visual and audible signals to the person inside the door.
- Page 5 Functions 3 Mode Light 55 Chimes Wireless Range 5 Level Memory 1000Ft+(300M) Volumes Function 3 Light Modes: Switch between bright, dim, and off for customized lighting. 55 Chimes: Choose from 55 melodies in chime list that suit your style and option. Wireless Range: Ultra long 1000Ft+ (300M) ensures acceptable signal, ideal for apartment, homes, etc.
-
Page 6: Check The Product
Check the Product Before use, please check the packing list below to make sure you are not missing any items. If anything is missing, please feel free to contact us. Screw Pack Receiver Transmitter Ring Door Double-Sided 12V/23A Battery Bell Cue Sticker Adhesive Tape (Included in the transmitter) Screwdriver... -
Page 7: Product Diagram
Product Diagram Dim Light Light Key Light Off Strong Light Speacker Volume Key Led Indicator Forward Key Door Bell Key Backward Key AC Plug Open from Here Specifications CC30 Receiver DB19 Transmitter AC110-260 12V 23A Power (wide voltage) Alkaline Battery 433.92MHz±280KHz Frequency 1000Ft+(300M) - Page 8 Operating Instructions ①How to Use ? (Paired Before Delivery) STEP 1: Plug the receiver into an AC socket， it will "Ding-Dong" twice and flash three times. STEP 2: Press the transmitter， the LED indicator will flash, and the receiver will "Ding-Dong" twice and flash three times. ②How to Change Volume? Press the "Volume Key"...
- Page 9 Operating Instructions ④How to Pair ？ STEP 1: Short press the "Forward or Backward Key" on the receiver to choose your favorite melody from 55 options. STEP 2: Hold the "Volume Key" for 6 seconds until the receiver makes a "Ding" sound to set the melody. STEP 3: Press the transmitter to hear a "Ding-Ding"...
- Page 10 Operating Instructions ⑤ How to Clear the All Pairing Records ? STEP 1: Hold the "Backward Key" for 6 seconds until it "dings" . Then, wait 25 seconds to hear another "dings". ※ Repair After all pairing records are cleared, please refer to the "How to pair?"...
- Page 11 Operating Instructions ⑦How to Install the Transmitter ? METHOD 1: Using Adhesive Tape STEP 1: Clean the door. STEP 2: Attach tape to the transmitter. STEP 3: Press the transmitter against the wall. METHOD 2: Using Drywall Anchors and Screws STEP 1: Drill holes in the drywall.
- Page 12 Operating Instructions ⑧How to Replace the Transmitter Battery ? STEP 1: Pry open the case at the "Open from Here" hole with a screwdriver. STEP 2: Remove the old battery and install the new one, ensuring correct polarity. STEP 3: Replace the waterproof film, close the case, and the replacement is complete.
-
Page 13: Troubleshooting
1）One receiver can be paired with 30 transmitters ; (refer to ⑤How to Pair? ※ Pairing More Transmitters/Receivers on page 8) 3）Other models of CallToU receivers and Buttons can also be working together; 4） For more information please refer to our customer service. - Page 14 A7: Follow the same steps as "Q6: Receiver ringing abnormally?" If the issue persists, contact customer service to check compatibility. For FAQs and more information, please visit: Model: BT-DB19 FCC ID: 2AWYQ-BTDB19 Power: 23A 12V battery CallToU Brand Product Instructional Videos www.calltou.com Address: room 605,building 2,hengdali Service01@calltou.com factory,chidian， Jinjiang,fujian,CN...
- Page 15 Chimes List Ding Dong + Ding Dong Wilson's March Telephone Ringtone The Nutcracker Ding Dong Golden Wedding March Ding Dong Twice Triumphant March Ding Dong Once Sound Effect 135i Westminster Abbey Toast Song Happy Birthday Ding Dong Ding Dong +Ding Dong Ding Dong Sound Effect 135i The Four Swans Sound Effect i531...
- Page 16 A Letter from CallToU Many thanks for thinking of us and choosing us! For everyone in the CallToU family, it's our honor to have you as our customers. It's always a pleasure serving you and certainly looking forward to more in the future.
