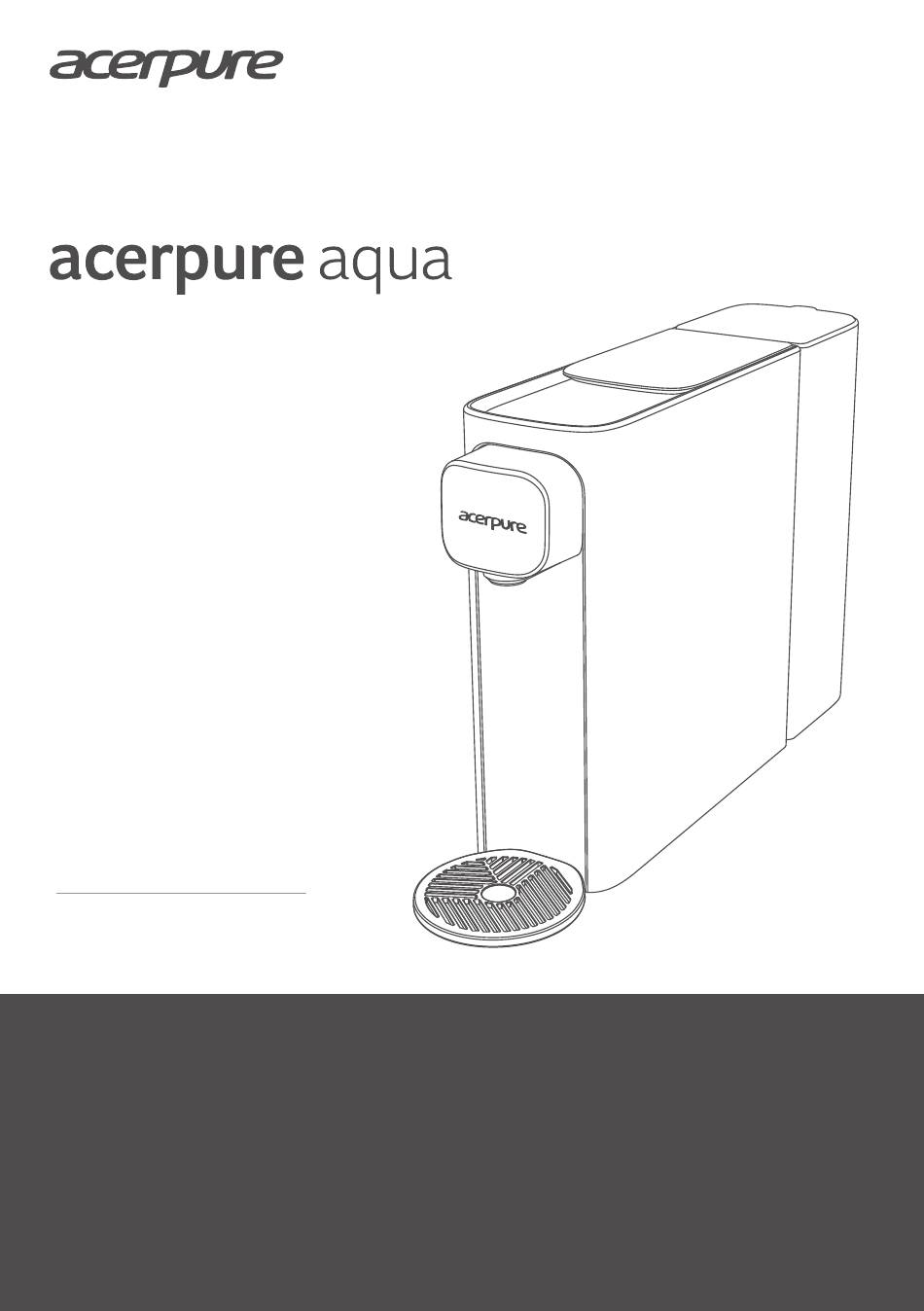

- Page 1 Water Purifier User Manual Model:WP333-20W www.acerpure.com Copyright 2024 Acerpure Inc. All Rights Reserved. ©...
- Page 2 23.8cm 8 . 4 c...
- Page 3 User Manual User Manual Thank you very much for purchasing this product. Thank you very much for purchasing this product. Plea Please make sure to read this manual carefully, Use this product correctly and store it properly Use this product correctly, and store it properly.
-
Page 4: Table Of Contents
Table of Contents Safety Instructions Product Configuration and Structure Water Treatment Process Diagram Electrical Schematic Diagram Display Panel and Function Introduction Before use In use ke sure to read this manual carefully, Maintenance Filter life and replacement Smart boiling point adjustment Before Seeking After-sales Service Product Specifications and Company Information... -
Page 5: Safety Instructions
Safety Instructions means “caution” is required Do not use this product and its power cable This product is not intended for use by users near heat sources or on stoves. (including children) with physiological, This appliance is for home use only; do not perceptual, mental ability, experience or use it for commercial purposes. -
Page 6: Product Configuration And Structure
User Manual + Host (includes coaster) One filter (DCF filter x1) Warranty Card Water Purifier User Manual Model:WP333-20W Model:WP333-20W www.acerpure.com Copyright 2024 Acerpure Inc. All Rights Reserved. © Product Structure Top cover Touch control Filter panel Water Tank Cover Water Tank... -
Page 7: Water Treatment Process Diagram
Water Treatment Process Diagram Tank Water Vapor Separator Hot/ Ambient Heater Pump Filter Solenoid Valve Flowmeter Electrical Schematic Diagram DisplayPCB Water Outlet Water Inlet Motor Flowmeter Heater Power Supply Automatic Thermostat Hall Switch Manual Thermostat Solenoid Valve... -
Page 8: Display Panel And Function Introduction
Display Panel and Function Introduction Filter life indicator Water temperature/ cup volume display panel Function Introduction [Temperature button] [Smart wash button] Touch the temperature button gently to Long-press for three seconds to use this key to flush and drain the internal water circuits. choose between the water temperatures Wait for the cleaning process to end, and the room temperature, 45°C, 70°C, 85°C, and 95°C. -
Page 9: Before Use
Before Use 1. Placement Open the packing box, take out the entire machine, place it on a countertop; remove the coaster from the package and align it under the water outlet (place the coaster under the water outlet of the machine). 2. -
Page 10: In Use
In Use Screen display Screen display Show description status Constantly lit Displays the water temperature/water volume Touch any button gently during standby to Semi-lit make it resume being constantly on. Does not Power not connected light up When the device is short of water, Flashing “888”... - Page 11 Screen display Screen display Show description status Use this button to dispense water at room temperature; you can also adjust the temperature Constantly lit and select the water volume to dispense water. Touch it gently again to stop dispensing water. Touch any button gently during standby Semi-lit to make it resume being constantly on.
-
Page 12: Maintenance
Maintenance Instant hot water purifying dispenser (instant hot water purifying drinking machine) body maintenance 1. Please wipe it with a soft cloth. 2. Please do not use volatile liquids such as: alcohol gasoline and other materials to wipe the machine body to avoid damaging the machine. Not using the instant hot water purifying dispenser (instant hot water purifying drinking machine) for long periods of time 1. -
Page 13: Filter Life And Replacement
Filter Life and Replacement Recommended filter replacement cycle Filter name Recommended replacement cycle DCF Filter 3-6 months Filter replacement steps 1. Before replacing the filter, please pour 10g of citric acid into the water tank filled with water, Figure Figure ①... -
Page 14: Smart Boiling Point Adjustment
Smart Boiling Point Adjustment 1. First, fill the water tank with municipal tap water (no less than 1L), and place a container to catch the water at the water outlet; 2. Hold down the temperature button + water volume button simultaneously for 5 seconds within ten seconds after connecting the power;... -
Page 15: Before Seeking After-Sales Service
Before Seeking After-Sales Service If you discover that the product malfunctioned, please check the following items before contacting customer service. Failure phenomenon Cause of failure Troubleshooting Please plug the power plug of this Cannot Power not connected or product in the outlet correctly or dispense water water tank is out of water fill the water tank with water. -
Page 16: Product Specifications And Company Information
Product Specifications and Company Information Product Specifications Instant hot water purifier Product name WP333-20W Product model 220-240V~/50-60Hz Rated voltage 2100W Rated power Suitable water Tap water source 0‒0.01MPa Inlet water pressure Working water 0.05‒0.1MPa pressure 0.7L/min Purified water flow Total rated purified 1000L water volume Suitable water...
