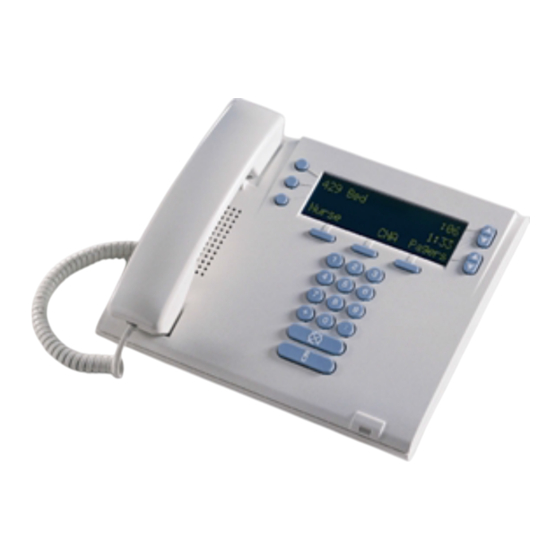

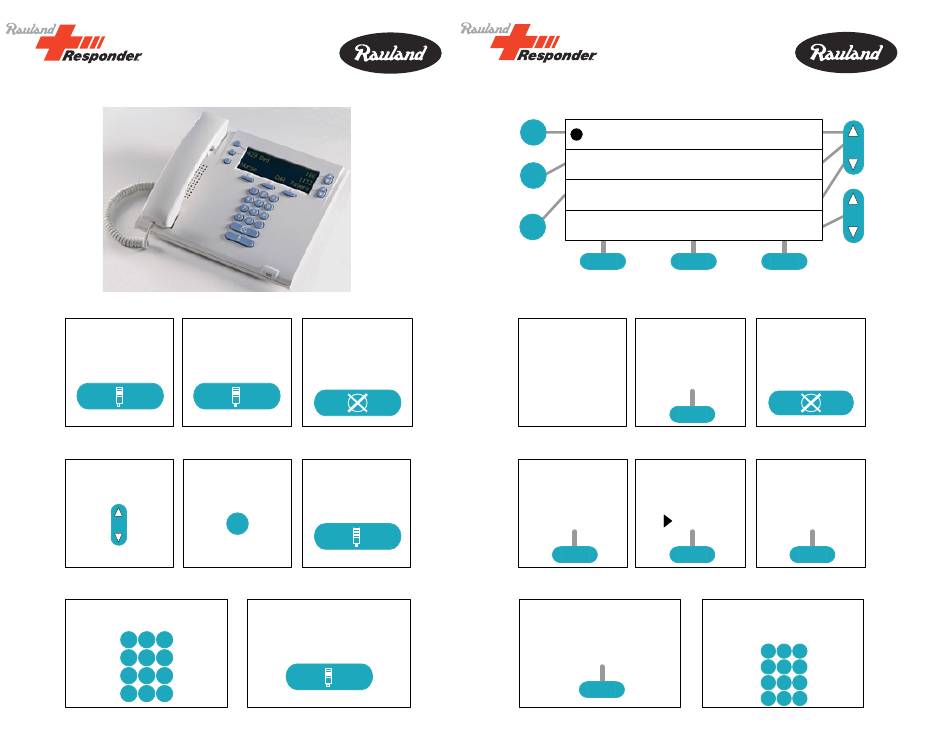

EASY GUIDE
TO OPERATING
RESPONDER 4000
To Answer a Call:
1
2
Lift Handset
Talk (use handset)
OR
OR
press < 2 seconds
press
(Push-to-Talk)
(release to listen)
To Selectively Answer a Call:
1
2
Scroll through the list
Select the call you
of calls
want to answer
To Place a Call:
1
Dial Room Number
1 2 3
4 5 6
7 8 9
+ 0
:
3
Cancel (hang up)
OR
press
3
Lift Handset
OR
press
(Push-to-Talk)
2
Lift Handset
OR
press
(Push-to-Talk)
EASY GUIDE
TO OPERATING
RESPONDER 4000
14015Normal234501:46
14035Normal234500:35
Line5378901234567890
lSrvc67890Nite5678Pagers
To Dispatch Service:
1
2
Answer Room Call
Press
Srvc
To Enable Night Tones:
1
2
Press
An indicator will
appear
Nite
Nite
To enter Pocket Pager Set-up:
1
Press
Pagers
3
Cancel (hang up)
OR
press
3
Press again to disable
Night Tones
Nite
2
Enter the Pocket Pager
Extension Number
1 2 3
4 5 6
7 8 9
+ 0 :
