OPTIONAL ATTACHMENTS & ACCESSORIES
Accessories
35130454230
U-Handle Kit
99944200200
SRM Shoulder Harness Kit
99944200411
20mm Blade Conversion Kit
99944200415
Universal Blade Conversion Kit
99944200455
Barrier Bar
99944200521
U-Handle_Blade Conversion Combo Kit
SRAC-200
Tiller/Cultivator Attachment
Cutting Heads
215511
Pro Maxi-Cut Head
21560030
ECHOmatic Pro Head
21560031
SRM ECHOmatic Pro Head
21560050
Semi-Auto Head Assembly
21560055
Semi-Auto Head Assembly
21560056
2-Line Rapid Loader Head -- Echo
21560060
SRM Manual Dual Line Head
99944200230
Semi-Auto Dual Line Head
99944200900
U-Turn Head
2009 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved
PARTS CATALOG

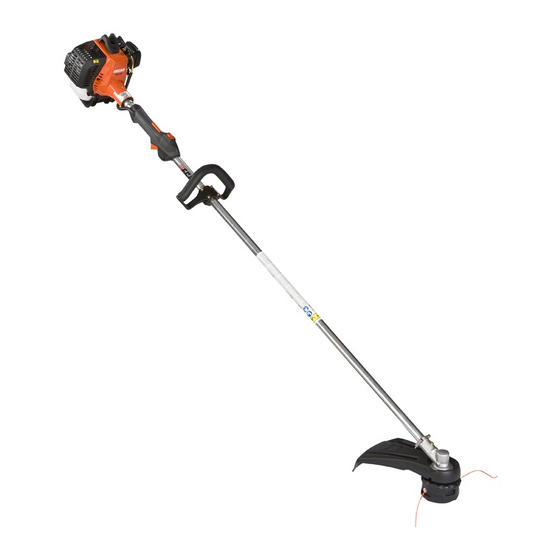

SRM-230 Trimmer
MODEL:SERIAL NUMBERS
SRM-230:
S/N: S65611001001 - S65611999999
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047 USA
WWW.ECHO-USA.COM
22.8cc
99922204019
REVISED 05/19/09
Advertisement
Table of Contents
Related Manuals for Echo SRM-230 - PARTS CATALOG SERIAL NUMBERS S65611001001-S65611999999
Summary of Contents for Echo SRM-230 - PARTS CATALOG SERIAL NUMBERS S65611001001-S65611999999
- Page 1 SRM Manual Dual Line Head 99944200230 Semi-Auto Dual Line Head 99944200900 U-Turn Head ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, Illinois 60047 USA WWW.ECHO-USA.COM 99922204019 REVISED 05/19/09 2009 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved...
-
Page 2: Table Of Contents
Table of Contents Part Number Index Table of Contents Click Any Diagram Description Below To View That Diagram. SRM-230 S/N: S65611001001 - S65611999999 Engine Cover, Exhaust Cover............................4 Fuel System..................................6 Starter -- Standard................................8 Fan Case, Clutch -- GRAY MODELS..........................10 Fan Case, Clutch -- ORANGE MODELS........................12 Intake....................................14 Carburetor -- RB-K70A..............................16 Exhaust S/N: S65611001001 - S65611010001......................18... - Page 3 This Page Intentionally Left Blank - 3 -...
-
Page 4: Engine Cover, Exhaust Cover
Table of Contents Part Number Index SRM-230 Trimmer Engine Cover, Exhaust Cover 99922204019 - 4 - REVISED 05/19/09... - Page 5 Table of Contents Part Number Index SRM-230 Trimmer Engine Cover, Exhaust Cover ITEM PART NUMBER DESCRIPTION REMARKS A160000040 COVER, ENGINE - GRAY A160000060 COVER, ENGINE - ORANGE 9111005016 SCREW 5X16 A162000000 GUARD, TOP V353000020 COLLAR 5 A320000003 COVER, MUFFLER 90010605012 SCREW 5X12 99922204019 - 5 -...
-
Page 6: Fuel System
Table of Contents Part Number Index SRM-230 Trimmer Fuel System 99922204019 - 6 - REVISED 05/19/09... -
Page 7: Spacer
Table of Contents Part Number Index SRM-230 Trimmer Fuel System ITEM PART NUMBER DESCRIPTION REMARKS 30511057733 STAND 90016205022 SCREW 5X22 90024405020 SCREW 5X20 A350000660 TANK, FUEL INCLUDES ITEM 5 13104528230 SPACER 90060300005 WASHER 5 90016205016 SCREW 5X16 A356000030 VENT ASY 13201326630 CLIP V471000110... -
Page 8: Starter -- Standard
Table of Contents Part Number Index SRM-230 Trimmer Starter -- Standard 99922204019 - 8 - REVISED 05/19/09... -
Page 9: Spring, Return
Table of Contents Part Number Index SRM-230 Trimmer Starter -- Standard ITEM PART NUMBER DESCRIPTION REMARKS A052000030 STARTER PAWL ASY INCLUDES ITEMS 2-4 90070000004 E-RING 4 17723440630 SPRING, RETURN 17721840630 PAWL, STARTER 90050200008 NUT 8 17720055931 STARTER ASY INCLUDES ITEMS 7-13 17723644330 SCREW 17721540630... -
Page 10: Fan Case, Clutch -- Gray Models
Table of Contents Part Number Index SRM-230 Trimmer Fan Case, Clutch -- GRAY MODELS 99922204019 - 10 - REVISED 05/19/09... -
Page 11: Shaft, Clutch
Table of Contents Part Number Index SRM-230 Trimmer Fan Case, Clutch -- GRAY MODELS ITEM PART NUMBER DESCRIPTION REMARKS 90070200042 CIRCLIP 42 61092255931 FIXTURE, MAIN PIPE 90016205028 SCREW 5X28 90016205018 SCREW 5X18 17811106230 CLIP P021001410 FAN COVER ASY - GRAY INCLUDES ITEMS 7-12 90070100012 CIRCLIP 12... -
Page 12: Fan Case, Clutch -- Orange Models
Table of Contents Part Number Index SRM-230 Trimmer Fan Case, Clutch -- ORANGE MODELS 99922204019 - 12 - REVISED 05/19/09... -
Page 13: Screw 5X28
Table of Contents Part Number Index SRM-230 Trimmer Fan Case, Clutch -- ORANGE MODELS ITEM PART NUMBER DESCRIPTION REMARKS 90070200042 CIRCLIP 42 61092255931 FIXTURE, MAIN PIPE 90016205028 SCREW 5X28 90016205018 SCREW 5X18 17811106230 CLIP P021016410 FAN COVER ASY - ORANGE INCLUDES ITEMS 7-12 90070100012 CIRCLIP 12... -
Page 14: Intake
Table of Contents Part Number Index SRM-230 Trimmer Intake 99922204019 - 14 - REVISED 05/19/09... -
Page 15: Screw 5X60
Table of Contents Part Number Index SRM-230 Trimmer Intake ITEM PART NUMBER DESCRIPTION REMARKS 21041752730 WING BOLT 13031306563 LID, AIR CLEANER - GRAY 13031305863 LID, AIR CLEANER - BLACK 13031054130 FILTER, AIR 12901152730 PLATE, PREVENT 90024205060 SCREW 5X60 P021000991 CASE, AIR CLEANER - GRAY P021004480 CASE, AIR CLEANER - BLACK ------------------... -
Page 16: Carburetor -- Rb-K70A
Table of Contents Part Number Index SRM-230 Trimmer Carburetor -- RB-K70A 99922204019 - 16 - REVISED 05/19/09... -
Page 17: Screw, Cable Adjust
Table of Contents Part Number Index SRM-230 Trimmer Carburetor -- RB-K70A ITEM PART NUMBER DESCRIPTION REMARKS A021000721 CARBURETOR -- RB-K70A P005001620 ROTOR COVER ASY 12534413931 SCREW, ROTOR COVER ASY 12534452130 SCREW, ROTOR COVER P005001330 SCREW, CABLE ADJUST P005001240 SWIVEL P005000190 E-RING P005000100 SCREW, THROTTLE ADJUST... - Page 18 Table of Contents Part Number Index SRM-230 Trimmer Exhaust S/N: S65611001001 - S65611010001 99922204019 - 18 - REVISED 05/19/09...
-
Page 19: Screw 5X55
Table of Contents Part Number Index SRM-230 Trimmer Exhaust S/N: S65611001001 - S65611010001 ITEM PART NUMBER DESCRIPTION REMARKS 9136704010 SCREW 4X10 A313000130 GUIDE, EXHAUST V104000360 GASKET, EXHAUST 14586240630 SCREEN, MUFFLER 90010505055 SCREW 5X55 V347000000 CONICAL WASHER V150000371 PLATE, EYE A300000141 MUFFLER V104000061 SHIELD, EXHAUST... - Page 20 Table of Contents Part Number Index SRM-230 Trimmer Exhaust S/N: S65611010002 - S65611999999 99922204019 - 20 - REVISED 05/19/09...
- Page 21 Table of Contents Part Number Index SRM-230 Trimmer Exhaust S/N: S65611010002 - S65611999999 ITEM PART NUMBER DESCRIPTION REMARKS 90024204010 SCREW 4X10 A313000350 GUIDE, EXHAUST 14586642031 GASKET, EXHAUST 14586240630 SCREEN, MUFFLER 90010505055 SCREW 5X55 90060000005 WASHER 14580642030 MUFFLER V104000061 SHIELD, EXHAUST Footnotes 1: Also Included In GASKET KIT 99922204019...
-
Page 22: Ignition
Table of Contents Part Number Index SRM-230 Trimmer Ignition 99922204019 - 22 - REVISED 05/19/09... -
Page 23: Spark Plug -- Bpm-8Y
Table of Contents Part Number Index SRM-230 Trimmer Ignition ITEM PART NUMBER DESCRIPTION REMARKS A411000110 COIL, IGNITION V475002200 TUBE, INSULATOR 90016205016 SCREW 5X16 15611240630 GROMMET 15901203433 CAP, SPARK PLUG 15901103432 TERMINAL, SPARK PLUG CAP 15901019830 SPARK PLUG -- BPM-8Y A425000000 CANADA MODELS SPARK PLUG -- BPMR-8Y 16201056430... - Page 24 Table of Contents Part Number Index SRM-230 Trimmer Engine, Short Block -- SB1061 99922204019 - 24 - REVISED 05/19/09...
-
Page 25: Screw 5X25
Table of Contents Part Number Index SRM-230 Trimmer Engine, Short Block -- SB1061 ITEM PART NUMBER DESCRIPTION REMARKS SB1061 SHORT BLOCK INCLUDES ITEMS 2-18 90016205022 SCREW 5X22 A130000341 CYLINDER V100000060 GASKET, CYLINDER P021001102 PISTON KIT INCLUDES ITEMS 6-9 A101000000 RING, PISTON 10001311520 PIN, PISTON 10001504630... -
Page 26: Plastic Shield
Table of Contents Part Number Index SRM-230 Trimmer Plastic Shield 99922204019 - 26 - REVISED 05/19/09... -
Page 27: Shield - Plastic
Table of Contents Part Number Index SRM-230 Trimmer Plastic Shield ITEM PART NUMBER DESCRIPTION REMARKS P021001392 PLASTIC SHIELD KIT INCLUDES ITEMS 2-7 C550000031 SHIELD - PLASTIC 90023805020 SCREW 5X20 C552000110 FLANGE, SHIELD 69901644330 CUTTER, LINE 90023805016 SCREW 5X16 90050000005 NUT 5 99922204019 - 27 - REVISED 05/19/09... -
Page 28: Gear Case
Table of Contents Part Number Index SRM-230 Trimmer Gear Case 99922204019 - 28 - REVISED 05/19/09... -
Page 29: Shaft, Gear
Table of Contents Part Number Index SRM-230 Trimmer Gear Case ITEM PART NUMBER DESCRIPTION REMARKS 61040247732 GEAR CASE ASY INCLUDES ITEMS 2-20 61030044830 GEAR SET 90070600010 CIRCLIP 10 90070200022 CIRCLIP 22 90085806900 BEARING, BALL - 6900Z 90085506900 BEARING, BALL - 6900 61031347731 PLATE, ADAPTER (UPPER) 61041307130... -
Page 30: Main Pipe Assembly, Flexible Driveshaft
Table of Contents Part Number Index SRM-230 Trimmer Main Pipe Assembly, Flexible Driveshaft 99922204019 - 30 - REVISED 05/19/09... -
Page 31: Stopper
Table of Contents Part Number Index SRM-230 Trimmer Main Pipe Assembly, Flexible Driveshaft ITEM PART NUMBER DESCRIPTION REMARKS C050000460 MAIN PIPE ASY INCLUDES ITEMS 2-7 61024644730 STOPPER 61021744730 LINER, FLEXIBLE 89022809560 LABEL - CAUTION -- SPANISH 89016054130 LABEL - CAUTION 89031749030 LABEL, CAUTION - CANADA X505001930... -
Page 32: Front Handle
Table of Contents Part Number Index SRM-230 Trimmer Front Handle 99922204019 - 32 - REVISED 05/19/09... -
Page 33: Screw 5X35
Table of Contents Part Number Index SRM-230 Trimmer Front Handle ITEM PART NUMBER DESCRIPTION REMARKS P021012390 FRONT HANDLE ASY INCLUDES ITEMS 2-8 90024205035 SCREW 5X35 35121666230 GRIP, HANDLE 35120566230 HANDLE, FRONT 35123266230 BRACKET, HANDLE - UPPER 90060000005 WASHER 5 90025305020 TAPPING SCREW 5X20 C423000300 BRACKET, HANDLE - LOWER... -
Page 34: Control Handle, Throttle Cable, Ignition Switch
Table of Contents Part Number Index SRM-230 Trimmer Control Handle, Throttle Cable, Ignition Switch 99922204019 - 34 - REVISED 05/19/09... -
Page 35: Spring, Throttle Lockout
Table of Contents Part Number Index SRM-230 Trimmer Control Handle, Throttle Cable, Ignition Switch ITEM PART NUMBER DESCRIPTION REMARKS 17800352130 CONTROL HANDLE KIT INCLUDES ITEMS 2-4 90024205035 SCREW 5X35 90024205025 SCREW 5X25 90050000005 NUT 5 30120029430 BAND ASY INCLUDES ITEM 6 90024205014 SCREW 5X14 17801052130... -
Page 36: Labels
Table of Contents Part Number Index SRM-230 Trimmer Labels 99922204019 - 36 - REVISED 05/19/09... - Page 37 PART NUMBER DESCRIPTION REMARKS 89012152730 LABEL - CHOKE 89033252730 LABEL - CHOKE CANADA MODELS X502000310 LABEL - ECHO X532000671 LABEL - SPARK PLUG -- BPM-8Y X532000720 LABEL - SPARK PLUG -- BPMR-8Y CANADA MODELS X503003320 LABEL - MODEL -- SRM-230 X503003080...
- Page 38 Table of Contents Part Number Index SRM-230 Trimmer Gasket Kit -- P021003900 99922204019 - 38 - REVISED 05/19/09...
- Page 39 Table of Contents Part Number Index SRM-230 Trimmer Gasket Kit -- P021003900 ITEM PART NUMBER DESCRIPTION REMARKS P021003900 GASKET KIT 99922204019 - 39 - REVISED 05/19/09...
-
Page 40: Repower Tune-Up Kit
Table of Contents Part Number Index SRM-230 Trimmer RePower Tune-Up Kit 99922204019 - 40 - REVISED 05/19/09... -
Page 41: Tune-Up Kit
Table of Contents Part Number Index SRM-230 Trimmer RePower Tune-Up Kit ITEM PART NUMBER DESCRIPTION REMARKS 90074 TUNE-UP KIT 99922204019 - 41 - REVISED 05/19/09... -
Page 42: Tools
Table of Contents Part Number Index SRM-230 Trimmer Tools 99922204019 - 42 - REVISED 05/19/09... -
Page 43: Screwdriver
Table of Contents Part Number Index SRM-230 Trimmer Tools ITEM PART NUMBER DESCRIPTION REMARKS 89541010630 SOCKET WRENCH/SCREWDRIVER 17X19mm X602000020 SOCKET WRENCH/SCREWDRIVER 17X19mm 89541039131 SOCKET WRENCH/SCREWDRIVER 10X19mm 89541006960 SOCKET WRENCH/SCREWDRIVER 13X19mm X602000031 SOCKET WRENCH 17X14.5mm 89751801131 LOCKING ROD 5X120mm 89511200330 OPEN END WRENCH 8X10mm 89512220960 OPEN END WRENCH... -
Page 44: Part Number Index
Table of Contents Part Number Index Part Number Index Click The Page Number After Any Part Number To View The Diagram Containing That Part. Part Number Page Part Number Page Part Number Page Part Number Page ------------------ ..... 15, 17 61036008931 .... -
Page 45: Part Description Index
LABEL - CAUTION -- HOT..37 LABEL - CAUTION -- SPANISH..31 SCREEN, MUFFLER..19, 21 LABEL - CHOKE..37 SCREW..9 DIAPHRAGM, METERING..17 LABEL - ECHO..37 SCREW 3X10..35 DIAPHRAGM, PUMP..17 LABEL - HANDLE LOCATION..31 SCREW 4X10..19, 21 DIAPHRAGM/GASKET KIT..17 LABEL - MODEL -- SRM-230..37 SCREW 5X10..23, 29... -
Page 46: Washer
Table of Contents Part Number Index Part Description Index (continued) SCREW 5X25..15, 25, 35 SCREW 5X28..11, 13, 35 SCREW 5X35..33, 35 SCREW 5X55..19, 21 SCREW 5X60..15 SCREW, CABLE ADJUST..17 SCREW, DIAPHRAGM COVER..17 SCREW, METERING LEVER PIN..17 SCREW, PURGE BASE ASY..17 SCREW, PURGE BULB RETAINER..17 SCREW, ROTOR COVER..17 SCREW, ROTOR COVER ASY..17... - Page 47 NOTES 99922204019 - 47 - REVISED 05/19/09...
