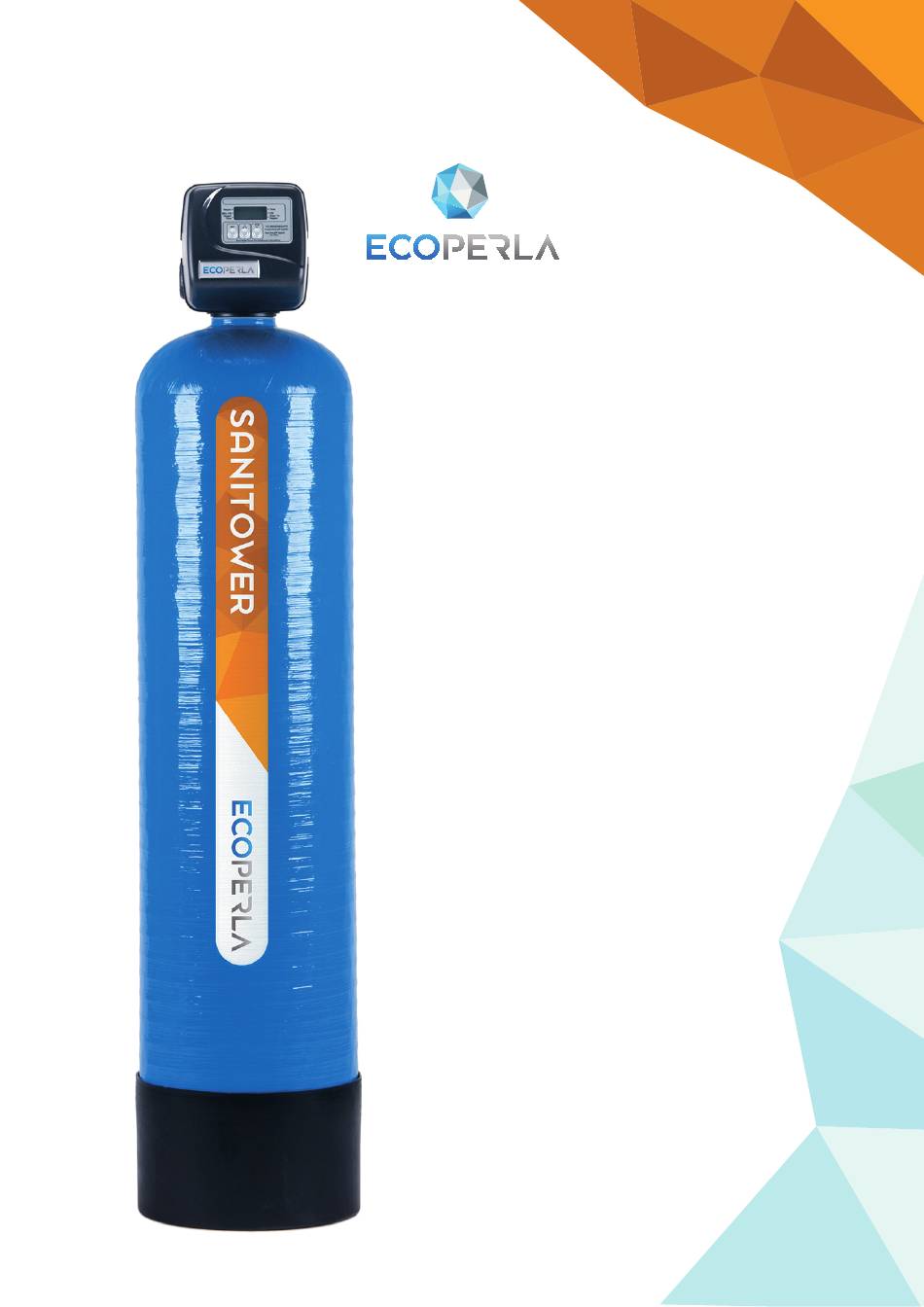

- Page 1 SANITOWER SANITOWER IRON AND MANGANESE REMOVAL ECOPERLA SANITOWER original product of Ecoperla USER MANUAL...
- Page 2 KEEP THIS USER MANUAL, SINCE IT CONTAINS THE WARRANTY AND THE SERVICE CARD...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Introduction 1.1. Safety measures 1.2. Presence of iron and manganese in water 1.3. Principles of operation 1.4. Device operation 2. Technical specification 3. System components 4. Installation and start-up 4.1. Requirements 4.2. Installation diagram 4.3. Control valve 4.4. -
Page 4: Introduction
Yet another problem is malfunctions of household appliances that come into contact with water. 1.3. PRINCIPLES OF OPERATION The Ecoperla Sanitower station requires water pre-aeration. The process requires the use of a membraneless hydro- phore tank and an aeration venturi or compressor. In oxidises iron and manganese and converts them from a soluble into insoluble form. -
Page 5: Device Operation
In order to maintain proper operation of the device, remember to regularly replace the cartridges in the mechanical filter, located behind Ecoperla Sanitower. The cartridge lifespan is between 4 and 8 years. It depends on the water parameters and regeneration effectiveness. -
Page 6: System Components
4.1. REQUIREMENTS For proper operation of the device, make sure that the right amount of water flows through the Ecoperla Sanitower iron and manganese removing unit. The minimum required water flow rates for the device are given in the table (see in the table in item 3 on page 3 ‘Flushing flow’). -
Page 7: Installation Diagram
4.2. INSTALLATION DIAGRAM Look at the following diagram to see how individual elements should be positioned in the device. Diagram 1. ECOPERLA SANITOWER CONNECTION DIAGRAM Treated water Raw water Raw water Treated water Water inlet from the pump Control valve... -
Page 8: Control Valve
4.3. CONTROL VALVE The control valve is mounted on the pressure cylinder. It is responsible for the proper functioning of the device, monitors its operation and controls the regeneration process. Inlet and outlet from the control valve: control valve connection ends are made of plastic, 1” external thread. The connections are easily detachable from the valve, so you do not need additional connecting screws. -
Page 9: Start-Up
4.4. DEVICE START-UP • Prepare the installation site (according to section 5.1 REQUIREMENTS). • Cut off the water supply to the installation. • Make a water by-pass* (Diagram 1. page 7). • Install the mechanical filter together with the cartridge. •... -
Page 10: Notifications Displayed During Operation
4.6. NOTIFICATIONS DURING OPERATION Two notifications may be displayed during operation. Use to navigate between them. The first notification shows the current time, while the second one shows the number of days left until the next regeneration. If one day is displayed, regeneration will start today at the specified time. In addition, an arrow will appear on the display next to the REGEN field. -
Page 11: Changing Regeneration Intervals
4.9. CHANGING REGENERATION INTERVALS If you wish to change the number of days remaining until the next the regeneration process, follow the steps below: • Press and hold SET and simultaneously until the notification on the display changes. • The display shows the time at which regeneration starts (discussed in the paragraph above). To change the number of days left until the next regeneration, press the SET button twice. -
Page 12: Troubleshooting
5. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Open or damaged bypass. Close or replace a bypass. Wait until the regeneration process is com- Regeneration is on. plete, or abort the regeneration yourself. Check the composition of the raw water Change in raw water composition. and then adjust the regeneration frequency. -
Page 13: Service Card
6. SERVICE CARD Maintenance service after Maintenance service after Date of maintenance Date of maintenance 2 years of operation service: 3 years of operation service: Signature of the service technician: Signature of the service technician: Stamp of the service technician: Stamp of the service technician: Maintenance service after Date of maintenance... -
Page 14: Warranty
7. WARRANTY The dealer warrants efficiency of Ecoperla Sanitower in accordance with the warranty conditions included in the User Manual. In order to execute the warranty, you need to present proof of purchase of the system. If you have a problem with your... - Page 15 NOTES...
- Page 16 WWW.ECOPERLA.COM...
