Echo SRM-210 - PARTS CATALOG SERIAL NUMBERS 08001001-08999999 Parts Catalog

21.2cc s/n: 08001001 - 08999999
Hide thumbs
Table of Contents

Advertisement

Quick Links

OPTIONAL ATTACHMENTS & ACCESSORIES
Accessories
35130454230
U-Handle Kit
99944200200
SRM Shoulder Harness Kit
99944200411
20mm Blade Conversion Kit
99944200415
Universal Blade Conversion Kit
99944200455
Barrier Bar
99944200521
U-Handle_Blade Conversion Combo Kit
SRAC-200
Tiller/Cultivator Attachment
Cutting Heads
21560030
ECHOmatic Pro Head
21560031
SRM ECHOmatic Pro Head
21560050
Semi-Auto Head Assembly
21560056
2-Line Rapid Loader Head -- Echo
21560060
SRM Manual Dual Line Head
99944200900
U-Turn Head
2008 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved
PARTS CATALOG

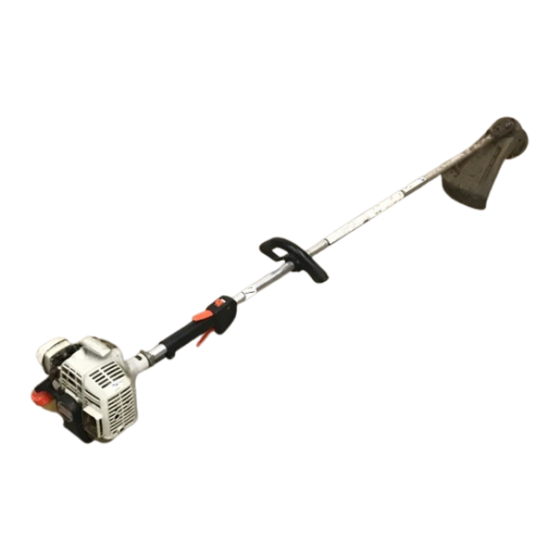

SRM-210 Trimmer
MODEL:SERIAL NUMBERS
SRM-210:
S/N: 08001001 - 08999999
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047 USA
WWW.ECHO-USA.COM
21.2cc
99922203252_210/08
REVISED 09/09/08
