OPTIONAL ATTACHMENTS & ACCESSORIES
Accessories
99944100025
Rain Gutter Kit
99944200300
Yard Shield
2008 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved
PARTS CATALOG

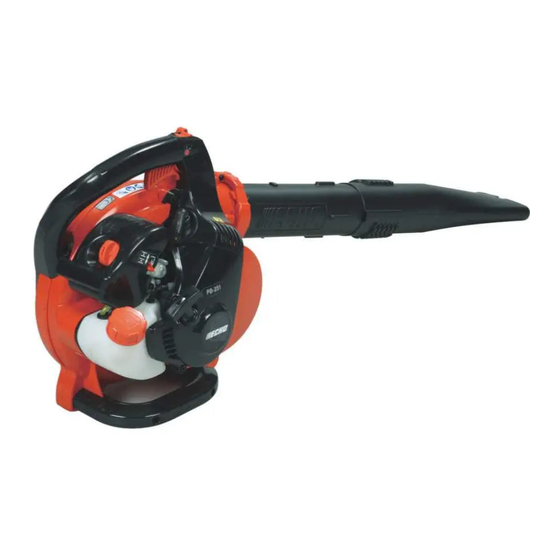

PB-251 Power Blower
MODEL:SERIAL NUMBERS
PB-251:
S/N: P06113001001 - P06113999999
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047 USA
WWW.ECHO-USA.COM
25.4cc
99922204047
REVISED 10/03/08
Advertisement
Table of Contents
Related Manuals for Echo PB-251 - PARTS CATALOG SERIAL NUMBER P06113001001-P06113999999
Summary of Contents for Echo PB-251 - PARTS CATALOG SERIAL NUMBER P06113001001-P06113999999
- Page 1 PB-251 Power Blower 99944200300 Yard Shield 25.4cc MODEL:SERIAL NUMBERS PB-251: S/N: P06113001001 - P06113999999 ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, Illinois 60047 USA WWW.ECHO-USA.COM 99922204047 REVISED 10/03/08 2008 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved...
-
Page 2: Table Of Contents
Table of Contents Part Number Index Table of Contents Click Any Diagram Description Below To View That Diagram. PB-251 S/N: P06113001001 - P06113999999 Fuel System..................................4 Starter....................................6 Intake....................................8 Carburetor -- RB-K85..............................10 Exhaust...................................12 Handle, Switch, Throttle Cable............................14 Blower Tubes..................................16 Fan Housing...................................18 Ignition, Cylinder Cover..............................20 Engine, Short Block - SB1092............................22 Labels.....................................24 Gasket Kit..................................26... - Page 3 This Page Intentionally Left Blank - 3 -...
-
Page 4: Fuel System
Table of Contents Part Number Index PB-251 Power Blower Fuel System 99922204047 - 4 - REVISED 10/03/08... - Page 5 Table of Contents Part Number Index PB-251 Power Blower Fuel System ITEM PART NUMBER DESCRIPTION REMARKS A350000760 TANK, FUEL 90025305020 SCREW 5X20 90060300005 WASHER 5 V420001430 CUSHION 13211544330 GROMMET 13201049730 PIPE, RETURN - 3X6X85mm REPOWER BULK OPTION: 90017 V471001860 PIPE, FUEL - 3X5X175mm REPOWER BULK OPTION: 90014 13201309820 CLIP...
-
Page 6: Starter
Table of Contents Part Number Index PB-251 Power Blower Starter 99922204047 - 6 - REVISED 10/03/08... - Page 7 Table of Contents Part Number Index PB-251 Power Blower Starter ITEM PART NUMBER DESCRIPTION REMARKS V376000900 SPACER INCLUDES ITEMS 2-3 90016304016 SCREW 4X16 V263000070 FLANGE NUT 5 A052000200 STARTER PAWL ASY INCLUDES ITEMS 5-7 90070000004 E-RING 4 P022006510 SPRING, PAWL RETURN P022006850 PAWL, STARTER A051001060...
-
Page 8: Intake
Table of Contents Part Number Index PB-251 Power Blower Intake 99922204047 - 8 - REVISED 10/03/08... - Page 9 Table of Contents Part Number Index PB-251 Power Blower Intake ITEM PART NUMBER DESCRIPTION REMARKS V299000250 THUMB SCREW 13191103460 WASHER A232000340 LID, AIR CLEANER A226000350 FILTER, AIR A244000070 PLATE, PREVENT 90010505060 SCREW 5X60 P021010980 AIR CLEANER CASE ASY 13001642031 GASKET, INTAKE C480000070 GUIDE, CABLE V264000050...
- Page 10 Table of Contents Part Number Index PB-251 Power Blower Carburetor -- RB-K85 99922204047 - 10 - REVISED 10/03/08...
- Page 11 Table of Contents Part Number Index PB-251 Power Blower Carburetor -- RB-K85 ITEM PART NUMBER DESCRIPTION REMARKS A021001350 CARBURETOR -- RB-K85 P005002000 ROTOR COVER ASY 12534413931 SCREW, ROTOR COVER P005001240 SWIVEL P005000190 E-RING P005000100 SCREW, THROTTLE ADJUST P005001270 PLUG P005000280 O-RING ------------------ BODY, CARBURETOR...
-
Page 12: Exhaust
Table of Contents Part Number Index PB-251 Power Blower Exhaust 99922204047 - 12 - REVISED 10/03/08... - Page 13 Table of Contents Part Number Index PB-251 Power Blower Exhaust ITEM PART NUMBER DESCRIPTION REMARKS V104000820 SHIELD, EXHAUST A300000141 MUFFLER 90060300005 WASHER 5 V203000190 BOLT 5 A310000070 SCREEN, ARRESTOR V104000830 GASKET, EXHAUST A313000840 GUIDE, EXHAUST - INNER A313000850 GUIDE, EXHAUST - OUTER 9136704012 SCREW 4X12 A320000410...
-
Page 14: Handle, Switch, Throttle Cable
Table of Contents Part Number Index PB-251 Power Blower Handle, Switch, Throttle Cable 99922204047 - 14 - REVISED 10/03/08... - Page 15 Table of Contents Part Number Index PB-251 Power Blower Handle, Switch, Throttle Cable ITEM PART NUMBER DESCRIPTION REMARKS C411000010 COVER, HANDLE 90025305020 SCREW 5X20 90025305025 SCREW 5X25 90023805025 SCREW 5X25 90060300005 WASHER 5 C453000260 LEVER, THROTTLE 90060300005 WASHER 5 90056250005 FLANGE NUT 5 C450000241 TRIGGER, THROTTLE...
-
Page 16: Blower Tubes
Table of Contents Part Number Index PB-251 Power Blower Blower Tubes 99922204047 - 16 - REVISED 10/03/08... - Page 17 Table of Contents Part Number Index PB-251 Power Blower Blower Tubes ITEM PART NUMBER DESCRIPTION REMARKS E165000170 TUBE, BLOWER - NOZZEL E165000180 TUBE, BLOWER - STRAIGHT 99922204047 - 17 - REVISED 10/03/08...
-
Page 18: Fan Housing
Table of Contents Part Number Index PB-251 Power Blower Fan Housing 99922204047 - 18 - REVISED 10/03/08... - Page 19 Table of Contents Part Number Index PB-251 Power Blower Fan Housing ITEM PART NUMBER DESCRIPTION REMARKS E104000080 GRID, BLOWER 90025305020 SCREW 5X20 E162000000 FIXTURE, BLOWER TUBE E103000461 CASE, FAN 90010008014 BOLT 8X14 10014319830 WASHER E100000070 FAN, BLOWER E103000451 CASE, FAN 90016204020 SCREW 4X20 C410000390...
-
Page 20: Ignition, Cylinder Cover
Table of Contents Part Number Index PB-251 Power Blower Ignition, Cylinder Cover 99922204047 - 20 - REVISED 10/03/08... - Page 21 Table of Contents Part Number Index PB-251 Power Blower Ignition, Cylinder Cover ITEM PART NUMBER DESCRIPTION REMARKS A411000290 COIL, IGNITION 9111304020 BOLT V475003380 TUBE, INSULATOR A427000013 CAP, SPARK PLUG A429000010 COVER, CAP A426000010 TERMINAL, SPARK PLUG CAP 15901019830 SPARK PLUG -- BPM-8Y A425000000 CANADA MODELS SPARK PLUG -- BPMR-8Y...
- Page 22 Table of Contents Part Number Index PB-251 Power Blower Engine, Short Block - SB1092 99922204047 - 22 - REVISED 10/03/08...
- Page 23 Table of Contents Part Number Index PB-251 Power Blower Engine, Short Block - SB1092 ITEM PART NUMBER DESCRIPTION REMARKS SB1092 SHORT BLOCK - SB1092 INCLUDES ITEMS 2-21 90016205025 SCREW 5X25 A130000780 CYLINDER V100000190 GASKET, CYLINDER P021010260 PISTON KIT INCLUDES ITEMS 6-9 A101000140 RING, PISTON V606000000...
-
Page 24: Labels
Table of Contents Part Number Index PB-251 Power Blower Labels 99922204047 - 24 - REVISED 10/03/08... - Page 25 LABEL - CAUTION -- HOT X532000671 LABEL - SPARK PLUG -- BPM-8Y X532000720 LABEL - SPARK PLUG -- BPMR-8Y CANADA MODELS X503008160 LABEL - MODEL -- PB-251 X502000330 LABEL, ECHO X506000080 LABEL, CHOKE X506000090 LABEL, CHOKE CANADA MODELS X508000120 LABEL, NOISE X505002080...
-
Page 26: Gasket Kit
Table of Contents Part Number Index PB-251 Power Blower Gasket Kit 99922204047 - 26 - REVISED 10/03/08... - Page 27 Table of Contents Part Number Index PB-251 Power Blower Gasket Kit ITEM PART NUMBER DESCRIPTION REMARKS P021012350 GASKET KIT 99922204047 - 27 - REVISED 10/03/08...
-
Page 28: Repower Tune-Up Kit
Table of Contents Part Number Index PB-251 Power Blower RePower Tune-Up Kit 99922204047 - 28 - REVISED 10/03/08... - Page 29 Table of Contents Part Number Index PB-251 Power Blower RePower Tune-Up Kit ITEM PART NUMBER DESCRIPTION REMARKS 90107C TUNE-UP KIT 99922204047 - 29 - REVISED 10/03/08...
-
Page 30: Part Number Index
Table of Contents Part Number Index Part Number Index Click The Page Number After Any Part Number To View The Diagram Containing That Part. Part Number Page Part Number Page Part Number Page ------------------ ..... 9, 11 A427000013 ....X547000520 ....10001411520 .... -
Page 31: Part Description Index
COVER, ENGINE..15 SHORT BLOCK - SB1092..23 LABEL, CAUTION..25 COVER, EXHAUST..13 SPACER..7 LABEL, CHOKE..25 COVER, HANDLE..15 SPACER, PISTON PIN..23 LABEL, ECHO..25 COVER, THROTTLE..15 SPARK PLUG -- BPM-8Y..21 LABEL, NOISE..25 CRANKCASE KIT..23 SPARK PLUG -- BPMR-8Y..21 LEAD, GROUND..15 CRANKSHAFT ASY..23 SPRING, METERING LEVER..11 LEAD, IGNITION..21... - Page 32 ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 USA WWW.ECHO-USA.COM...
