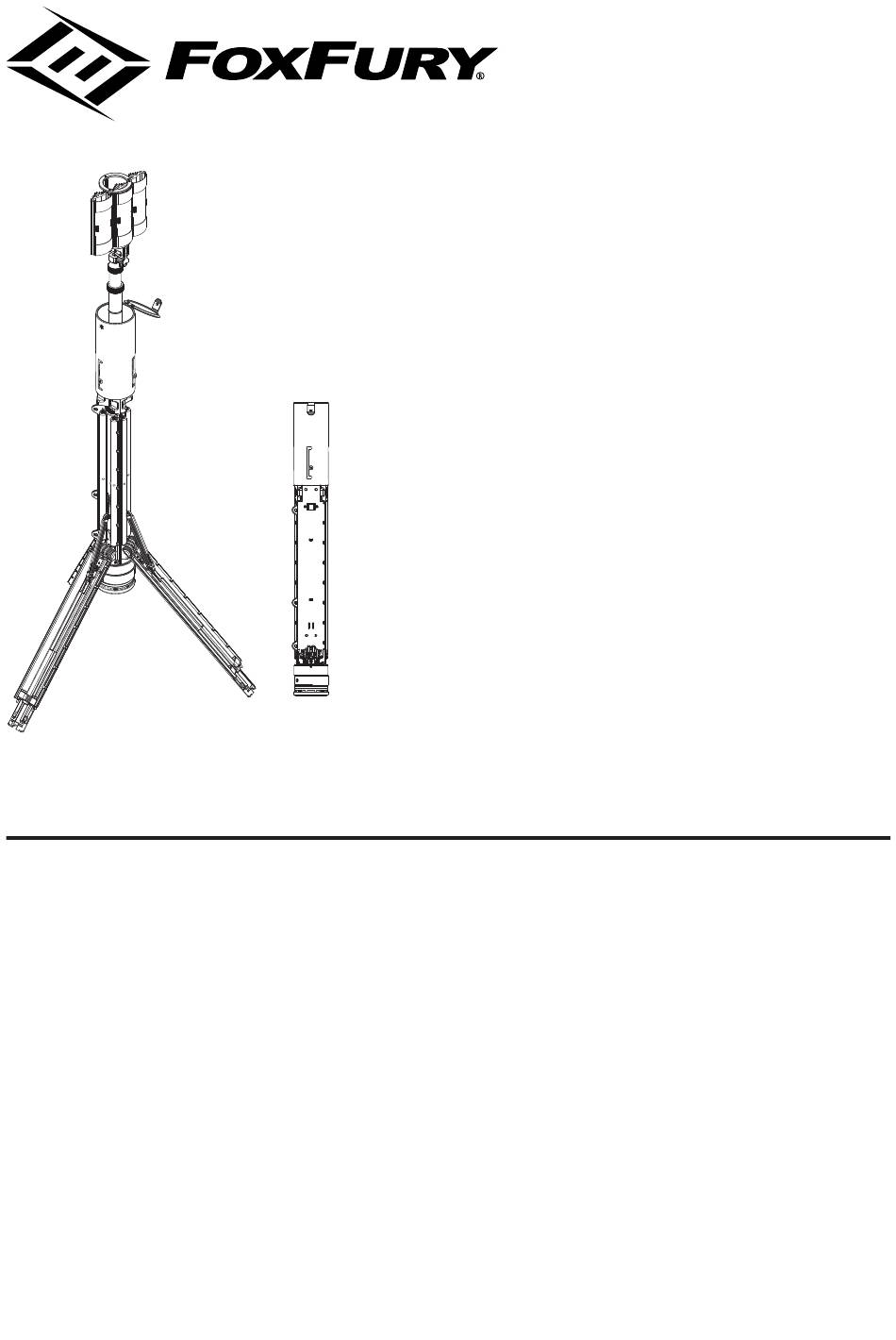

- Page 1 360, T32 & T56 NOMAD NOMAD ® 200-900 | 200-900-TC | 200-9T32 | 200-9T56 *Discontinued *Discontinued PRODUCT MANUAL...
-
Page 2: Table Of Contents
Using the Nomad while Plugged in ® FEATURES Light Head Configuration Sliding Diffuser Lens (Area-Spot) Swivel and Tilt Light Head Leveling Leg Extensions and Level Bubble Anchor Strap DEPLOYING THE NOMAD 10-11 ® MAINTENANCE 12–17 ACCESSORIES WARRANTY 18–19 CONTACT FOXFURY... -
Page 3: Reference Guide
360 REFERENCE GUIDE DEPLOYED VIEW 1/4"-20 MOUNT SLIDING DIFFUSER LENS (3) (AREA-SPOT) LIGHT HEAD TIL T ADJUSTMENT KNOB SWIVEL ADJUSTMENT KNOB (340º) TRIPO-SCOPE ® TIGHTENING RINGS TRIPO-SCOPE ® POLES CARRY STRAP CLIP LEVEL BUBBLE PROTECTIVE LIGHT CAP LOCKING SLEEVE BATTERY SYSTEM BATTERY LIFE/ CHARGE INDICATOR TRIPO-SCOPE... -
Page 4: Overview
OVERVIEW The Nomad 360 ultimate scene light can provide up to 8,800 lumens with ® a high CRI of 90. Its portable, submersible and self-contained design allows it to travel to (and be used in) places that standard scene lights and vehicle mounted lights cannot reach. -
Page 5: Charging The Batteries
FULL Y CHARGED GREEN (FLASHING) CHARGING RED (SOLID) CHARGING ERROR* *If a charging error occurs, please contact FoxFury Customer Service (see p. 19). WARNINGS: • Do not leave the unit plugged into an electric power source after unit is fully charged. -
Page 6: Ac-Dc Adaptor And International Use
The Nomad Series has an AC-DC Adaptor which uses AC Cables like those ® used in desktop computers or monitors. With every Nomad , FoxFury supplies ® a cable that terminates in the USA standard 110 VAC plug. BARREL CONNECTOR... -
Page 7: Using The Nomad ® While Plugged In
BATTERY LIFE BATTERY MODE LIFE* LUMENS LUMENS LUMENS HIGH POWER 3 hours 8,800 7,000 8,200 MEDIUM POWER 9 hours 2,640 2,800 3,200 LOW POWER 24 hours FLASHING** 9 hours 8,800 *Battery life may vary according to age and ambient conditions. **Flashing Mode not available on the Nomad®... -
Page 8: Features
FEATURES LIGHT HEAD CONFIGURATION The Nomad Light Head has the versatility to be used in a 360° or Directional ® configuration. 360° DIRECTIONAL SLIDING DIFFUSER LENS (AREA-SPOT) Using the Sliding Diffuser Lens on the Nomad provides two types of lights ®... -
Page 9: Swivel And Tilt Light Head
SWIVEL AND TIL T LIGHT HEAD The Nomad Light Head has the versatility to swivel (via the Swivel ® Adjustment Knob) and tilt (via the Tilt Adjustment Knob). LEVELING LEG EXTENSIONS AND LEVEL BUBBLE On uneven ground, fine adjustments can be made by releasing the Leveling Leg Extensions. -
Page 10: Deploying The Nomad
DEPLOYING THE NOMAD ® LEGS LOCKED LEGS RELEASED TIL T HINGE ADJUSTMENT SCREW KNOB LIGHT HEAD (SIDE VIEW) LEVELING LEG EXTENSION RELEASED... - Page 11 Set the Nomad down vertically , on a flat surface, as shown. Open the ® Protective Light Cap and twist the Locking Sleeve to the right ( ) and slide upwards ( ). While still holding the Locking Sleeve up, twist it back to the left ( ).
-
Page 12: Maintenance
MAINTENANCE REMOVING THE BATTERY TUBES 30 MINS ESTIMATED The Nomad uses 12 Battery Tubes. Repeat the following steps six (6) times in ® order to replace all 12 Battery Tubes. BATTERY COVER(S) ON BATTERY COVERS REMOVED BATTERY TUBES REMOVED... - Page 13 Make sure the Nomad is OFF and UNPLUGGED before starting. ® Open the folding Tripo-Scope Legs so they are locked and deployed. ® Then, locate a Battery Cover. Use a Phillips Head ( + ) #1 Screwdriver to remove the four (4) screws that hold the Battery Cover.
- Page 14 INSTALLING THE BATTERY TUBES 30 MINS ESIMATED Installing the Nomad Battery Tubes follows the same procedures as removing ® them but in reverse order. RED CAP (POSITIVE + ) LOWER BATTERY TUBE UPPER BATTERY TUBE BATTERY TUBE PLACEMENT WHILE INSTALLED (HORIZONTAL VIEW) WARNINGS Be sure to check polarity positive ( +) and negative ( –...
-
Page 15: General Maintenance Tips
REMOVING THE SLIDING DIFFUSER LENS 3 MINS ESTIMATED Slide the Sliding Diffuser Lens back into the 'Area' setting. Locate and remove the four (4) screws located on each side of it. Then, tilt the Sliding Diffuser Lens forward. Pull the Sliding Diffuser Lens out and free from the Light Head. NOTE: Repeat the steps above three (3) times with all three (3) Light Panels (the Nomad has three (3) Sliding Diffuser Lens'). - Page 16 As needed, wash the Nomad using a soft washcloth, clean water and a ® mild soap. When done, pat dry with a soft cloth. When charging your Nomad , keep the temperature between 32°F and ® 113°F (0°C and 45°C). STORING YOUR NOMAD ®...
- Page 17 The Nomad Light Head can be replaced if another color temperature is ® needed, or if the unit is damaged or requires service. Please contact FoxFury Customer Service (see p. 19) for more information. NOTE: Replace Nomad 360 Heads only with other Nomad 360 Heads.
-
Page 18: Warranty And Other Information
Be sure that all WARNINGS parts are reassembled securely before FoxFury, LLC is not responsible for the washing. When done, pat dry with a incorrect use of any FoxFury Lighting damp cloth. -
Page 19: Contact Foxfury
State of of the serial number). To expedite California to cause cancer and birth warranty concerns, we encourage defects or other reproductive harm. the end user to register their FoxFury For more information go to www. Product at https://www.foxfury . P65Warnings.ca.gov. - Page 20 FOXFURY .COM 5/2024...
