SERVICE MANUAL
Ver 1.0 2004. 04
• CMT-CPX22 and MHC-NXM3 are composed of following models.
As for the service manual, it is issued for each component model, then, please refer to it.
COMPONENT MODEL NAME

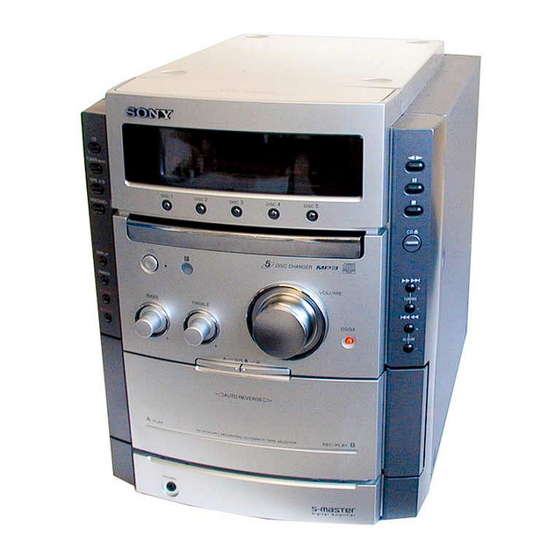

COMPACT DISC DECK RECEIVER SYSTEM
SPEAKER SYSTEM
SPECIFICATIONS
General
Power requirements
U.S.A. model:
120 V AC, 60 Hz
European and Russian models:
230 V AC, 50/60 Hz
Saudi Arabian model:
120 – 127 V or 220 – 240 V AC, 50/60 Hz
Adjustable with voltage selector
Other models:
120 V, 220 – 240 V AC, 50/60 Hz
Adjustable with voltage selector
Power consumption
U.S.A. model:
65 watts
European models:
65 watts
0.3 watts (in Power Saving mode)
Other models:
65 watts
Dimensions (w/h/d) incl. projecting parts and controls
Amplifier/Tuner/Tape/CD section:
Approx. 230 x 292 x 355 mm
Mass
Amplifier/Tuner/Tape/CD section:
Approx. 6.1 kg
Supplied accessories
Remote Commander (1)
Size AA (R6) batteries (2)
AM loop antenna (1)
FM lead antenna (1)
Speaker pads (8)
Speaker cords (2)
Design and specifications are subject to change without notice.
• Abbreviation
E3 : 240 V AC Area in E model
E51 : Chilean and Peruvian model
EA : Saudi Arabia model
Sony Corporation
9-877-827-01
Home Audio Company
2004D02-1
Published by Sony Engineering Corporation
© 2004.04
CMT-CPX22
MHC-NXM3
HCD-CPX22
HCD-NXM3
SS-CPX22
SS-NXM3
PARTS LIST
Ref. No.
Part No.
1-478-518-21 COMMANDER, STANDARD (RM-SC3)
1-501-374-12 ANTENNA, LOOP (AM)
1-793-184-23 CONNECTOR (F TYPE ADAPTOR) (FM)
1-824-005-21 CORD (WITH CONNECTOR) (for SPEAKER)
2-022-183-11 MANUAL, INSTRUCTION (ENGLISH, RUSSIAN)
4-210-254-02 CUSHION (FOOT) (for SPEAKER)
4-253-813-11 MANUAL, INSTRUCTION (ENGLISH)
4-253-813-21 MANUAL, INSTRUCTION (FRENCH) (E3, EA)
4-253-813-31 MANUAL, INSTRUCTION
4-253-813-41 MANUAL, INSTRUCTION
4-253-813-51 MANUAL, INSTRUCTION
4-253-813-61 MANUAL, INSTRUCTION (ARABIC) (E3, EA)
4-254-992-11 MANUAL, INSTRUCTION
4-254-992-21 MANUAL, INSTRUCTION (PORTUGUESE) (AEP)
4-254-992-31 MANUAL, INSTRUCTION (GERMAN) (AEP)
4-254-992-41 MANUAL, INSTRUCTION
4-254-992-51 MANUAL, INSTRUCTION (TARKISH) (AEP)
4-254-992-61 MANUAL, INSTRUCTION (SLOVAKIAN) (AEP)
MICRO Hi-Fi COMPONENT SYSTEM
MiNi Hi-Fi COMPONENT SYSTEM
CMT-CPX22/
MHC-NXM3
US Model
CMT-CPX22
AEP Model
CMT-CPX22/MHC-NXM3
UK Model
E Model
CMT-CPX22
Description
ACCESSORIES
************
(FRENCH, SPANISH) (AEP, E51)
(GERMAN, ITALIAN, DUTCH) (AEP)
(PORTUGUESE, SWEDISH) (AEP)
(DANISH, FINNISH) (AEP)
(CZECH, HUNGARIAN) (AEP)
HCD-CPX22
MHC-NXM3
Remarks
(MHC-NXM3)
