Summarization of Contents
Introduction to Motive Integration
Compatibility with Thermo King Units
Lists the compatible Thermo King Transport Refrigeration Units (TRUs) supported by the Motive solution.
Required Components for Integration
Outlines the essential components needed for the Motive integration, including the Asset Gateway and Cable 4000.
Pre-install Steps for Thermo King
Step 1: Identify Unit Type (BlueBox or iBox)
Determine if your Thermo King unit has a BlueBox or iBox installed.
Step 2: Enable Software Setting via Dealer
Contact your Thermo King dealer to enable a specific software setting for integration.
Step 3: Navigate to Guarded Access Mode
Guides users on how to access the Guarded Access Mode on the Thermo King physical controller unit.
Step 4: Configure 3rd Party Device Control
Navigate to Hardware Configuration and set 3rd Party Device Control to COM1.
Step 5: Enable Remote Device Functionality
Navigate to Programmable Features and set Remote Device to Enabled.
Step 6: Set COM1 Default Baud Rate
Navigate to Programmable Features and set COM1 Default Baud Rate to 9600.
Step 7: Configure TK Telematics Settings
Set REB Type or TK Telematics Configured to Ibox+Cell+GPS.
Step 8: Add Sleep to Mode Menu
Navigate to Main Menu Configuration and Add Sleep to the Mode Menu.
Step 9: Perform Post-Configuration Verification
Perform verification steps for iBox and BlueBox units after configuration.
Installation of Motive Asset Gateway
Step 1: Download and Log Into Motive Fleet App
Download and log into the Motive Fleet App from the Google Play Store or Apple App Store.
Step 2: Choose Optimal Asset Gateway Location
Select an optimal location for the Asset Gateway on the trailer, following recommended guidelines.
Step 3: Follow In-App Installation Guidance
Utilize the Motive Fleet App's Devices tab for guided installation instructions.

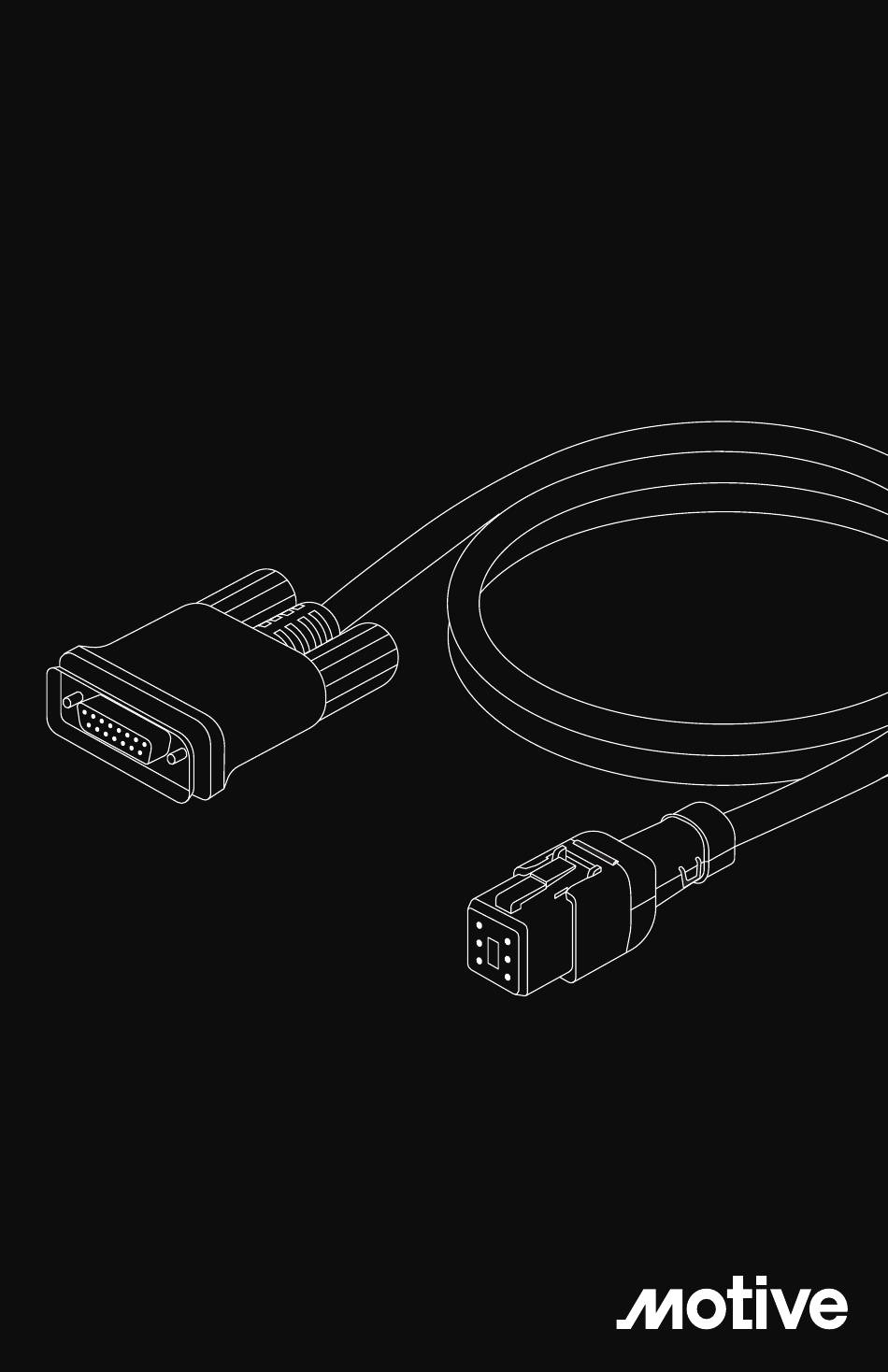

Step 4: Connect Cable 4000 to Asset Gateway
Connect the Cable 4000 to the Motive Asset Gateway.
Step 5: Connect Cable 4000 to Cable 4001 Adapter
Connect the orange 6-pin Deutsch connector of Cable 4000 to the Cable 4001 Adapter.
Step 6: Connect Cable 4001 Adapter to Harness
Connect the Cable 4001 Adapter to the Thermo King's 3rd party harness.
Step 7: Refer to Thermo King Connection Details
Consult Thermo King's instructions for detailed connection points for single and multi-temp units.
