- Page 1 TECHNICAL MANUAL Filter fan IP54 EKF Exit filter IP54 EKF...
-
Page 2: Technical Data

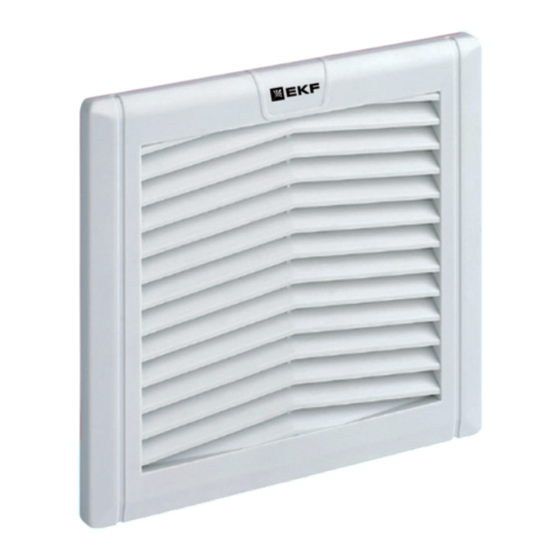

1 DESCRIPTION Filter fans EKF are used to maintain temperature and cool devices in distri- bution enclosures to ensure their optimal performance. They generate air flow that removes heat buildup and prevents overheating of components. To change the air flow direction, simply turn over the axial fan. The fans are highly durable and can withstand weathering and UV radiation. - Page 3 Exit filter 291x291mm IP54 EKF FAN19F Filter fan 19m3/h 92x92mm IP54 EKF FAN52F Filter fan 52m3/h 124x124mm IP54 EKF FAN102F Filter fan 102m3/h 176x176mm 220V IP54 EKF FAN170F Filter fan 170m3/h 176x176mm 220V IP54 EKF FAN305F Filter fan 305m3/h 223x223mm 220V IP54 EKF FAN433F...
-
Page 4: Overall Dimensions
3 OVERALL DIMENSIONS Figure 1. Filter fan 19m /h and exit filter 92x92mm IP54 EKF... - Page 5 Figure 2. Filter fan 52m /h and exit filter 124x124mm IP54 EKF...
- Page 6 Figure 3. Filter fans 102m /h, 170m /h and exit filter 176x176mm EKF...
- Page 7 Figure 4. Filter fan 305m /h and exit filter 223x223mm IP54 EKF...
- Page 8 95 / 115 Figure 5. Filter fan 433m /h and exit filter 291x291mm EKF Filter fan 850m /h and exit filter 291x291mm EKF...
-
Page 9: Installation And Connection
The pre-configured air flow direction is “OUT”. To change the flow direction to “IN”, turn the axial fan over. 5 DELIVERY SCOPE Filter fans and exit filters EKF are supplied in an individual package. For all available documentation, scan the QR-code on the insert or on the inside of the package. -
Page 10: Safety Requirements
6 SAFETY REQUIREMENTS Do not use or operate filter fans or exit filters with visible mechanical damage. WARNING! Follow all safety procedures when operating filter fans and exit filters. Do not use in corrosive environment. 7 MAINTENANCE For maintenance, follow national safety rules for operation of electrical Instal- lations. -
Page 11: Certificate Of Acceptance
Techno Hub-2, Dubai Silicon Oasis, P.O. box 341079, Dubai, United Arab Emirates, tel. +9 (714) 547-06-18. Importer and EKF trademark service representative оn the territory of the Republic of Kazakhstan: TOO «Energoresheniya Kazakhstan», Kazakhstan, Almaty, Bostandyk district, Turgut Ozal st., 247, apt 4.
