Victron & Sunwoda Energy
1. Product & system compatibility
Battery
SunESS Series
Appearance
ESS
Module
capacity
Module limit
Max
capacity
1.1 Offgrid, Backup and Energy Storage Systems
Victron + Sunwoda Energy can be used for the following system types:
 Off-grid
 Grid Backup
 Energy Storage Systems (ESS) - Self Consumption
1.2 A GX-device is required, eg Cerbo GX
It is essential to use the CAN-bus connection of the GX device (e.g. Cerbo
GX) - this communicates the keep-alive signal, charge and discharge limits,
error codes and state of charge (SOC %) between the batteries and the
system.
yes
5kWh
12
60kWh

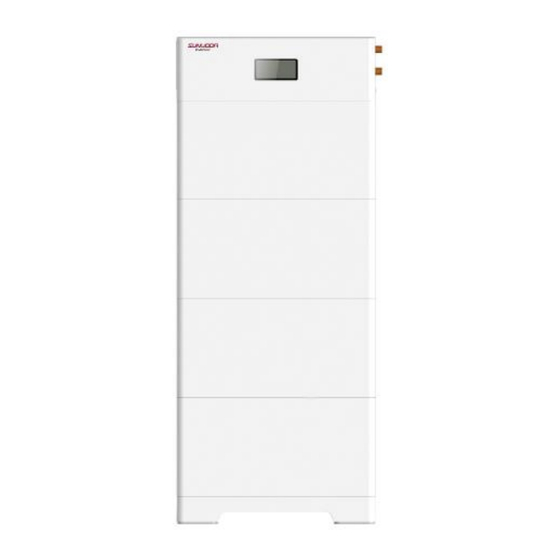

Atrix Series
yes
5kWh
24
120kWh
Monawall
series
yes
5kWh
24
120kWh
