- Page 1 A23 - A41 - A42 manual Amplifier Operating Instructions quint audio www.quintaudio.com www.quintaudio.com...
- Page 2 Index: Index Welcome Legend Unpacking, use, misuse, accessories, cooling Front panel Back panel Connections Specifications Power consumption Warranty & disclaimer EC Declaration of Confirmity, WEEE www.quintaudio.com...
- Page 3 As part of a continuous evolution of techniques and standards, Quint Audio BV reserves the right to change the specifications of the product and the content of this manual without prior notice. Please check the Quint Audio BV web site at www.quintaudio.com on a regular basis for latest updates.

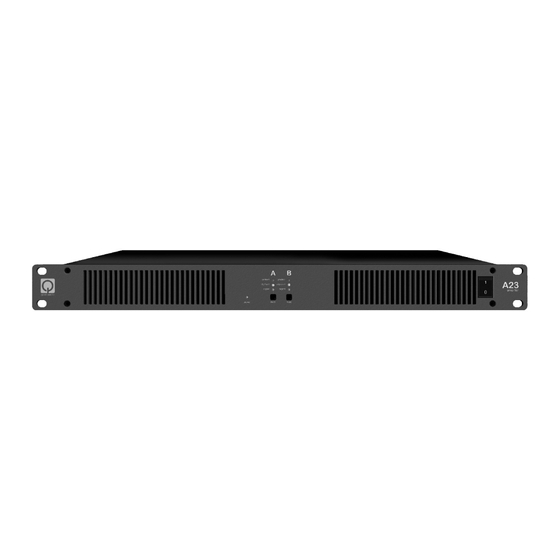

- Page 4 A23 / A41 / A42 Power Amplifier Series • • Class D power amplifier • Switching mode power supply • Active power factor correction • High efficiency design • Compact, light weight, road proof • Wide range power supply; 100~240VAC / 50~60Hz •...
-
Page 5: Water And Moisture
IMPORTANT Carefully open the shipping carton and check the product for any noticeable damage. Each Quint Audio BV product is tested and inspected before leaving the factory and should arrive in perfect condition. If found to be damaged, notify the shipping company or the distributor immediately. -
Page 6: Front Panel Controls And Indicators
Front panel controls & indicators on/off switch LED color red; amplifier in protection mode * LED color yellow; output signal clip or limit (clip limiter activated) bi-color LED: color green; input level > -16dB / color red; mute activated black button; press to mute / unmute channel bi-color LED: color green;... -
Page 7: Back Panel Connectors
Back panel connectors Power Balanced audio Temperature 100-240VAC/50-60Hz XLR3 connectors controlled A23 & A42: cooling fans Neutrik® powerCON 32A connector A41: Neutrik® powerCON True1 Top Loudspeaker outputs Loudspeaker outputs Neutrik ® speakON 4 Neutrik ® speakON 4 quint audio... - Page 8 A23; 2-channel connections outputs 1+ 1- 1+ 1- 2+ 2- manufactured by Quint Audio - The Netherlands C A U T I O N Mains 100-240V input link input link RISK OF ELECTRIC SHOCK - DO NOT OPEN 50-60Hz 3600W quint audio CH-A&B...
-
Page 9: Specifications
100-240VAC +/- 10%，50-60Hz Under voltage, DC, Over temperature, Overload limiter, Short Circuit protection. Protection Size(W×H×D) 483x44x465mm 483x44x370mm Net weight 12kg Test conditions: 20ms,1kHz,THD+N=1%. Input sensitivity GAIN(dB) Outline dimensions 3.89V 3.18V 2.25V 483 mm 44 mm 465 mm (A41 370mm) quint audio... - Page 10 Test signal: Pink Noise, bandwidth limited from 22Hz to 22kHz. 1/8 power is typical for program material with occasional clipping. Refer to these figures for most applications. 1/3 power represents program material with extremely heavy clipping. 2x3000W (A23) Line Current(A) Power(W)
-
Page 11: Warranty
Quint Audio BV warrants the original purchaser and any subsequent owner of each new Quint Audio BV product, for a period of 2 years limited from the date of the original purchase by the original purchaser that the new Quint Audio BV product is free of defects in materials and workmanship. -
Page 12: Weee Declaration
Quint Audio BV. A23, A41 and A41 are alpha numeric designations for Quint Audio BV products and accesories are trademarks of Quint Audio BV. All third-party trademarks mentioned herein are the property of their respective trademark holders.
