Babylo i-Size Base Instruction Manual

Travel system, car seat
Hide thumbs
Table of Contents

Advertisement

Quick Links

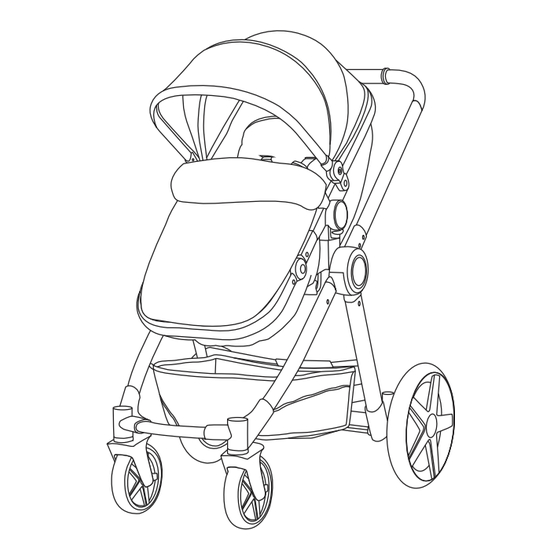

Panorama XT i
Travel System
Instruction Manual
IMPORTANT:
RETAIN FOR FUTURE REFERENCE
READ CAREFULLY
111022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-Size Base and is the answer not in the manual?

Questions and answers

Related Manuals for Babylo i-Size Base

Summary of Contents for Babylo i-Size Base

  • Page 1 Panorama XT i Travel System Instruction Manual IMPORTANT: RETAIN FOR FUTURE REFERENCE READ CAREFULLY 111022...
  • Page 2 Safety IMPORTANT: RETAIN FOR FUTURE REFERENCE READ CAREFULLY WARNING! Read these instructions carefully before assembly and use and keep for future reference. The child may be hurt if you do not follow these instructions. This product is suitable for one child from birth (max. weight 15kg). Suitable from birth in pram mode up to a maximum weight of 9kg or until the child can sit up unaided, roll over or push itself up on its hands and knees.
  • Page 3 Safety WARNING! Use the most reclined position for new born babies. WARNING! Do not add an additional mattress to the pram/pushchair. WARNING! Do not place the product near an open re or other source of strong heat. • Adult assembly is required. •...
  • Page 4 Parts List chassis front wheels rear wheels rear wheel axle bumper bar seat unit harness apron canopy seat liner raincover i-Size car seat car seat adaptors (set)
  • Page 5 Chassis Assembly Unpack all contents and check that all parts are present before starting assembly. Please refer to the parts list. 1a. Release the chassis (A) from the locked folded position. Press the grey safety release button on the right frame release lever and pull both frame release levers back.
  • Page 6 Chassis Assembly 2. Attach the rear wheel axle (D) to the rear of the chassis. Push down until you see the silver locking pins lock into place and you hear a “click”. 3a. Push each rear wheel (C) into the sides of the rear wheel axle until you hear a “click”.
  • Page 7 Chassis Assembly 4a. Insert each of the front wheel (B) pins into the center of the socket until you hear a “click”. Give each wheel a rm tug to ensure they’re securely attached. 4b. To remove the front wheels, simply press the grey button on the side of the wheel socket and pull.
  • Page 8 Pram Mode 1. Press the buttons either side of the seat unit (F) footrest and pull up the footrest so it is in line with the rest of the frame. 2. On the rear of the seat unit, fasten the Velcro panels as illustrated. WARNING! The fabric must cover the metal bracket.
  • Page 9 Pram Mode 3a. Attach the seat unit to the chassis. Line up the seat connectors with the chassis housing and press downwards. Listen for a “click” to signal correct assembly. 3b. Lift lever both sides of the seat connectors to remove the seat unit from the chassis.
  • Page 10 Pram Mode Insert the seat liner (J) into the seat unit to add extra comfort for baby. 5. Insert the bumper bar (E) into the seat unit slots ensuring that the release buttons are on the outside and you hear a “click”. Give the bumper bar a tug to ensure it’s securely in place.
  • Page 11 Pram Mode 6. Fasten the apron (H), secure the zip around the side and attach Velcro over the bumper bar. 7a. Attach the canopy (I) to the seat unit. First attach the plastic canopy clips to their respective sides, ensuring that they sit over the small plastic guides located on each side of the seat unit frame.
  • Page 12 Pram Mode Suitable from birth in pram mode up to a maximum weight of 9kg or until the child can sit up unaided, roll over or push itself up on its hands and knees. WARNING! Never use in pram mode with seat unit forward facing.
  • Page 13 Pushchair Mode 1. Lift lever both sides of the seat connectors to remove the seat unit from the chassis. 2. Fasten the webbing belts located on the rear side of the seat unit footrest. Listen for the “click” to signal buckles are secure.
  • Page 14 Pushchair Mode Attach the harness (G) to the seat unit. Thread the shoulder strap retainers under the webbing holders and out through the horizontal slots in the seat unit backrest. Thread the waist strap retainers through the vertical slots in the seat unit backrest and thread the crotch strap retainer through the horiztonal slot at the centre of the seat unit.
  • Page 15 Pushchair Mode Re-attach the seat unit to the chassis. Locate the backrest adjustment mechanism at the rear of the seat unit. Squeeze the clip on the reclining harness and gently pull up the backrest. Lift the lever at the back of the seat unit to adjust the seat unit recline. Ensure you hear a “click”...
  • Page 16 Pushchair Mode 5a. The seat unit is reversible in pushchair mode. It can be forward or parent facing. forward parent facing facing 5b. Lift lever both sides of the seat connectors to remove the seat unit from the chassis. To re-attach the seat unit to the chassis, line up the seat connectors with the chassis housing and press downwards.
  • Page 17 Harness 1. Slide the shoulder strap buckle onto the housing of the waist strap buckle. Repeat for the other side. 2. Insert the completed buckle into the buckle housing until it engages securely in place. Listen for the ‘click’. Repeat for the opposite side. 3.
  • Page 18 Harness 4. To adjust the shoulder straps, move the slides as shown. WARNING! Always adjust the harness to fit your child correctly for their comfort and safety. A loose tting harness can be very dangerous. 5. There are 3 shoulder height positions. Undo the harness and remove the shoulder pads to adjust the shoulder height.
  • Page 19 Canopy Adjustment 1. The canopy can be opened or closed by pulling forward or backward on the canopy rim. 2. The canopy features an extension and a viewing window to keep an eye on baby in forward facing position. There is mesh either side of the extension panel for ventilation and a pull out sun shade at the front of the canopy for maximum sun protection.
  • Page 20 Footrest Adjustment Press both footrest buttons simultaneously and adjust the footrest to the desired position. Listen for the “click” signalling that the footrest is locked into position.
  • Page 21 Handle Adjustment Push the button in the middle of the handle bar and pull or push the handle to your desired height. The handle will “click” into place. There are 3 handle positions.
  • Page 22 Swivel Wheels When travelling along straight surfaces or uneven terrain, the front wheels may spin. To lock the front swivel wheels into place, press down on the grey buttons on the top of the wheel sockets. To go back to 360° swivel mode, press the buttons again.
  • Page 23 Wheel Suspension Locate lever underneath the rear wheel axle. Move lever towards the back for softer suspension. For harder suspension, move lever towards the front. WARNING! Ensure that lever is adjusted to the same position on both sides.
  • Page 24 Brakes Press down on the brake pedal to engage the brake. Listen for the “click” signalling that the brake is locked. Push the brake pedal upwards to disengage the brake. WARNING! Always apply the parking brake when the pram is not moving.
  • Page 25 Seat Liner There is a seat liner (J) included for the seat unit. To use the liner in pushchair mode, undo the harness and remove the chest pads and crotch pad. 2. Thread the harness through the slots in the seat liner allocated for the waist, shoulder and crotch straps.
  • Page 26 Raincover Locate the raincover (K). Pull the raincover down over the pram starting at the top of the canopy and pulling down towards the footrest. NOTE. The raincover will t in both pushchair and pram mode.
  • Page 27 Travel System An i-Size car seat (L) and set of adaptors (M) are included to complete the travel system. 1a. Remove the seat unit from the chassis to t the adaptors. Line up the adaptors with the chassis housing and press downwards. Listen for a “click”...
  • Page 28 Travel System 2a. Push down on the release button located on the side of the car seat and pull upwards to remove. 2b. Lift lever both sides of the adaptors to remove the adaptors from the chassis.
  • Page 29 Folding 1a. Remove the seat unit or the car seat to fold the chassis. WARNING! Never attempt to fold the chassis with the seat unit or car seat still attached. 1b. Locate and lift lever both sides of the seat connectors to remove the seat unit from the chassis.
  • Page 30 Folding 3. Push the handle downwards. 4. Lift the carry strap to close. The locking catch with engage automatically. WARNING! To avoid injury ensure that your child is kept away when unfolding and folding this product.
  • Page 31 Care Maintenance: • The product requires regular maintenance to ensure correct and safe • performance. • Regularly inspect the wheels, locks, brakes, harness, catches, seat adjusters, • joints and xings to ensure they are clean, operating correctly and in full •...
  • Page 32 Due to variation in style and design the illustrations used in this instruction manual are generic. Variation in design may occur in the images shown. Supplied by Babylo International, 79/ 80 Furze Road, Sandyford Business Estate, Dublin 18. Ireland International House, 12 Constance Street, London, E16 2DQ, United Kingdom...
  • Page 33 Panorama XT i-Size Car Seat Instruction Manual ECE R129/03 40-87 cm ≤13kg IMPORTANT: RETAIN FOR FUTURE REFERENCE READ CAREFULLY 140922...

  • Page 34: Table Of Contents

    Contents INDEX ............... . FIXING MODES .

  • Page 35: Fixing Modes

    Fixing Modes FIXING WITH VEHICLE SAFETY BELTS The Babylo Panorama XT i-Size car seat is installed in the vehicle using the 3-point seatbelt. It cannot be installed using a 2-point or lap belt. FIXING WITH ISOFIX BASE The Babylo Panorama XT i-Size car seat...

  • Page 36: Components

    Components 1 Carrying handlebar 2 Handle adjustment button 3 Chest belt protectors 4 Crotch belt protection 5 Harness buckle 6 Shoulder straps 7 Button for belt adjustment 8 Adjustment strap 9 Guide loop for the lap belt 10 Canopy 11 Headrest 12 Seat reducer cushion 13 Frame 14 Chest belt guide loop...

  • Page 37: Product Information

    The Panorama XT i-Size car seat alone can also be installed with only the 3-point seat belt of the static vehicle or with reel, approved according to UN/ECE Regulation N ° 16 or other equivalent standards.

  • Page 38: Warnings

    Warnings IMPORTANT! READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE The instruction manual should be kept safely with child car seat for its life period. IMPORTANT: This child restraint system must always be used in a rearward facing position. WARNING! Assembly and installation operations must be carried out by adults.
  • Page 39 Warnings WARNING! DO NOT use a restraint device with damaged or missing parts. WARNING! DO NOT use the harness or seat belts if they are damaged or show signs of wear. WARNING! After an accident the child restraint system should be replaced and the vehicle seat belts.

  • Page 40: How To Secure Your Child

    How to Secure your Child Fig. 1 Fig. 2 click! Fig. 3 Fig. 4 Fig. 5 Fig. 6...
  • Page 41 How to Secure your Child Seat belt adjustment: IMPORTANT! Make sure the car seat is free from toys and hard objects. - Loosen the shoulder straps (6) by pressing the central adjustment button (7) and pulling both shoulder straps upwards at the same time ( g. 1). - Undo the belt buckle by rmly pressing the red button (B).

  • Page 42: Adjusting The Sun Canopy

    Adjusting the Carrying Position The carrying handlebar can be locked in four positions. To adjust the carrying handlebar, press the left and right buttons (D) at the same time, then rotate the handlebar (1) forwards or backwards until it automatically locks in one of the 4 desired positions: a - In vehicle driving position.

  • Page 43: Removing The Car Seat Cover

    Removing the Car Seat Cover The car seat cover consists of 6 parts: 1 x backrest cover (15), 1 x infant reducer cushion (12), 1 x canopy (10), 1 x headrest cover (11), 1 x belt buckle pad (4) and 2 x shoulder strap pads (3). To remove, please follow these instructions: - Remove the canopy (10) from the frame, paying attention to the two rubber bands xed to the carrying handlebar.

  • Page 44: Instruction For Use In The Car

    Instructions for Use in the Car...

  • Page 45: Installing The Car Seat In The Vehicle

    Make sure that the child is properly secured with the restraint harness and that the car seat is rmly xed in the car. Refer to the Babylo i-Size Base instruction manual for tting instructions with the ISOFIX base.

  • Page 46: Cleaning

    Cleaning It is important to only use the original upholstery as this is an essential part of the functionality. DO NOT wash fabrics. Spot clean only using a soft sponge with diluted detergent or water. Dry in shade and not in the sun. Do not iron. Do not dry clean. Wipe metals and plastic parts with a mild detergent and lukewarm water.

  • Page 47: Product Lifespan

    Product Lifespan This child car seat has been designed to be able to perform its intended functions with ordinary use for a product life of approximately 7 years. Gradual wear of plastic, for example caused by exposure to sunlight (UV), can cause a slight deterioration of product properties.
  • Page 48 Due to variation in style and design the illustrations used in this instruction manual are generic. Variation in design may occur in the images shown. Supplied by Babylo International, 79/ 80 Furze Road, Sandyford Business Estate, Dublin 18. Ireland International House, 12 Constance Street, London, E16 2DQ, United Kingdom...
  • Page 49 i-Size Base Instruction Manual ECE R129/03 40-87 cm ≤13kg IMPORTANT: RETAIN FOR FUTURE REFERENCE READ CAREFULLY 140922...
  • Page 50 Contents INDEX............... . 02 COMPONENTS .

  • Page 51: Components

    Components 1 Support leg 2 Car seat release button 3 Car seat fastening brackets 4 Installation label 5 Base 6 ISOFIX connectors 7 ISOFIX release buttons 8 Support foot 9 Adjustment button for the support foot...

  • Page 52: Product Information

    "i- Size" as indicated by the vehicle manufacturer in the use and maintenance booklet. When used in combination with Panorama XT i-Size car seat, this Child Restaint System has been approved for transportation in cars of children from birth, height between 40 and 87cm, up to maximum weight of 13kg.

  • Page 53: Warnings

    Warnings IMPORTANT! READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE The instruction manual should be kept safely with child car seat for its life period. IMPORTANT: This child restraint system must always be used in a rearward facing position. WARNING! Never keep a baby on your lap in a vehicle.
  • Page 54 Warnings WARNING! Do not install the i-Size Base on the seats facing the opposite direction. WARNING! Make sure the i-Size Base is not blocked by the door or a foldable seat. WARNING! Do not modify, dismantle or add to any part of the base or car seat. WARNING! Always secure your child with the safety harness.

  • Page 55: Base Installation

    Base Installation Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5...
  • Page 56 Base Installation Refer to the car's manual to identify the ISOFIX points in the vehicle. IMPORTANT! The ISOFIX anchor points (A) are two metal wings for seats and are located between the backrest and the car seat. If in doubt, refer to the instruction manual of your car for assistance. IMPORTANT! Do not place objects in the foot area in front of the child seat.

  • Page 57: Fixing The Car Seat To The Base

    - Rotate the handlebar against the seat to “in vehicle driving position” (Fig. 3). (read manual of the Babylo Panorama i-Size Car Seat for adjusting the seat handlebar). IMPORTANT! ONCE THE OPERATION IS COMPLETED, CHECK THE CORRECT FIXING OF THE...

  • Page 58: Removing The Base From The Vehicle

    Car Seat Removal Pull the release button (2) to unlock the car seat and lift the car seat with the handlebar. The base indicator (D) will turn to RED. Removing the Base from the Vehicle - Unlock both ISOFIX connectors (6) by simultaneously pressing the buttons (7) and extract them from the vehicle's ISOFIX connection guides (A).

  • Page 59: Protecting Your Car

    From using the i-Size Base, traces of use and / or discoloration can appear on some vehicle seats made with delicate materials (eg velvet, leather, etc.). Babylo cannot be held responsible for any damage or marking of the vehicle seat upholstery.

  • Page 60: Product Lifespan

    Product Cleaning and Care What to do after an accident: WARNING! An accident can cause damage to the car seat that is not clearly visible. The base must be replaced even if it is intact after an accident. If in doubt, contact your dealer or manufacturer. Product Lifespan This product has been designed to be able to perform its intended functions with ordinary use for a product life of approximately 7 years.
  • Page 61 Due to variation in style and design the illustrations used in this instruction manual are generic. Variation in design may occur in the images shown. Supplied by Babylo International, 79/ 80 Furze Road, Sandyford Business Estate, Dublin 18. Ireland International House, 12 Constance Street, London, E16 2DQ, United Kingdom...
