Summary of Contents for Heatscope Pure+ 3000W

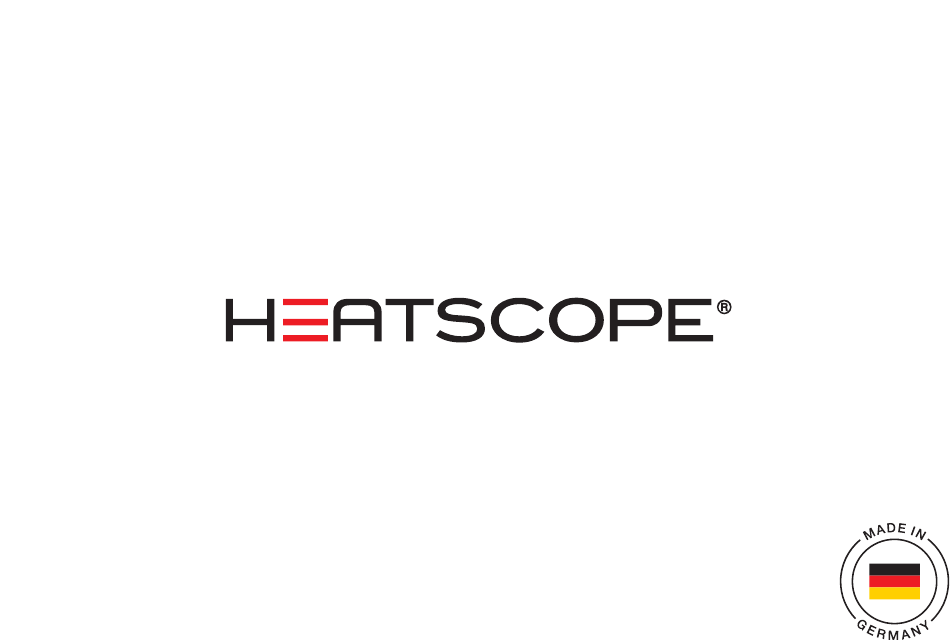

  • Page 2 Operation, Installation & Clearances Before installing a HEATSCOPE Heater it is paramount that you ® familiarise yourself with the following: > How to operate (3 easy ways to operate the heater) > Minimum clearances and installation requirements > Wiring & WiFi set up...

  • Page 3: How To Operate

    How to operate Option 1 - Operated with a Wall-switch The easiest way to install a HEATSCOPE Heater is by ® using a wall-switch. We recommend installing a 3 gang wall-switch. The 1st switch is the safety (Isolation) switch used for cutting off the electrical power entirely.
  • Page 4 ® This small Dual WiFi Smart Switch will be hidden inside the customers wall or ceiling. The Dual WiFi Smart Switch The HEATSCOPE Heater will receive To turn the heater ON the customer will ® use a phone or tablet that will send a...
  • Page 5 With one click, the Remote Control will The Zigbee Bridge will receive the The Dual WiFi Smart Switch The HEATSCOPE Heater will receive ® send a signal to turn the heater ON. signal from the Remote Control.
  • Page 6 How to operate Reminders • Internet connection is required if the customer want to operate by WiFi. Dual WiFi Smart Switch is only compatible with 2.4GHz band. Download the eWeLink app to your cell phone or tablet and sign up for an account. •...

  • Page 7: Installation

    Installation Can I install the heater myself? What is the minimum height Can my radiant heater be Can HEATSCOPE heaters be Can I cover my HEATSCOPE ® ® clearance required? installed near a power outlet? mounted directly on a wooden...

  • Page 8: Maintenance

    10,000 hours Changing the carbon fibre Please contact our helpdesk heater from the power supply at of operation. elements of the HEATSCOPE team on (02) 9997 3050 between ® least 1 hour after operation. Make heater must not be done by...
  • Page 9 • For customers looking for compatible. by the floor, walls and furniture. a unique design, the Pure+ • HEATSCOPE Heaters are ® • Ceiling mounted heaters also have is the best choice due to its...

  • Page 10: Installation & Clearances

    Installation & Clearances For Ceiling Mounted installations (Applicable to all models) Minimum Height Clearance 200cm from the ground Minimum Side Clearance >10 cm 40cm between the heater and a side wall, and between heaters when positioned side-by-side 10cm between the heater and a side wall when you angle the heater Refer to the manual for minimum clearances in glasshouses or glass ceilings.
  • Page 11 15cm between the heater and a side wall when you install heater on a pitched ceiling When mounted on a pitched ceiling >15 cm the HEATSCOPE Pure+ must always ® have the power cord on the lower end of the appliance.
  • Page 12 Installation & Clearances For Wall Mounted installations (Spot and Vision Only) Minimum Height Clearance >15 cm >15 cm 180cm from the ground, this is for the lower edge of the heater Minimum Side Clearance 150cm from the wall in front of the heater 40cm between the heater and a side wall, and between heaters...
  • Page 13 Installation & Clearances For Wall Mounted installations (Pure+ only) Minimum Height Clearance > 25 cm > 25 cm 180cm from the ground, this is for the lower edge of the heater Minimum Side Clearance 150cm from the wall in front of the heater 40cm between the heater and a side wall, and between heaters...
  • Page 14 15cm between the ceiling and the top edge of the heater (when you install heater on an angle) When mounted on an angle, HEATSCOPE ® Pure+ must always have the power cord on the lower end of the appliance.
  • Page 15 Installation & Clearances Incorrect installations Spot and Vision Wall & Ceiling Installations A+B. Models can not be installed on an angle or pitched ceiling C. A minimum clearance of 150cm [59in] is required if model is facing a wall Wall Installations D.
  • Page 16 Installation & Clearances Incorrect installations Pure+ Wall & Ceiling Installations A+B. The cable connection needs to be on the lower side of the model C. A minimum clearance of 150cm is required if model is facing a wall Wall Installations D.
  • Page 17 Wiring & WiFi Set Up Dual WiFi Smart Switch (w/ App) ZigBee Wireless Switch (Remote Control) & ZigBee Motion Sensor heatscopeheaters.com...
  • Page 18 To the eWeLink APP using BLUETOOTH BEFORE STARTING – PLEASE MAKE SURE THE WIFI SWITCH IS CONNECTED TO THE HEATER BY FOLLOWING: Wiring diagram for the following models: Spot 2800W HTS.1.SPT.28.BL L out 1 Isolation switch HTS.1.SPT.28.WH L out 2...
  • Page 19 WiFi Set Up Step 1 Step 2 Download the eWeLink app to your cell phone or tablet and sign up for an account. You can Create an account with eWeLink if you don’t have one already. download from Google Play or App Store. Connect eWeLink to the device and your network.
  • Page 20 WiFi Set Up Step 3 Step 4 After powering the heater breaker ON, press the Isolation Switch ON to turn the Wi-Fi On your phone or tablet, tap “+” and select Bluetooth pairing, then follow the switch ON and to enter the Bluetooth Pairing Mode during first time use. The WiFi prompt on the APP.
  • Page 21 OFF, press the Isolation button on the wall switch to OFF. Select Switch then select External Trigger Mode and select Edge mode then Save. NOTE: If you are connecting multiple HEATSCOPE heaters, repeat steps 2 – 5 until all ®...
